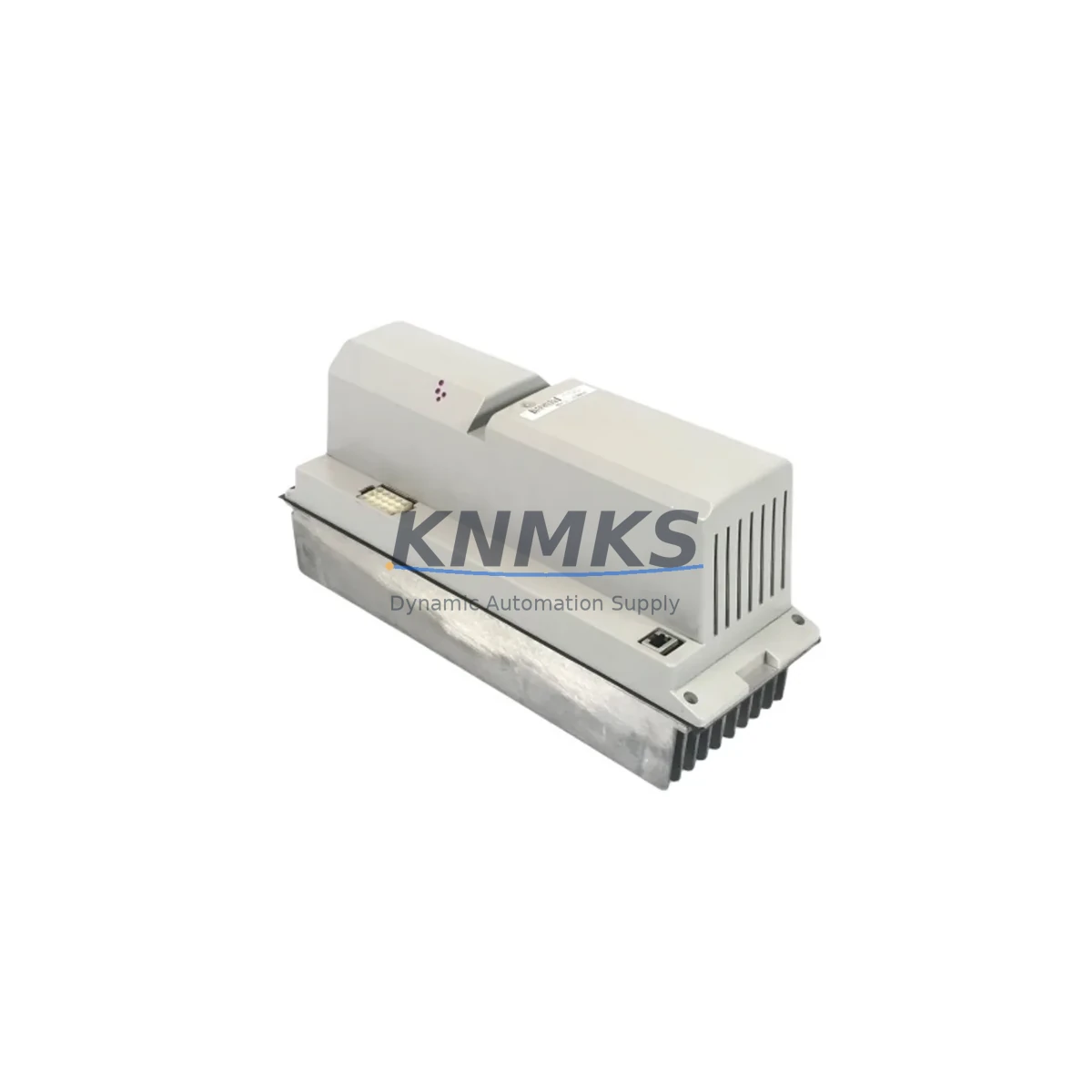

ABB DSQC346E 3HAB8101-11/10A Migration-Ready AC Servo Drive

Overview

ABB DSQC346E 3HAB8101-11/10A Migration-Ready AC Servo Drive for Legacy Control Systems

The ABB DSQC346E (part number 3HAB8101-11/10A) is a high-reliability AC servo drive unit designed for direct integration into ABB S4C+ and IRC5 robot controller platforms. As legacy automation lines face increasing pressure from discontinued spare parts and aging drive hardware, the DSQC346E remains one of the most sought-after retrofit components for facilities managing multi-axis robot cells, transfer lines, and precision assembly systems. This unit is sourced from verified supply channels, pre-shipment tested under load conditions, and backed by a support terms confirmed by quotation — making it a dependable choice for both emergency replacement and planned system upgrades.

Whether you are replacing a failed drive in a running production cell or executing a phased migration from an S4C+ platform to a modernized IRC5 architecture, the DSQC346E provides the electrical and mechanical compatibility required to minimize engineering rework. Its form factor matches the original backplane slot dimensions, and its interface pinout aligns with the standard DSQC drive bus used across the S4C+ controller family. Engineers performing a swap-out should confirm the axis number assignment in the robot configuration file (typically MOC.CFG) and verify that the drive firmware revision is compatible with the installed RobotWare version before powering up.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the DSQC346E typically begins with a full audit of the controller cabinet. Before removing the failed drive, document the existing wiring harness routing, connector labels, and any site-specific cable modifications. In S4C+ installations, the drive bay is shared with other DSQC-series modules — including the DSQC345 axis computer and the DSQC374 power supply unit — so care must be taken to avoid disturbing adjacent modules during extraction.

Power capacity is a critical checkpoint. The DSQC609 power supply, commonly used in IRC5 single-cabinet configurations, must be verified to deliver sufficient current headroom for the replacement drive, particularly in multi-axis cells where the DSQC346E may be operating alongside additional servo axes. If the existing PSU is already near its rated output, a parallel power supply upgrade should be planned as part of the same maintenance window.

For facilities running DeviceNet or PROFIBUS-based I/O networks alongside the robot controller, the DSQC378 DeviceNet board or DSQC352 PROFIBUS adapter should be inspected for firmware compatibility with the updated drive configuration. In some IRC5 installations, the DSQC652 I/O unit handles digital signal routing between the robot controller and external PLC systems — any changes to the drive axis mapping may require corresponding updates to the I/O signal table in the robot system parameters.

HMI screens linked to axis status displays should also be reviewed. If the facility uses a FlexPendant or a third-party SCADA interface reading axis current and torque data, the signal names and register addresses may need to be re-mapped after the drive replacement to ensure accurate real-time monitoring. This is especially relevant in lines where the DSQC346E controls a high-precision axis such as a wrist joint or a linear track unit.

Programming cable access is another practical consideration. During commissioning, a direct connection to the IRC5 service port using the standard ABB programming cable allows engineers to run the drive calibration routine and verify resolver offset values without requiring full production restart. Keeping a calibrated spare DSQC346E on the shelf — alongside a documented backup of the robot system configuration — is the most effective strategy for reducing unplanned downtime in high-utilization cells.

Downtime Control During System Migration

Minimizing production interruption during a drive replacement requires preparation that begins well before the maintenance window opens. The original program logic stored in the robot controller is not affected by a drive swap, provided the system backup was taken with the Save System function in RobotStudio or via the FlexPendant backup utility. This backup preserves all RAPID program modules, system parameters, I/O configurations, and tool data — allowing the restored system to resume from the exact pre-failure state once the new DSQC346E is installed and calibrated.

For cells where stopping the robot also halts upstream or downstream conveyor logic, coordinating the drive replacement with the broader line PLC shutdown sequence is essential. If the robot controller communicates with a Siemens S7 or Allen-Bradley ControlLogix PLC via a DSQC378 DeviceNet interface, the PLC program should be placed in a safe hold state before power is removed from the controller cabinet. This prevents false fault signals from propagating to the line control system and triggering unintended safety interlocks.

Once the DSQC346E is seated in the drive bay and all connectors are secured, the recommended commissioning sequence is: power-on self-test, axis calibration via the FlexPendant calibration wizard, a low-speed jog test across the full axis range, and finally a dry-run of the production program at reduced speed before returning to full production rate. This structured approach protects the mechanical system, validates the wiring integrity, and confirms that the replacement drive is performing within specification — all within a controlled, documented process that supports both internal quality records and customer audit requirements.

Retrofit Support FAQ

Q1: Is the DSQC346E a direct replacement for earlier DSQC346 variants such as DSQC346A or DSQC346C?
Yes. The DSQC346E is electrically and mechanically compatible with earlier DSQC346 series variants in S4C+ and IRC5 controller platforms. The backplane connector, motor power interface, and resolver wiring pinout are consistent across the series. Confirm the RobotWare version and axis configuration file before installation to ensure firmware alignment.

Q2: What wiring checks are required before installing the replacement drive?
Inspect the motor power cable connector for pin corrosion or bent contacts, verify the resolver/encoder cable shield continuity, and confirm that the drive bus ribbon connector on the backplane is free of debris. Document the original cable routing before disconnection. Any site-modified wiring should be restored to the original specification to avoid axis calibration errors during commissioning.

Q3: How is pre-shipment testing performed on this unit?
Each DSQC346E unit undergoes a full functional test under simulated load conditions prior to dispatch. The test verifies power stage operation, drive bus communication, and thermal performance. A test record is available upon request. Units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q4: What support terms and supply continuity terms apply?
All DSQC346E units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. Support terms coverage includes drive failure under normal operating conditions and excludes damage caused by incorrect installation, overvoltage events, or unauthorized modification. KNMKS maintains inventory stock to support ongoing supply for facilities with multi-year spare parts agreements. Contact the sales team to discuss long-term supply arrangements for critical spare parts programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSQC346E 3HAB8101-11/10A
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB DSQC346E 3HAB8101-11/10A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
