ABB DSQC3041 Fail-Safe Servo Drive Interface Module

Overview

ABB DSQC3041 Fail-Safe Servo Drive Interface Module: Fault Protection for Critical Industrial Control

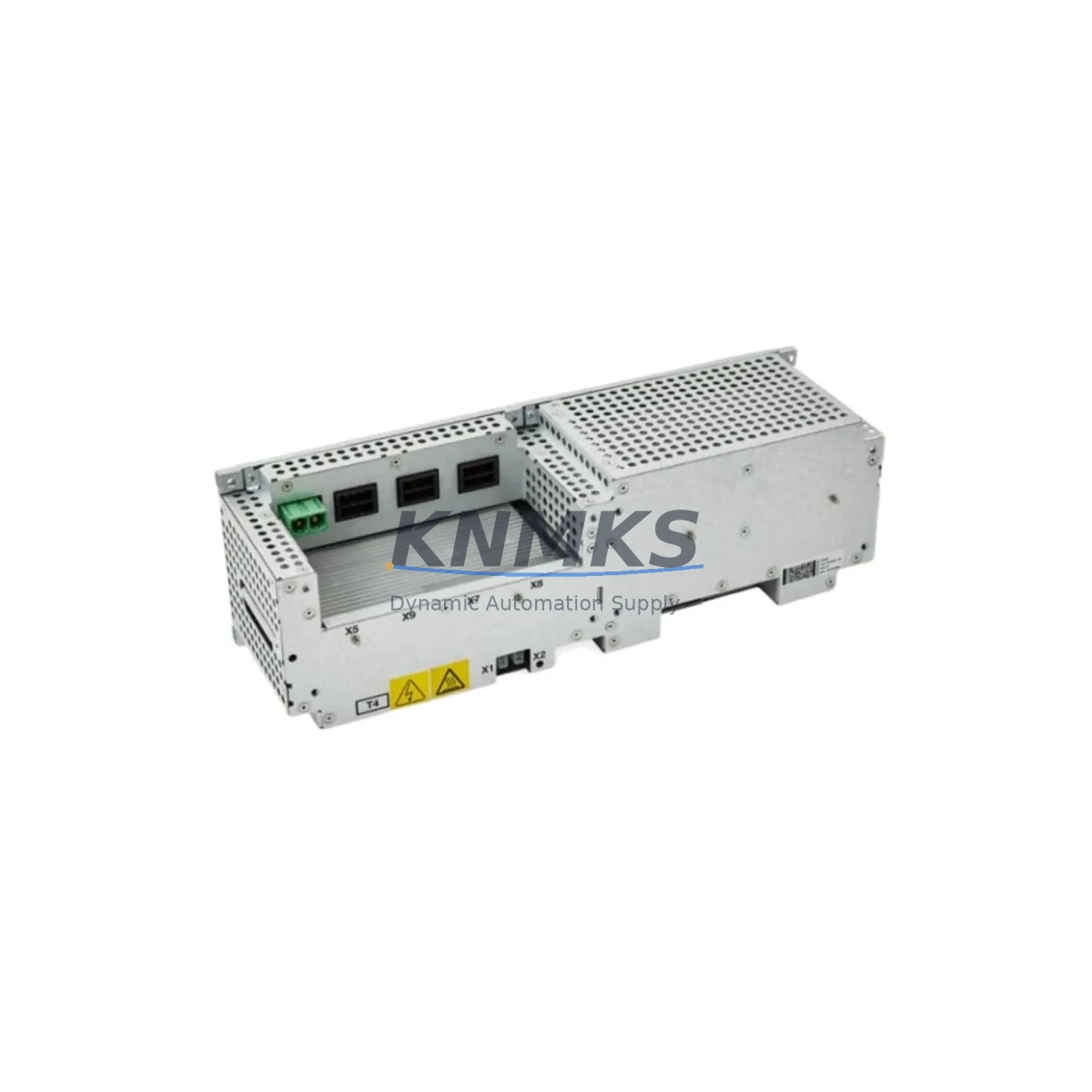

The ABB DSQC3041 is a precision-engineered Servo Drive Interface Module designed for ABB IRC5 robot controller cabinets operating in demanding industrial environments. As a core communication and signal-conditioning bridge between the IRC5 main computer and the servo drive units, the DSQC3041 plays a decisive role in maintaining uninterrupted motion control, preventing axis runaway, and ensuring fail-safe shutdown sequences during abnormal operating conditions.

In continuous production lines — whether in automotive body welding, precision assembly, or heavy-load palletizing — any degradation in the servo interface layer can cascade into axis faults, emergency stops, or unplanned downtime. The DSQC3041 is engineered to resist exactly these failure modes. Its onboard signal isolation architecture suppresses common-mode noise and high-frequency transients generated by adjacent variable-frequency drives, contactors, and high-current switching loads within the same control cabinet. This makes it particularly reliable in high electromagnetic interference (EMI) environments such as arc welding cells, induction heating stations, and large motor drive panels.

Each DSQC3041 unit supplied by KNMKS undergoes a comprehensive pre-shipment functional test protocol, verifying communication integrity across all servo channels, checking power rail stability, and confirming fault detection response times. This testing discipline ensures that replacement units perform identically to factory-new specifications from the moment of installation — eliminating the risk of introducing a secondary fault during a critical maintenance window.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The DSQC3041 does not operate in isolation — its reliability is directly tied to the health of the surrounding control architecture within the IRC5 cabinet. In high-cycle production environments, the servo interface module works in close coordination with the ABB DSQC662 Fieldbus Adapter, which manages real-time EtherNet/IP or DeviceNet communication between the robot controller and the plant-level PLC. Any communication anomaly at the fieldbus layer — packet loss, timing jitter, or bus-off events — can trigger protective shutdowns that the DSQC3041 must handle gracefully without corrupting axis position data.

Power quality within the cabinet is equally critical. The ABB DSQC609 Power Supply Unit provides the regulated 24 VDC rail that feeds the DSQC3041 and other logic-level modules. Voltage sag, ripple, or transient spikes on this rail — often caused by large inductive loads switching nearby — are a leading cause of premature servo interface failures. Maintaining a healthy DSQC609 or its equivalent replacement is therefore a prerequisite for long-term DSQC3041 reliability.

In dual-cabinet IRC5 configurations, the ABB DSQC668 Axis Computer Module manages the upper-level motion planning and distributes axis commands to the drive interface layer. A degraded DSQC668 can produce malformed command packets that stress the DSQC3041’s input buffers, leading to intermittent axis faults that are difficult to diagnose without replacing both modules systematically. Maintaining a spare DSQC668 alongside the DSQC3041 is a recommended practice for facilities running multi-axis heavy-payload robots in continuous shifts.

For cabinet thermal management — particularly in foundry, die-casting, or outdoor enclosure installations — the ABB DSQC508 I/O Module and associated cabinet cooling units should be inspected regularly. Elevated ambient temperatures above 45°C accelerate electrolytic capacitor aging on the DSQC3041’s power conditioning circuits, reducing mean time between failures. Pairing the DSQC3041 replacement with a cabinet thermal audit is a best practice that significantly extends the service interval of the entire drive interface assembly.

In safety-rated applications — such as collaborative robot cells, press-brake guarding, or conveyor interlocks — the ABB DSQC643 Safety Board provides the hardware-level emergency stop and safeguard monitoring that works in tandem with the DSQC3041’s fault output signals. Ensuring both modules are in verified condition before recommissioning a safety circuit is mandatory under IEC 62061 and ISO 13849 functional safety standards.

Critical Industrial Safety Applications

The ABB DSQC3041 is deployed across a wide spectrum of safety-critical industrial environments where robot control reliability directly impacts personnel safety, product quality, and production continuity.

In petrochemical and refinery facilities, IRC5-controlled robots perform valve actuation, pipe inspection, and hazardous material handling in Zone 2 classified areas. The DSQC3041’s fault isolation capability ensures that a drive-side anomaly triggers a controlled safe-state rather than an uncontrolled axis movement near pressurized process equipment.

In electric power generation and substation maintenance, robotic systems equipped with IRC5 controllers perform live-line inspection and switchgear maintenance. The DSQC3041’s EMI shielding is essential in these environments, where high-voltage switching generates intense electromagnetic fields that can corrupt servo feedback signals and cause positioning errors.

In underground mining and tunnel boring operations, IRC5 robots handle rock drilling, explosive placement, and ore transport in environments characterized by extreme vibration, dust ingress, and humidity. The DSQC3041’s vibration-rated design and sealed connector interfaces maintain signal integrity under these conditions, preventing the axis drift and communication timeouts that could lead to equipment collisions in confined spaces.

In water and wastewater treatment plants, robotic systems manage chemical dosing, pipe inspection, and pump maintenance in high-humidity, chemically aggressive environments. The DSQC3041’s humidity tolerance and corrosion-resistant board coating ensure reliable operation without the accelerated oxidation failures common in lesser-grade interface modules.

In steel and aluminum smelting facilities, IRC5 robots perform ladle handling, billet transfer, and furnace tapping in environments with ambient temperatures exceeding 50°C and intense radiant heat. Thermal management of the DSQC3041 in these installations requires careful cabinet ventilation design, and KNMKS provides application-specific installation guidance for high-temperature deployments upon request.

In port and container terminal automation, IRC5-controlled gantry and stacking robots operate continuously across three shifts in outdoor environments subject to salt spray, temperature cycling, and wind-induced vibration. The DSQC3041’s robust mechanical design and conformal-coated PCB variant options make it a preferred replacement choice for terminal operators seeking to minimize unplanned downtime during peak throughput periods.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the DSQC3041?
The KNMKS support terms confirmed by quotation cover all functional failures attributable to component defects, manufacturing anomalies, or pre-existing faults not caused by installation damage or electrical overstress beyond rated specifications. In the event of a support terms claim, KNMKS provides a direct replacement unit — pre-tested and ready to install — with priority dispatch to minimize production downtime. The confirmed support period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each DSQC3041 unit?
Every DSQC3041 unit is tested on an IRC5-compatible functional test bench prior to dispatch. The test protocol covers servo channel communication integrity, power rail voltage stability under load, fault detection response verification, and connector contact resistance measurement. A test record is maintained for each unit and is available upon request for quality audit purposes.

Q3: Is the DSQC3041 compatible with all IRC5 controller variants?
The DSQC3041 is designed for ABB IRC5 Single Cabinet and Dual Cabinet configurations across the standard IRC5 product family, including variants used with IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 6700 series robots. Compatibility with IRC5 Compact and IRC5 Panel Mounted Controller variants should be confirmed against the specific robot system software version. KNMKS technical support can assist with compatibility verification prior to order placement.

Q4: Can KNMKS support long-term spare parts supply agreements for the DSQC3041?
Yes. KNMKS offers structured spare parts supply agreements covering 12 to 36-month inventory reservation for facilities operating multiple IRC5 robot systems. These agreements include priority stock allocation, fixed pricing, and scheduled delivery to support planned maintenance programs and minimize exposure to spot-market price volatility for discontinued or end-of-life ABB modules. Contact [email protected] to discuss a tailored supply agreement for your facility.
