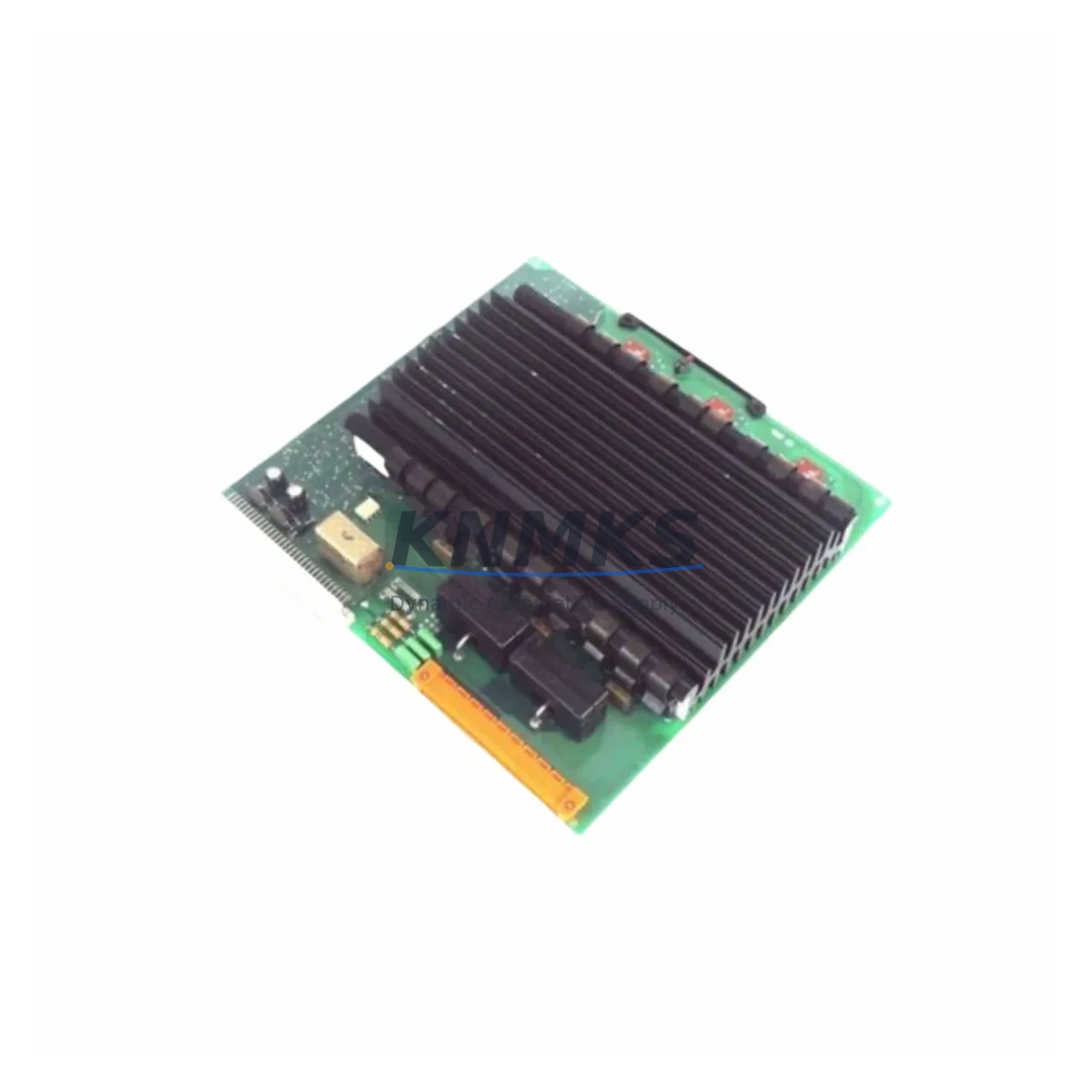

ABB DSQC266G 3HAB8801-1 Migration-Ready Servo Drive

Overview

ABB DSQC266G 3HAB8801-1 Migration-Ready Servo Drive for Legacy S4/S4C Control Systems

The ABB DSQC266G (3HAB8801-1) is a servo drive axis board engineered for direct replacement and migration use within ABB S4 and S4C robot controller cabinets. As ABB’s S4 and S4C platforms approach end-of-support status, engineering teams managing production lines, welding cells, and material handling systems face increasing pressure to source verified, drop-in replacement modules that eliminate extended downtime and costly re-engineering. The DSQC266G addresses this need precisely: it is a pre-tested, migration-ready axis board that restores servo drive functionality without requiring controller cabinet redesign or software re-architecture.

Before committing to a replacement, engineers must confirm several critical parameters. Power supply capacity within the existing S4/S4C cabinet must be validated against the DSQC266G’s input voltage and current draw specifications — mismatched power budgets are a leading cause of post-installation faults. Terminal wiring assignments on the axis board connector must be cross-referenced against the original DSQC266 or DSQC266A wiring diagrams; while the DSQC266G maintains backward-compatible pinouts in most configurations, individual axis channel assignments should be verified against the robot’s axis configuration file before powering up. Backplane interface compatibility with the S4C main computer board — typically the DSQC500 or DSQC532 — must also be confirmed, as firmware revisions on the main computer can affect axis board handshake behavior.

Module address configuration is handled through the S4/S4C system software. After physical installation, the axis board address must be set to match the original module’s position in the drive chain. Failure to replicate the original address mapping will result in axis communication faults and prevent the robot from entering automatic mode. Program compatibility is generally maintained when replacing like-for-like within the DSQC266 family, but engineers should archive the original RAPID program and system parameters before any hardware swap. HMI screen layouts tied to axis status displays should be reviewed to confirm that signal naming conventions remain consistent post-replacement.

Communication link integrity between the DSQC266G and the S4C panel computer must be verified through the system’s internal serial bus. In multi-axis configurations — common in six-axis articulated robots used in automotive and electronics assembly — each axis board in the drive rack must be individually addressed and tested. Installation space within the S4/S4C drive rack is standardized, and the DSQC266G occupies the same physical slot as its predecessors, eliminating the need for mechanical modification. Firmware version alignment between the axis board and the main computer board is essential; mismatched firmware can cause intermittent axis faults that are difficult to diagnose without access to the original system documentation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSQC266G retrofit within an S4/S4C controller cabinet requires a structured approach that accounts for the full drive system, not just the axis board in isolation. In most S4C installations, the drive rack houses multiple axis boards — the DSQC266G typically operates alongside additional DSQC266-series boards serving axes 4, 5, and 6, while axes 1 through 3 may be served by higher-current drive modules such as the DSQC268 or DSQC269. Engineers should audit the entire drive rack population before ordering replacement modules to avoid partial retrofits that leave aging boards in adjacent slots.

The S4C main computer board — commonly the DSQC500 or DSQC532 — manages axis coordination and must remain operational during the retrofit. If the main computer itself is approaching end-of-life, a phased replacement strategy is recommended: stabilize the axis drive layer first with verified DSQC266G units, then plan the main computer migration in a subsequent maintenance window. The DSQC378 I/O board, frequently installed in the same cabinet for digital and analog I/O expansion, should also be inspected for connector wear and firmware currency during any drive rack intervention.

Power distribution within the S4C cabinet is managed through the cabinet power supply unit. Before installing the DSQC266G, verify that the power supply — often a 24VDC unit serving both the drive electronics and the panel computer — has sufficient headroom to support the replacement board under full-load conditions. If the cabinet also houses a DSQC352 fieldbus communication board for DeviceNet or Profibus connectivity, confirm that the communication link remains stable after the axis board swap, as bus timing can be affected by changes in the drive rack configuration.

For sites running ABB RobotWare on the S4C platform, the system parameters file (SYS.CFG) should be backed up before any hardware change. After installing the DSQC266G, a cold start with parameter reload is typically required to re-establish axis calibration data. Field commissioning should include a full axis mastering sequence and a test run of the robot’s production program at reduced speed before returning the cell to full production.

Downtime Control During System Migration

Minimizing downtime during an S4/S4C axis board replacement requires preparation that begins well before the maintenance window opens. The original RAPID program, system parameters, and axis calibration data should be archived to a USB or network location using the S4C FlexPendant or system software backup utility. This archive serves as the recovery baseline if the replacement board requires re-commissioning from a known-good state.

Physical replacement of the DSQC266G is a slot-swap operation: the drive rack is de-energized, the original board is extracted, and the replacement is seated in the same slot. Connector orientation and locking tab engagement should be verified before re-energizing the cabinet. Once power is restored, the system will perform a self-test sequence; axis communication faults at this stage typically indicate an address mismatch or firmware incompatibility rather than a hardware defect.

To protect original program logic, engineers should avoid initiating a full system reset unless axis faults cannot be cleared through parameter reload alone. In most DSQC266G replacements, the robot can be returned to automatic mode within two to four hours of the maintenance window opening, provided that pre-shipment testing has been completed by the supplier and the replacement board arrives in verified working condition. KNMKS performs function testing on every DSQC266G unit before dispatch, reducing the risk of DOA failures that extend unplanned downtime.

For sites with redundant robot cells, a rolling replacement strategy — replacing one axis board per cell per maintenance window — allows production to continue on adjacent cells while each replacement is commissioned and verified. This approach is particularly effective in automotive body-in-white lines where multiple S4C-controlled robots operate in parallel.

Retrofit Support FAQ

Q: Is the DSQC266G a direct replacement for the DSQC266, DSQC266A, and DSQC266B?
A: Yes. The DSQC266G is backward-compatible with earlier revisions in the DSQC266 family and occupies the same physical slot in the S4/S4C drive rack. Terminal wiring and axis address configuration should be verified against the original installation before powering up.

Q: What pre-shipment testing is performed on the DSQC266G?
A: Every unit is function-tested before dispatch to verify servo drive output, communication interface integrity, and board-level power regulation. A test report is available on request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: How do I confirm firmware compatibility between the DSQC266G and my S4C main computer?
A: Check the firmware version label on the DSQC266G against the axis board firmware requirements listed in your S4C system documentation. If the main computer is running a firmware version that predates the DSQC266G’s release, contact our technical team with your system’s RobotWare version and main computer part number for compatibility confirmation.

Q: What is the typical lead time and stock availability?
A: The DSQC266G 3HAB8801-1 is held in multi-region stock for fast global dispatch. Standard orders ship within 1–3 business days. Emergency replacement orders with expedited shipping are supported — contact [email protected] or +86 18359268345 to confirm availability and arrange priority dispatch.
