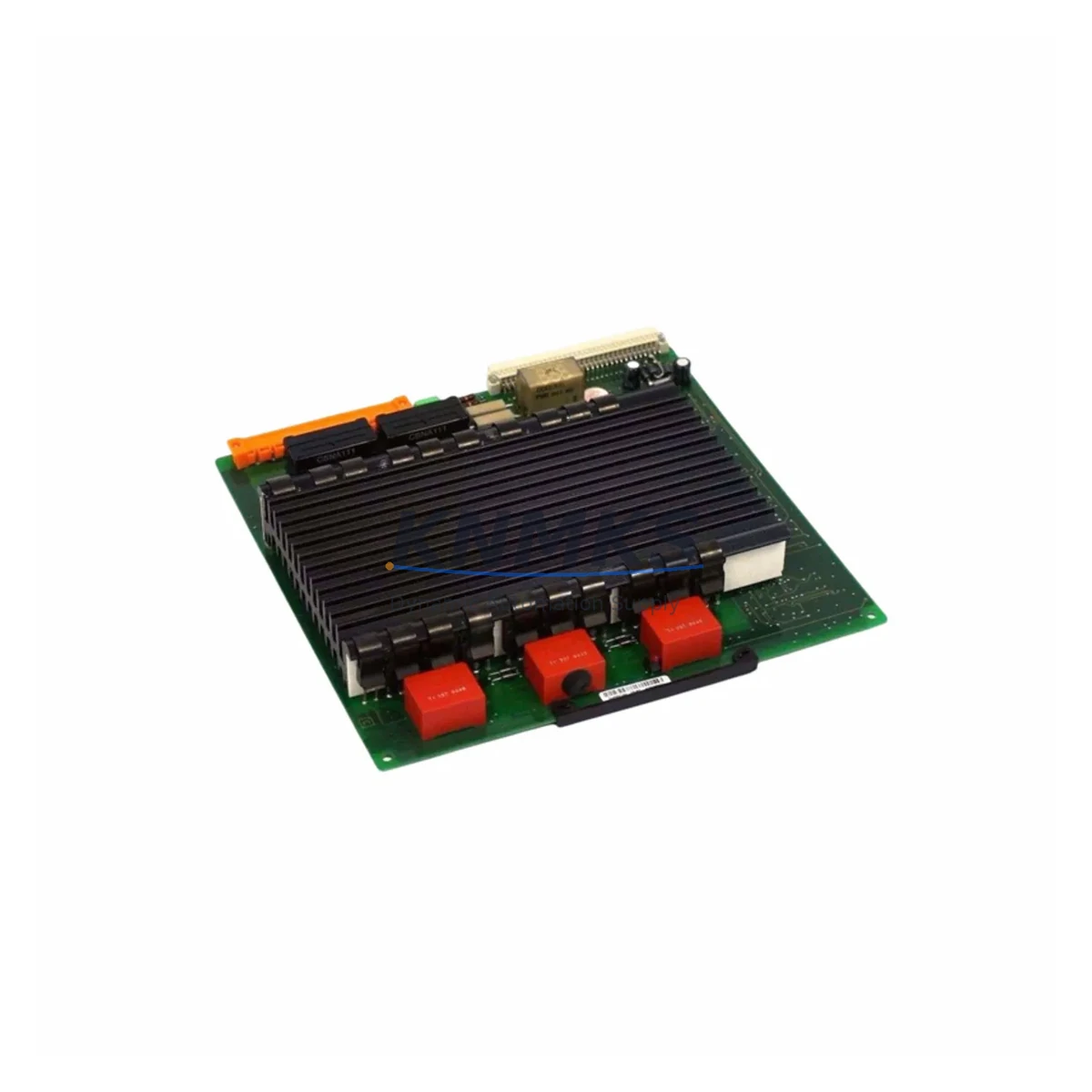

ABB DSQC236G YB560103-CD Migration-Ready Servo Drive Interface

Overview

ABB DSQC236G YB560103-CD Migration-Ready Servo Drive Interface for Legacy Control Systems

The ABB DSQC236G (part number YB560103-CD) is a servo drive interface board engineered for the ABB IRC5 robot controller platform and its predecessor S4C+ systems. As ABB progressively phases out legacy drive hardware, engineering teams managing installed fleets of IRB 1600, IRB 2400, IRB 4400, and IRB 6600 robots face increasing pressure to source verified, drop-in replacement boards that preserve existing program logic, axis calibration data, and fieldbus communication links without requiring a full controller overhaul. The DSQC236G addresses this need directly — it is a migration-ready, pre-tested servo drive interface board held in multi-region stock for immediate global dispatch.

Whether your facility is executing a scheduled maintenance window, responding to an unplanned drive fault, or planning a phased modernization of your robot cell, the DSQC236G provides a reliable, cost-controlled path to restoring full servo axis control. Each unit is pre-shipment tested against ABB IRC5 drive communication specifications, supplied with a support terms confirmed by quotation, and dispatched with full traceability documentation to support your maintenance records and audit requirements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSQC236G replacement begins well before the board is physically installed. Retrofit planning for IRC5-based robot cells requires a structured review of the entire drive chain and controller architecture. Before removing the failed board, engineers should capture a full backup of the IRC5 system — including the RAPID program, I/O configuration, axis calibration data stored on the Serial Measurement Board (SMB), and any custom fieldbus mappings configured through the FlexPendant or RobotStudio offline environment.

The DSQC236G interfaces directly with the IRC5 drive module backplane. When replacing this board in a multi-axis cell, it is essential to confirm that the adjacent DSQC365 axis computer and the DSQC508 I/O board retain their existing address assignments. Address conflicts introduced during a board swap are a common source of post-replacement faults that extend downtime unnecessarily. If the cell uses a DSQC352 PROFIBUS adapter or a DSQC377 DeviceNet gateway for communication with a Siemens SIMATIC S7 PLC or a Schneider Modicon M340 supervisory controller, verify that the fieldbus node address and baud rate settings are documented before the board is removed.

Power sequencing is another critical checkpoint. The IRC5 main computer unit — typically a DSQC562 or DSQC639 depending on the controller generation — supplies 24 VDC logic power to the drive interface board. Before installation, confirm that the power supply module is delivering within specification and that no upstream fuse or circuit breaker has been tripped by the original fault condition. Installing a replacement DSQC236G into a controller with an unresolved power fault will damage the new board and void the support terms.

For cells where the IRC5 cabinet also houses a DSQC643 safety board or a DSQC400 panel board, confirm that the safety circuit remains intact and that the emergency stop chain is not interrupted during the board swap. Document terminal wiring on the drive connector before disconnection, and photograph the backplane slot orientation to ensure correct re-seating of the replacement unit.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo drive interface board replacement requires a pre-staged spare strategy and a disciplined commissioning sequence. The most effective approach is to hold a verified DSQC236G unit in on-site or regional stock before a fault occurs — particularly in high-utilization robot cells where a single axis failure can halt an entire production line.

When a fault is detected, the IRC5 event log should be reviewed immediately to confirm whether the fault is isolated to the drive interface board or whether it reflects a broader axis computer or motor encoder issue. A confirmed DSQC236G fault — typically surfaced as a drive communication error or axis initialization failure — allows the replacement to proceed without additional diagnostic delay.

The physical swap on a pre-staged unit takes approximately 20–40 minutes for a trained technician. The majority of post-replacement commissioning time is consumed by system backup restoration, axis warm-up, and a production-speed test cycle. If the SMB calibration data is intact and the RAPID program backup is current, the robot can typically return to production within two to four hours of the fault being identified — significantly less than the lead time for sourcing a replacement through standard OEM channels.

For facilities running multiple IRC5 controllers, a rolling spare strategy — maintaining one verified DSQC236G per four to six controllers — provides a cost-effective buffer against unplanned outages while keeping inventory carrying costs manageable. All units supplied by KNMKS are pre-shipment tested and dispatched with traceability documentation, supporting your maintenance management system records and ISO audit requirements.

Retrofit Support FAQ

Q1: Is the DSQC236G YB560103-CD a direct replacement for all IRC5 servo drive interface board variants?
The DSQC236G YB560103-CD is the standard IRC5 servo drive interface board revision. It is compatible with the majority of IRC5 Single Cabinet and Dual Cabinet configurations. For S4C+ controllers, compatibility depends on the firmware revision installed on the main computer unit. We recommend confirming your controller serial number and RobotWare version before ordering. Our technical team can assist with compatibility verification at no charge.

Q2: Do I need to recalibrate the robot axes after replacing the DSQC236G?
In most cases, no. Axis calibration data is stored on the Serial Measurement Board (SMB), not on the DSQC236G itself. Provided the SMB is undamaged and its calibration data is intact, the replacement board will read the existing calibration values on startup. A full axis recalibration is only required if the SMB has also been replaced or if calibration data has been corrupted.

Q3: What pre-shipment testing is performed on each DSQC236G unit?
Every DSQC236G unit supplied by KNMKS undergoes functional testing against ABB IRC5 drive communication specifications prior to dispatch. Testing covers drive bus communication integrity, logic power input verification, and connector pin continuity. A test report is available on request. All units are supplied with a support terms confirmed by quotation from the date of dispatch.

Q4: What is the typical lead time and do you hold stock for emergency orders?
KNMKS maintains multi-region stock of the DSQC236G to support emergency replacement and scheduled maintenance requirements. Standard dispatch is within 1–3 business days for in-stock units. Express dispatch options are available for critical downtime situations. Contact our sales team at [email protected] or +86 18359268345 to confirm current stock availability and shipping options for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSQC236G YB560103-CD
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB DSQC236G YB560103-CD
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
