ABB DSQC104 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DSQC104 Maintenance-Proven Spare Part for Factory Uptime

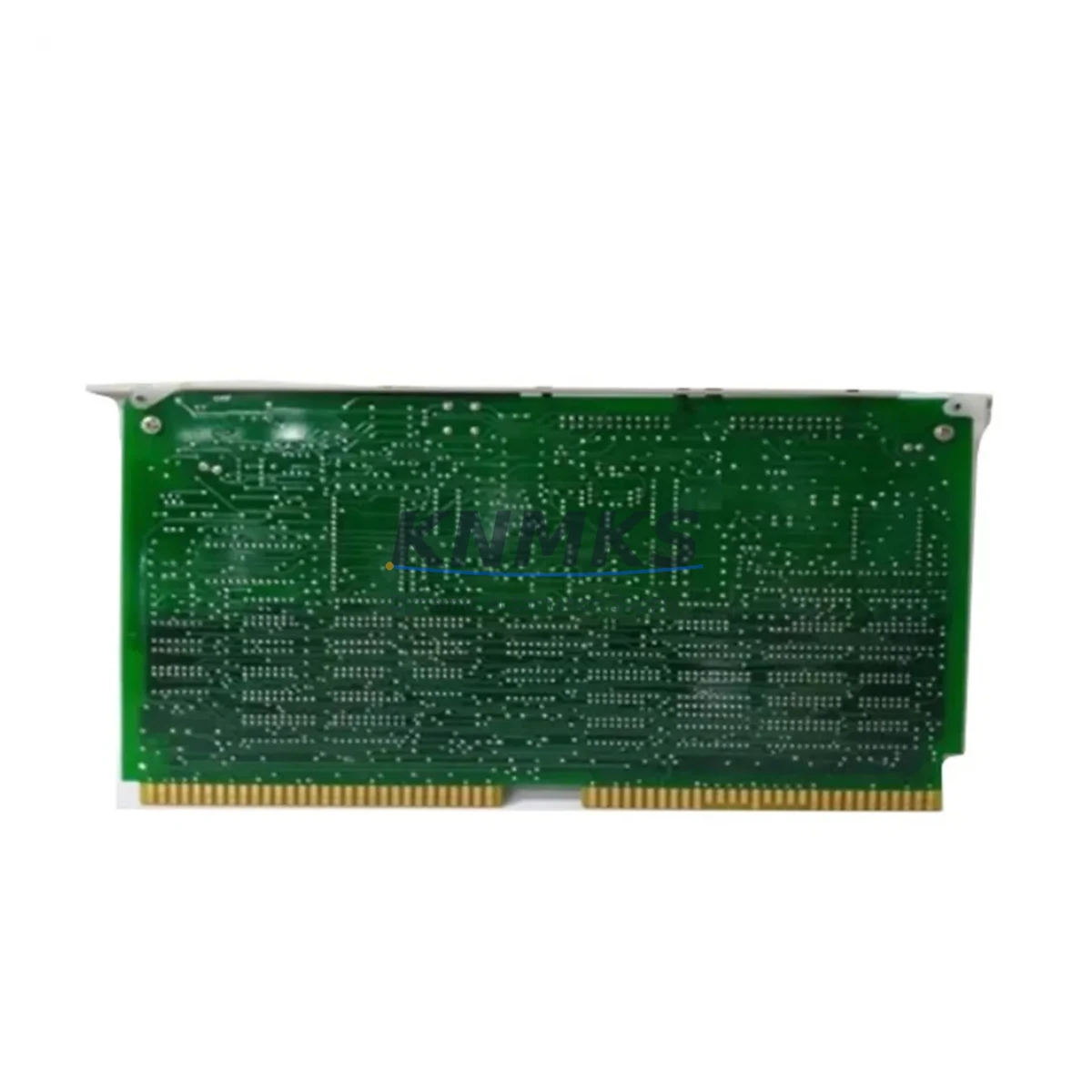

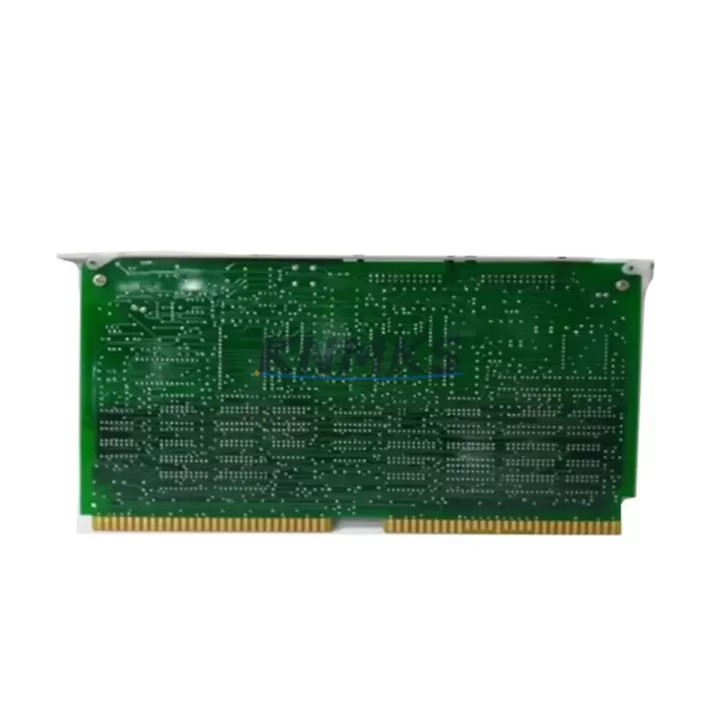

The ABB DSQC104 is a resolver interface board designed for ABB S3 and S4 series robot controllers. As a critical signal-processing component within the robot’s motion control architecture, the DSQC104 handles resolver feedback signals from servo axes, enabling precise position and velocity control across all robot joints. For maintenance engineers managing aging ABB robotic cells, sourcing a verified DSQC104 spare is a foundational step in any downtime-recovery or preventive maintenance plan.

Whether you are responding to an unplanned axis fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a multi-robot production line, the DSQC104 must be treated as a high-priority line item. Its failure typically manifests as axis position errors, resolver signal loss alarms, or complete joint immobilization — all of which halt production immediately. Having a tested, original-specification replacement on the shelf reduces mean time to repair (MTTR) and protects line throughput.

This unit is sourced to original ABB specifications, inspected prior to dispatch, and backed by a support terms confirmed by quotation. It is suitable for direct installation into S3 and S4 controller cabinets without firmware modification, provided the controller’s base software version is compatible with the installed axis configuration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSQC104 resolver interface board is flagged for replacement, experienced maintenance engineers know that the board itself is rarely the only component requiring attention. A thorough cabinet inspection at the time of replacement significantly reduces the risk of repeat faults and secondary downtime events.

Begin by inspecting the resolver cables and connectors running from each servo axis to the DSQC104 board. Resolver signal degradation is frequently caused by cable insulation fatigue or connector corrosion rather than board failure alone. If the DSQC104 is being replaced due to a persistent axis error, the associated resolver cable harness — particularly the DSQC508 or equivalent axis measurement board cabling — should be tested for continuity and shielding integrity before the new board is commissioned.

The DSQC104 operates within the S3/S4 controller’s backplane architecture alongside the DSQC236 computer board and DSQC249 power supply unit. A failing power supply delivering marginal voltage to the backplane can stress interface boards and accelerate failure. Verify that the DSQC249 or equivalent PSU is delivering stable DC rails before installing the replacement DSQC104. Similarly, inspect the backplane connector pins for oxidation or mechanical damage, as poor backplane contact is a common root cause of intermittent resolver faults.

For S4 systems with serial measurement boards, the DSQC368 or DSQC369 axis computer cards interact directly with resolver feedback data processed by the DSQC104. If axis calibration errors persist after board replacement, these cards should be included in the diagnostic sweep. I/O modules such as the DSQC328 digital I/O board should also be checked for alarm relay integrity, as resolver faults often trigger interlock outputs that may mask secondary faults in the I/O chain.

From a procurement engineering perspective, the DSQC104 should never be held as a single-unit spare. For production environments running two or more ABB S3/S4 robots, a minimum of two DSQC104 units availability confirmed by RFQ is recommended, alongside at least one spare DSQC249 power supply and a set of resolver cable assemblies. This spare parts matrix ensures that a complete cabinet restoration can be executed within a single maintenance shift without waiting for emergency procurement.

Long-term supply continuity is a genuine concern for S3/S4 platform operators, as these controller generations are mature and OEM production runs are limited. Establishing a relationship with a verified industrial spare parts supplier who can provide tested DSQC104 units with documented support terms coverage is a risk mitigation measure that procurement teams should formalize in their MRO sourcing strategy.

Site Replacement Workflow

Before removing the DSQC104, ensure the robot controller is fully powered down and locked out per your site LOTO procedure. Document the existing board’s slot position and connector orientation with photographs before disconnection — this is especially important in multi-axis S4 cabinets where resolver connectors are closely spaced.

Remove the faulty board by releasing the backplane retention clips and carefully extracting the board along the card guide rails. Inspect the backplane connector on the cabinet side for bent pins or debris before inserting the replacement DSQC104. Seat the new board firmly and evenly to ensure full backplane contact across all signal pins.

After installation, power up the controller and navigate to the axis configuration menu in the ABB S4 teach pendant (or S3 programming unit) to verify that resolver signals are being received on all configured axes. Run a slow-speed axis jog test on each joint before returning the robot to automatic mode. If axis calibration data was stored in the original board’s non-volatile memory, recalibration using the robot’s fine calibration routine will be required.

This replacement workflow is compatible with both S3 and S4 controller variants. For S4C and S4C+ cabinets, confirm that the DSQC104 revision level is appropriate for the installed axis computer firmware version. Consult the ABB controller service manual or contact your spare parts supplier for revision compatibility guidance if uncertainty exists.

Spare Parts Support FAQ

Q: Is the DSQC104 compatible with both S3 and S4 ABB robot controllers?
A: Yes. The DSQC104 resolver interface board is designed for use in ABB S3 and S4 series robot controllers. For S4C and S4C+ variants, verify the board revision against your controller’s service documentation to confirm compatibility with the installed axis computer firmware.

Q: What pre-shipment testing is performed on the DSQC104?
A: Each DSQC104 unit undergoes functional inspection and resolver signal verification prior to dispatch. Units that do not meet original-specification performance standards are not shipped. All units are covered by a support terms confirmed by quotation from the date of delivery.

Q: How should I manage long-term spare parts inventory for S3/S4 controllers?
A: For facilities operating multiple ABB S3/S4 robots, we recommend maintaining a minimum of two DSQC104 units availability confirmed by RFQ alongside critical companion components such as the DSQC249 power supply and resolver cable assemblies. This inventory posture supports same-shift fault recovery and eliminates emergency procurement lead times.

Q: What is the lead time and supply continuity for the DSQC104?
A: Stock availability is maintained for prompt dispatch. For volume procurement or long-term supply agreements covering multiple units or annual MRO contracts, contact our sales team directly to discuss scheduling and pricing. We support ongoing supply for mature ABB controller platforms where OEM availability is limited.
