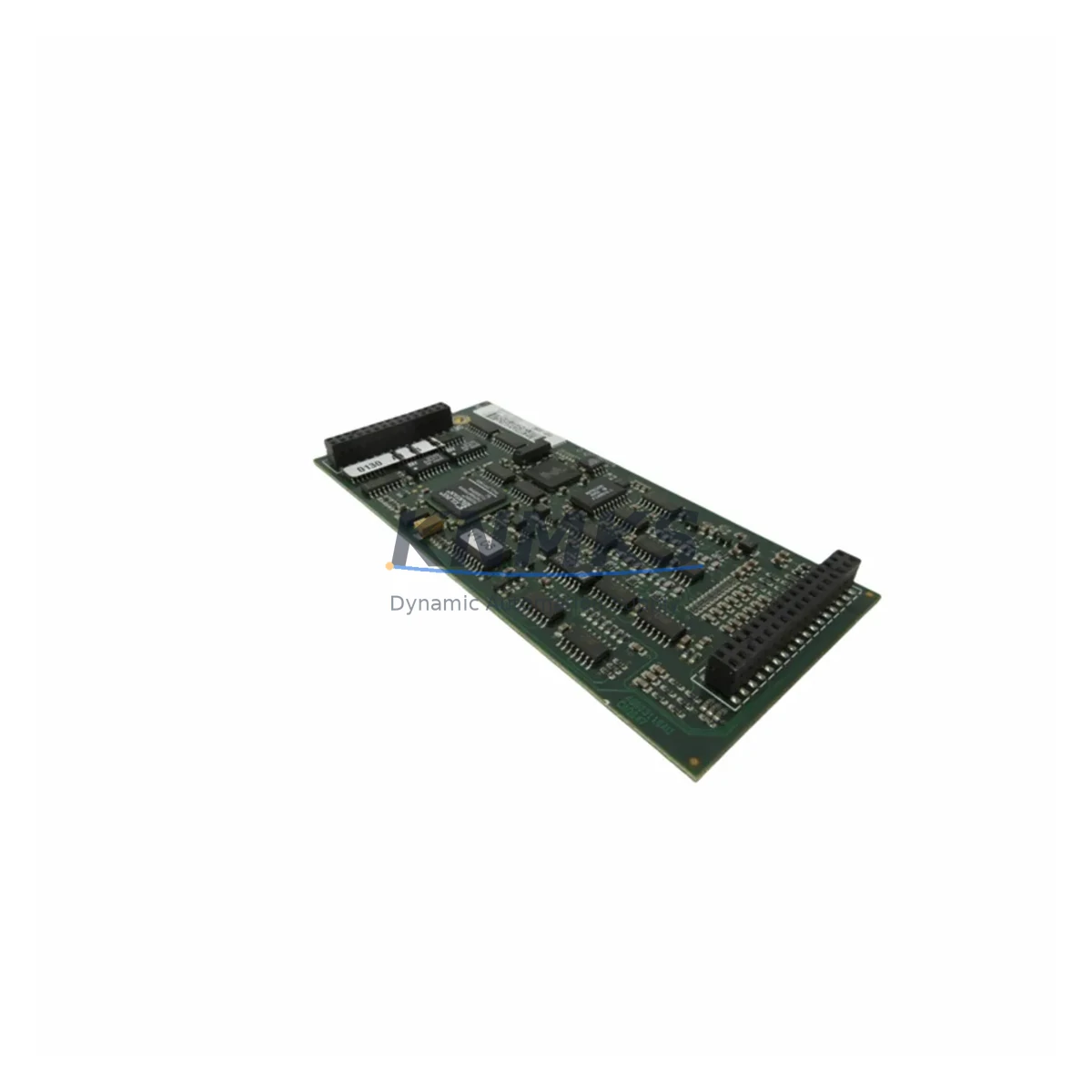

ABB DSP-KORT Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DSP-KORT Maintenance-Proven Spare Part for Factory Uptime

The ABB DSP-KORT is a critical DSP (Digital Signal Processor) control board engineered for ABB ACS800 and DCS800 series variable speed drives and DC drive systems. In industrial environments where continuous production is non-negotiable, the DSP-KORT serves as the computational core responsible for real-time pulse-width modulation (PWM) control, motor flux regulation, torque reference processing, and closed-loop speed feedback. When this board fails, the entire drive becomes inoperable — making rapid, verified replacement the only path to restoring factory uptime.

Our DSP-KORT units are sourced from original ABB manufacturing channels, individually inspected, and subjected to pre-shipment functional testing to confirm signal integrity, firmware compatibility, and board-level electrical performance. Each unit ships with a support terms confirmed by quotation and full traceability documentation, supporting both emergency replacement and planned maintenance stock programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DSP-KORT in an ACS800 or DCS800 drive is rarely an isolated event. Experienced maintenance engineers understand that a DSP board failure is often symptomatic of broader stress within the drive cabinet — and a thorough site inspection during the replacement window is essential to prevent repeat failures and unplanned downtime.

Before reinstalling a new DSP-KORT, verify the condition of the AINT (Auxiliary Interface Board) and RMIO (Drive Control Unit), as these boards communicate directly with the DSP layer and can introduce signal corruption if degraded. Inspect the APBU (Pulse Encoder Interface Unit) if the drive operates in closed-loop speed control — encoder signal errors are a common root cause of DSP overload faults.

Check the IOEC I/O Extension Modules for any signs of contact oxidation or loose terminal connections, particularly on analog input channels used for speed reference and torque feedback. Faulty I/O signals can cause the DSP-KORT to generate erratic PWM outputs, leading to motor instability even after a board replacement.

Inspect the SDCS-CON (Control Board for DCS800) if operating in a DC drive environment — this board interfaces with the DSP-KORT for armature current regulation and field excitation control. A degraded SDCS-CON can mask DSP-KORT faults or cause misdiagnosis during troubleshooting.

Review the 24VDC auxiliary power supply feeding the control electronics. Voltage ripple or transient spikes on the control supply rail are a leading cause of premature DSP board failure. Use a calibrated oscilloscope to verify supply stability before commissioning the replacement board.

Finally, inspect all fiber optic communication links between the DSP-KORT and the IGBT gate driver boards (AGDR/NGDR series). Contaminated or damaged fiber connectors introduce latency in gate pulse delivery, which can cause shoot-through events and secondary power module damage. Cleaning or replacing fiber links during a DSP-KORT swap is a low-cost step that significantly reduces the risk of repeat failures.

Procurement engineers should consider maintaining at least one DSP-KORT unit in on-site emergency stock, particularly for facilities operating multiple ACS800 or DCS800 drives in critical process lines. Lead times for original ABB control boards can extend to 8–16 weeks through standard distribution channels; having a pre-tested spare eliminates this exposure entirely.

Site Replacement Workflow

Step 1 — Parameter Backup: Before powering down the drive, use ABB DriveWindow or the ACS800 control panel to export all drive parameters to a PC or memory unit. The DSP-KORT retains firmware and calibration data; a full parameter backup ensures rapid recommissioning after board swap.

Step 2 — Safe Isolation: Isolate the drive from mains supply and engage the DC bus discharge procedure. Verify DC bus voltage is below 50V using a calibrated multimeter before opening the drive cabinet. Observe all local lockout/tagout (LOTO) procedures.

Step 3 — ESD Protection: Wear an anti-static wrist strap and use an ESD-safe mat. The DSP-KORT contains sensitive CMOS components that can be permanently damaged by electrostatic discharge during handling.

Step 4 — Board Removal: Disconnect all ribbon cables, fiber optic connectors, and board-to-board connectors from the existing DSP-KORT. Note connector positions and orientations before removal. Extract the board using the designated ejector levers if present.

Step 5 — New Board Installation: Install the replacement DSP-KORT, ensuring all connectors are fully seated. Reconnect fiber optic links and verify connector locking clips are engaged. Do not force connectors — misalignment can damage board-edge contacts.

Step 6 — Power-Up and Parameter Restore: Apply control power and verify the drive control panel initializes without fault codes. Restore saved parameters via DriveWindow or panel upload. Perform a no-load test run before reconnecting the motor load.

Step 7 — Functional Verification: Run the drive through its full speed range under controlled load conditions. Monitor current feedback, speed reference tracking, and fault log for 30 minutes before returning the drive to production service.

This workflow applies equally to ACS800 single-drive and multi-drive cabinet configurations, as well as DCS800 DC drive systems. Proper execution reduces mean time to repair (MTTR) to under 4 hours for experienced technicians with a pre-tested spare on hand.

Spare Parts Support FAQ

Q1: Is the DSP-KORT compatible with all ACS800 variants?
The DSP-KORT is designed for the ACS800 drive family, including ACS800-01, -02, -04, and -07 frame sizes, as well as DCS800 DC drive systems. Compatibility depends on the specific firmware revision and hardware revision of your drive. We recommend providing your drive nameplate data (type code and serial number) when ordering to confirm exact compatibility before shipment.

Q2: How is the DSP-KORT tested before shipment?
Each DSP-KORT unit undergoes a board-level functional test covering power rail integrity, signal output verification, and communication interface checks. Units that fail any test parameter are quarantined and not dispatched. A test report is available upon request for quality-critical procurement programs.

Q3: What is the support terms coverage and what does it include?
All DSP-KORT units carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, premature component failure under normal operating conditions, and board-level functional failures. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Support requests are processed with priority dispatch of a replacement unit.

Q4: Can you support long-term supply for multi-site maintenance programs?
Yes. We maintain multi-region stock of DSP-KORT and related ACS800/DCS800 control boards to support annual maintenance contracts, framework agreements, and emergency call-off orders. For facilities operating 10 or more ABB drives, we recommend establishing a consignment stock arrangement to eliminate lead time risk entirely. Contact our technical sales team to discuss volume pricing and supply continuity agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSP-KORT
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSP-KORT
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
