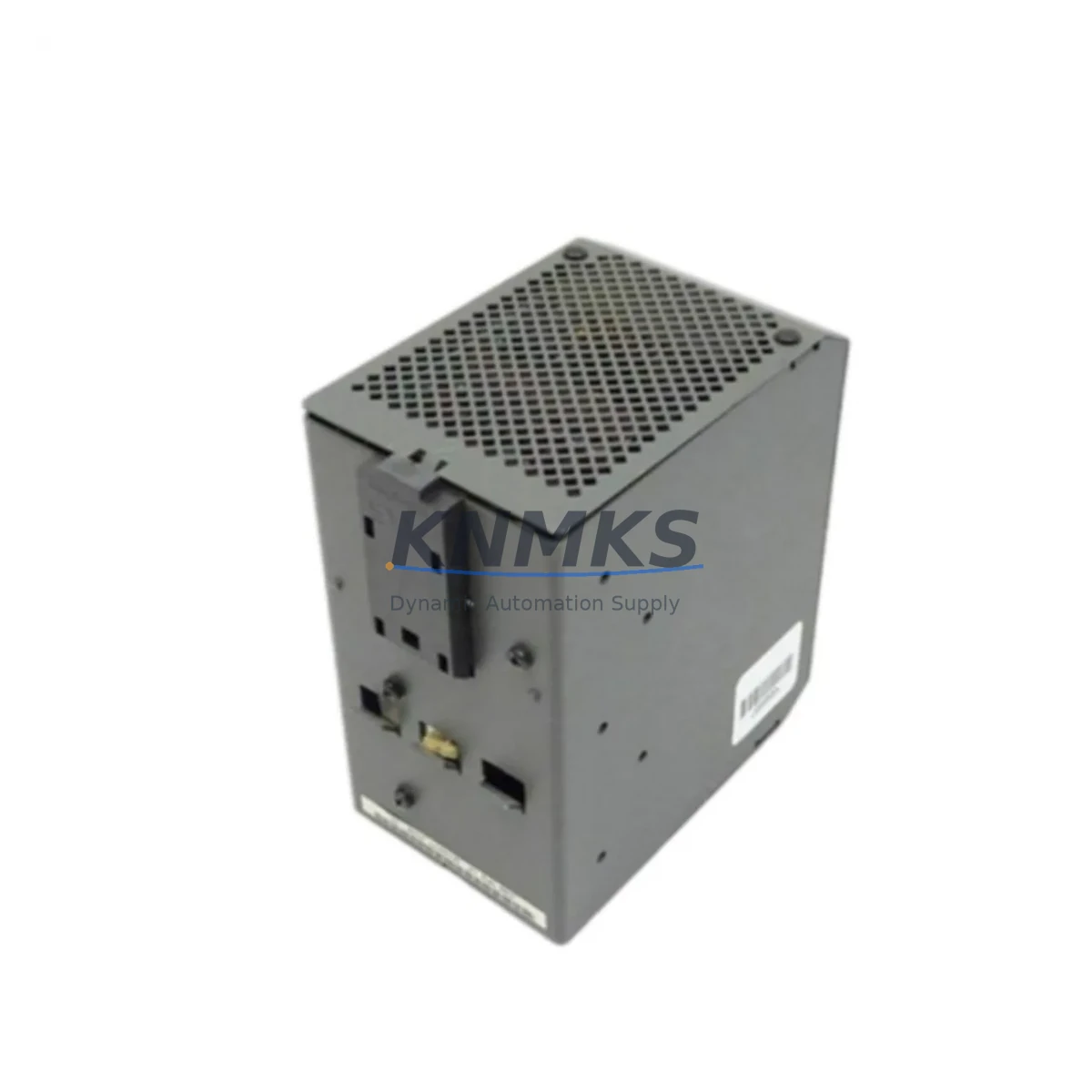

ABB DPW02 Retrofit-Ready Power Supply for AC500 Systems

Overview

ABB DPW02 Retrofit-Ready Power Supply for AC500 Systems: Legacy Migration & Compatible Upgrade

The ABB DPW02 is a 24Vdc internal power supply module engineered for the ABB AC500 PLC platform, one of the most widely deployed modular programmable logic controller families in industrial automation. As legacy control systems age and original power supply modules approach end-of-life, the DPW02 serves as a verified drop-in replacement and migration-ready upgrade for facilities operating older AC500 configurations, including systems originally built around discontinued variants such as the PM571, PM581, and PM591 CPU modules.

For maintenance engineers and system integrators managing aging control infrastructure, the DPW02 addresses one of the most critical failure points in a PLC cabinet: internal DC power distribution. Replacing a failed or degraded power supply without disrupting the broader control architecture requires careful attention to power capacity, terminal wiring compatibility, backplane interface alignment, and firmware version matching. The DPW02 is designed to meet these requirements within the AC500 ecosystem, minimizing retrofit risk and reducing unplanned downtime during replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the ABB DPW02, the starting point is always a full power budget audit of the existing AC500 rack. The DPW02 supplies internal 24Vdc to the CPU and I/O modules seated in the same terminal base. Before replacement, engineers must confirm that the total current draw of all installed modules — including the PM573-ETH CPU module, any DC532 digital I/O modules, and AI523 analog input modules — does not exceed the DPW02’s rated output capacity. Overloading the power supply is a common cause of intermittent faults in aging systems and must be ruled out before the new module is commissioned.

Terminal wiring on the AC500 platform is handled through the terminal base rather than the module itself, which significantly simplifies the physical swap. The DPW02 slides into the designated power supply slot of compatible terminal bases including the TB511-ETH and TB541, with no rewiring of field cables required. This plug-in architecture is one of the key advantages of the AC500 design for retrofit projects, as it allows the power module to be replaced without disturbing I/O wiring or signal loops.

For systems that also require communication infrastructure upgrades, the DPW02 replacement is often performed in parallel with the installation of a CM572-DP PROFIBUS master module or an CM589-PNIO PROFINET I/O module, particularly in facilities migrating from legacy serial fieldbus architectures to Ethernet-based control networks. In these scenarios, the power supply replacement and communication module upgrade are sequenced to minimize total rack downtime.

Where the existing control cabinet includes an ABB CP600 HMI panel connected to the AC500 CPU, engineers should verify that HMI screen tags and communication links remain intact after the power cycle associated with the DPW02 swap. In most cases, HMI configuration is unaffected, but a full tag scan and alarm acknowledgment check is recommended as part of the post-replacement commissioning checklist.

Country of origin for the DPW02 is Germany, consistent with ABB’s AC500 manufacturing standards, and each unit shipped by KNMKS is subject to pre-shipment functional verification to confirm output voltage stability and backplane connector integrity.

Downtime Control During System Migration

Minimizing production downtime during a power supply replacement is the primary operational concern for most maintenance teams. The ABB DPW02 retrofit process is designed to be completed within a planned maintenance window, typically without requiring changes to the PLC program, I/O mapping, or HMI configuration.

The recommended procedure begins with a full backup of the CPU program using ABB Automation Builder or the legacy Control Builder Plus software, depending on the installed CPU generation. This backup protects the control logic in the event of an unexpected fault during the power transition. Once the backup is confirmed, the rack is de-energized, the failed DPW02 is removed from the terminal base, and the replacement module is seated and locked. The rack is then re-energized and the CPU boot sequence is monitored for fault codes.

In systems where continuous process control is required, a hot-standby CPU configuration using a redundant AC500 rack may allow the power supply replacement to be performed without a full process shutdown. However, for most standard AC500 installations, a controlled stop of the controlled process, a module swap, and a supervised restart represent the lowest-risk approach to maintaining control system continuity.

Field commissioning after the DPW02 replacement should include verification of all I/O module status LEDs, a communication link check for any connected CM572-DP or Ethernet modules, and a review of the CPU diagnostic buffer for any power-related fault entries logged during the transition. These steps confirm that the replacement module is operating correctly and that the control system has resumed normal operation before the maintenance window is closed.

Retrofit Support FAQ

Q: Is the ABB DPW02 a direct replacement for the original module in my AC500 rack?
A: Yes. The DPW02 is a plug-in replacement for existing AC500 terminal bases including TB511, TB521, and TB541 variants. No wiring changes or program modifications are required for a like-for-like swap.

Q: What commissioning steps are required after installing the DPW02?
A: After seating the module and restoring power, verify that all I/O module status indicators return to normal, check the CPU diagnostic buffer for any residual fault codes, and confirm communication link status on any connected fieldbus or Ethernet modules. A full I/O force test is recommended before returning the system to automatic operation.

Q: Does KNMKS perform pre-shipment testing on the DPW02?
A: Yes. Each DPW02 unit undergoes output voltage verification and backplane connector inspection before shipment. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the lead time and stock availability for the ABB DPW02?
A: KNMKS maintains in-stock inventory of the DPW02 to support urgent replacement and retrofit projects. Contact [email protected] or call +86 18359268345 for current stock confirmation and shipping lead time to your location.
