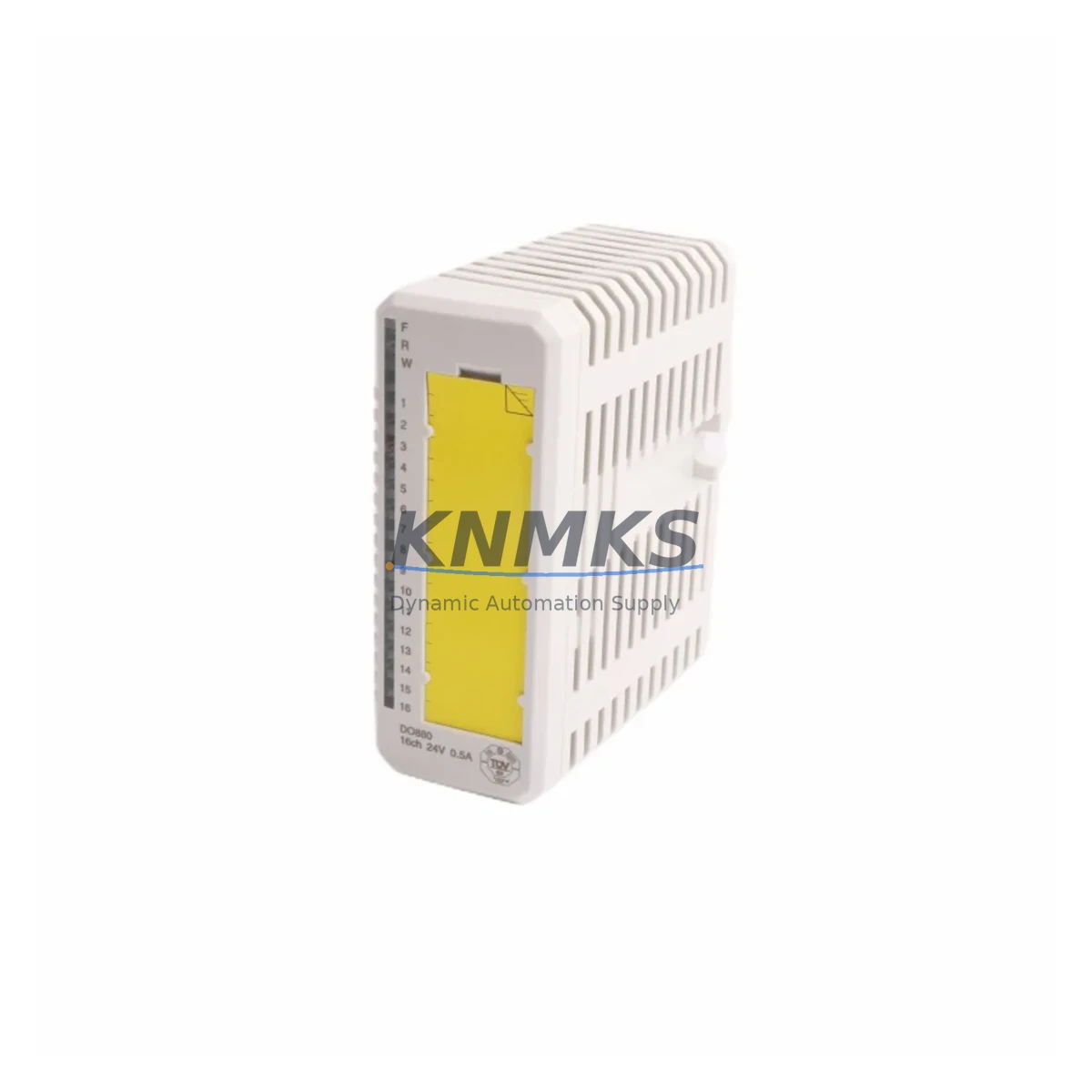

ABB DO880 3BSE028602R1 Fail-Safe Digital Output Module

Overview

ABB DO880 3BSE028602R1 Fail-Safe Digital Output Module: Fault Protection and Critical Industrial Field Reliability

The ABB DO880 3BSE028602R1 is a 16-channel, 24VDC digital output module engineered for the ABB S800 I/O platform — one of the most widely deployed distributed I/O architectures in process automation and critical infrastructure worldwide. Designed to meet the demanding requirements of continuous production environments, this module delivers deterministic output switching, robust fault isolation, and sustained signal integrity across the full spectrum of industrial operating conditions.

In high-stakes control applications — from petrochemical interlock systems and power plant auxiliary control to mining conveyor drives and water treatment SCADA loops — unplanned output failures are not merely inconvenient. They represent real safety risks, production losses, and potential regulatory non-compliance. The DO880 3BSE028602R1 addresses these risks through its hardened output driver architecture, which maintains stable switching states even under conditions of supply voltage fluctuation, high electromagnetic interference, and thermal stress inside densely populated control cabinets.

Each of the 16 output channels is individually protected against short-circuit and overload conditions, preventing a single-channel fault from cascading into broader control loop disruption. This channel-level isolation is critical in safety interlock circuits where a single spurious output — or a missed de-energization — can trigger emergency shutdowns or, worse, mask a genuine hazard. The module’s output drivers are rated for inductive loads, making them directly compatible with solenoid valves, motor contactors, and relay coils commonly found in heavy industrial field panels.

Signal drift and communication anomalies are persistent threats in environments with variable-frequency drives, arc welding equipment, and high-power switching gear operating in close proximity to control wiring. The DO880 3BSE028602R1 incorporates EMI-hardened circuitry and galvanic isolation between the field-side outputs and the backplane communication bus, ensuring that transient noise events do not corrupt output states or generate false diagnostics. This isolation architecture also protects the ABB AC800M controller and the S800 I/O bus from surge events originating in the field — a common failure mode in outdoor substations and marine control panels.

Thermal management is a frequently overlooked dimension of control cabinet reliability. In cabinets operating at elevated ambient temperatures — particularly in foundry, cement, and glass manufacturing environments — output modules with inadequate thermal derating can experience premature driver failure or nuisance tripping. The DO880 is rated for continuous operation across a wide temperature range, and its compact DIN-rail form factor supports adequate airflow spacing within the S800 I/O station, reducing localized hotspot risk when deployed alongside modules such as the ABB AI810 3BSE008516R1 analog input module or the ABB DI810 3BSE008508R1 digital input module in the same I/O cluster.

For applications requiring coordinated power distribution and surge protection within the control cabinet, the DO880 3BSE028602R1 is typically deployed alongside ABB SA811 3BSE018165R1 S800 I/O power supply units, which provide regulated 24VDC rail power with built-in diagnostics. Pairing the output module with a properly sized power supply ensures that inrush currents from simultaneous output activation — common during system startup sequences — do not cause voltage sag on the I/O bus. In safety-critical loops, this power stability directly supports the reliable de-energization of safety relays and emergency stop circuits.

Communication integrity between the S800 I/O station and the AC800M controller is maintained through the ABB TB820V2 3BSE013208R1 ModuleBus modem, which governs the cyclic data exchange that carries output commands to the DO880. Any disruption in this communication path — whether from cable degradation, connector oxidation, or electromagnetic coupling — is detected by the module’s built-in watchdog, which drives all outputs to a defined safe state. This fail-safe behavior is configurable and ensures that field actuators respond predictably to controller communication loss, a fundamental requirement in SIL-rated interlock applications.

Replacement and spare parts management for legacy S800 I/O installations is a practical concern for maintenance engineers responsible for aging DCS infrastructure. The DO880 3BSE028602R1 is a direct plug-in replacement for earlier S800 digital output variants, requiring no reconfiguration of the I/O station or controller project when substituted on a like-for-like basis. This backward compatibility significantly reduces planned maintenance windows and eliminates the risk of configuration errors during emergency replacements. KNMKS maintains verified stock of this module, with each unit subjected to pre-shipment functional testing to confirm output switching performance, channel isolation integrity, and backplane communication handshake before dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable S800 I/O control cabinet is the product of coordinated component selection across input, output, power, and communication layers. The DO880 3BSE028602R1 functions as the field-side output authority within this architecture, but its reliability is directly dependent on the integrity of the modules and infrastructure surrounding it.

On the input side, the ABB DI810 3BSE008508R1 16-channel digital input module provides the process feedback signals that drive output decisions — from limit switch confirmation to emergency stop status. Ensuring that both input and output modules share a common, well-regulated power rail is essential: the ABB SA811 3BSE018165R1 I/O power supply unit provides this regulated 24VDC source with built-in current limiting, protecting the DO880’s output drivers from bus-side power anomalies.

For analog process variables — such as pressure transmitter signals feeding into interlock logic that ultimately commands the DO880 outputs — the ABB AI810 3BSE008516R1 analog input module provides the 4–20mA signal conditioning and A/D conversion within the same S800 I/O station. Maintaining signal chain integrity from field sensor through analog input, controller logic, and digital output is the foundation of any reliable safety interlock loop.

Communication between the I/O station and the AC800M controller is managed by the ABB TB820V2 3BSE013208R1 ModuleBus modem. In installations where the I/O station is located remotely from the controller — common in large process plants with distributed field panels — optical fiber ModuleBus extensions are used to eliminate ground loop interference and extend communication range without signal degradation. Ensuring the TB820V2 is in good condition is a prerequisite for reliable DO880 output command delivery.

In cabinets exposed to high surge environments — outdoor switchgear rooms, port crane control panels, or substations — supplementary surge protection devices on the 24VDC supply rail provide an additional layer of protection for the DO880 and co-located S800 modules, reducing the risk of transient-induced driver damage that would otherwise require unplanned module replacement.

Critical Industrial Safety Applications

Petrochemical and Refinery Interlock Systems: The DO880 3BSE028602R1 is widely used in emergency shutdown (ESD) and process interlock panels where 24VDC digital outputs command solenoid valves, shutdown relays, and alarm annunciators. Its per-channel fault detection and configurable fail-safe output state ensure that valve positions default correctly on controller communication loss — a mandatory behavior in SIL 1/2 interlock applications under IEC 61511.

Power Generation Auxiliary Control: In coal, gas, and hydroelectric power plants, the S800 I/O platform controls auxiliary systems including cooling water pumps, fuel feed conveyors, and generator excitation circuits. The DO880’s inductive load compatibility and short-circuit protection make it suitable for direct control of motor starter coils and contactor relays in these high-cycling applications.

Mining and Mineral Processing: Conveyor drive control, crusher interlock, and ventilation fan management in underground and surface mining operations demand output modules that maintain reliable switching under high vibration, dust ingress, and wide temperature variation. The DO880’s compliance with IEC 60068 environmental standards supports deployment in these demanding conditions.

Water and Wastewater Treatment: SCADA-controlled pump stations, dosing systems, and UV disinfection panels rely on digital output modules to command actuators across geographically distributed field panels. The DO880’s galvanic isolation and EMI hardening are particularly valuable in water treatment facilities where variable-speed pump drives generate significant conducted interference on shared power rails.

Metallurgy and Steel Production: Continuous casting lines, rolling mill drives, and furnace control systems operate in environments with extreme thermal loads, heavy vibration, and intense electromagnetic fields from induction heating equipment. The DO880’s wide operating temperature range and EMI compliance support reliable output control in these conditions, reducing the risk of nuisance trips that would interrupt continuous production sequences.

Port and Marine Control Systems: Ship-to-shore crane control panels, ballast control systems, and cargo handling automation use S800 I/O modules in marine-grade control cabinets. The DO880’s surge tolerance and fail-safe watchdog behavior are critical in marine applications where power quality is variable and communication interruptions must result in predictable, safe actuator states.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the DO880 3BSE028602R1?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions, including output driver failure, channel isolation breakdown, and backplane communication faults. Support requests are supported by KNMKS with direct replacement or repair, minimizing downtime for critical installations. Contact [email protected] to initiate a support terms claim.

Q2: What pre-shipment testing is performed on each unit?
Every DO880 3BSE028602R1 dispatched by KNMKS undergoes functional verification including: all 16 output channel switching tests, short-circuit protection activation and recovery confirmation, galvanic isolation integrity check, and S800 ModuleBus communication handshake validation. Test records are available on request for quality-critical procurement processes.

Q3: Is the DO880 3BSE028602R1 a direct replacement for earlier S800 digital output modules?
Yes. The DO880 3BSE028602R1 is designed as a plug-in replacement within the S800 I/O station and is backward compatible with existing AC800M controller configurations. No I/O station reconfiguration or controller project modification is required for like-for-like substitution, making it suitable for emergency replacement scenarios where minimizing downtime is critical.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
KNMKS maintains dedicated stock of the DO880 3BSE028602R1 to support planned maintenance, emergency replacement, and multi-unit procurement for spare parts programs. For customers managing large S800 I/O installations, volume reservation arrangements are available. Contact our team to discuss scheduled supply agreements that align with your planned maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DO880 3BSE028602R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DO880 3BSE028602R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
