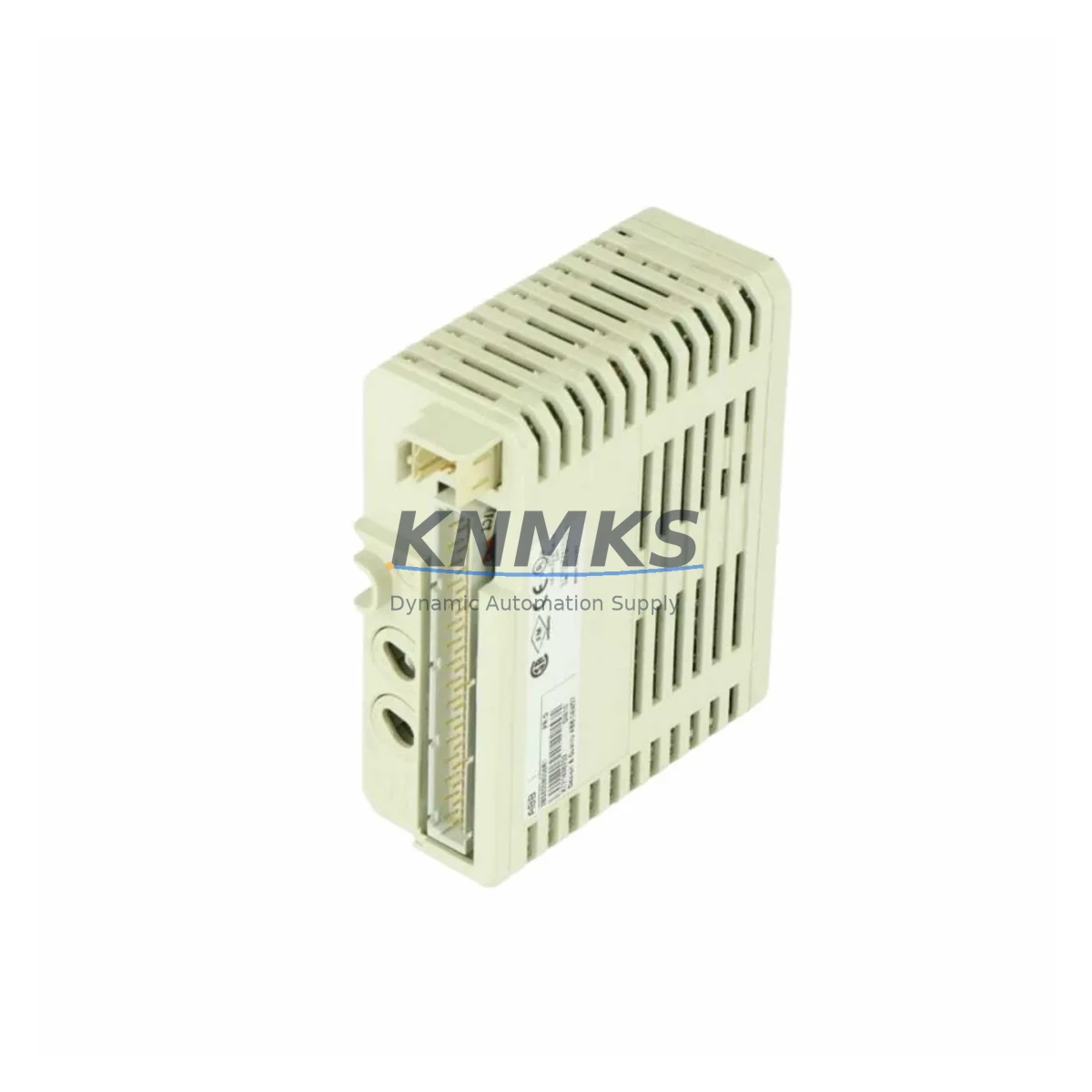

ABB DI810 3BSE008508R1 Migration-Ready Digital Input Module

Overview

ABB DI810 3BSE008508R1 Migration-Ready Digital Input Module: Legacy System Retrofit & Compatibility Upgrade

The ABB DI810 (3BSE008508R1) is an 8-channel 24 VDC digital input module designed for the ABB S800 I/O platform, widely deployed across AC800M and AC800F distributed control systems in power generation, oil & gas, pulp & paper, and process automation industries. As legacy control architectures approach end-of-life and original ABB spare parts become increasingly difficult to source, the DI810 3BSE008508R1 serves as a verified migration-ready replacement that preserves existing backplane wiring, module addressing, and Profibus DP or FOUNDATION Fieldbus communication links without requiring controller reprogramming or HMI screen redesign.

Each unit is pre-tested against ABB S800 I/O electrical and communication specifications before shipment, covered by a support terms confirmed by quotation, and available from in-stock inventory to support urgent plant maintenance and unplanned downtime recovery scenarios.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DI810 3BSE008508R1 into an operating plant begins well before the module arrives on site. Engineers should first audit the existing S800 I/O rack configuration, confirming the terminal base model — TB810, TB811, or TB820 — and the revision level stamped on the base housing, as early TB810 revisions may require a firmware-compatible module variant. The CI840A Profibus DP coupler or CI854A FOUNDATION Fieldbus coupler connecting the I/O cluster to the AC800M controller should be inspected for firmware version compatibility; mismatched coupler firmware is a common source of diagnostic alarms following module replacement.

Power budget verification is equally critical. The PS810 24 VDC I/O power supply or the SS822 redundant power supply feeding the backplane must have sufficient headroom to support the DI810’s 24 VDC input circuit load alongside all co-installed modules. In high-density racks where AI810 analog input modules, AO810 analog output modules, and DO810 digital output modules share the same power rail, a current audit should be completed before the replacement window opens.

Terminal wiring on the TB810 or TB820 base is retained during module swap — field cables remain connected throughout the procedure, eliminating the risk of miswiring during reinstallation. Module address DIP switches on the terminal base must be photographed and documented before the old module is removed, and the replacement DI810 3BSE008508R1 must be inserted with the base address unchanged. Once seated, the AC800M controller will automatically detect the new module via the CI840A coupler and restore normal I/O scanning within one communication cycle, typically under 10 milliseconds for Profibus DP at 1.5 Mbit/s.

For plants running ABB 800xA System or Freelance 2013 R2 and later, the DI810 channel configuration — including input filtering time, inversion masks, and diagnostic enable flags — is stored in the controller application, not in the module hardware. No re-download of the control application is required following a like-for-like module replacement, preserving all existing function block logic, alarm limits, and historian tag mappings. HMI faceplates built on ABB 800xA Graphics or on third-party SCADA systems connected via OPC DA/UA will continue to display correct signal states without modification.

Downtime Control During System Migration

Minimizing production interruption during S800 I/O module replacement requires a structured hot-swap or cold-swap strategy depending on the redundancy configuration of the affected I/O cluster. In non-redundant single-coupler configurations, the replacement window must be coordinated with operations to place the affected control loops in manual mode at the AC800M controller level before the DI810 is removed. Operators should confirm that all field devices connected to the eight input channels are in a safe, stable state and that any interlock logic dependent on those inputs has been bypassed through the controller’s maintenance override function.

In redundant coupler configurations using paired CI840A modules, the standby coupler takes over I/O scanning automatically when the primary coupler is switched to maintenance mode, allowing the DI810 to be replaced without placing loops in manual. This bumpless transfer capability is a key advantage of the S800 I/O architecture and should be exploited wherever available to reduce operator workload during the replacement event.

Post-installation verification should include a channel-by-channel functional test using the AC800M’s online diagnostic view or the ABB 800xA Asset Optimization module to confirm that all eight input channels are reading correctly against known field signal states. Any channel showing unexpected OFF state after module insertion should be investigated for terminal base contact integrity before the loop is returned to automatic control. Total elapsed time for a planned DI810 replacement in a non-redundant configuration, including pre-work, swap, and functional test, is typically 15 to 30 minutes per module position.

Retrofit Support FAQ

Q1: Is the DI810 3BSE008508R1 a direct drop-in replacement for all DI810 variants?
The 3BSE008508R1 is the standard catalog revision of the DI810 and is compatible with all TB810, TB811, and TB820 terminal bases. Earlier DI810 revisions (3BSE008508R1 vs. earlier R-codes) are functionally interchangeable in AC800M and AC800F applications. Confirm the terminal base revision label before installation if the existing base is older than 2005 manufacture date.

Q2: Will I need to modify my AC800M control application after replacing the DI810?
No. A like-for-like DI810 replacement does not require any changes to the AC800M control application, function block library, or hardware configuration file. The controller recognizes the replacement module automatically via the CI840A or CI854A coupler. HMI displays, historian tags, and alarm configurations remain unaffected.

Q3: What pre-shipment testing is performed on each DI810 3BSE008508R1 unit?
Each unit undergoes electrical continuity testing across all eight input channels, backplane connector integrity verification, and communication handshake testing against an S800 I/O test rack before dispatch. Units that fail any test stage are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement requirements.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time for in-stock units?
The support terms confirmed by quotation cover manufacturing defects, premature component failure, and dead-on-arrival (DOA) units from the date of shipment. In-stock units are dispatched within 1–3 business days. For urgent plant breakdown requirements, expedited same-day dispatch is available — contact the sales team directly to confirm stock availability and shipping options.
