ABB DI651 3BHT300026R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DI651 3BHT300026R1 Maintenance-Proven Spare Part for Factory Uptime

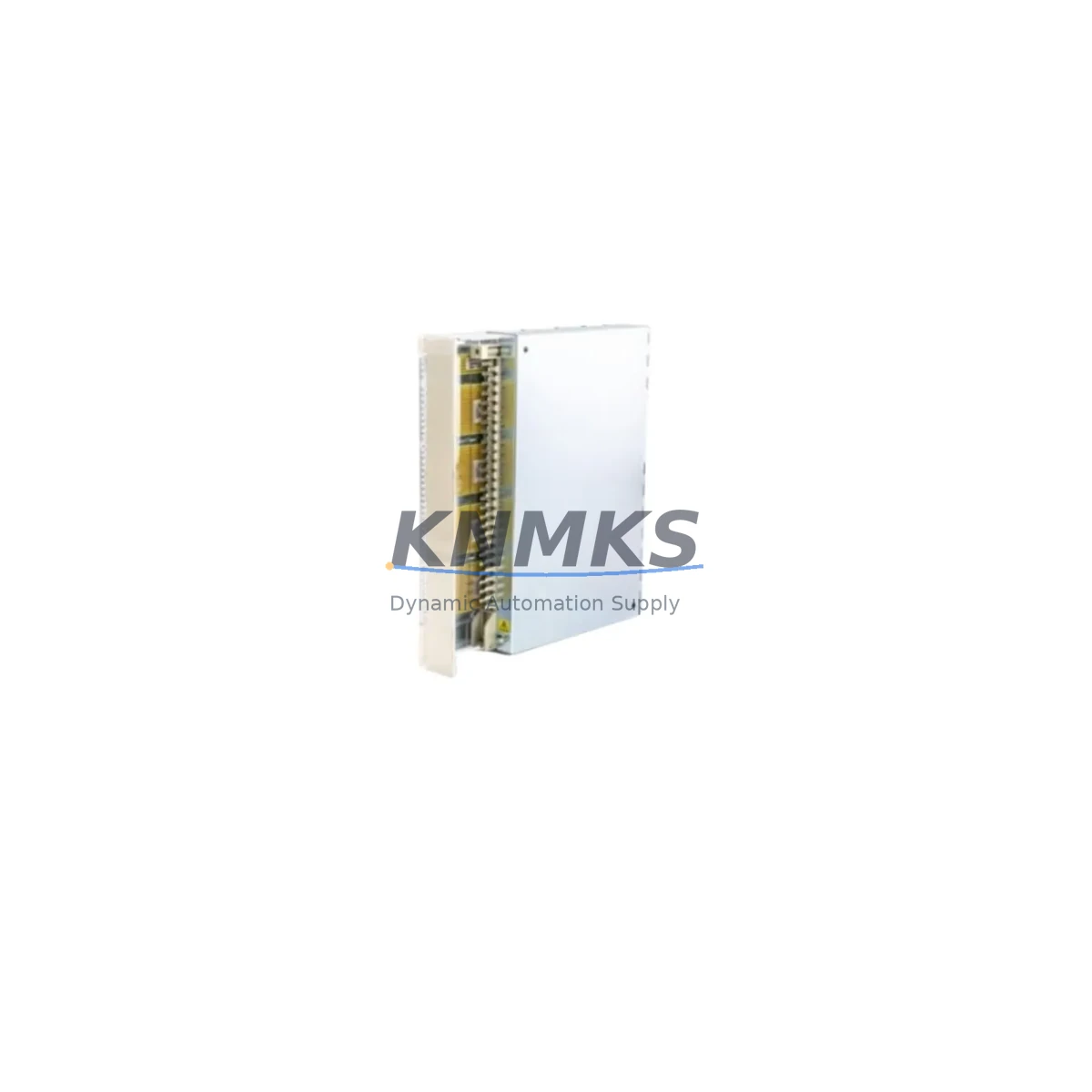

The ABB DI651 (3BHT300026R1) is a high-density digital input module designed for the S800 I/O system, widely deployed in AC 800M Distributed Control System (DCS) architectures across process industries including oil & gas, pulp & paper, power generation, and chemical manufacturing. As a field-proven component in long-lifecycle automation installations, the DI651 is a critical spare that maintenance engineers and procurement teams must keep on hand to ensure uninterrupted production continuity.

Sourced from verified OEM supply channels and subject to pre-shipment functional testing, each unit is dispatched with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Global logistics support ensures rapid delivery to plant sites across Europe, Asia-Pacific, and the Americas — minimizing mean time to repair (MTTR) when a module failure triggers an unplanned shutdown.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DI651 module is flagged for replacement during a scheduled outage or emergency fault isolation, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding S800 I/O cabinet should include verification of the TB820 or TB840 baseplate for backplane connector wear and corrosion, as a degraded baseplate can cause intermittent channel faults that mimic module failure. The CI854 PROFIBUS DP communication interface or CI801 ModuleBus optical interface should be checked for firmware version compatibility and signal integrity, particularly in installations where the DI651 is part of a mixed I/O cluster.

Power distribution within the cabinet deserves equal scrutiny. The SD821 or SD822 24 VDC power supply modules that feed the S800 I/O rail should be load-tested and their output ripple verified — a marginal power supply can cause false digital input readings and premature module wear. Inline fuse blocks and terminal protection assemblies on the field wiring side should be inspected for blown fuses or loose terminations, which are a common root cause of single-channel failures misattributed to the DI651 itself.

For plants running AC 800M controllers, the PM866 or PM864 processor module firmware should be confirmed compatible with the replacement DI651 hardware revision. In aging installations, it is also advisable to audit the AI810 or AI820 analog input modules sharing the same baseplate cluster, as thermal stress and vibration affect all modules equally. Procurement engineers building annual spare parts kits for S800-based systems should include at minimum one DI651, one DO651 digital output module, and one CI854 communication interface to cover the most statistically frequent failure modes in high-cycle process environments.

Site Replacement Workflow

Replacing the DI651 3BHT300026R1 on a live AC 800M system follows a structured hot-swap or cold-swap procedure depending on the redundancy configuration of the target station. In redundant I/O configurations, the faulty module can be extracted and replaced without a full system shutdown, provided the replacement unit carries the same hardware revision and the baseplate slot is correctly identified in the Control Builder M project. For non-redundant stations, a controlled process hold must be coordinated with the operations team before extraction.

Prior to insertion, verify that the replacement DI651 is free of transport damage, that the ModuleBus connector pins are clean and undamaged, and that the baseplate slot is free of debris. After seating the module, observe the LED status indicators: a steady green RUN LED confirms successful initialization and channel scan. If a red FAULT LED persists after two initialization cycles, check the Control Builder M hardware configuration for address conflicts or revision mismatches. Document the replacement in the plant CMMS with the new module serial number, installation date, and support terms expiry to maintain traceability for future audits.

This workflow applies equally to legacy installations migrating from older S800 I/O generations, where the DI651 serves as a direct form-fit-function replacement that preserves existing field wiring, baseplate mounting, and software tag assignments — eliminating the need for costly re-engineering and minimizing production downtime during the transition.

Spare Parts Support FAQ

Q1: Is the DI651 3BHT300026R1 compatible with both optical and electrical ModuleBus configurations?
Yes. The DI651 is compatible with both optical ModuleBus (via CI801 interface) and electrical ModuleBus configurations used in standard S800 I/O stations. Always confirm the baseplate type (TB820 vs TB840) and the communication interface revision in your Control Builder M project before ordering.

Q2: What is the recommended inventory strategy for DI651 modules in a large AC 800M installation?
For installations with more than 10 DI651 modules in service, a minimum buffer of 2 spare units is recommended. Plants with critical continuous processes (e.g., refinery, power plant) should maintain 3–5 units on-site given OEM lead times that can extend to 8–16 weeks for new production runs. Our stock is available for immediate dispatch.

Q3: How is each unit tested before shipment?
Every DI651 3BHT300026R1 unit undergoes a functional burn-in test simulating normal operating conditions, including channel scan verification, ModuleBus communication handshake, and LED status confirmation. A test report is available upon request. Units that fail any test parameter are quarantined and not dispatched.

Q4: What does the support terms confirmed by quotation cover, and how is a claim processed?
The support terms confirmed by quotation cover manufacturing defects and operational failures under normal service conditions as defined by ABB S800 I/O installation guidelines. It does not cover damage from incorrect installation, overvoltage events, or physical impact. To initiate a support terms claim, contact [email protected] with the order number, module serial number, and a description of the fault. Replacement units are dispatched within 5 business days of claim approval.
