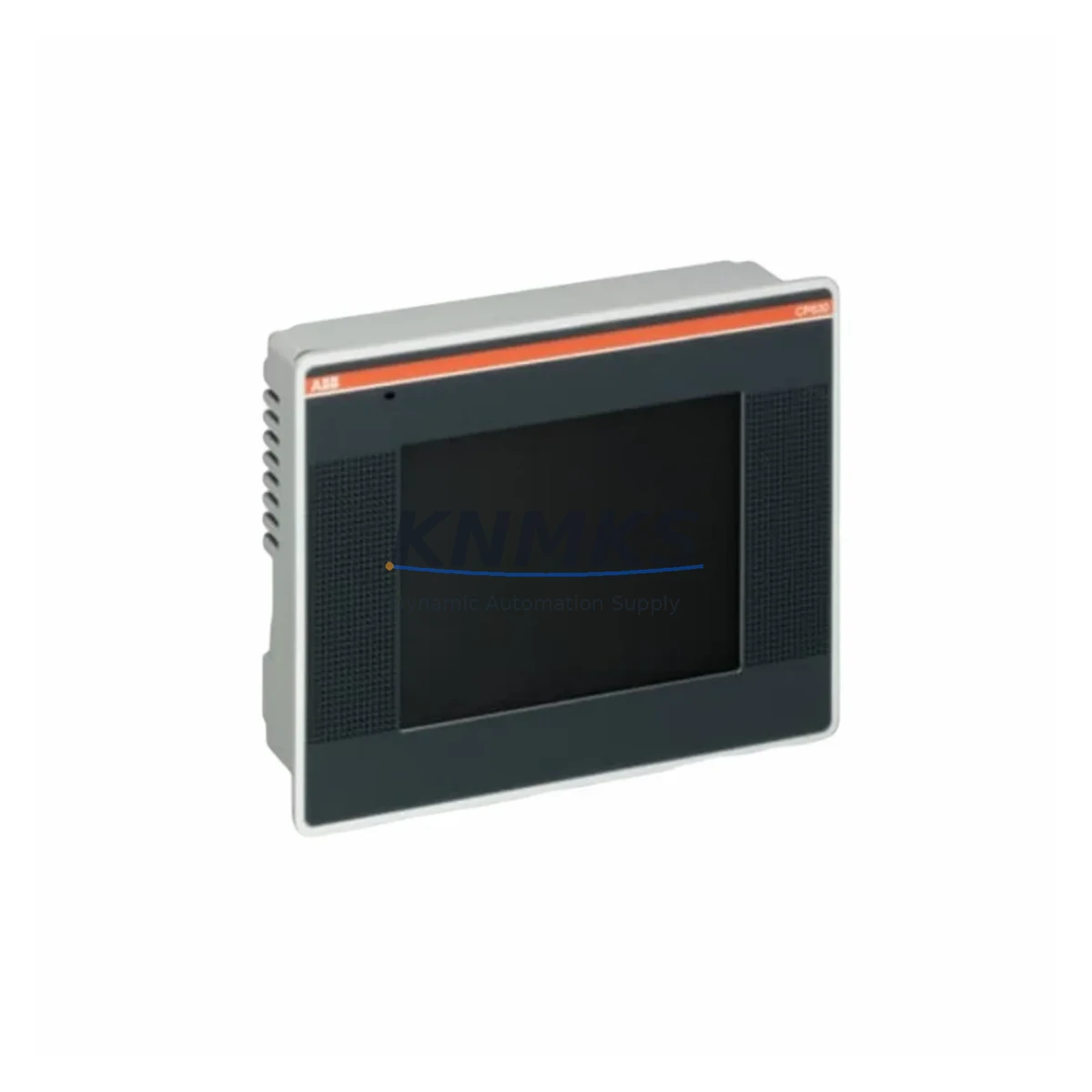

ABB CP630-1SAP530100R0001 Fail-Safe HMI for Industrial Control

Overview

ABB CP630-1SAP530100R0001 Fail-Safe HMI for Industrial Control Reliability

The ABB CP630 (order code 1SAP530100R0001) is a ruggedized, fail-safe Human Machine Interface panel engineered for the AC500 programmable automation controller platform. Designed to sustain continuous operator visibility and control loop integrity in the most demanding industrial environments, the CP630 delivers stable, high-contrast display performance and deterministic communication even under conditions of elevated electromagnetic interference, mechanical vibration, thermal stress, and airborne contamination. For facilities where unplanned downtime carries safety, environmental, or financial consequences — including petrochemical complexes, power generation plants, mineral processing operations, water treatment infrastructure, and continuous manufacturing lines — the CP630 represents a proven, field-validated HMI solution with a documented safety pedigree.

At the core of the CP630’s reliability architecture is its 5.7-inch TFT color display, rated for wide-temperature operation and housed in a front-panel IP65-sealed enclosure that resists dust ingress and water spray. The panel communicates natively with AC500 CPUs — including the PM573, PM583, and PM595 safety CPU variants — via the internal backplane bus, eliminating the signal latency and communication fault risks associated with external serial or Ethernet HMI connections. This tight integration ensures that operator commands and process alarm acknowledgements are processed within the controller’s deterministic scan cycle, a critical requirement in safety instrumented systems and emergency shutdown interlock circuits.

In high-EMI environments such as variable-frequency drive cabinets, arc furnace control rooms, and high-voltage switchgear enclosures, the CP630’s shielded electronics and EMC-compliant design prevent display corruption, touchscreen misregistration, and communication frame errors that can trigger nuisance trips or mask genuine process alarms. When deployed alongside the ABB TU515 or TU516 terminal units and paired with I/O modules such as the DC532 digital input module or the AX522 analog I/O module, the CP630 forms a cohesive, interference-resistant control node capable of sustaining reliable operator interaction throughout extended production campaigns.

Control cabinet thermal management is a persistent challenge in enclosed industrial panels, particularly in tropical climates or near heat-generating equipment such as servo drives and power supplies. The CP630’s low-power LED backlight and fanless passive cooling design minimize internal heat generation, reducing the thermal load on cabinet cooling systems and extending the service life of adjacent components including the PS501 power supply module and communication processors. This passive architecture also eliminates the mechanical wear and particulate ingestion risks associated with fan-cooled HMI units, a significant advantage in dusty or chemically aggressive atmospheres found in cement plants, fertilizer production, and offshore platform control rooms.

For safety-critical interlock and emergency shutdown applications, the CP630 supports dedicated alarm management pages and process status visualization that allow operators to rapidly assess system state during abnormal events. Its integration with the AC500-S safety CPU enables the display of safety-rated process values and interlock status without compromising the integrity of the safety function — a requirement under IEC 61511 and IEC 62061 functional safety standards applicable to process and machinery safety systems. The panel’s non-volatile memory retains display configuration and alarm history through power interruptions, ensuring that post-event forensic data remains accessible for incident investigation and regulatory reporting.

Spare part availability and supply continuity are equally critical to long-term plant reliability. KNMKS maintains verified stock of the CP630-1SAP530100R0001 with global dispatch capability, supporting both planned maintenance windows and emergency replacement scenarios. Every unit undergoes pre-shipment functional testing covering display integrity, touchscreen calibration, communication port verification, and power input tolerance, ensuring that replacement panels are field-ready upon arrival. A support terms confirmed by quotation cover all units against manufacturing defects and premature failure, providing procurement teams and maintenance engineers with the assurance required for critical spare part planning.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective control cabinet protection for AC500-based systems requires a layered approach that addresses power quality, signal integrity, thermal management, and communication reliability simultaneously. The CP630 HMI panel anchors the operator interface layer, but its performance depends on the stability of the surrounding cabinet ecosystem. The PS501 AC500 power supply module provides regulated 24 VDC to the backplane, and its built-in surge suppression and output filtering protect the CP630 and connected I/O modules from voltage transients generated by inductive load switching — a common source of display glitches and communication resets in motor control centers.

Digital interlock signals feeding the DC532 digital input module must be routed through shielded cable with proper grounding at a single point to prevent ground loop currents from inducing false input states. Similarly, analog process signals connected to the AX522 analog I/O module benefit from twisted-pair shielded cabling and input filtering to suppress 50/60 Hz interference from adjacent power conductors. The CM572-DP PROFIBUS DP communication module, when used to integrate third-party field devices into the AC500 network, should be configured with watchdog timeout parameters appropriate to the process response time requirements, ensuring that communication loss events trigger controlled safe-state transitions rather than undefined controller behavior.

Cabinet thermal management should be validated during commissioning using thermal imaging to identify hotspots near the PS501 power supply and CPU modules. Adequate clearance above and below the CP630 panel ensures convective airflow across the rear of the unit, maintaining junction temperatures within rated limits during peak summer ambient conditions. For cabinets installed in high-vibration environments such as compressor skids or marine engine rooms, all terminal connections on the TU515 and TU516 terminal units should be torqued to specification and re-verified at the first scheduled maintenance interval.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the CP630 serves as the primary operator interface for emergency shutdown system status visualization, allowing control room operators and field technicians to monitor interlock states, valve positions, and safety instrumented function status without accessing the engineering workstation. Its IP65 front panel allows installation in pressurized control rooms and field junction boxes where periodic washdown cleaning is required.

Power generation facilities — including thermal, hydro, and wind farm SCADA substations — deploy the CP630 for turbine control panel interfaces, where the combination of wide-temperature operation and EMC robustness ensures stable display performance adjacent to high-voltage busbars and transformer bays. In mining and mineral processing operations, the panel’s fanless design and sealed front face resist the fine silica and coal dust that rapidly degrades conventional HMI units with ventilation openings.

Water and wastewater treatment plants operating under continuous 24/7 production schedules rely on the CP630 for pump station control panels and chemical dosing system interfaces, where the non-volatile alarm history supports regulatory compliance reporting and incident investigation. Metallurgical and steel mill applications benefit from the panel’s thermal tolerance in environments where radiant heat from furnaces and ladles elevates ambient cabinet temperatures beyond the capability of standard commercial HMI products. Port and terminal automation systems, including crane control cabinets and conveyor drive panels, leverage the CP630’s vibration tolerance and communication determinism to maintain safe, coordinated material handling operations.

Safety and Quality FAQ

Q: What support terms coverage applies to the CP630-1SAP530100R0001?
A: All CP630 units supplied by KNMKS carry a support terms confirmed by quotation against manufacturing defects and premature component failure, effective from the date of shipment. Support requests are supported by pre-shipment test records documenting display, touchscreen, communication, and power input verification for each individual unit.

Q: What pre-shipment testing is performed before dispatch?
A: Each CP630-1SAP530100R0001 undergoes a structured functional test protocol covering display pixel integrity, touchscreen calibration and response, backplane communication port verification, power supply input tolerance across the rated voltage range, and non-volatile memory read/write validation. Test results are retained and available upon request for quality audit purposes.

Q: Is the CP630 compatible with all AC500 CPU variants, including safety CPUs?
A: The CP630 is designed for the AC500 backplane architecture and is compatible with standard AC500 CPUs including the PM573 and PM583, as well as the AC500-S safety CPU variants such as the PM564-T. Display configuration is performed using the ABB Automation Builder engineering environment, which supports both standard and safety application projects. Compatibility with specific firmware versions should be confirmed against the ABB AC500 system compatibility matrix for the target installation.

Q: Can KNMKS support long-term supply for planned maintenance and emergency replacement?
A: Yes. KNMKS maintains multi-unit stock of the CP630-1SAP530100R0001 with global dispatch capability, supporting both scheduled spare part replenishment programs and unplanned emergency replacement requirements. Lead time and stock availability can be confirmed by contacting the sales team directly. Long-term supply agreements for critical spare parts are available for facilities with defined maintenance schedules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

CP630-1SAP530100R0001
AC500 Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: ABB CP630-1SAP530100R0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
