ABB CINT-45X1 Migration-Ready Drive Interface for AINT Series

Overview

ABB CINT-45X1 Migration-Ready Drive Interface for Legacy Control Systems

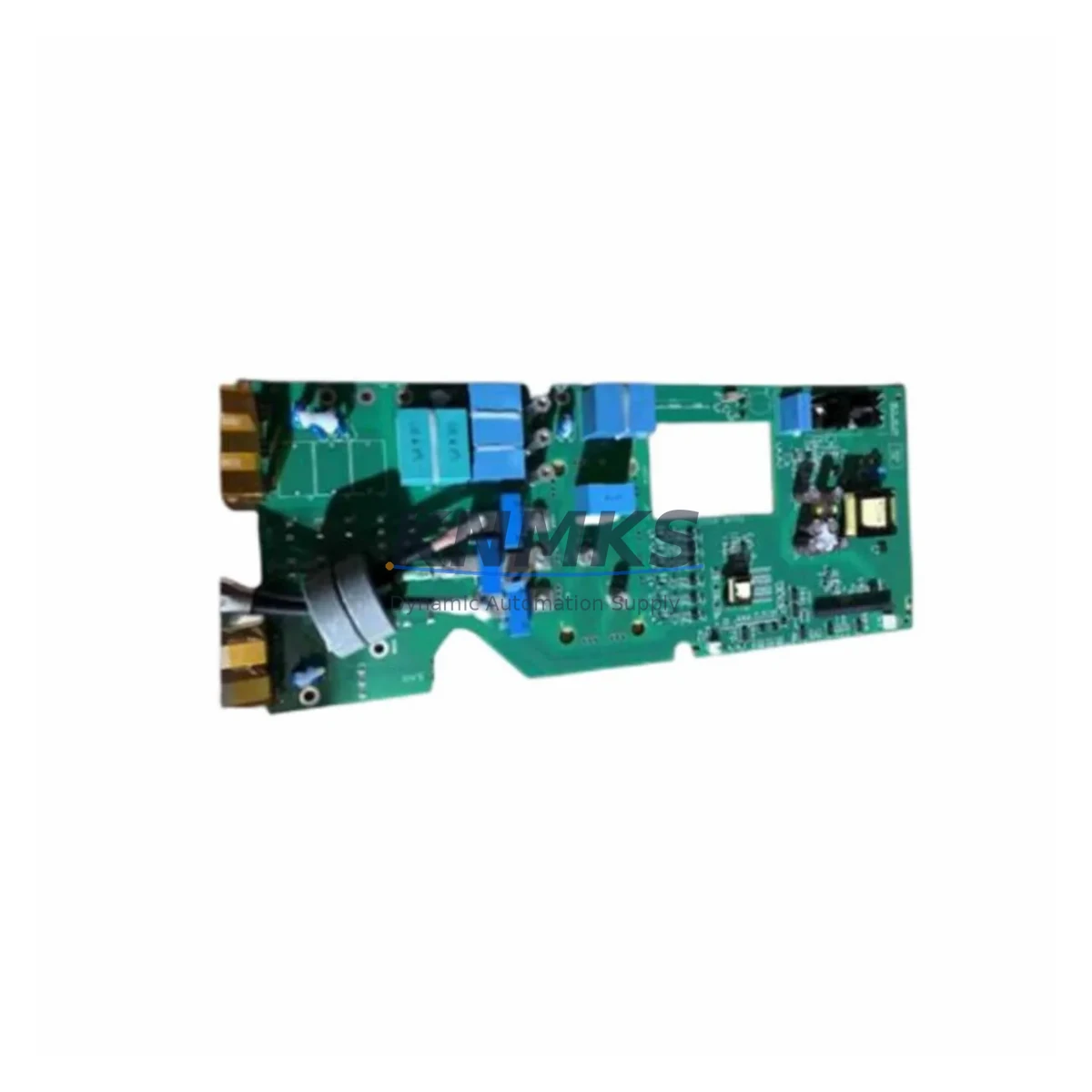

The ABB CINT-45X1 is a drive interface board engineered for direct integration into AINT series drive control platforms, providing a reliable migration path for aging ACS600 and ACS800 drive systems. As legacy drive infrastructure reaches end-of-life, the CINT-45X1 serves as a verified drop-in replacement that preserves existing control logic, wiring topology, and DDCS fiber-optic communication links — minimizing engineering rework and unplanned downtime during retrofit projects.

For maintenance engineers managing aging control cabinets, the CINT-45X1 addresses the most critical pain points in drive modernization: terminal compatibility, backplane slot alignment, firmware version matching, and communication protocol continuity. Each unit is pre-shipment tested against ABB factory specifications and ships with a support terms confirmed by quotation, supporting long-term spare parts lifecycle planning for facilities that cannot afford extended outages.

Whether you are replacing a failed AINT-45C or AINT-45X interface board, upgrading a multi-drive line with DDCS ring topology, or restoring a production line after an unplanned drive fault, the CINT-45X1 provides the interface layer needed to maintain signal integrity between the drive control unit and the main inverter section.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful CINT-45X1 integration into a legacy drive system requires a structured pre-retrofit assessment. Before removing the failed or end-of-life interface board, engineers should document the existing DDCS node address assigned to the drive, as this address governs how the master controller — typically an AC800M or AC70 PLC — identifies and communicates with each drive on the fiber ring. Reassigning an incorrect node address post-replacement is one of the most common causes of commissioning delays in multi-drive retrofit projects.

Terminal wiring should be photographed and labeled before disconnection. The CINT-45X1 shares the same connector layout as the AINT-45C and AINT-45X, but field wiring condition should be inspected for insulation degradation common in cabinets that have operated for 10–15 years. Where the existing NDIO-01 or NDIO-02 I/O extension modules are present in the same cabinet, their signal routing through the AINT backplane must be verified to remain unaffected after the board swap.

For systems using NPBA-12 PROFIBUS adapter modules or NMBP-01 Modbus Plus adapters mounted on the AINT option slots, communication parameter settings stored in the adapter must be re-confirmed after the CINT-45X1 is installed, as some firmware versions reset option slot parameters on first power-up. Similarly, if a NETA-21 remote monitoring unit is connected to the drive, its data logger configuration should be backed up before the retrofit begins.

Power supply capacity within the control cabinet is a frequently overlooked constraint. The AINT backplane PSU must be confirmed to supply adequate current for the CINT-45X1 alongside any co-installed option boards. In cabinets where the APOW-01 or APOW-02 auxiliary power supply module is aging, a concurrent PSU replacement is recommended to prevent nuisance faults post-retrofit.

Installation space is not typically a constraint for direct CINT-45X1 replacements, as the board occupies the standard AINT interface slot. However, in retrofit scenarios where the AINT control unit itself is being relocated within a modernized cabinet layout, clearance for fiber-optic cable bend radius must be maintained to avoid DDCS link errors during operation.

Downtime Control During System Migration

Minimizing production downtime during a CINT-45X1 replacement requires preparation before the maintenance window begins. The most effective approach is to perform a full drive parameter backup using DriveWindow or DriveStudio prior to any hardware removal. This backup preserves motor control parameters, application macros, I/O configurations, and communication settings — allowing rapid restoration if commissioning reveals unexpected behavior after the board swap.

Where the production process permits, a cold swap during a planned shutdown is strongly preferred over emergency replacement under pressure. Pre-staging the CINT-45X1 with the correct DDCS node address and verifying fiber-optic connector cleanliness before the maintenance window opens can reduce the physical swap time to under 30 minutes for experienced technicians.

For facilities operating continuous processes where even brief interruptions carry significant cost, a parallel commissioning approach is recommended: install and configure the replacement CINT-45X1 in a bench test environment using a spare AINT unit before the live swap. This validates firmware compatibility and parameter restore procedures without risk to the running system.

Post-installation, the drive should be powered up in local control mode before returning to remote or fieldbus control, allowing verification of motor rotation direction, speed reference response, and fault relay outputs before the process load is reconnected. This sequence protects both the mechanical system and the restored control logic from commissioning-phase faults.

Each CINT-45X1 unit supplied by KNMKS is pre-shipment tested to confirm DDCS link establishment, I/O signal integrity, and power-up self-diagnostics — reducing the risk of receiving a non-functional board during a time-critical maintenance event. Stock availability is maintained to support same-week dispatch for urgent retrofit requirements.

Retrofit Support FAQ

Q1: Is the CINT-45X1 a direct replacement for the AINT-45C and AINT-45X interface boards?
The CINT-45X1 is designed for installation in the AINT series drive control platform and shares the same backplane connector and form factor as the AINT-45C and AINT-45X. Before installation, confirm the AINT board revision and drive firmware version to ensure full compatibility. KNMKS recommends a parameter backup before any board swap.

Q2: Will existing DDCS fiber-optic wiring and node address settings be preserved after replacement?
The DDCS node address is typically stored in the drive control unit, not the interface board itself. However, some firmware versions may require node address re-entry after a board replacement. Document the existing node address before removal and verify DDCS link status on first power-up after installation.

Q3: What commissioning steps are required after installing the CINT-45X1?
After installation, restore the drive parameter backup using DriveWindow or DriveStudio. Verify DDCS communication link status, confirm I/O signal mapping, check HMI panel connectivity (CDP312R or equivalent), and perform a no-load motor run test before reconnecting the process. Confirm all option slot adapters (PROFIBUS, Modbus, or I/O extension modules) are communicating correctly.

Q4: What support terms and supply terms apply to the CINT-45X1?
All CINT-45X1 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and are pre-shipment tested before dispatch. Stock is maintained for prompt availability to support urgent retrofit and breakdown replacement requirements. Contact [email protected] or +86 18359268345 for lead time and inventory confirmation.
