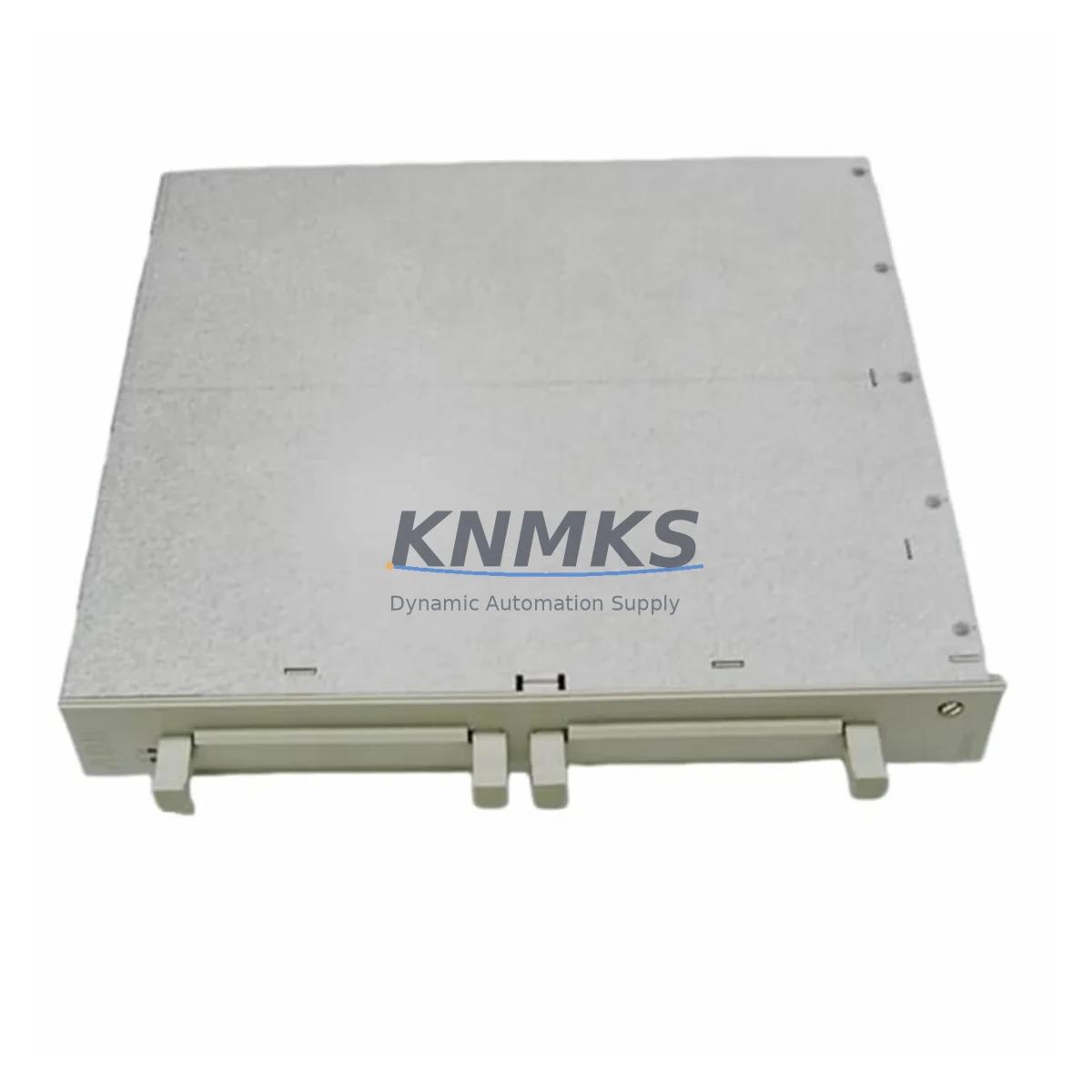

ABB CI530 Migration-Ready Comm Interface for Legacy Systems

Overview

ABB CI530 Migration-Ready Comm Interface for Legacy Systems

The ABB CI530 is a PROFIBUS DP communication interface module engineered for seamless integration into ABB AC450 and MB300 distributed control systems. As legacy automation infrastructure reaches end-of-life, the CI530 remains a critical component for engineers managing system continuity, control cabinet upgrades, and phased migration programs. Whether you are replacing a failed unit, extending the operational life of an existing rack, or preparing a full platform migration to ABB System 800xA or AC800M, the CI530 provides a verified, drop-in compatible solution backed by support terms confirmed by quotation coverage and pre-shipment functional testing.

Procurement teams and system integrators sourcing CI530 units for brownfield retrofit projects will find this module fully compatible with the original backplane pinout and rack addressing scheme used across the AC450 platform. No firmware re-flashing is required for direct replacement scenarios, and the module retains its original PROFIBUS DP slave address configuration, reducing commissioning time and minimizing unplanned downtime during changeover.

For sites running mixed-generation control cabinets — where AC450 racks coexist with newer AC800M controllers or third-party SCADA systems — the CI530 supports transparent PROFIBUS DP communication bridging, allowing I/O data to be mapped without rewriting existing ladder logic or function block diagrams. Engineers should verify the DP baud rate setting (typically 1.5 Mbit/s or 12 Mbit/s) against the master controller configuration before installation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful CI530 retrofit projects begin with a thorough audit of the existing control cabinet layout. Engineers should document the current rack configuration — including the position of the ABB DSAI 130 analog input modules, DSDO 115 digital output modules, and any DSBC 176 communication bus modules — before initiating any hardware swap. This baseline record protects against configuration drift and supports rapid recovery if commissioning issues arise.

Power budget verification is a mandatory pre-retrofit step. The CI530 draws its operating power from the AC450 backplane, so the installed power supply unit must have sufficient headroom to support the module alongside co-installed I/O cards. Sites using the ABB DSDP 150 power distribution board should confirm available current margins before proceeding.

For projects involving protocol migration — for example, transitioning from PROFIBUS DP to PROFINET or Modbus TCP as part of a broader platform upgrade — the CI530 can serve as a stable interim communication layer while the new network infrastructure is commissioned in parallel. This staged approach allows production to continue on the legacy AC450 platform while the replacement AC800M controller and its CI854 PROFINET interface module are validated offline.

Cabinet space planning is equally important. The CI530 occupies a single slot in the AC450 rack, but engineers managing multi-rack installations should account for cable routing to the PROFIBUS trunk, termination resistor placement at the segment endpoints, and clearance for the 9-pin D-sub connector. Where rack space is constrained, signal isolators such as the ABB DSAI 155 may need to be repositioned to accommodate the communication module.

Programming compatibility should be confirmed against the existing application software. Projects using ABB Master Piece 200/1 engineering tools should verify that the CI530 hardware object is correctly defined in the system database before downloading any configuration changes. Retaining a backup of the original program and I/O mapping is strongly recommended prior to any live system modification.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any brownfield CI530 replacement. The recommended approach is a pre-staged swap: configure and bench-test the replacement CI530 unit — including DP address setting and firmware verification — before the scheduled maintenance window begins. This reduces in-cabinet work time to a physical swap and network re-scan, typically achievable within a 30–60 minute window.

To protect existing program logic, engineers should export a full backup of the AC450 application database using the ABB Master Piece 200/1 tool or equivalent engineering station before disconnecting the failed module. This backup preserves all function block configurations, I/O assignments, and alarm setpoints, enabling rapid restoration if the replacement unit requires re-commissioning from scratch.

Field control continuity during the swap can be maintained by placing the affected control loops in manual mode at the DCS operator station prior to module removal. For processes where manual operation is not feasible, a coordinated hold with the production team should be scheduled. Once the CI530 replacement is seated and the PROFIBUS DP network scan confirms all slave devices are online, loops can be returned to automatic control in a controlled sequence.

Post-installation verification should include a full I/O check against the original signal list, confirmation of HMI tag updates in the Operate IT or IndustrialIT environment, and a review of the PROFIBUS diagnostic buffer for any residual communication errors. Documenting the completed retrofit — including the replacement module serial number, firmware version, and commissioning date — supports future maintenance planning and support terms claim processing.

Retrofit Support FAQ

Q1: Is the CI530 a direct drop-in replacement for a failed communication interface in an AC450 rack?
Yes. The CI530 is designed for direct slot replacement within the AC450 backplane. No mechanical adapters or wiring modifications are required. Confirm the DP slave address DIP switch setting matches the original unit before powering the rack.

Q2: What pre-shipment testing is performed on CI530 units?
Each CI530 unit undergoes functional verification prior to dispatch, including power-on self-test, PROFIBUS DP communication handshake validation, and visual inspection for connector and board integrity. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects under normal operating conditions.

Q3: Can the CI530 be used in an MB300 system as well as AC450?
The CI530 is primarily rated for AC450 platform applications. Compatibility with MB300 configurations depends on the specific rack variant and backplane revision. Contact our technical team with your MB300 rack model and slot configuration for a confirmed compatibility assessment before ordering.

Q4: How quickly can a CI530 unit be sourced for an emergency breakdown situation?
We maintain verified stock of CI530 modules to support urgent breakdown and emergency procurement requirements. Standard lead times and expedited shipping options are available. Contact [email protected] or call +86 18359268345 to confirm current inventory and arrange priority dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

CI530
Legacy Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB CI530
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
