ABB CDP312R Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB CDP312R Maintenance-Proven Spare Part for Factory Uptime

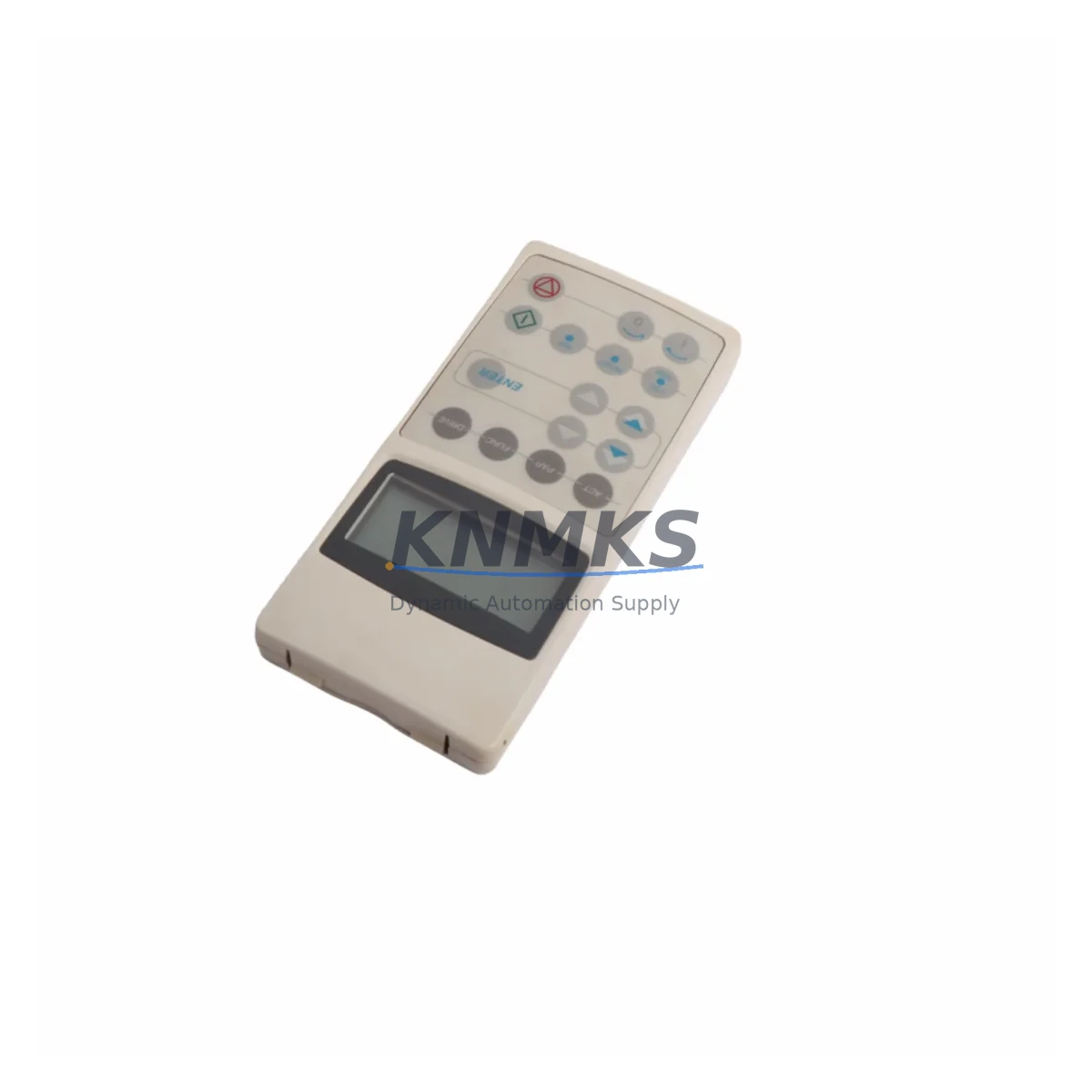

The ABB CDP312R is a drive panel communication adapter purpose-built for ABB ACS800 and ACS600 series variable frequency drives. As a critical interface between the drive control unit and the CDP (Control Drive Panel), the CDP312R enables real-time parameter monitoring, fault diagnostics, and local/remote control switching — functions that are indispensable in continuous-process manufacturing, utilities, and heavy industry environments. When this component fails or degrades, operators lose visibility into drive status, fault codes become inaccessible, and emergency shutdowns may be triggered without clear root cause data. Stocking a verified CDP312R spare is not optional for facilities running ACS800 or ACS600 drive fleets — it is a baseline maintenance requirement.

Our CDP312R units are sourced as original ABB components, individually inspected, and subjected to pre-shipment functional testing to confirm communication integrity, keypad interface response, and connector pin continuity. Each unit ships with a support terms confirmed by quotation and is supported by long-term supply commitment — ensuring your maintenance team can reorder without lead-time risk across multi-year maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CDP312R fault is identified during routine drive cabinet inspection or after an unplanned drive trip, the replacement workflow should extend beyond the panel adapter itself. Maintenance engineers should simultaneously verify the condition of the CDP cable assembly (the ribbon or shielded cable connecting the CDP312R to the drive control board) — cable degradation is a frequent co-failure mode that can cause intermittent communication loss even after a panel swap.

The ACS800 RMIO board (the main control board of the ACS800 drive) should be inspected for firmware version compatibility and any fault codes logged prior to the CDP312R failure. In cases where the drive has been running in a high-vibration or high-humidity environment, the RMIO board’s connector seats may also require cleaning or reseating. Similarly, the RDCO-03 or RDCO-04 communication option modules installed in the same drive should be checked for fieldbus communication integrity — a CDP312R replacement is an ideal opportunity to audit the full communication stack.

For facilities operating multiple ACS800 drives in a coordinated system, the RDNA-01 DeviceNet adapter or RPBA-01 PROFIBUS adapter modules installed in adjacent drives should be included in the inspection checklist. These modules share the same drive communication architecture and are subject to similar environmental stress cycles. Procurement teams should consider holding one spare CDP312R per three to five ACS800 drives in the fleet, alongside a spare ACS800 main fan assembly and a set of drive input/output terminal blocks, to cover the most common field-replaceable components in a single cabinet service event.

For ACS600 installations, the CDP312R interfaces with the NAMC-11 or NAMC-51 control boards. Maintenance planners should confirm the firmware revision on these boards is compatible with the CDP312R revision availability confirmed by RFQ. Keeping a documented compatibility matrix for your installed drive fleet — cross-referencing CDP312R revision, control board firmware, and fieldbus adapter type — significantly reduces diagnostic time during emergency callouts.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Before removing the faulty CDP312R, use a functioning drive or a laptop with ABB DriveWindow software to capture the full parameter set from the drive. If the CDP312R is non-functional, retrieve parameters via the DDCS or fieldbus interface if available. Document the fault history log.

Step 2 — Safe isolation: Isolate the drive from mains supply following your site LOTO procedure. Confirm DC bus discharge (typically 5 minutes after isolation for ACS800 units). Do not handle the CDP312R or its cable while the drive is energized.

Step 3 — Physical replacement: Disconnect the CDP cable from the existing panel. Remove the CDP312R from its mounting (panel-mount clip or remote bracket). Install the replacement CDP312R, reconnect the cable, and confirm the connector is fully seated. Inspect the cable for any visible damage — replace if sheathing is cracked or pins are corroded.

Step 4 — Parameter restore and commissioning: Power up the drive and confirm the CDP312R display initializes correctly. Restore the parameter set from your backup. Verify local/remote control switching, fault reset function, and reference value entry. Run a no-load test before returning the drive to production.

Step 5 — System compatibility confirmation: Confirm the replacement CDP312R revision is compatible with the installed RMIO or NAMC board firmware. ABB revision compatibility tables are available in the ACS800 Hardware Manual (3AFE64527592). Log the replacement in your CMMS with the new unit’s serial number and installation date.

Spare Parts Support FAQ

Q1: Is the CDP312R compatible with both ACS800 and ACS600 drives?
Yes. The CDP312R is the standard control panel for both the ACS800 and ACS600 series. However, always verify the revision suffix of your CDP312R against the drive’s control board firmware version. ABB published revision compatibility notes in the respective hardware manuals. Our team can assist with compatibility confirmation prior to shipment if you provide your drive nameplate data.

Q2: Can the CDP312R be used in remote mounting configuration?
Yes. The CDP312R supports remote mounting via an extension cable (ABB part type CDP cable, available in various lengths). This is commonly used when the drive is installed in a locked cabinet and the operator interface must be accessible at panel door level. Confirm cable length and connector type when ordering to ensure a complete replacement kit.

Q3: What pre-shipment testing is performed on CDP312R units?
Each CDP312R undergoes communication link verification, keypad and display function testing, and connector pin continuity checks before dispatch. Units that do not pass all test criteria are not shipped. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the long-term supply outlook for CDP312R spares?
The CDP312R remains in active demand due to the large installed base of ACS800 and ACS600 drives globally. We maintain multi-region stock to support emergency replacement orders with short lead times. For facilities with planned annual shutdowns or multi-drive fleets, we recommend establishing a blanket order or consignment stock arrangement to eliminate procurement risk during peak maintenance periods.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

CDP312R CDP-312R
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB CDP312R CDP-312R
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
