ABB BTDR-01C 3AUA0000094845 Migration-Ready MD Control Board

Overview

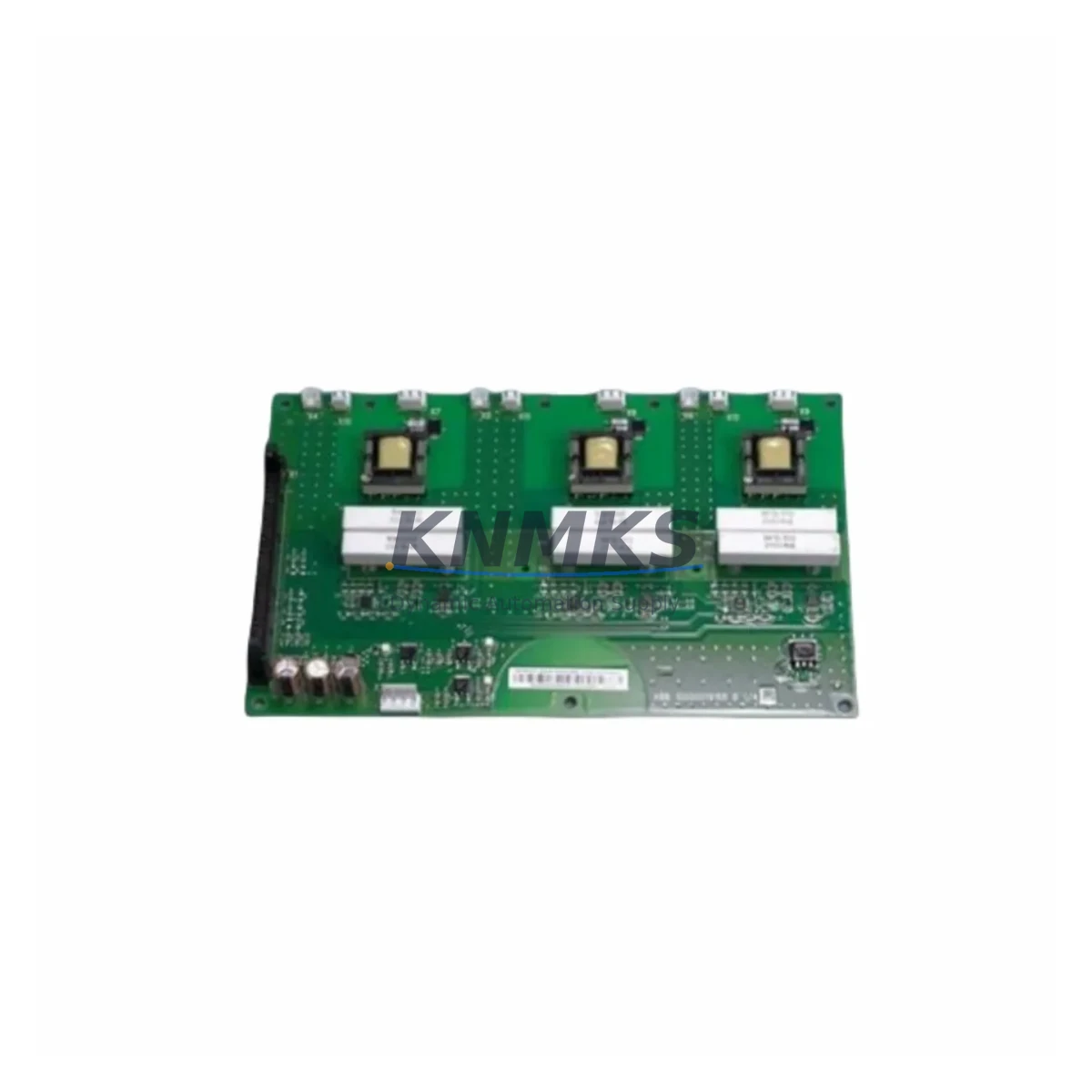

ABB BTDR-01C 3AUA0000094845 Migration-Ready MD Control Board for Legacy Control Systems

The ABB BTDR-01C (part number 3AUA0000094845) is a migration-ready MD Control Board engineered for the ABB ACS800 series variable frequency drive platform. As legacy ACS800 installations age beyond their original design lifecycle, the BTDR-01C serves as a direct-replacement control board that restores full drive functionality without requiring a complete drive cabinet overhaul. This board is sourced from verified supply channels, pre-shipment tested under load conditions, and backed by a support terms confirmed by quotation — making it a reliable solution for emergency replacements, planned maintenance shutdowns, and phased system modernization programs.

The BTDR-01C governs the core motor drive logic within the ACS800 control architecture, managing speed reference processing, fault diagnostics, I/O signal routing, and fieldbus communication coordination. When the original board fails or reaches end-of-service, replacement with a verified BTDR-01C allows maintenance teams to restore production continuity with minimal reprogramming effort, provided the firmware version and drive parameter set are correctly matched during commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the BTDR-01C within an operational ACS800 installation requires a structured retrofit plan that accounts for the full control chain — not just the board itself. Before initiating the swap, maintenance engineers should perform a complete parameter backup using ABB DriveWindow software or the ACS800 control panel, capturing all motor data, speed references, PID configurations, and I/O assignments. This backup is critical because the replacement board ships without a pre-loaded parameter set and must be commissioned from scratch or restored from the saved file.

The ACS800 control section typically houses several interdependent components that should be inspected during the same maintenance window. The SDCS-CON power supply board provides the internal DC rail that feeds the BTDR-01C; if the power board shows signs of capacitor aging or voltage instability, it should be replaced concurrently to prevent a repeat failure. Similarly, the AINT-02C or AINT-14C inverter control interface boards — which handle the gate drive signals between the control board and the IGBT power section — should be verified for firmware compatibility with the replacement BTDR-01C revision.

For installations using fieldbus communication, the adapter module must be re-addressed after the board swap. Common configurations include the RPBA-01 PROFIBUS adapter or the RMBA-01 Modbus RTU module, both of which retain their node address settings in onboard memory but require re-initialization of the communication parameters in the new BTDR-01C parameter set. In multi-drive systems using the DDCS fiber optic ring, the master-follower configuration and drive address assignments must be re-verified after commissioning.

I/O wiring at the X1 through X4 terminal blocks should be documented with a wiring diagram before disconnection. Signal cables connecting to external PLCs, safety relays, or HMI systems — such as a Panel Builder or third-party SCADA terminal — must be reconnected in the correct sequence. If the site uses an ABB ACS800 with an integrated brake chopper or external braking resistor, the brake control parameters must be re-entered and tested under load before returning the drive to service. Adequate installation space within the control cabinet should be confirmed, particularly in retrofit scenarios where additional I/O extension modules or signal isolators have been added to the original cabinet layout.

Downtime Control During System Migration

Minimizing unplanned downtime during an ACS800 BTDR-01C replacement depends on preparation quality and the availability of a verified spare board before the maintenance window begins. The most effective approach is to pre-commission the replacement board on a bench setup — loading the saved parameter file, verifying firmware version alignment, and confirming I/O channel assignments — before the drive is taken offline. This reduces in-cabinet commissioning time to a final verification sequence rather than a full setup procedure.

During the swap, the original program logic stored in the ACS800 parameter set remains intact as long as the backup was performed correctly. The drive’s application macros, motor model data, and speed controller tuning values are all parameter-based and fully portable to the replacement BTDR-01C. This means that for standard ACS800 applications — pump and fan control, conveyor drives, compressor regulation — the restored parameter set will typically allow the drive to return to automatic operation without retuning, provided the motor and mechanical load have not changed.

For critical production lines where even brief interruptions carry significant cost, a hot-standby spare strategy is recommended: maintaining one pre-commissioned BTDR-01C board in inventory, loaded with the current parameter set, allows a board swap to be completed within a single shift. Combined with a pre-shipment tested replacement sourced from verified stock, this approach reduces mean time to repair and supports the site’s overall maintenance reliability targets. All replacement boards supplied are covered by a support terms confirmed by quotation, providing additional assurance during the post-installation period.

Retrofit Support FAQ

Q1: Is the BTDR-01C 3AUA0000094845 a direct replacement for the original board in my ACS800 drive?
Yes. The BTDR-01C 3AUA0000094845 is a direct plug-in replacement for the original MD Control Board in ACS800 series drives. The board occupies the same control slot, uses the same connector interface, and is compatible with the ACS800 parameter architecture. A parameter backup and firmware version check are required before installation to ensure full compatibility with your specific drive configuration.

Q2: What commissioning steps are required after installing the replacement BTDR-01C?
After physical installation, restore the parameter set from your backup file using ABB DriveWindow or the ACS800 control panel. Verify the motor data group (Group 99), I/O configuration, fieldbus node address, and any application-specific macro settings. Perform a no-load test run before returning the drive to full production load. If the drive uses a DDCS fiber ring or external PLC interlock, verify communication link status before enabling the run command.

Q3: How do I confirm the board is compatible with my ACS800 firmware version?
Check the firmware version label on the existing BTDR-01C or read it from the ACS800 panel (Parameter 33.01 or equivalent). The replacement board must be loaded with a compatible firmware version. If your site requires a specific firmware revision, please confirm this at the time of order so the board can be prepared accordingly prior to dispatch.

Q4: What support terms and testing coverage is included with this board?
Every BTDR-01C 3AUA0000094845 supplied is pre-shipment tested under functional conditions and covered by a support terms confirmed by quotation from the date of delivery. In-stock units are available for immediate dispatch to support emergency replacement requirements and planned maintenance schedules globally.
