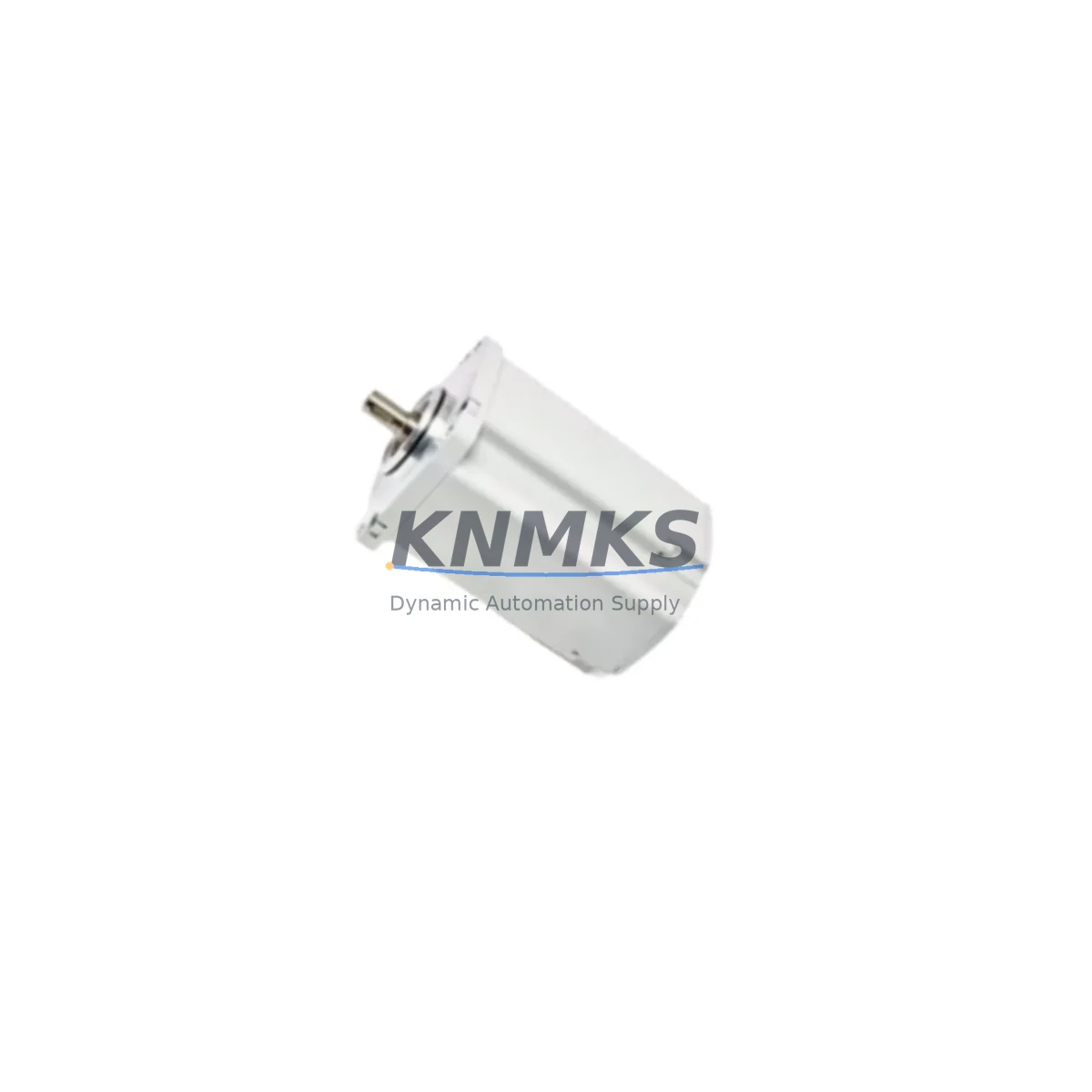

ABB BSM90C-375CAX Fail-Safe Wrist Servo Motor IRB2600

Overview

ABB BSM90C-375CAX Fail-Safe Wrist Servo Motor IRB2600: Fault-Protection and Critical Industrial Field Reliability

The ABB BSM90C-375CAX (OEM Part No. 3HAC040655-001, also referenced as 3HAC046598-001, MU100 assembly) is the factory-specified wrist servo motor for the ABB IRB2600 industrial robot, driving Axes 4, 5, and 6 in continuous-duty automation cells. Engineered to ABB’s SafeMove-compatible motion architecture, this servo delivers precision torque control, low-speed stability, and deterministic response under the demanding conditions of welding, material handling, machine tending, and press-tending applications where unplanned downtime carries direct production and safety consequences.

In high-cycle robotic cells — where the IRB2600 may execute tens of thousands of wrist articulations per shift — the BSM90C-375CAX is designed to maintain positional accuracy and thermal stability without signal drift or torque ripple that could compromise weld seam quality, part placement repeatability, or collaborative safety zone integrity. Its integrated encoder feedback loop works in concert with the ABB DSQC662 drive unit and the IRC5 controller’s axis computer to deliver closed-loop fault detection: any encoder anomaly, over-temperature event, or communication dropout triggers a controlled, fail-safe stop rather than an uncontrolled axis runaway — a critical protection layer in cells operating near human workers or sensitive tooling.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable wrist servo performance begins well upstream of the motor itself. In a properly configured IRB2600 control cabinet, the BSM90C-375CAX operates as part of a layered protection architecture. The ABB DSQC662 servo drive module regulates current delivery to the wrist axes and provides hardware-level over-current and short-circuit protection, ensuring that a winding fault in the servo does not propagate back into the drive bus or damage adjacent axis drives. Upstream, the ABB DSQC609 power supply unit conditions incoming AC to a stable 24 VDC logic rail and 48 VDC drive rail, suppressing voltage sags and transient spikes that would otherwise cause encoder communication errors or spurious E-stop events during high-inrush motor starts.

Signal integrity between the IRC5 axis computer and the BSM90C-375CAX encoder is maintained through the ABB SMB (Serial Measurement Board, 3HAC14550-2), which buffers resolver signals and retains absolute axis position across power cycles — eliminating the need for manual axis calibration after a power interruption, a significant safety and productivity advantage in continuous-process environments. For cells where electromagnetic interference from welding power sources or variable-frequency drives is a concern, the ABB DSQC668 fieldbus adapter provides galvanically isolated DeviceNet or PROFIBUS communication, preventing ground loop noise from corrupting motion commands to the wrist axes.

Thermal management within the control cabinet is equally critical. Excessive cabinet temperatures accelerate insulation degradation in servo motor windings and reduce drive IGBT lifespan. Pairing the BSM90C-375CAX replacement with a cabinet cooling audit — and, where necessary, supplementary ABB-compatible cabinet fan and filter assemblies — ensures that the new motor operates within its rated thermal envelope from day one, protecting the support terms confirmed by quotation and extending mean time between failures.

Critical Industrial Safety Applications

The ABB BSM90C-375CAX wrist servo is deployed across a broad range of safety-critical and continuous-production industrial environments:

Automotive Welding and Body-in-White: In automotive assembly plants, IRB2600 robots equipped with BSM90C-375CAX wrist motors perform MIG/MAG spot and seam welding on body panels and structural members. Wrist axis precision directly determines weld seam geometry and penetration consistency. A servo fault mid-cycle can produce an out-of-tolerance weld that passes visual inspection but fails structural load testing — a latent safety defect. The fail-safe stop behavior of the BSM90C-375CAX, combined with IRC5’s weld-process monitoring, ensures that any axis anomaly halts the weld cycle cleanly rather than producing a defective joint.

Petrochemical and Hazardous Material Handling: In petrochemical facilities where robots handle drum filling, valve actuation, or sample transfer in Zone 2 classified areas, wrist servo reliability is a process safety requirement. An uncontrolled axis movement in proximity to open process connections or pressurized lines creates immediate personnel and asset risk. The BSM90C-375CAX’s deterministic fault response and IP54 sealing provide the baseline reliability required for these environments.

Metal Casting and Foundry Extraction: High-temperature, high-vibration foundry environments subject wrist servo motors to thermal cycling, airborne particulate, and mechanical shock from part extraction. The BSM90C-375CAX’s balanced rotor design and thermistor-monitored winding protection allow sustained operation in these conditions, with the IRC5 controller logging thermal events for predictive maintenance scheduling.

Water Treatment and Utilities: In water treatment automation, where robots perform chemical dosing, valve positioning, and pipe inspection in humid, chemically aggressive environments, the IP54-rated BSM90C-375CAX provides reliable wrist motion without moisture ingress-related insulation breakdown — a common failure mode for non-OEM replacement motors in these settings.

Port and Heavy Logistics Automation: Container handling and palletizing robots operating in outdoor or semi-outdoor port environments face wide ambient temperature swings, salt-laden air, and continuous-duty cycles. The BSM90C-375CAX’s wide storage temperature range and robust connector sealing support reliable operation across seasonal extremes without requiring additional environmental enclosures for the wrist assembly.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover, and what pre-shipment testing is performed?
Every BSM90C-375CAX unit undergoes a pre-shipment functional test covering winding resistance balance, insulation resistance (megger test), encoder signal integrity, and mechanical rotation smoothness before dispatch. The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of delivery. It does not cover damage resulting from incorrect installation, operation outside rated parameters, or physical impact. Support requests are supported with a direct replacement or documented resolution support process — no extended RMA delays.

Q2: Is this servo motor compatible with all IRB2600 variants and IRC5 controller generations?
The BSM90C-375CAX (3HAC040655-001 / 3HAC046598-001) is specified for the ABB IRB2600 wrist unit across the standard payload variants (12 kg and 20 kg). It is compatible with IRC5 single-cabinet and IRC5 Compact controller configurations. For IRB2600ID (integrated dressing) variants, confirm the wrist harness routing before installation, as connector orientation may differ. If you are unsure of your robot’s exact configuration, provide your robot serial number and we will confirm compatibility before shipment.

Q3: How does this servo protect against control interruptions caused by EMI or power fluctuations in welding environments?
The BSM90C-375CAX uses shielded winding construction and is designed to operate within the IRC5 drive architecture, which includes hardware-level EMI filtering on the servo drive bus. The SMB board’s resolver interface provides noise-immune absolute position feedback, so transient EMI events from welding power sources do not cause encoder count errors or false fault trips. Power fluctuation protection is provided at the cabinet level by the DSQC609 PSU; the servo motor itself is rated for the regulated drive bus voltage, not raw mains input.

Q4: What is the long-term supply commitment, and can you support multi-unit or scheduled procurement?
We maintain standing stock of the BSM90C-375CAX to support both emergency breakdown replacement and planned maintenance programs. Multi-unit orders for spare parts programs, scheduled annual maintenance kits, or fleet-wide IRB2600 refurbishment projects are supported with volume pricing and reserved allocation on request. Lead time for standard single-unit orders is same-week dispatch; for bulk orders, contact us to confirm allocation and delivery schedule.
