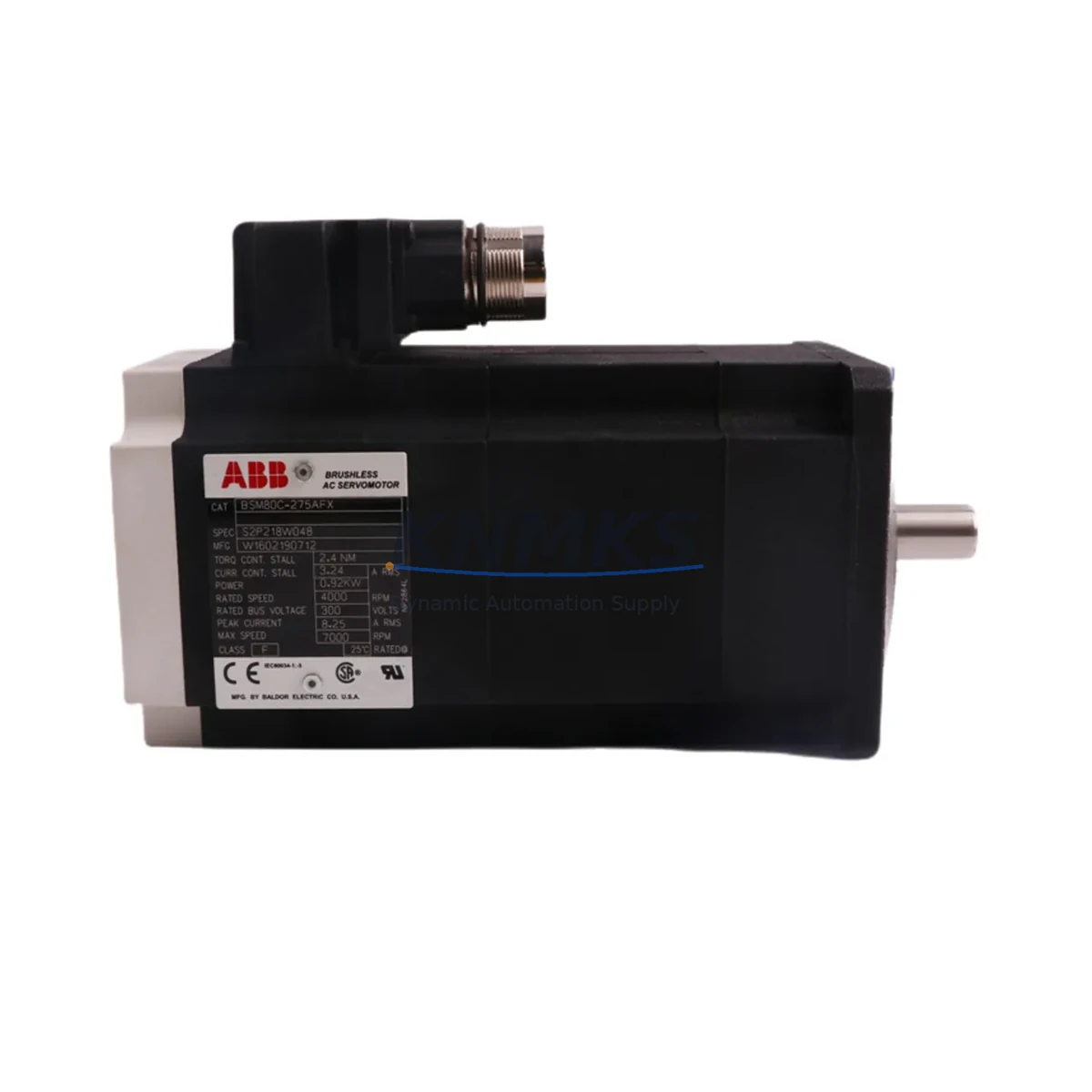

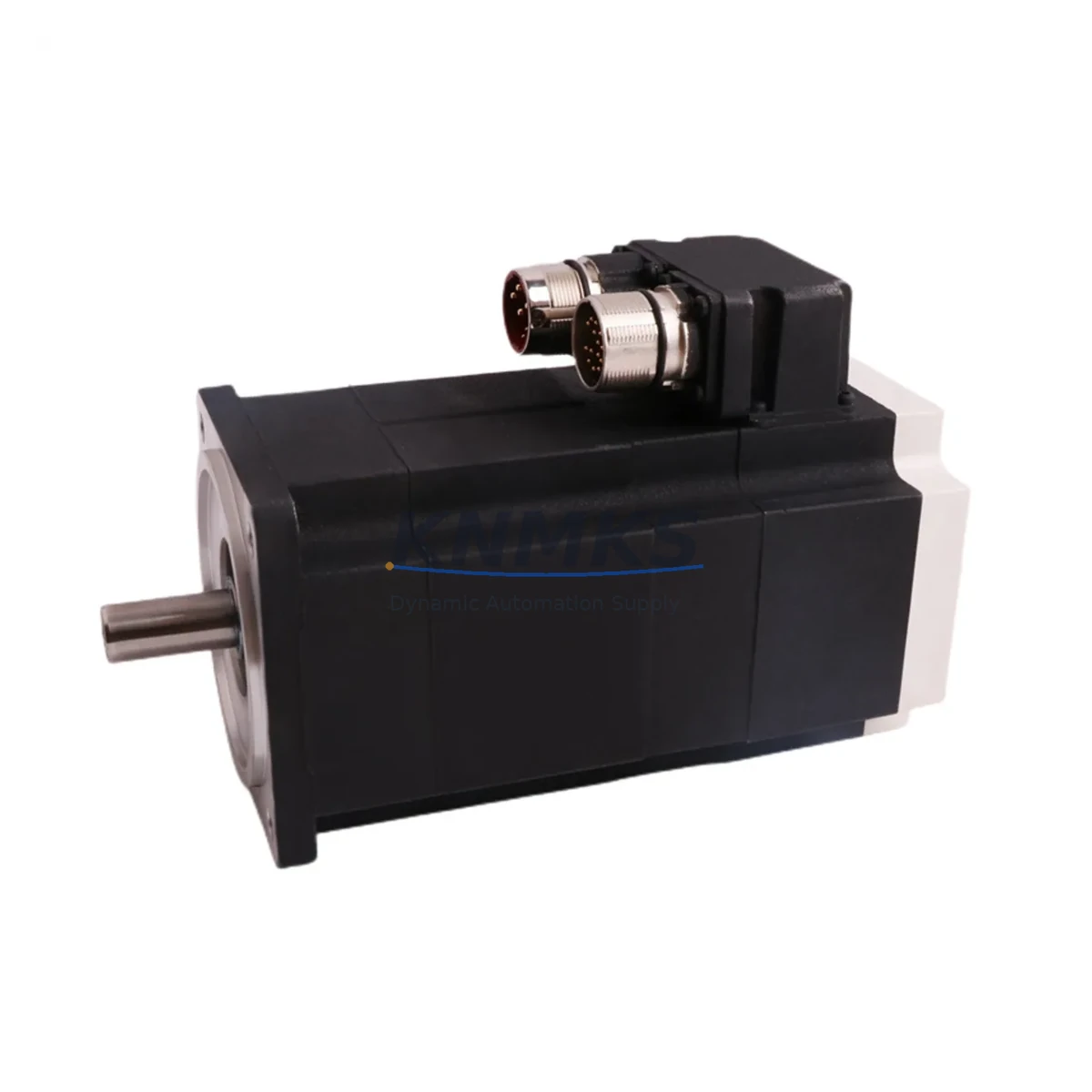

ABB BSM80C-275AFX Migration-Ready AC Servo Motor

Overview

ABB BSM80C-275AFX Migration-Ready AC Servo Motor: Legacy System Retrofit & Compatibility Upgrade

The ABB BSM80C-275AFX is a high-performance AC servo motor engineered for direct integration into existing BSM80-series control architectures. As legacy automation lines face end-of-life component shortages and discontinued OEM support, the BSM80C-275AFX provides a validated migration path that preserves existing wiring topology, drive compatibility, and program logic — minimizing retrofit risk and unplanned downtime across manufacturing, packaging, and process control environments.

Designed to interface natively with ABB MicroFlex e150 and MotiFlex e180 servo drives, the BSM80C-275AFX maintains the same shaft geometry, flange mounting pattern, and encoder feedback protocol as the original BSM80C platform. Engineers replacing aging BSM80C-275AF or BSM80C-275AEX units can retain existing motor cables, resolver or encoder wiring harnesses, and drive parameter sets with minimal reconfiguration. This continuity is critical in retrofit projects where HMI screen layouts, PLC address mappings, and fieldbus node assignments must remain intact to avoid full-system recommissioning.

Before committing to a swap, retrofit planners should verify the following against the existing installation: power supply rail capacity (typically 230 VAC or 460 VAC three-phase), terminal block pitch and connector type at the drive output stage, backplane slot assignments if the servo axis is coordinated through a motion controller such as the ABB AC500 PLC or a third-party Modbus RTU master, and available cabinet depth for motor cable routing. The BSM80C-275AFX shares the same IEC 72-1 frame dimensions as its predecessors, but thermal management requirements should be re-evaluated if ambient cabinet temperatures have changed since the original installation.

In multi-axis retrofit scenarios, the BSM80C-275AFX is commonly deployed alongside the ABB MicroFlex e150 digital servo drive, ABB ACSM1 motion control module, and BSM90N-series motors on adjacent axes where torque requirements differ. I/O expansion through the ABB FPBA-01 PROFIBUS adapter or FENA-21 EtherNet/IP adapter allows the retrofitted axis to participate in existing network topologies without gateway hardware. Where legacy resolver feedback is being replaced with incremental encoder output, the ABB RMIO-02C resolver-to-encoder interface module provides a transparent signal conversion layer that eliminates the need to reparameterize the upstream motion controller.

Firmware compatibility should be confirmed prior to commissioning. MicroFlex e150 drives running firmware versions below 2.x may require an update to recognize BSM80C-275AFX motor data files. ABB’s Mint WorkBench commissioning software supports offline motor file import, allowing engineers to validate axis configuration and simulate motion profiles before energizing the retrofitted axis — a practice that significantly reduces live commissioning time and protects existing program logic stored in the drive’s non-volatile memory.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A structured retrofit plan is essential when replacing the BSM80C-275AFX in a live production environment. Begin by documenting the existing axis configuration: record all drive parameters using Mint WorkBench’s parameter backup function, capture HMI tag assignments linked to the servo axis, and photograph terminal block wiring before disconnection. This documentation baseline protects against configuration loss during the physical swap.

Power capacity verification is the next critical step. Confirm that the existing servo drive — whether a MicroFlex e150 or an older BSM80-era drive — can supply the continuous and peak current ratings of the BSM80C-275AFX. In cabinet upgrades where multiple axes are being modernized simultaneously, the DC bus capacity of the shared power supply module must be recalculated to account for regenerative braking energy from adjacent axes.

For systems integrating the BSM80C-275AFX into a coordinated motion network, verify that the PROFIBUS DP or EtherNet/IP node address assigned to the original axis is preserved in the replacement drive configuration. Where the original installation used an ABB FPBA-01 PROFIBUS adapter, confirm that the GSD file version loaded in the PLC’s hardware configuration matches the adapter firmware. Mismatched GSD versions are a common source of communication faults during post-retrofit startup.

Signal isolation should be evaluated where the servo feedback cable runs parallel to high-voltage power conductors. In older control cabinets, adding a signal isolator between the encoder output and the drive feedback input can eliminate noise-induced position errors that were previously masked by the original motor’s resolver feedback characteristics. This is particularly relevant in retrofit projects where the BSM80C-275AFX’s incremental encoder replaces a legacy resolver, as the differential signal levels differ.

Finally, confirm physical installation clearances. The BSM80C-275AFX’s overall length including the encoder housing must be measured against available cabinet depth and any mechanical coupling or bellhousing constraints. In tight installations, a right-angle gearbox or flexible coupling spacer may be required to maintain shaft alignment with the driven load.

Downtime Control During System Migration

Minimizing production downtime during a BSM80C-275AFX retrofit requires pre-staging all replacement components and completing as much configuration work as possible offline. Use Mint WorkBench to pre-load the motor data file and configure axis parameters on the replacement drive before it is installed in the cabinet. This offline preparation can reduce live commissioning time from several hours to under 30 minutes in straightforward single-axis replacements.

Where the production schedule permits only a short maintenance window, consider a parallel commissioning approach: mount the replacement drive and motor alongside the existing installation, complete all wiring and parameter configuration, and perform a dry-run motion test during a scheduled break before cutting over. This approach preserves the original axis as a fallback and allows the engineering team to validate the BSM80C-275AFX’s performance against the original motion profile before committing to the changeover.

Program logic protection is equally important. Before any physical work begins, back up the PLC program, HMI project files, and drive parameter sets to an offline storage location. In systems where the servo axis participates in a coordinated multi-axis motion sequence, verify that the replacement axis’s homing routine and position reference offsets are correctly configured before enabling the axis in automatic mode. Incorrect homing parameters are the most common cause of post-retrofit position errors that require additional downtime to diagnose and correct.

For critical production lines where even a brief unplanned stoppage carries significant cost, consider maintaining a pre-configured spare BSM80C-275AFX unit with a pre-loaded drive parameter set. This hot-spare strategy, combined with documented wiring and configuration records, can reduce mean time to repair to under two hours in the event of an unexpected motor failure.

Retrofit Support FAQ

Q: Is the BSM80C-275AFX a direct drop-in replacement for the BSM80C-275AF?
A: Yes, in most installations. The BSM80C-275AFX shares the same frame dimensions, flange mounting pattern, and connector interface as the BSM80C-275AF. Verify the feedback suffix (encoder vs. resolver) and brake option before ordering to ensure full compatibility with your existing drive and wiring harness.

Q: What commissioning steps are required after installing the BSM80C-275AFX?
A: After physical installation, restore the backed-up drive parameter set using Mint WorkBench, verify encoder feedback signal integrity using the drive’s diagnostic display, perform a manual jog test at low speed to confirm correct rotation direction and position feedback, and then execute the axis homing routine before returning the system to automatic mode.

Q: Can the BSM80C-275AFX be used with drives from other manufacturers?
A: The BSM80C-275AFX can be operated with third-party servo drives that support standard incremental encoder feedback and accept motor data configuration via parameter entry. However, ABB MicroFlex and MotiFlex drives are the validated and recommended pairing. When using third-party drives, consult the motor’s datasheet for continuous current, peak current, and encoder line count specifications to configure the drive correctly.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects and premature failure under normal operating conditions from the date of shipment. It includes dead-on-arrival (DOA) exchange and technical support for installation-related issues. Support requests require the original order reference and a brief fault description. Contact admin@knmks.com to initiate a support terms claim.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

BSM80C-275AFX

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB BSM80C-275AFX
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
