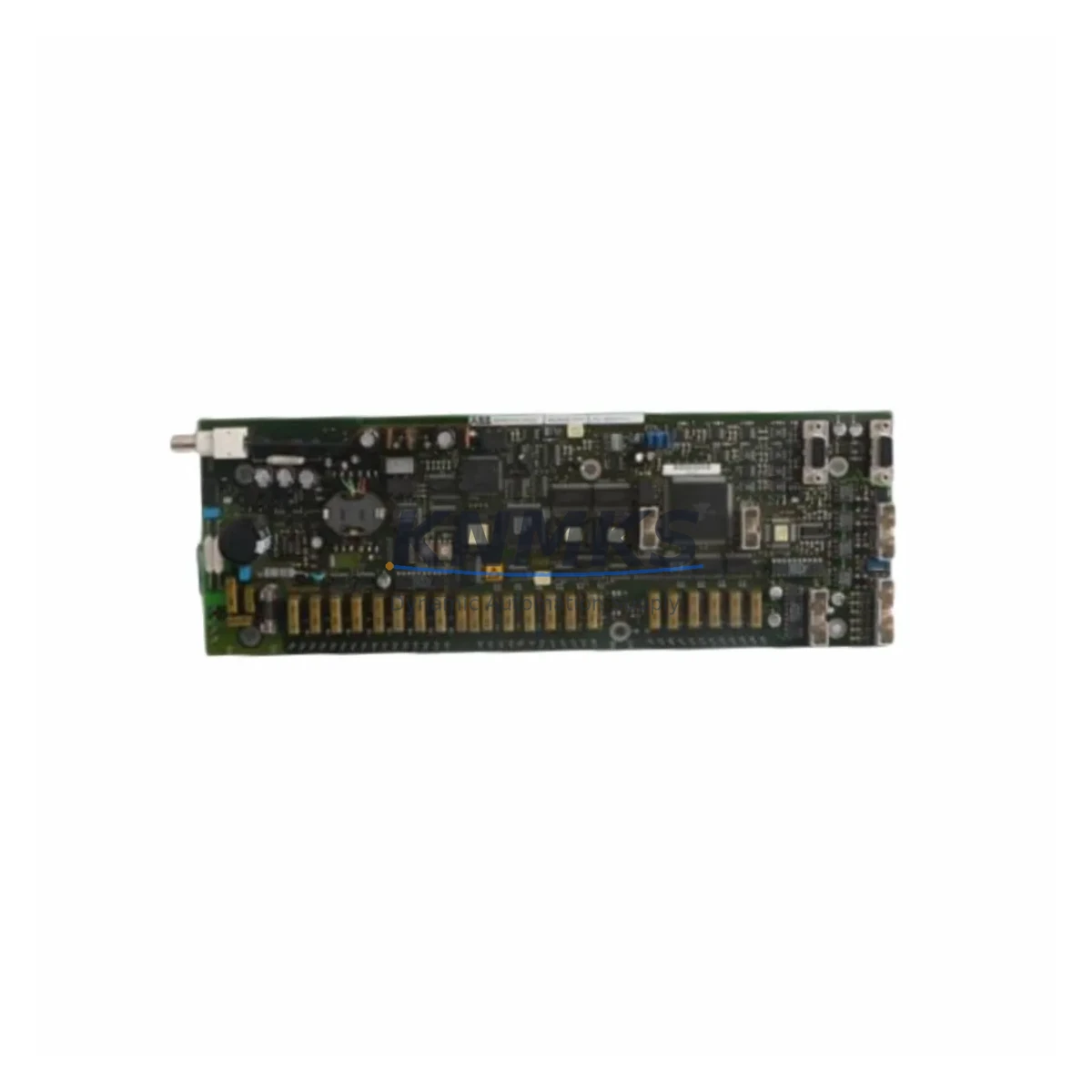

The ABB BINT-12C (part number 3AUA0000077967) is an original DDCS fiber optic interface board engineered for the ABB ACS800 series of industrial AC drives. In high-demand production environments — from paper mills and cement plants to steel processing lines and water treatment facilities — the ACS800 drive platform remains a backbone of motor control infrastructure. When the BINT-12C interface board fails, the result is immediate: loss of DDCS communication, drive fault lockout, and unplanned production stoppage.

Stocking a verified, pre-tested BINT-12C spare is not optional for facilities running ACS800 drives in critical loops. This board manages the fiber optic DDCS link between the drive control unit and external master controllers, including ABB AC800M DCS systems and third-party supervisory platforms. A failed or degraded BINT-12C disrupts torque reference signals, speed feedback loops, and fault reporting — making rapid replacement essential to restoring full drive functionality and production continuity.

Our BINT-12C units are sourced as original ABB components, manufactured in Finland, and subject to pre-shipment functional verification before dispatch. Each unit ships with a support terms confirmed by quotation and is supported by multi-region stock for global delivery details confirmed by RFQ.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BINT-12C failure is diagnosed in an ACS800 drive, experienced maintenance engineers know that the interface board rarely fails in isolation. A thorough site inspection should accompany any BINT-12C replacement to prevent repeat faults and ensure the drive returns to stable operation.

Begin by inspecting the DDCS fiber optic cables connecting the BINT-12C to the master controller. Degraded, bent, or contaminated fiber connectors are a leading cause of intermittent DDCS faults and can damage a replacement board if not addressed. Verify optical power levels at both ends before commissioning the new board.

Next, check the ACS800 RMIO control board — the main control unit that hosts the BINT-12C. If the RMIO board shows signs of capacitor aging, corrosion, or firmware incompatibility, replacing the BINT-12C alone may not resolve the fault. The RMIO and BINT-12C work as a paired communication stack; both should be evaluated during any DDCS fault investigation.

Inspect the drive’s internal 24 VDC auxiliary power supply that feeds the control electronics. Voltage ripple or dropout on this rail can cause DDCS communication errors that mimic a failed interface board. Use a calibrated multimeter or oscilloscope to confirm supply stability before and after board replacement.

For multi-drive systems using the ABB NDBU-95 or NDBU-12C DDCS branching unit, verify that the branching unit itself is not the source of the communication fault. A failing branching unit can cause cascading DDCS errors across multiple drives, leading to misdiagnosis of individual BINT-12C boards.

If the ACS800 is integrated into an ABB AC800M DCS or a third-party SCADA system via DDCS, confirm that the master controller’s DDCS port and optical transceiver are functioning correctly. Communication faults originating at the master level will persist even after a correct BINT-12C replacement.

Finally, review the ACS800 control cabinet’s terminal blocks, grounding bars, and EMC shielding. Poor grounding or EMC interference is a known contributor to fiber optic communication instability in high-power drive environments. Ensure all cable shields are properly terminated and that the cabinet door gaskets and bonding straps are intact.

Procurement engineers should maintain at least one BINT-12C unit in the site spare parts inventory for every two to four ACS800 drives in critical service. Given the lead times associated with legacy drive components, a proactive stocking strategy significantly reduces the risk of extended downtime during unplanned failures.

Site Replacement Workflow

Step 1 — Fault Confirmation: Retrieve the active fault code from the ACS800 drive panel or DCS alarm log. DDCS communication faults (e.g., fault 35 DDCS LINK) indicate a potential BINT-12C failure. Confirm by checking the fiber optic link status LED on the board itself.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Isolate the ACS800 drive from mains supply and allow the DC bus to fully discharge before opening the drive cabinet. Verify zero voltage with an approved voltage tester.

Step 3 — Board Removal: Disconnect the DDCS fiber optic connectors from the BINT-12C. Note the connector positions and cable routing before removal. Carefully unseat the board from the RMIO control board slot, observing ESD precautions throughout.

Step 4 — Replacement Installation: Seat the new BINT-12C firmly into the RMIO slot. Reconnect fiber optic cables to the correct TX/RX ports. Verify that all connectors are fully engaged and that fiber cables are routed without sharp bends.

Step 5 — Power-Up and Commissioning: Restore auxiliary power and observe the DDCS link status LED. Confirm DDCS communication is established between the drive and the master controller before restoring mains power. Run a no-load test cycle to verify drive response to speed and torque references.

Step 6 — Documentation: Record the replacement in the site maintenance log, including the old board serial number, replacement date, and post-installation test results. Update the spare parts inventory accordingly.

This workflow applies equally to direct BINT-12C replacements and to scenarios where the board is being upgraded as part of a broader ACS800 control section refurbishment. The BINT-12C is backward-compatible across ACS800 drive variants that support the DDCS option slot, making it a reliable choice for both like-for-like replacement and system standardization.

Spare Parts Support FAQ

Q1: Is the BINT-12C 3AUA0000077967 compatible with all ACS800 drive variants?
The BINT-12C is designed for ACS800 series drives equipped with the DDCS option slot on the RMIO control board. Compatibility should be confirmed against the specific ACS800 drive type code and firmware version. Our technical team can assist with compatibility verification prior to order.

Q2: What does pre-shipment testing cover for the BINT-12C?
Each BINT-12C unit undergoes functional verification before dispatch, including DDCS communication link testing and visual inspection for component integrity. Units that do not pass verification are not dispatched. Test records are available on request.

Q3: What is the support terms coverage and what does it include?
All BINT-12C units are covered by a support terms confirmed by quotation from the date of dispatch. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q4: Can you support long-term or repeat supply of the BINT-12C for multi-site maintenance programs?
Yes. We maintain multi-region stock of the BINT-12C and can support scheduled procurement programs, blanket orders, and emergency dispatch requirements. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stocking options for high-criticality sites.
