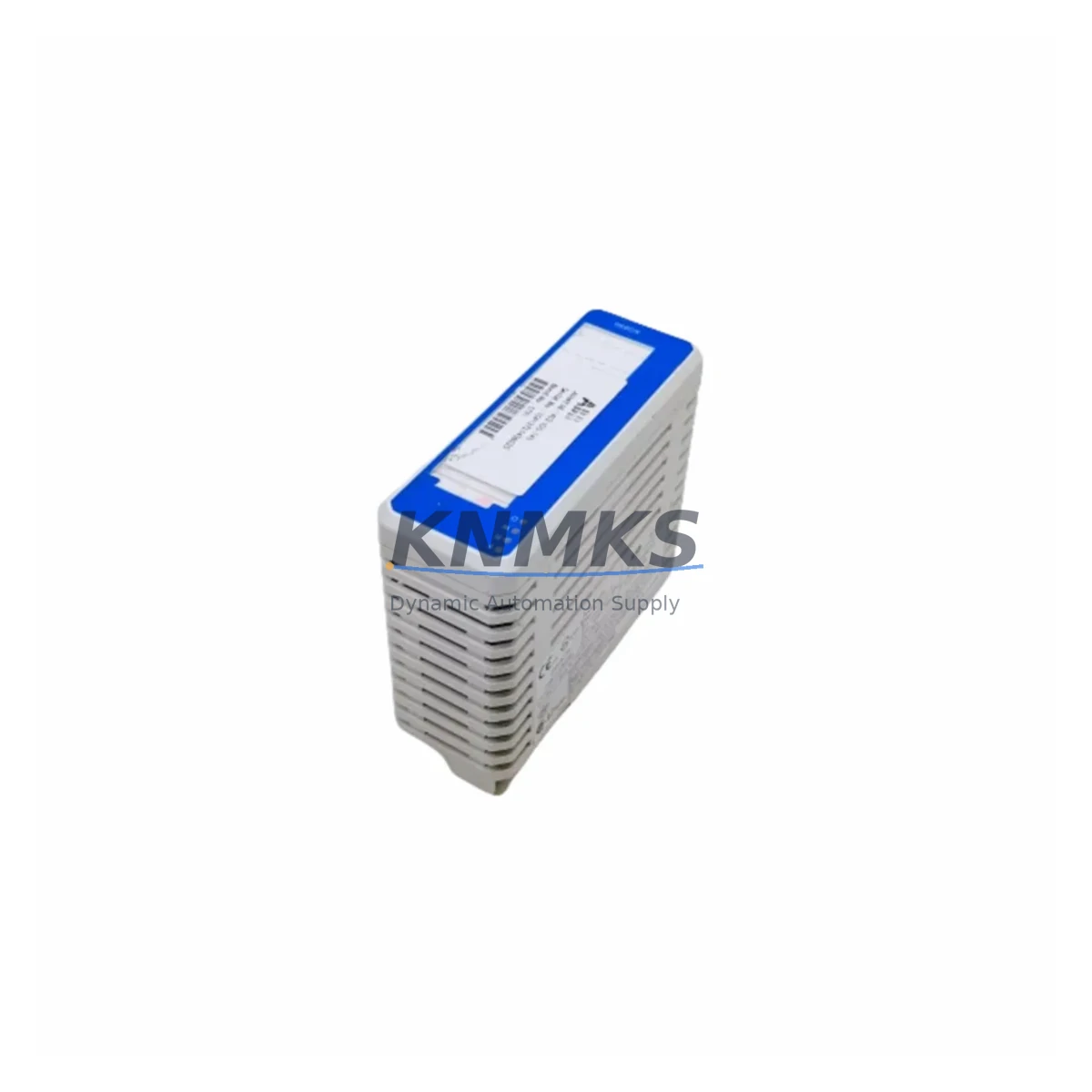

ABB AO890 3BSC690072R1 Fail-Safe Analog Output Module

Overview

ABB AO890 3BSC690072R1 Fail-Safe Analog Output Module: Fault Protection and Critical Industrial Field Reliability

The ABB AO890 (3BSC690072R1) is an 8-channel analog output module engineered for the ABB S800 I/O platform, delivering fail-safe signal integrity in continuous production environments, critical interlock loops, and high-demand control cabinets. Designed to operate reliably under high electromagnetic interference, dust, humidity, high temperature, and mechanical vibration, the AO890 is a cornerstone component for engineers who cannot afford unplanned downtime or signal drift in safety-critical automation systems.

In process industries where analog output accuracy directly governs valve positioning, actuator control, and regulatory loop performance, even a momentary signal anomaly can cascade into a full process shutdown. The AO890 addresses this risk through robust surge protection circuitry, galvanic isolation per channel, and tight output accuracy maintained across the full operating temperature range. Its compatibility with the ABB AC800M controller platform and the broader S800 I/O architecture ensures seamless integration into existing DCS and safety instrumented system (SIS) topologies without requiring hardware redesign.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In heavy-duty control cabinets serving continuous process plants, the AO890 operates as part of a tightly integrated protection architecture. Alongside the ABB AI890 (3BSC690071R1) analog input module, it forms a matched I/O pair that maintains signal symmetry across the full control loop — critical for PID regulatory accuracy in flow, pressure, and temperature control. The ABB TB820V2 ModuleBus Modem provides the high-speed optical bus backbone that connects the S800 I/O cluster to the AC800M controller, ensuring deterministic scan times even under heavy cabinet EMI loads generated by variable frequency drives and high-current contactors.

Power integrity is equally critical. The ABB SD821 Power Supply Unit delivers regulated 24 VDC to the S800 I/O rail, with built-in overvoltage and short-circuit protection that shields the AO890 and adjacent modules from upstream power transients. In safety instrumented systems requiring SIL-rated loop integrity, the AO890 is frequently paired with the ABB AI893 Safety Analog Input Module, which provides SIL 2-capable input acquisition to complement the AO890’s output drive. For communication redundancy in critical DCS topologies, the ABB CI854A PROFIBUS DP Interface Module extends fieldbus connectivity, enabling the S800 I/O station to participate in redundant PROFIBUS segments without single-point-of-failure exposure. Cabinet thermal management is addressed through structured airflow design and the use of ABB S800 I/O Termination Units (TU810V1 / TU830V1), which provide field wiring separation and simplify module replacement without disturbing live field cables — a key advantage during emergency spare part swaps under operational pressure.

Critical Industrial Safety Applications

The AO890 3BSC690072R1 is deployed across the most demanding industrial environments where control loop failure carries direct safety and production consequences:

Petrochemical and Refinery Plants: Analog output modules govern control valve positioning in distillation columns, reactor feed systems, and flare control loops. The AO890’s surge protection and galvanic isolation prevent ground loop interference from corrupting valve commands in high-voltage field environments, reducing the risk of runaway process conditions.

Power Generation and Utilities: In turbine governor control and boiler feedwater regulation, precise 4–20 mA output accuracy is non-negotiable. The AO890 maintains output stability across load transients and grid disturbances, supporting continuous generation without manual intervention.

Mining and Mineral Processing: Crusher control, conveyor speed regulation, and flotation cell level control all depend on reliable analog output drive. The AO890’s vibration and dust tolerance — validated to IEC 60068 standards — ensures sustained performance in open-pit and underground mining environments where conventional modules fail prematurely.

Water and Wastewater Treatment: Dosing pump control, aeration blower modulation, and filter backwash sequencing require stable analog outputs immune to the high-humidity and chemical-vapor environments typical of treatment facilities. The AO890’s non-condensing humidity rating and corrosion-resistant construction support long service intervals between maintenance cycles.

Metallurgy and Steel Production: Electric arc furnace electrode regulation and rolling mill tension control demand millisecond-accurate analog output response. The AO890’s 12-bit resolution and low output latency meet the dynamic response requirements of high-speed metal processing lines.

Port Automation and Marine Systems: Ship-to-shore crane drives and ballast control systems operate in salt-air, high-vibration environments. The AO890’s EMI compliance and robust mechanical design make it a reliable choice for marine-grade automation cabinets where replacement logistics are complex and downtime costs are extreme.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the AO890 3BSC690072R1?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and signal accuracy deviations from specification under normal operating conditions. Support terms replacement or repair is initiated within 24 hours of confirmed fault diagnosis, with priority dispatch to minimize field downtime.

Q2: What pre-shipment testing is performed on each AO890 unit?
Every AO890 unit undergoes full functional testing prior to dispatch: all 8 output channels are verified for signal accuracy across the 4–20 mA range, isolation integrity is confirmed, and surge protection circuits are validated. A test report is available upon request for quality-critical procurement processes.

Q3: Is the AO890 3BSC690072R1 compatible with existing AC800M and S800 I/O installations?
Yes. The AO890 is a direct drop-in replacement for existing S800 I/O analog output positions. It is hot-swap capable via the TU810V1/TU830V1 termination units, allowing field replacement without powering down the I/O station or disturbing field wiring — a critical advantage during live plant operations.

Q4: Can long-term supply agreements be arranged for the AO890 3BSC690072R1?
Yes. Multi-region stock is maintained specifically to support scheduled maintenance outages, emergency replacements, and long-term supply agreements for plants operating ABB S800 I/O systems. Contact our team to discuss volume commitments, lead time guarantees, and consignment stock arrangements tailored to your maintenance cycle.
