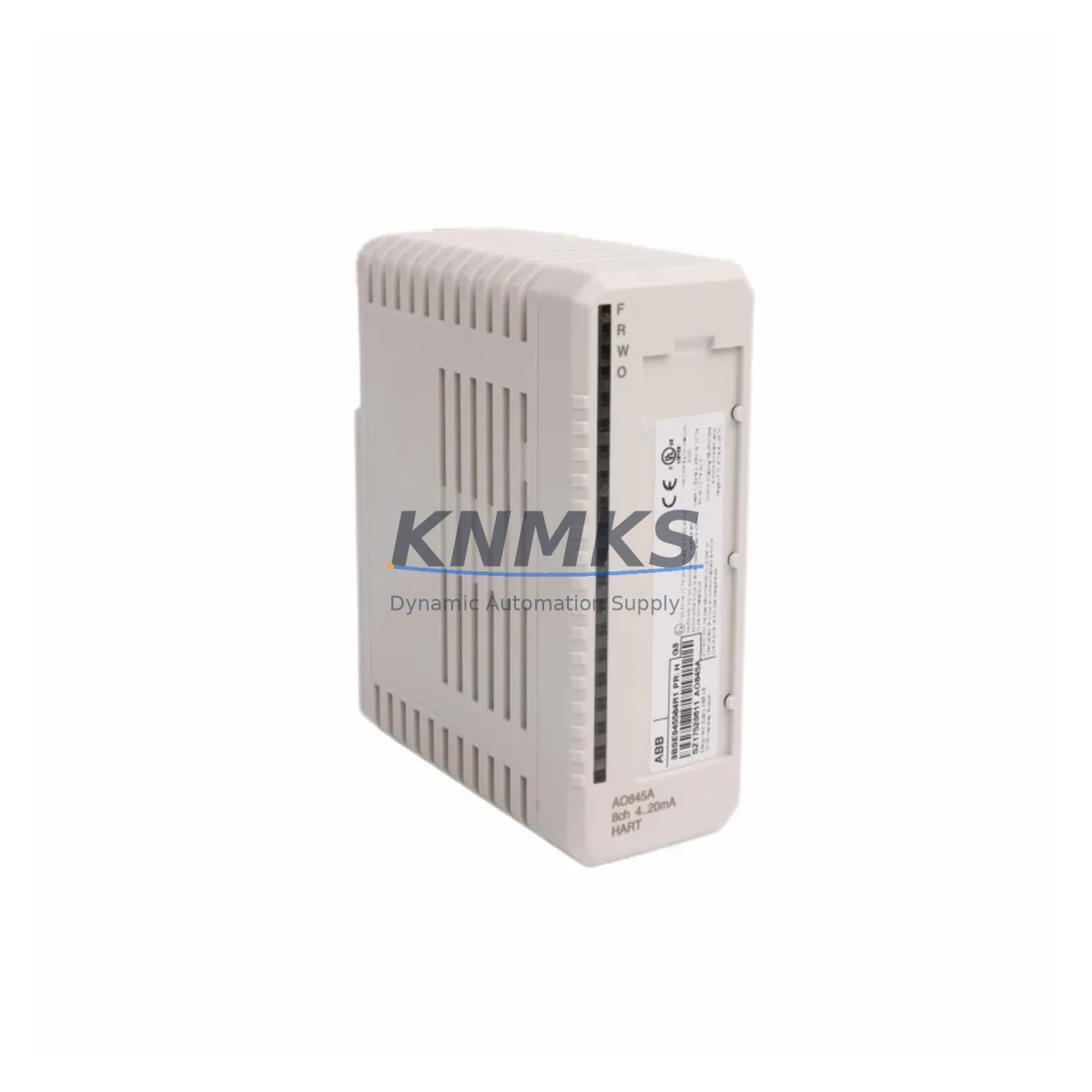

The ABB AO845A (3BSE045584R1) is an 8-channel redundant analog output module engineered for the S800 I/O system, fully compatible with ABB’s AC 800M Distributed Control System (DCS). Designed for continuous process industries — including oil & gas, power generation, chemical processing, and pulp & paper — this module delivers precision analog signal output with built-in redundancy support, making it a critical spare for any facility running ABB automation infrastructure.

For maintenance engineers managing aging DCS installations, the AO845A 3BSE045584R1 represents a direct, drop-in replacement that eliminates the need for costly system reconfiguration. Its compatibility with the S800 I/O bus and AC 800M controller architecture means that field replacement can be completed within a single maintenance window, minimizing unplanned downtime and restoring production continuity rapidly.

Procurement engineers sourcing spare parts for long-term inventory programs will find the AO845A 3BSE045584R1 a reliable stocking candidate. With ABB’s S800 platform widely deployed across global process plants, maintaining at least one verified spare on the shelf is standard practice in facilities with zero-tolerance downtime policies. Our stock is sourced from authorized channels, individually tested prior to shipment, and backed by a support terms confirmed by quotation — providing full traceability and confidence for critical spare parts procurement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling preventive maintenance or responding to an AO845A 3BSE045584R1 fault alarm, experienced maintenance engineers know that the analog output module rarely fails in isolation. A thorough inspection of the surrounding control cabinet components is essential to confirm root cause and prevent repeat failures.

Begin by verifying the S800 I/O baseplate or carrier module (such as the TB820V2 or TB840A) for secure seating, corrosion on bus connectors, and any signs of thermal stress. A degraded carrier can cause intermittent channel faults that mimic module failure. Next, inspect the CI854A or CI858 communication interface module that links the S800 I/O cluster to the AC 800M controller — a failing fieldbus interface will affect all modules on the segment, not just the AO845A.

Check the SD823 or SD831 power supply module supplying the I/O station. Voltage sag or ripple on the 24 VDC rail is a common upstream cause of analog output drift and module resets. If the plant uses redundant power feeds, verify both supply paths and the associated SD832 redundant power supply for balanced load sharing.

For field wiring, inspect the TB825 or TB845 terminal base connections for loose terminations, moisture ingress, or insulation breakdown — particularly in high-humidity or chemically aggressive environments. Signal isolation barriers or galvanic isolators installed between the AO845A outputs and field actuators should also be tested for leakage and calibration drift, as degraded isolators can introduce offset errors that appear as module faults.

In facilities running older AC 800M systems, it is advisable to simultaneously audit the PM861A or PM864A processor module firmware version and battery backup status. An outdated firmware revision can cause compatibility issues with replacement I/O modules, and a depleted battery risks configuration loss during power cycling. Finally, review the RB820 or RB840 redundancy module if the AO845A is deployed in a redundant I/O pair — confirming that switchover logic is functioning correctly before returning the system to service is a non-negotiable step in any responsible maintenance workflow.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s part number (AO845A) and reference number (3BSE045584R1) against the plant’s spare parts register. Cross-check the S800 I/O station address and channel assignments in the AC 800M engineering tool (Control Builder M) before proceeding.

Step 2 — Safe Isolation: In non-redundant configurations, coordinate with the control room to place affected control loops in manual mode. In redundant configurations, verify that the standby module has assumed control before removing the faulty unit. Do not power down the entire I/O station unless the process safety plan requires it.

Step 3 — Module Removal: Release the module locking mechanism on the S800 carrier, slide the AO845A out carefully, and inspect the carrier bus connector for damage or contamination before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new AO845A 3BSE045584R1 into the same carrier slot. The S800 system supports hot-swap in redundant configurations — the replacement module will automatically download its configuration from the AC 800M controller upon insertion, eliminating manual parameter re-entry.

Step 5 — Post-Replacement Validation: Confirm all 8 output channels are active and within calibrated range. Check for fault indicators on the module LED and in the Control Builder M diagnostic view. Return control loops to automatic mode and monitor for 15–30 minutes before closing the work order.

This workflow supports rapid recovery from unplanned outages and is equally applicable to scheduled annual overhauls, where proactive replacement of aged AO845A modules — even without active faults — is a recognized strategy for extending the operational life of legacy AC 800M DCS installations.

Spare Parts Support FAQ

Q1: Is the AO845A 3BSE045584R1 compatible with all AC 800M controller versions?
The AO845A is designed for the ABB S800 I/O system and is compatible with AC 800M controllers across multiple firmware generations. However, we recommend verifying your Control Builder M version against ABB’s compatibility matrix for your specific controller revision. Our technical team can assist with compatibility confirmation prior to order.

Q2: How is the AO845A 3BSE045584R1 tested before shipment?
Each unit undergoes functional verification prior to dispatch, including power-on self-test, channel output verification, and bus communication check. A test report is available upon request. All units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: What is the recommended spare parts stocking strategy for the AO845A?
For facilities with 3 or more S800 I/O stations, maintaining a minimum of 1–2 AO845A spares on-site is standard practice. For critical continuous process lines with zero-tolerance downtime, a 1:5 spare ratio (one spare per five installed modules) is commonly adopted. We support long-term supply agreements and can reserve stock for scheduled annual maintenance programs.

Q4: What does the support terms confirmed by quotation cover?
Our support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. In the event of a support terms claim, we provide priority replacement dispatch to minimize your downtime exposure. Support requests resulting from incorrect installation, overvoltage, or physical damage are assessed on a case-by-case basis.
