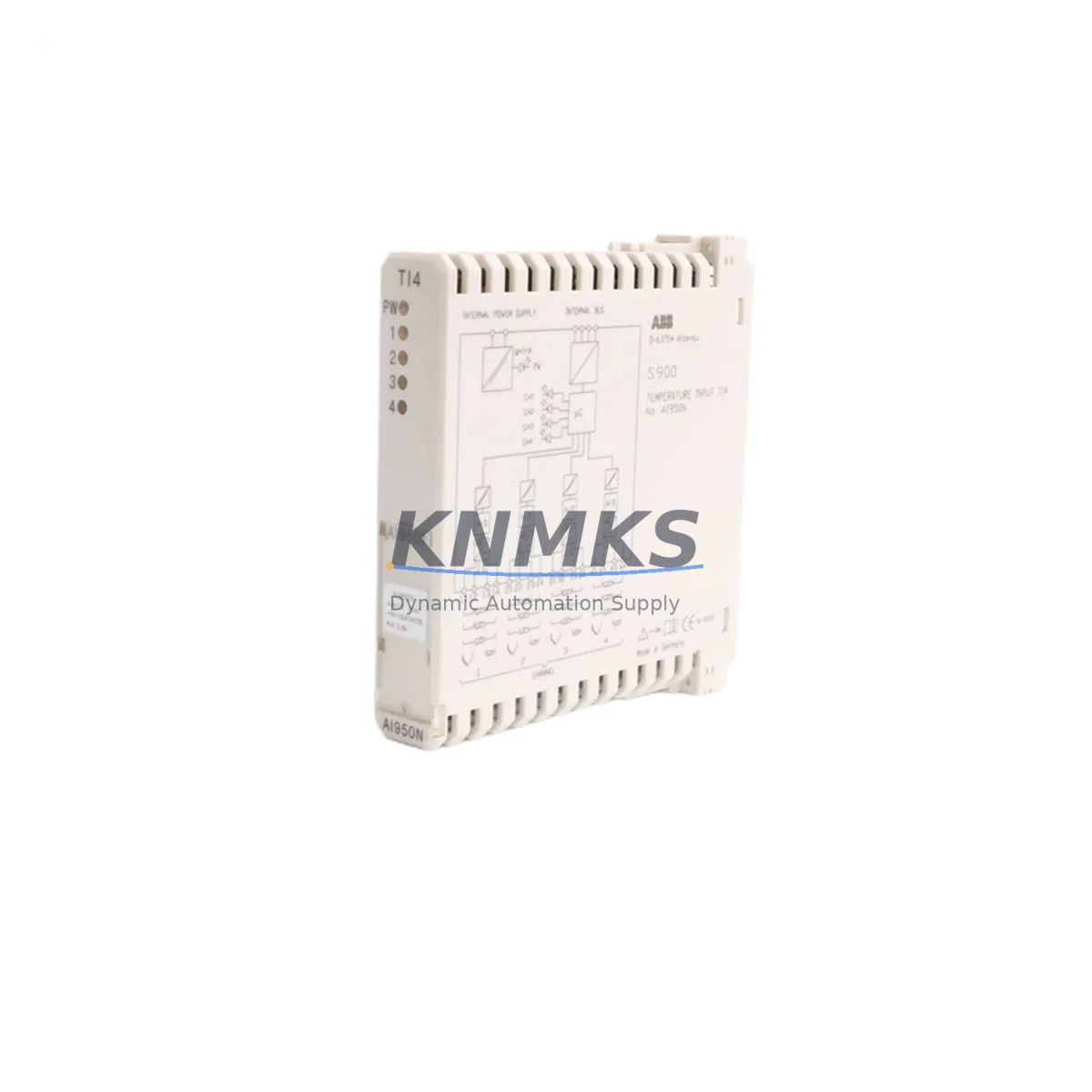

ABB AI950N 3KDE175523L9500 Fail-Safe Temp Input Module

Overview

ABB AI950N 3KDE175523L9500 Fail-Safe Temp Input Module: Critical Industrial Field Reliability

The ABB AI950N (3KDE175523L9500) is a safety-grade temperature input module engineered for the ABB S800 I/O system, designed to operate seamlessly with the AC 800M Distributed Control System. In continuous production environments — where a single undetected sensor fault can cascade into a full process shutdown — the AI950N delivers the fail-safe signal integrity that critical interlock loops demand.

Deployed across high-stakes industrial sectors including petrochemical refining, power generation, metallurgical processing, and water treatment, this module is built to sustain reliable thermocouple and RTD signal acquisition even under severe electromagnetic interference, high-vibration mechanical environments, and wide thermal cycling. Its hardware-level fault detection architecture ensures that any open-circuit, short-circuit, or out-of-range sensor condition is immediately flagged to the controller — preventing silent failures that could compromise safety instrumented functions.

For control cabinet integrators and plant maintenance engineers, the AI950N represents a proven, drop-in replacement for aging S800 I/O infrastructure. It ships fully tested against ABB factory acceptance criteria, with each unit verified for channel accuracy, isolation integrity, and communication handshake with the S800 I/O Bus Coupler (CI830 / CI840A) before dispatch. A support terms confirmed by quotation is included as standard, covering manufacturing defects and functional failures under normal operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S800-based control cabinet is never a single-module solution. The AI950N integrates within a layered protection architecture that begins at the field sensor and extends through to the controller backplane. In high-density control cabinets handling critical process loops, the module works in concert with the ABB TB820V2 ModuleBus Modem, which manages optical bus communication between remote I/O clusters and the AC 800M CPU — eliminating copper-based signal degradation over long cabinet runs.

On the power supply side, cabinet stability is maintained by the ABB SD832 24VDC Power Supply, which provides regulated, low-ripple DC power to the S800 I/O rail. In environments with significant mains fluctuation or surge risk — common in heavy industrial facilities near large motor drives or arc furnaces — pairing the SD832 with a dedicated surge protection device on the incoming AC feed is strongly recommended to prevent transient damage to sensitive input modules like the AI950N.

For safety interlock circuits requiring redundant temperature monitoring, the AI950N is frequently deployed alongside the ABB AI810 8-Channel Analog Input Module for non-safety process variables, allowing the safety-rated temperature channels to remain dedicated to SIL loop functions without channel sharing. Communication integrity between the S800 rack and the AC 800M is further protected by the ABB CI840A Redundant ModuleBus Optical Interface, which provides hot-standby bus redundancy — critical in continuous process plants where controller communication loss is not an acceptable failure mode.

In cabinets subject to high ambient temperatures or poor ventilation — a common challenge in outdoor substations and enclosed motor control centers — thermal management components such as cabinet-mounted heat exchangers or forced-air cooling units should be considered alongside the AI950N installation to maintain module junction temperatures within specification and extend mean time between failures.

Critical Industrial Safety Applications

Petrochemical & Refining: In crude distillation columns and catalytic cracker units, precise temperature monitoring is a primary safety barrier. The AI950N’s fail-safe channel diagnostics ensure that thermocouple failures in high-temperature reactor zones are immediately surfaced to the safety instrumented system, enabling automatic interlock activation before process excursions reach hazardous thresholds.

Power Generation: Steam turbine bearing temperature monitoring and boiler furnace exit gas temperature measurement demand continuous, drift-free signal acquisition. The AI950N’s high-resolution RTD input capability and per-channel fault detection make it a reliable choice for turbine protection systems where a missed over-temperature event can result in catastrophic equipment damage.

Mining & Mineral Processing: Conveyor drive motor winding temperature monitoring and crusher bearing temperature surveillance in dusty, high-vibration environments place extreme demands on I/O hardware. The AI950N’s robust mechanical design and EMI immunity allow it to maintain signal integrity even when installed in close proximity to large variable-frequency drives and high-current switchgear.

Water & Wastewater Treatment: Pump motor temperature monitoring and heat exchanger process temperature control in humid, chemically aggressive environments benefit from the AI950N’s sealed module construction and wide humidity tolerance, ensuring long-term measurement stability without frequent recalibration.

Metallurgy & Steel: In electric arc furnace electrode regulation and continuous casting mold temperature control, the AI950N provides the fast-response, high-accuracy temperature acquisition needed to maintain product quality and prevent equipment damage from thermal runaway conditions.

Port & Marine: Shipboard engine room temperature monitoring and port crane drive thermal protection systems require I/O modules that can withstand salt-laden air, vibration from vessel motion, and wide ambient temperature swings. The AI950N’s environmental ratings and proven S800 platform reliability make it a trusted choice for marine-grade control system retrofits.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to ABB S800 I/O specification within the confirmed support period, we provide replacement or repair at no additional cost. The support terms does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q2: How is each unit tested before shipment?
Every AI950N unit undergoes a full pre-shipment functional test covering channel accuracy verification across the supported thermocouple and RTD input ranges, electrical isolation integrity testing, and S800 ModuleBus communication handshake verification. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all AC 800M controller versions?
The AI950N is designed for the ABB S800 I/O system and is compatible with AC 800M controllers running standard ABB Control Builder M software. Compatibility with specific firmware versions and redundant controller configurations should be verified against the ABB S800 I/O Hardware Product Manual. Our technical team can assist with compatibility confirmation for your specific system version prior to order.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
Yes. We maintain dedicated stock of the AI950N 3KDE175523L9500 to support planned maintenance schedules, emergency spare requirements, and multi-unit project procurement. For customers with annual maintenance contracts or scheduled turnaround programs, we offer reserved stock arrangements to ensure module availability aligns with your planned outage windows. Contact our sales team to discuss long-term supply agreements.
