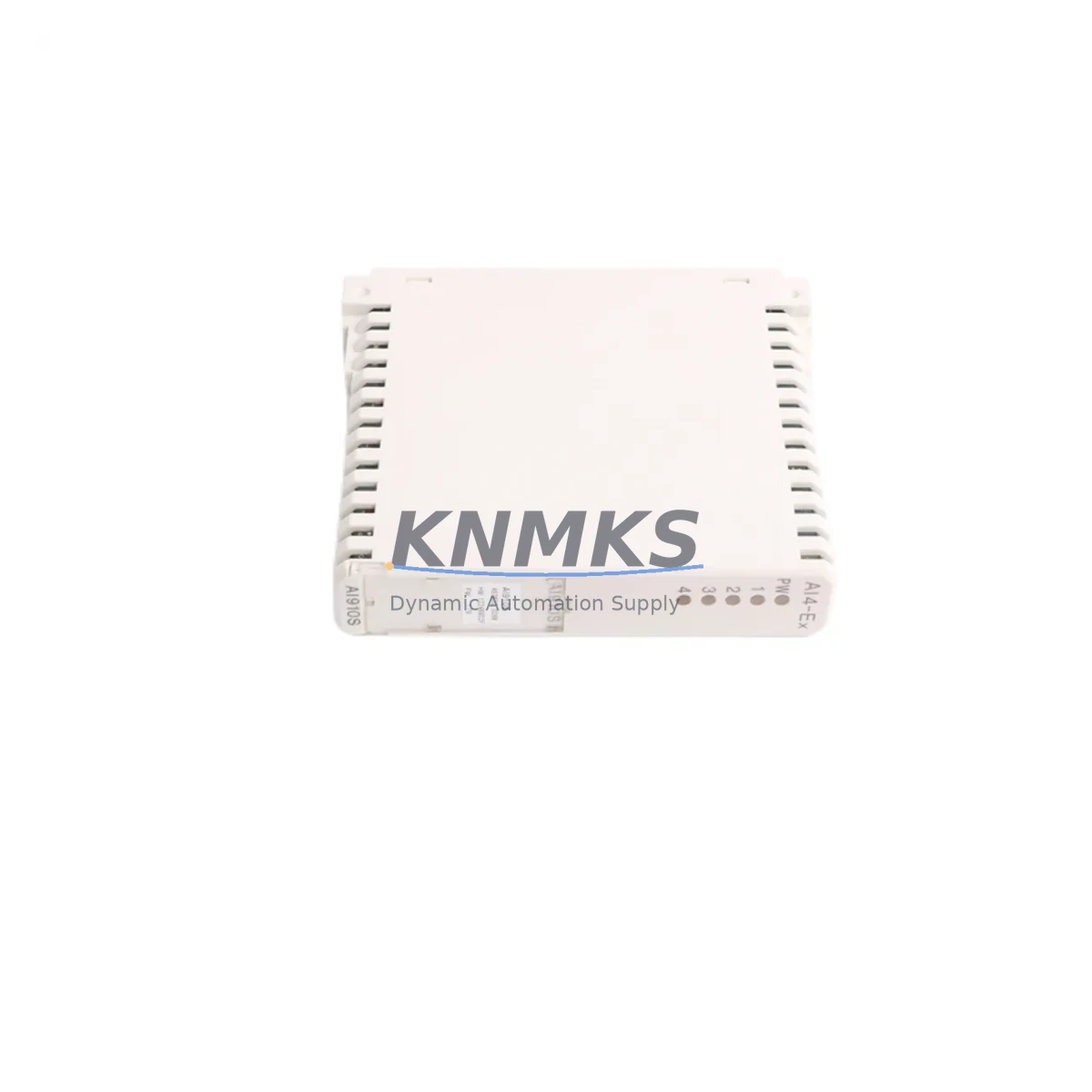

The ABB AI910S (3KDE175511L9100) is a 4-channel analog input module engineered for the ABB S800 I/O system, widely deployed in AC 800M-based DCS and process automation architectures across oil & gas, power generation, chemical processing, and heavy manufacturing. As a field-proven component in continuous-process environments, the AI910S handles 4–20 mA and voltage signal inputs with high-resolution conversion, making it a critical link between field instrumentation and the controller layer.

Sourcing a verified original spare — not a refurbished substitute — is the single most effective step a maintenance team can take to prevent signal drift, spurious alarms, and unplanned shutdowns. This listing supplies the AI910S 3KDE175511L9100 as a genuine, tested unit with a support terms confirmed by quotation, pre-shipment functional verification, and documented traceability. Units are dispatched from bonded stock with full packaging integrity, ready for immediate installation or controlled-environment storage as a standby spare.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

In a live AC 800M control system, the AI910S does not operate in isolation. A structured maintenance plan must account for the entire signal chain and power distribution architecture surrounding this module. When scheduling a replacement or annual inspection of the AI910S 3KDE175511L9100, maintenance engineers should simultaneously verify the condition of the TB820V ModuleBus Optical Port — the communication interface that links the S800 I/O station to the AC 800M controller. A degraded optical fiber connection or a failing TB820V will produce intermittent read errors that are frequently misdiagnosed as analog module faults.

The SD821 or SD822 power supply modules feeding the S800 I/O station should be load-tested during any planned outage. Voltage sag or ripple on the 24 VDC rail directly affects A/D conversion accuracy on the AI910S, causing subtle process variable drift that accumulates over months before triggering an alarm. Keeping a spare SD821 in the cabinet spares kit is standard practice in facilities with zero-tolerance uptime requirements.

Field wiring terminations on the TB807 or TB811 terminal base units — the physical mounting and wiring interface for the AI910S — should be inspected for corrosion, loose ferrules, and shield continuity. In humid or chemically aggressive environments, terminal base degradation is a leading cause of intermittent channel faults. Procurement teams should maintain at least one spare terminal base per I/O station as part of the annual spares budget.

For installations where the AI910S monitors 4–20 mA HART transmitters, the CI854 HART Multiplexer or equivalent HART communication interface should be included in the inspection scope. A malfunctioning HART interface can prevent remote diagnostics and mask developing faults in field instruments, increasing the risk of undetected process deviations. Additionally, signal isolators or barriers installed between field transmitters and the AI910S input terminals — particularly in hazardous-area installations — should be tested for leakage current and isolation resistance annually.

Finally, the AC 800M PM866 or PM891 processor module firmware version should be confirmed compatible with the AI910S hardware revision before any module swap. Mismatched firmware can cause configuration download failures or channel mapping errors that delay restart after maintenance. Maintaining a documented hardware-firmware compatibility matrix for the entire S800 I/O population is a low-cost, high-value governance practice that significantly reduces commissioning risk during emergency replacements.

Site Replacement Workflow

The AI910S 3KDE175511L9100 supports hot-swap replacement within a powered S800 I/O station, which is the primary advantage of the S800 architecture for maintenance teams. The replacement sequence is as follows:

1. Pre-replacement verification: Confirm the replacement unit’s hardware revision and firmware compatibility with the existing AC 800M configuration. Download and archive the current I/O configuration from Control Builder M before proceeding.

2. Signal isolation: Place the affected channels in manual mode at the DCS operator station. Notify the process operator and confirm that the process can tolerate a brief signal interruption or that the controller is configured for last-value hold on input loss.

3. Module extraction: Release the module locking lever on the TB807/TB811 terminal base. Slide the AI910S out of the module slot. The terminal base and field wiring remain in place — no rewiring is required.

4. Module insertion: Insert the replacement AI910S into the same terminal base slot. The module will self-identify to the AC 800M controller via the ModuleBus. Configuration is automatically downloaded from the controller within seconds.

5. Channel verification: Confirm all four channels return to expected engineering unit values at the operator station. Compare live readings against HART communicator or calibrator reference values. Document the replacement in the maintenance management system with the new module serial number.

6. Return to automatic: Release channels from manual mode. Monitor for 15–30 minutes to confirm stable signal behavior before closing the work order.

This workflow minimizes process disruption and eliminates the need for control system shutdown, making the AI910S one of the most maintainer-friendly components in the S800 I/O family. For legacy systems where the original AI910S has been discontinued or is difficult to source, this unit provides a direct, configuration-compatible replacement that preserves existing wiring, terminal base, and software configuration without modification.

Spare Parts Support FAQ

Q1: Is this AI910S 3KDE175511L9100 a genuine ABB original or a third-party compatible?
This is a genuine ABB AI910S module carrying the original ABB part reference 3KDE175511L9100. Units are sourced from authorized distribution channels or verified surplus stock and undergo functional testing before shipment. No third-party or clone modules are supplied under this listing.

Q2: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. The support terms covers functional failure under normal operating conditions within the specified S800 I/O environment. It does not cover damage resulting from incorrect installation, overvoltage, or use outside the module’s rated operating parameters. Support requests are processed with return shipping support and replacement dispatch within 5 business days of fault confirmation.

Q3: How do I confirm compatibility with my existing AC 800M system before ordering?
Provide your AC 800M processor module type (e.g., PM866, PM891), Control Builder M version, and existing AI910S hardware revision (printed on the module label). Our technical team will confirm compatibility and advise on any firmware considerations before the order is confirmed. For urgent replacements, compatibility can typically be verified within 24 hours.

Q4: Can you support long-term or blanket purchase orders for ongoing spare parts inventory?
Yes. We support scheduled delivery agreements, blanket POs, and consignment stock arrangements for facilities that require guaranteed availability of S800 I/O spares. Long-term supply agreements include priority allocation from bonded stock, fixed pricing for the contract period, and dedicated account support. Contact our sales team to discuss volume requirements and lead time commitments.

—
