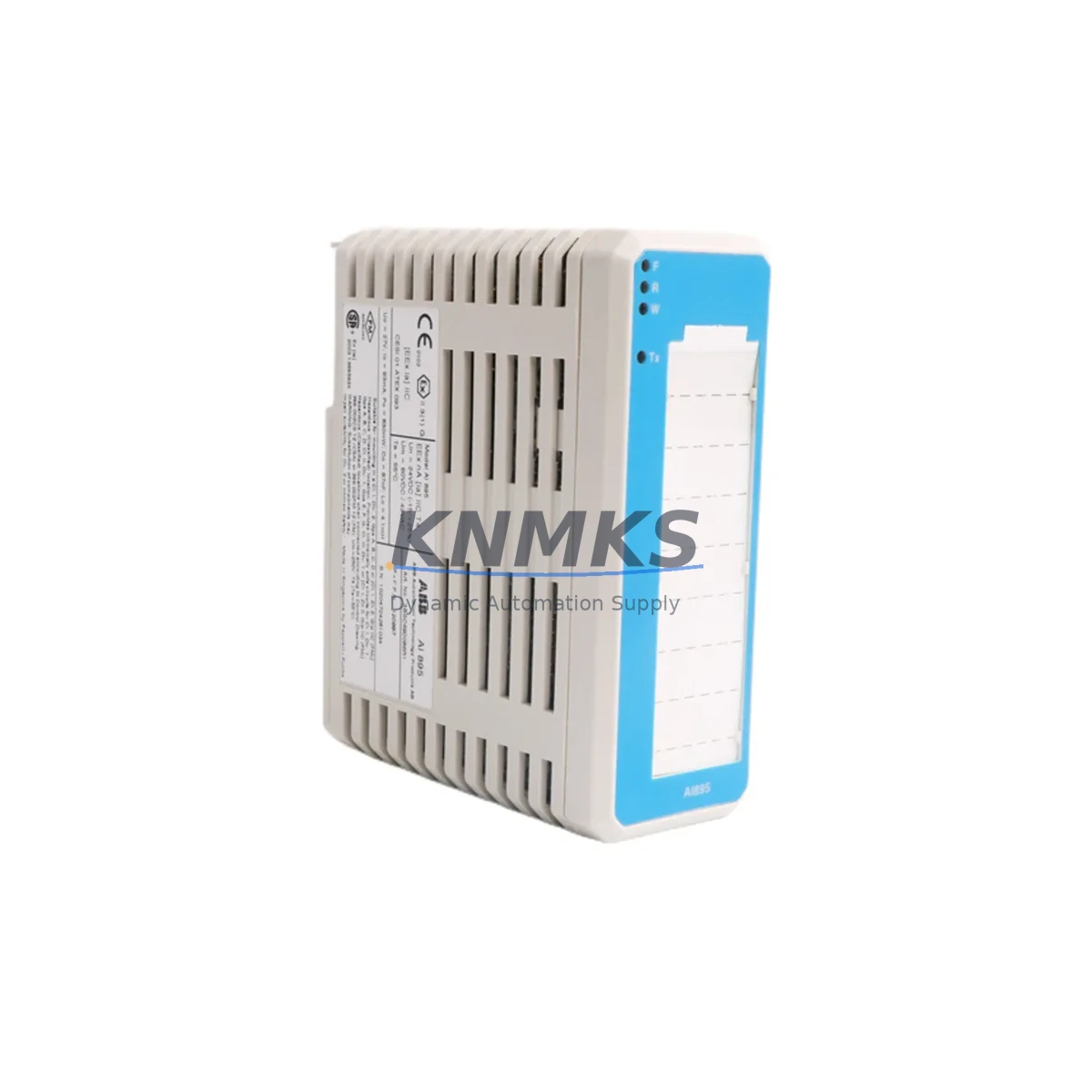

ABB AI895 3BSC690086R1 Migration-Ready Analog Input

Overview

ABB AI895 3BSC690086R1 Migration-Ready Analog Input Module: Legacy System Retrofit & Compatibility Upgrade

The ABB AI895 (3BSC690086R1) is an 8-channel, 16-bit resolution analog input module designed for the ABB S800 I/O platform, widely deployed in AC800M and AC800F distributed control systems. As legacy automation infrastructure ages and original equipment reaches end-of-life, the AI895 has become a critical retrofit component for engineers managing brownfield upgrades, partial panel replacements, and control system life extension programs. Whether you are replacing a discontinued AI810 or AI820 module, expanding an existing S800 rack, or migrating from a third-party analog input subsystem, the AI895 provides a verified, drop-in compatible solution with minimal re-engineering effort.

Before committing to a replacement, engineers should confirm several key parameters. Power consumption from the MTU (Module Termination Unit) bus must be within the capacity of the installed SD821 or SD822 power supply module — particularly important when adding modules to a fully populated S800 rack. Terminal wiring on the associated TB820 or TB825 termination unit should be verified against the original I/O list to ensure signal type (4–20 mA, 0–10 V, RTD, or thermocouple) and channel assignment match the replacement configuration. Backplane slot addressing must be re-confirmed in the AC800M controller project, as module position in the DP820 or DP840 fieldbus adapter chain determines the hardware address used in Control Builder M.

Program compatibility is a primary concern during any analog input module swap. Existing function block connections in the AC800M application referencing the original AI module’s channel signals should be reviewed to confirm that signal scaling, filter time constants, and alarm limits remain valid after substitution. If the legacy module used a different input range or resolution, recalibration of the associated PID loops or signal conditioning blocks may be required. HMI faceplates connected to these analog signals — whether on an ABB 800xA Operations station or a standalone Panel 800 operator terminal — should be tested in simulation mode before live cutover to confirm that engineering unit displays and trend histories remain consistent.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AI895 into a brownfield S800 system requires a structured pre-installation review. Begin by auditing the existing rack layout: confirm that the target slot in the S800 I/O rack is physically accessible and that the DP820 fieldbus adapter has sufficient module capacity. If the rack is fully populated, consider whether a secondary rack with an additional DP840 dual fieldbus adapter is more appropriate for the expansion.

Termination wiring is the most time-sensitive task during a live-system replacement. The AI895 connects to field instruments through a dedicated termination unit — typically a TB820V2 or TB825 — which remains in place during module hot-swap if the system supports it. Verify that existing field cable shielding, grounding, and terminal torque specifications comply with ABB S800 installation guidelines. For installations replacing older AI810 modules with different terminal layouts, a TU830V2 or TU831V2 module termination unit may be required to bridge the mechanical interface difference.

Communication link integrity should be validated before and after module insertion. The AI895 communicates over the S800 I/O bus to the DP820 or DP840 adapter, which in turn connects to the AC800M controller via PROFIBUS DP or Advant Fieldbus 100. If the existing fieldbus segment is operating near its device count limit, adding the AI895 may require reconfiguration of the fieldbus topology. In multi-drop PROFIBUS segments, confirm that the new module address does not conflict with existing devices. A CI854 PROFIBUS DP communication interface on the AC800M controller side may need its configuration updated in Control Builder M to recognize the new module address.

For installations involving signal isolation requirements — common in high-noise industrial environments such as motor control centers or variable frequency drive panels — consider whether an external signal isolator or galvanic separator is needed between the field transmitter and the AI895 input terminals. This is particularly relevant when replacing older modules that had built-in isolation at a different voltage level.

Downtime Control During System Migration

Minimizing production downtime during an analog input module replacement requires careful pre-staging and a clear cutover sequence. Where the AC800M controller and S800 I/O system support hot-swap operation, the AI895 can be inserted into a powered rack without a full system shutdown — however, this must be confirmed against the specific firmware version of the DP820 or DP840 adapter in use. Not all firmware revisions support live insertion without a fieldbus reset.

To protect existing program logic, export a full backup of the AC800M application project from Control Builder M before any hardware change. This backup preserves all function block configurations, signal assignments, alarm settings, and communication parameters. If the replacement requires a controller download, schedule it during a planned maintenance window and coordinate with the operations team to place affected control loops in manual mode at the DCS workstation or Panel 800 HMI.

Field continuity can be maintained during the transition by using temporary signal jumpers or portable signal simulators to hold critical analog inputs at their last known values while the module is being swapped. After installation, perform a channel-by-channel live signal verification against the I/O list before returning loops to automatic control. Document the as-found and as-left signal readings for each channel as part of the commissioning record. Pre-shipment functional testing of the AI895 is performed before dispatch, reducing the risk of DOA failures and shortening on-site commissioning time. All units are covered by a support terms confirmed by quotation from the date of shipment.

Retrofit Support FAQ

Q1: Is the ABB AI895 3BSC690086R1 a direct replacement for the AI810 and AI820?
The AI895 is functionally compatible with the AI810 and AI820 in most S800 I/O applications. The primary differences are resolution (16-bit vs. 12-bit on older modules) and the termination unit interface. Confirm that your existing TB820 or TB825 termination unit is mechanically and electrically compatible before installation. In some cases, a TU830V2 module termination unit adapter is required.

Q2: What commissioning steps are required after installing the AI895?
After physical installation, update the hardware configuration in Control Builder M to reflect the new module in its rack position. Download the updated configuration to the AC800M controller, then perform a live signal check on all 8 channels against the field instrument readings. Verify that scaling, engineering units, and alarm thresholds in the application match the expected values. If the module replaces a unit with different input range settings, recalibrate associated PID controllers before returning to automatic mode.

Q3: Can the AI895 be installed without shutting down the entire control system?
Hot-swap capability depends on the firmware version of the DP820 or DP840 fieldbus adapter in your rack. Confirm the adapter firmware version against ABB’s compatibility matrix before attempting live insertion. If hot-swap is not supported, plan a controlled shutdown of the affected fieldbus segment only, rather than a full system outage, to minimize production impact.

Q4: What does the support terms confirmed by quotation cover, and is pre-shipment testing performed?
All AI895 3BSC690086R1 units are functionally tested prior to shipment to verify channel integrity, communication response, and power consumption within specification. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Units are shipped with appropriate ESD protection and packaging. For support requests or technical support, contact [email protected] or call +86 18359268345.

© 2026 KNMKS. All rights reserved. Original Source: https://knmks.com | Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AI895 3BSC690086R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AI895 3BSC690086R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
