ABB AI880A Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB AI880A Maintenance-Proven Spare Part for Factory Uptime

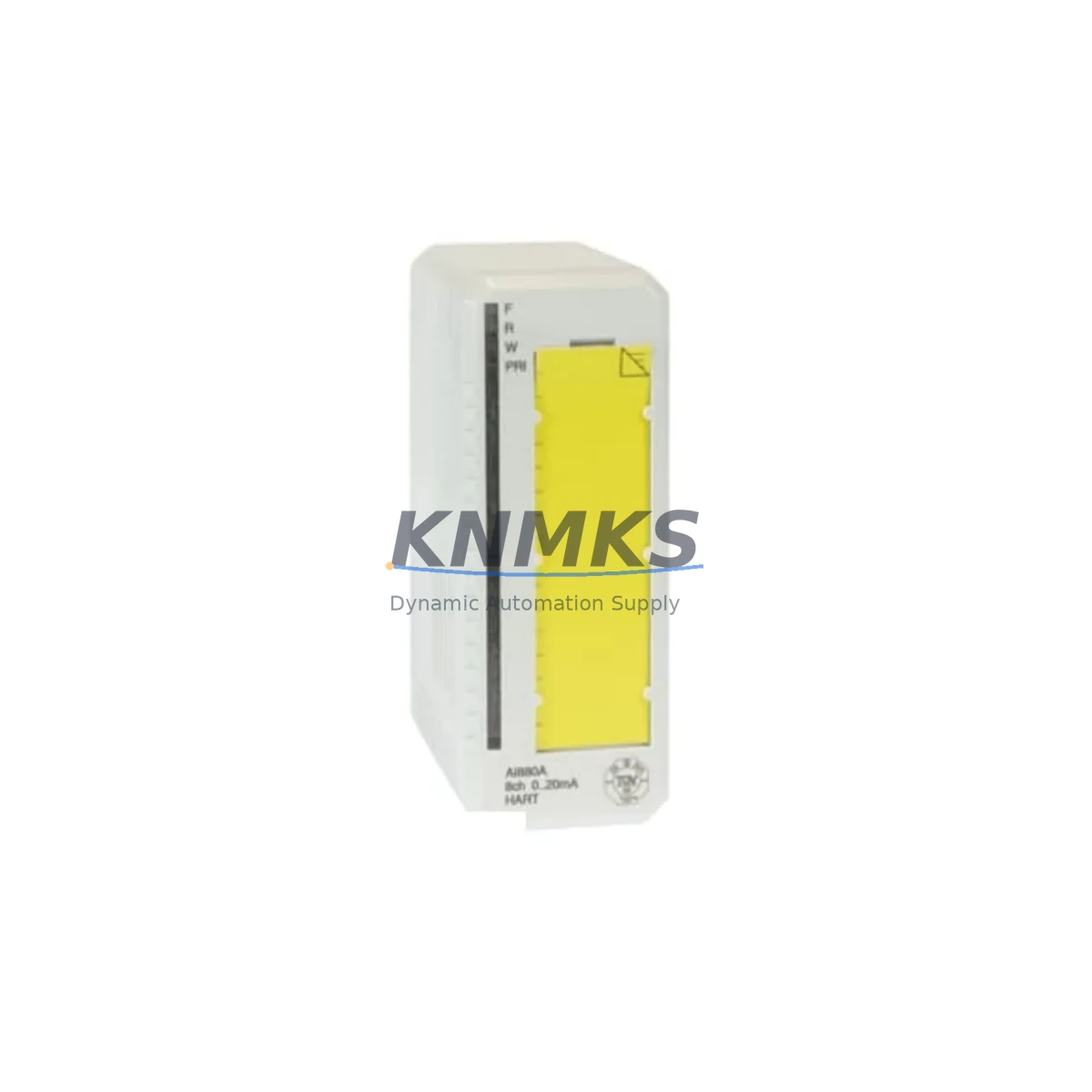

The ABB AI880A is an 8-channel HART-enabled analog input module designed for the S800 I/O system, widely deployed in process automation, oil & gas, chemical, and power generation facilities. As a SIL 2-certified field I/O module, the AI880A plays a critical role in continuous process monitoring — converting 4–20 mA HART signals from field transmitters into reliable digital values for the ABB AC 800M controller platform. When this module fails or degrades, the consequences extend beyond a single loop: entire process segments can go blind, triggering unplanned shutdowns and costly production losses.

Maintaining a verified spare of the AI880A in your on-site inventory is a proven strategy for minimizing mean time to repair (MTTR). With pre-tested stock available and a support terms confirmed by quotation covering each unit, maintenance engineers can execute a like-for-like swap within a single maintenance window — restoring full loop visibility without waiting weeks for OEM lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the AI880A, the surrounding S800 I/O infrastructure must be inspected simultaneously to prevent repeat failures and ensure loop integrity. A disciplined site inspection should cover the following components:

Begin with the TB820 or TB840 base unit — the mechanical and electrical interface between the AI880A and the S800 I/O bus. Corroded terminals, cracked housings, or worn locking tabs on the base unit can cause intermittent signal loss even after a module swap. Inspect and replace the base unit if contact resistance is elevated.

Next, verify the 24 VDC field power supply feeding the HART loop. Voltage sag or ripple on the field supply rail directly affects 4–20 mA signal accuracy. An ABB-compatible or third-party DIN-rail power supply rated for industrial environments should be confirmed within tolerance (±1%) before commissioning the replacement module.

Check the CI854 or CI858 PROFIBUS/HART communication interface module if HART pass-through diagnostics are used. A degraded communication interface can mask field device faults and prevent the AI880A from reporting HART device status to the AC 800M controller — defeating the purpose of HART-enabled I/O.

Inspect all field wiring terminals and cable shields at the TB820 base unit. Loose shield terminations introduce common-mode noise into analog loops, causing signal drift that is often misdiagnosed as a module fault. Re-torque all terminal screws and verify shield continuity to the cabinet ground bar.

Review the SA811F or SA801F power supply module on the S800 I/O rail. This module distributes bus power to all connected I/O modules. A failing power supply module can cause multiple I/O modules to report faults simultaneously — a pattern that is frequently confused with a backplane or controller fault.

Finally, confirm the status of any signal isolators or loop-powered barriers installed between the AI880A and intrinsically safe field instruments. Zener barriers and galvanic isolators have finite service lives and should be replaced on a scheduled basis, particularly in hazardous area installations where IS certification compliance must be maintained.

Site Replacement Workflow

Replacing the AI880A in an operating S800 I/O system follows a structured sequence to minimize downtime and avoid configuration loss:

Step 1 — Pre-replacement backup: Export the AC 800M project from ABB Control Builder M and confirm the AI880A channel configuration (tag assignments, HART device addresses, alarm limits) is documented. Save a timestamped backup to a secure engineering workstation.

Step 2 — Loop isolation: Place all affected control loops in manual mode at the DCS operator station. Notify the process team of the planned I/O outage window. Confirm that no safety-critical interlocks depend on the affected channels before proceeding.

Step 3 — Module removal: De-energize the S800 I/O segment if hot-swap is not supported by the installed firmware version. Unlock the AI880A from the TB820/TB840 base unit using the module latch, and remove it cleanly without disturbing adjacent modules or field wiring.

Step 4 — Replacement installation: Insert the new AI880A into the same base unit slot. The module address is set by the base unit hardware — no DIP switch configuration is required on the AI880A itself. Confirm the module LED status after power-up: a solid green RUN LED indicates successful initialization.

Step 5 — Loop verification: Return control loops to automatic mode one channel at a time. Verify live process values against field instrument readings. Use the HART communicator or Control Builder M diagnostics to confirm HART device communication on each channel.

Step 6 — Documentation update: Record the replacement in the site maintenance log with the new module serial number, installation date, and technician sign-off. Update the spare parts inventory to trigger a replenishment order for the next AI880A buffer unit.

Spare Parts Support FAQ

Q1: Is the AI880A compatible with all S800 I/O base units?
The AI880A is compatible with the TB820, TB840, and TB845 base units. It is not compatible with the older S100 or S900 I/O base units. Always verify the base unit model number on the cabinet label before ordering a replacement module.

Q2: What is included in the support terms confirmed by quotation?
Each AI880A unit is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Every unit undergoes a pre-shipment functional test — including analog signal accuracy verification and HART communication check — before dispatch. Test records are available on request.

Q3: How quickly can a replacement AI880A be dispatched?
In-stock units are available for same-day dispatch on confirmed orders received before the daily cut-off time. Express freight options are available for emergency breakdown situations. Contact the sales team directly for urgent requirements: [email protected] | +86 18359268345.

Q4: Can the AI880A be used as a long-term replacement for discontinued S800 I/O variants?
Yes. The AI880A is a current-production module within the ABB S800 I/O family and is suitable as a direct replacement for earlier analog input variants used in legacy AC 800M installations. For sites running older firmware versions of Control Builder M, confirm the minimum supported firmware revision for the AI880A before installation to ensure full diagnostic compatibility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AI880A
S800 Series

Product Family

I/O Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

I/O range

Digital, analog and remote I/O modules

Common needs

Channel count, signal and bus type

Project support

PLC expansion and distributed control

Inquiry Support

• Digital and analog signal matching
• Remote station and rack expansion support
• Spare module inquiry for downtime recovery

What to Send Us

• Brand and exact model number: ABB AI880A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
