ABB AI835A Retrofit-Ready Analog Input for S800 Systems

Overview

ABB AI835A Retrofit-Ready Analog Input for S800 Systems

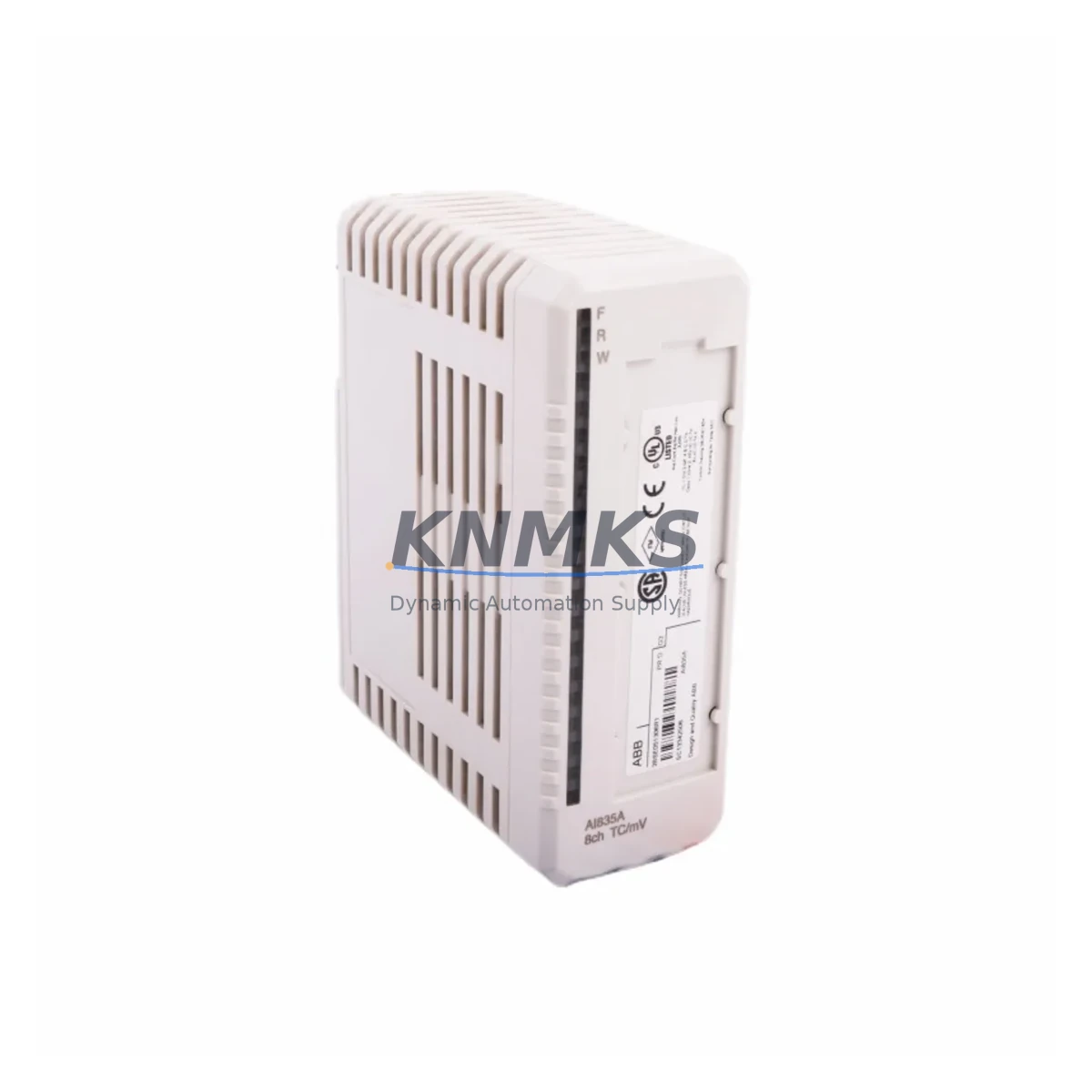

The ABB AI835A is a high-precision analog input module designed for the ABB S800 I/O system, purpose-built to support thermocouple (TC) and millivolt (mV) signal acquisition in distributed control system (DCS) environments. As legacy ABB installations running on older S800 hardware approach end-of-life, the AI835A serves as a validated migration-ready replacement for discontinued modules including the AI810 and AI820, enabling engineers to extend system life, restore measurement accuracy, and reduce unplanned downtime without requiring a full platform overhaul.

For facilities operating ABB Freelance, Symphony Plus, or System 800xA architectures, the AI835A integrates directly into existing ModuleBus backplane infrastructure. Its compatibility with standard S800 module carriers and TB820V2 communication interfaces means that retrofit projects can proceed without replacing the entire I/O rack or reprogramming the controller logic from scratch. This significantly reduces engineering hours and minimizes the risk window during cutover.

Before initiating a replacement, engineers should verify the following: the existing module carrier type (TB810 or TB820), the backplane slot address assignment, the current firmware version running on the CI854 or CI801 communication interface module, and whether the HMI faceplates in the System 800xA operator station are mapped to the correct channel tags. Mismatched channel scaling or incorrect cold junction compensation settings are among the most common commissioning issues encountered during AI835A retrofits.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AI835A retrofit begins well before the module arrives on-site. The first step is a full audit of the existing S800 I/O rack configuration: document each slot’s module address, verify the TB820V2 carrier firmware, and confirm that the CI854 PROFIBUS DP/FMS communication interface or CI801 AF100 interface is operating within its supported firmware range. If the site is running an older CI854 revision, a firmware update may be required before the AI835A can be recognized correctly on the ModuleBus.

Terminal wiring is a critical checkpoint. The AI835A uses a standard S800 terminal block layout, but thermocouple wiring polarity must be strictly observed. Engineers should cross-reference the existing field wiring schedule against the AI835A channel pin assignments before powering up. In multi-rack installations, the SA811 power supply module capacity should be recalculated to confirm that the additional load from the new module does not exceed the rack’s power budget — particularly in cabinets where multiple analog modules are being replaced simultaneously.

For sites migrating from a Freelance 800F controller to System 800xA, the AI835A’s channel function blocks must be re-imported into the new control project. The AC800M controller handles the AI835A natively through its S800 I/O bus, but engineers should verify that the I/O descriptor files are updated in the hardware configuration tool before downloading the new project. HMI faceplates in the operator station should be reviewed to ensure that engineering unit scaling, alarm limits, and tag names are correctly transferred from the legacy configuration.

In control cabinets where space is constrained, the AI835A’s standard S800 form factor allows it to occupy the same physical slot as the module it replaces, with no additional mounting hardware required. If the retrofit involves replacing multiple modules — for example, combining AI835A units with AO810V2 analog output modules and DI810 digital input modules — a phased replacement schedule is recommended to maintain partial system availability during the migration window.

Downtime Control During System Migration

Minimizing production downtime is the primary operational constraint in any live-system retrofit. For AI835A replacements, the recommended approach is a hot-swap procedure within a planned maintenance window: the existing module is removed from its carrier, the AI835A is inserted, and the system performs automatic module recognition via the ModuleBus. In most S800 configurations, this process takes under five minutes per module slot.

To protect the original control logic, engineers should export a full backup of the AC800M controller project — including all function block diagrams, signal lists, and hardware configuration files — before beginning any physical work. If the site uses Control Builder Plus or Control Builder M as the engineering tool, the backup should be stored on an isolated engineering workstation, not on the live server, to prevent accidental overwrite during the cutover.

Field continuity can be maintained by pre-configuring the AI835A channel parameters offline using the hardware configuration tool, then downloading the updated project to the controller during the brief swap window. This approach eliminates the need for extended loop checks after installation and reduces the risk of process upsets caused by incorrect scaling or missing channel assignments. Post-installation, a channel-by-channel signal verification against the field instrument readings is the final step before returning the loop to automatic control.

All AI835A units supplied by KNMKS are pre-tested prior to shipment, with functional verification of all eight input channels under simulated TC signal conditions. This factory-level testing reduces the probability of DOA failures on-site and supports the goal of completing the retrofit within a single planned shutdown. Each unit is covered by a support terms confirmed by quotation from the date of shipment.

Retrofit Support FAQ

Q1: Is the AI835A a direct drop-in replacement for the AI810 or AI820?
The AI835A occupies the same S800 module slot and uses the same ModuleBus communication protocol, but it is optimized for TC and mV inputs rather than 4–20 mA or 0–10 V signals. If the legacy module was handling current or voltage inputs, the AI835A is the correct replacement only if the field instruments are thermocouple or millivolt sources. Verify the field wiring type before ordering.

Q2: What commissioning steps are required after installation?
After physical installation, download the updated hardware configuration to the AC800M controller, verify that the AI835A is recognized on the ModuleBus, confirm cold junction compensation is active, and perform a channel-by-channel signal check against known field instrument readings. Update HMI tag scaling if engineering units were changed from the legacy module configuration.

Q3: Does KNMKS provide pre-shipment testing for the AI835A?
Yes. All AI835A units are functionally tested across all eight input channels before dispatch. Test records are available on request. Units are shipped with protective packaging to prevent ESD damage during transit. A support terms confirmed by quotation applies from the date of shipment.

Q4: What is the lead time and stock availability?
KNMKS maintains in-stock inventory of the AI835A to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity or project-based orders, contact the sales team to confirm availability and arrange staged delivery schedules.
