ABB AI830A Fail-Safe RTD Input Module for Industrial Control

Overview

ABB AI830A Fail-Safe RTD Input Module for Industrial Control: Fault Protection and Critical Field Reliability

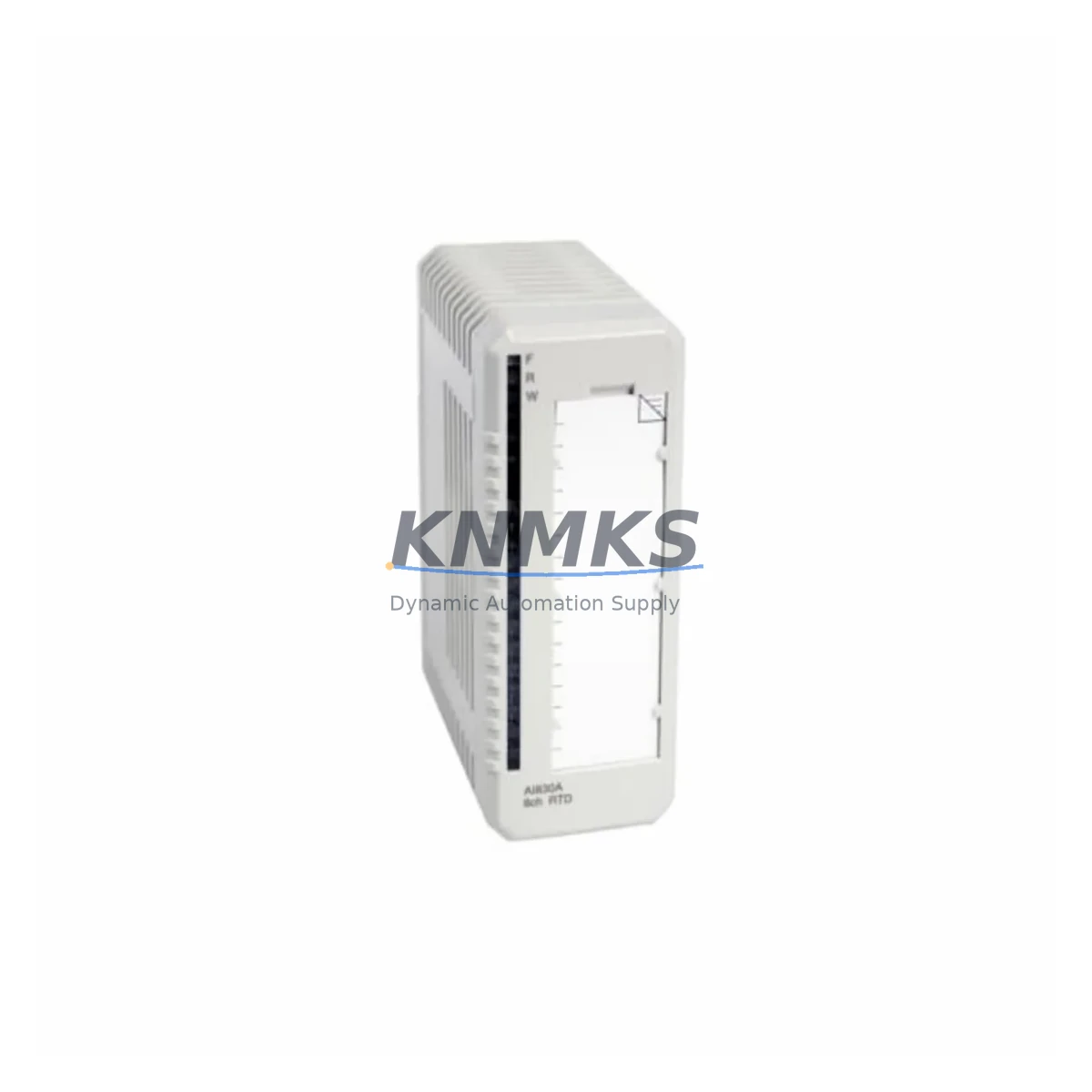

The ABB AI830A is an 8-channel RTD analog input module engineered for the S800 I/O system and AC 800M process controller platform. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, metallurgical furnaces, water treatment stations, and heavy manufacturing lines — the AI830A delivers precise temperature measurement with built-in fail-safe logic that protects control loops from signal drift, open-circuit faults, and sensor degradation. Where process continuity is non-negotiable, the AI830A provides the measurement integrity that keeps safety interlocks and regulatory control loops operating within specification.

In high-stakes control cabinets where multiple I/O modules share a common backplane, a single faulty input channel can cascade into a full process upset. The AI830A addresses this risk through channel-level diagnostics that detect wire breaks, out-of-range RTD resistance, and sensor short-circuits before they propagate to the controller. This self-monitoring capability is critical in applications such as reactor temperature control, turbine exhaust monitoring, and heat exchanger regulation, where delayed fault detection translates directly into unplanned downtime or safety system activation.

The module integrates natively with the ABB S800 I/O backplane architecture, supporting hot-swap replacement without interrupting adjacent channels or requiring controller restart. This design is particularly valuable in continuous production environments — cement kilns, paper mills, offshore platforms — where maintenance windows are measured in hours per year. When paired with the ABB TB820V2 ModuleBus Modem for remote I/O communication, the AI830A maintains signal integrity across extended cable runs in electrically noisy environments, resisting interference from variable frequency drives, large motor starters, and high-current bus bars that are common in heavy industrial switchgear rooms.

Electromagnetic compatibility is a core design requirement for the AI830A. The module meets IEC 61000-4 immunity standards for conducted and radiated disturbances, electrostatic discharge, and electrical fast transients — making it suitable for installation in control cabinets located adjacent to high-power equipment. In mining and mineral processing applications, where blasting operations and large conveyor drives generate significant transient energy, the AI830A’s EMI shielding and galvanic isolation prevent surge events from corrupting temperature readings or triggering spurious alarms in the safety instrumented system.

For installations in humid, dusty, or chemically aggressive atmospheres — such as wastewater treatment facilities, fertilizer plants, or coastal marine terminals — the AI830A’s conformal-coated PCB and sealed housing provide protection against condensation and particulate ingress. This environmental robustness extends module service life and reduces the frequency of corrective maintenance interventions that would otherwise require process shutdown. When combined with the ABB AI835A HART-enabled analog input module in the same I/O station, operators gain a mixed-signal architecture that handles both RTD temperature inputs and 4–20 mA transmitter signals from a single, unified backplane — simplifying cabinet layout and reducing wiring complexity.

Power supply stability directly affects measurement accuracy in RTD input circuits. The AI830A is designed to operate reliably across the S800 I/O system’s 24 VDC power rail, and its low power consumption minimizes thermal loading within the control cabinet. In applications where cabinet thermal management is critical — such as outdoor enclosures in desert climates or enclosed machinery rooms with limited ventilation — the AI830A’s efficient power profile reduces heat dissipation requirements and supports longer mean time between failures. Pairing the AI830A with a high-quality ABB SD831 or SD832 power supply unit ensures that voltage ripple and transient dips on the 24 VDC rail do not introduce measurement noise into the RTD input channels.

Replacement and spare parts planning for the AI830A is straightforward. The module is form-factor compatible with the S800 I/O family and can be substituted without firmware reconfiguration in most AC 800M controller projects. KNMKS maintains forward stock of the AI830A to support emergency replacement scenarios, with same-day dispatch available for verified orders. Each unit undergoes pre-shipment functional testing — including channel accuracy verification, diagnostic self-test confirmation, and communication handshake validation — before leaving the warehouse. This testing protocol ensures that replacement modules are field-ready upon arrival, minimizing the time between fault identification and process restoration.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S800 I/O control cabinet built around the AI830A typically integrates several complementary modules and components to achieve full-spectrum protection across measurement, control, power, and communication layers. On the analog output side, the ABB AO820 8-channel analog output module works in tandem with the AI830A to close temperature control loops — for example, modulating a control valve based on RTD feedback from a heat exchanger outlet. For digital interlock signals — emergency stop confirmation, valve position feedback, or motor run status — the ABB DI810 or DI830 digital input modules occupy adjacent slots on the same backplane, sharing the ModuleBus communication path and the common 24 VDC power rail.

Power integrity is maintained through redundant ABB SD831 24 VDC power supply units, which provide regulated, low-ripple power to the I/O backplane and protect against mains voltage fluctuations common in industrial facilities with large motor loads. For communication redundancy in critical process areas, the ABB CI854B PROFIBUS DP communication interface enables the AC 800M controller to maintain deterministic data exchange with field devices even under high electromagnetic load — a configuration frequently used in refinery distributed control systems and power plant boiler management systems. Surge protection devices installed at the cabinet entry point, combined with the AI830A’s internal galvanic isolation, create a two-barrier defense against lightning-induced transients and ground loop currents that would otherwise corrupt RTD measurements and trigger nuisance alarms.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the AI830A monitors reactor bed temperatures, heat exchanger outlet conditions, and distillation column profiles where temperature excursions beyond defined limits trigger safety instrumented system responses. Its open-circuit detection ensures that a failed thermowell or broken RTD lead is immediately flagged to the operator rather than silently reporting a frozen or default value that could mask a developing hazard.

In power generation facilities — including coal-fired, gas turbine, and combined heat and power plants — the AI830A provides turbine bearing temperature monitoring, generator winding temperature supervision, and boiler drum temperature measurement. The module’s high EMI immunity is essential in these environments, where large generators, transformers, and high-voltage switchgear create intense electromagnetic fields that can induce noise into unshielded analog circuits.

In mining and mineral processing applications, the AI830A supports conveyor motor bearing temperature monitoring, crusher lubrication oil temperature control, and flotation cell temperature regulation. Its hot-swap capability allows maintenance teams to replace a faulty module during a scheduled crusher maintenance window without shutting down the entire I/O station — a significant operational advantage in high-throughput ore processing facilities where every hour of downtime represents substantial production loss.

In water and wastewater treatment plants, the AI830A monitors process temperatures in biological treatment reactors, sludge digesters, and UV disinfection systems. Its conformal-coated PCB provides reliable operation in the high-humidity, chemically aggressive atmospheres typical of these facilities, where conventional modules without environmental protection exhibit accelerated corrosion and premature failure.

In metallurgical and steel production environments, the AI830A measures furnace zone temperatures, cooling water temperatures, and rolling mill roll temperatures. The module’s wide operating temperature range and vibration tolerance — consistent with IEC 60068-2-6 test standards — allow it to function reliably in control rooms located in close proximity to high-temperature furnaces and heavy mechanical equipment.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB AI830A?
The support terms confirmed by quotation cover manufacturing defects, functional failures under normal operating conditions, and diagnostic anomalies identified during commissioning. It includes replacement or repair of the module at no additional cost. Support requests are processed through KNMKS directly, with replacement units dispatched from forward stock to minimize process downtime. Contact [email protected] to initiate a support terms claim.

Q2: What pre-shipment testing is performed on each AI830A unit?
Each AI830A undergoes a three-stage pre-shipment test: (1) channel accuracy verification across the full RTD resistance range, (2) diagnostic self-test confirmation including open-circuit and short-circuit fault simulation, and (3) ModuleBus communication handshake validation with an AC 800M controller. Units that do not pass all three stages are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the AI830A compatible with all AC 800M controller versions, and can it replace older S800 I/O RTD modules?
The AI830A is compatible with all AC 800M controller variants (PM860, PM861, PM864, PM866) running Compact Control Builder AC 800M firmware version 5.0 and above. It is form-factor and backplane-compatible with earlier ABB S800 I/O RTD input modules, allowing direct substitution in existing I/O stations without mechanical modification. Configuration parameters are set via the controller project and do not require physical jumpers or DIP switches on the module itself.

Q4: How does KNMKS support long-term supply continuity for the AI830A in multi-year maintenance contracts?
KNMKS maintains a forward inventory buffer of the AI830A to support emergency replacement and planned maintenance schedules for customers operating continuous production facilities. For customers with multi-year maintenance agreements or large installed bases of S800 I/O systems, KNMKS offers reserved stock arrangements with guaranteed dispatch lead times. Contact [email protected] or +86 18359268345 to discuss long-term supply agreements and volume pricing.
