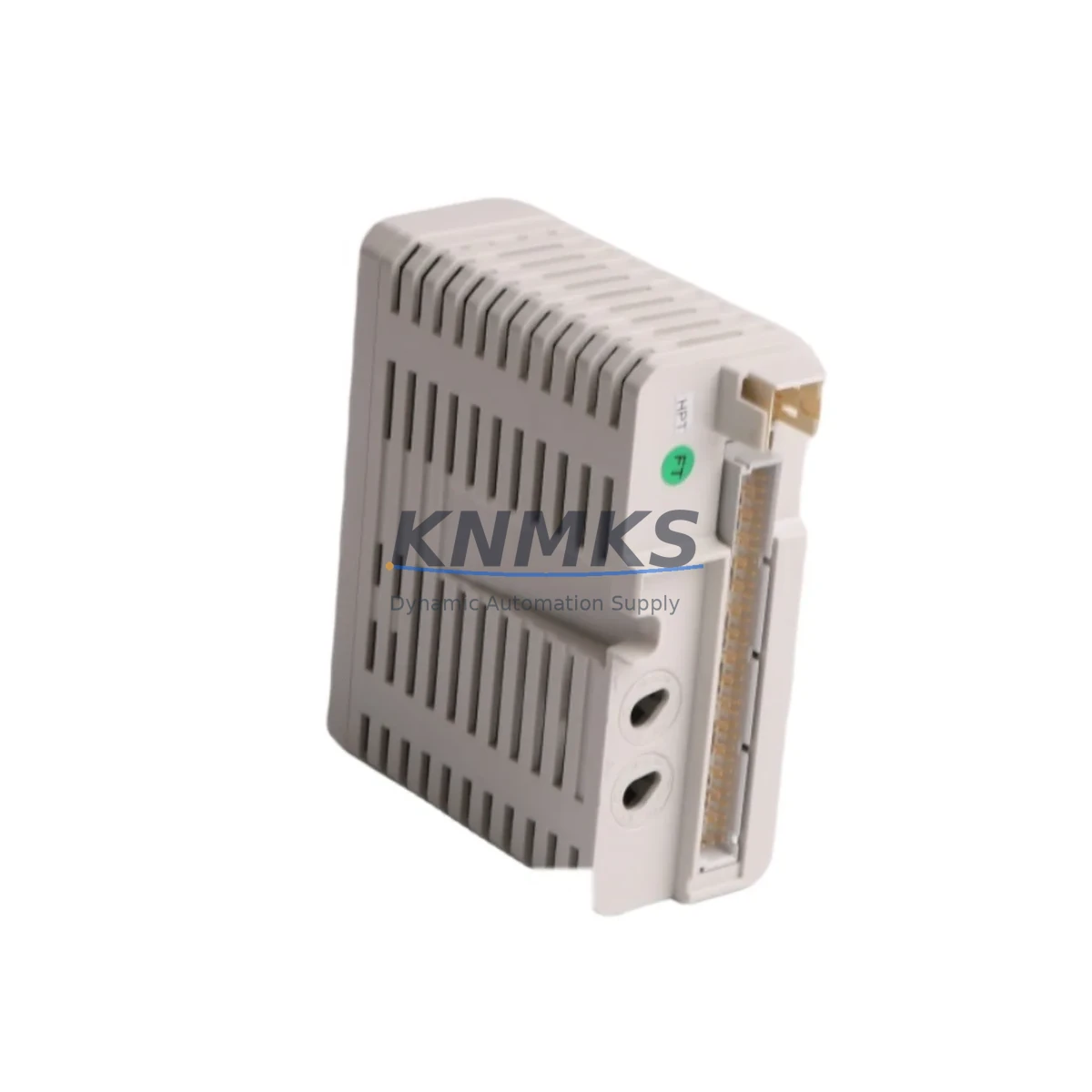

ABB AI815 3BSE052604R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB AI815 3BSE052604R1 Maintenance-Proven Spare Part for Factory Uptime

The ABB AI815 (part number 3BSE052604R1) is an original analog input module designed for the S800 I/O system, widely deployed in AC 800M DCS environments across oil & gas, power generation, chemical processing, and pulp & paper industries. As a maintenance-proven spare part, the AI815 delivers reliable 4–20 mA signal acquisition across eight differential input channels, enabling continuous process monitoring without interruption to production. Sourced directly from verified supply channels, each unit is tested before shipment and backed by a support terms confirmed by quotation, making it a dependable choice for both emergency replacement and planned spare parts inventory programs.

Maintenance engineers and procurement teams managing aging AC 800M or S800 I/O installations recognize the AI815 as a critical component in sustaining loop integrity. Whether you are responding to a field fault, executing a scheduled annual overhaul, or building a blanket-stock program to reduce lead-time risk, having a verified AI815 on hand eliminates the most common cause of extended downtime: waiting for a discontinued or allocation-constrained module to arrive. Our long-term supply capability ensures you can source this module consistently, even as OEM availability tightens.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB AI815 in an S800 I/O cabinet, a thorough inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure loop accuracy is restored immediately. Begin by verifying the TB820 or TB840 baseplate for corrosion, bent bus pins, or cracked housing — a damaged baseplate will cause intermittent communication faults even with a new AI815 installed. Check the SD821 or SD822 power supply module that feeds the I/O bus; an under-voltage or ripple condition on the 24 VDC rail is a common root cause of analog module faults that are misdiagnosed as module failure.

Inspect all field terminal wiring at the MTU (Module Termination Unit) or directly at the baseplate terminal block. Loose or corroded connections on 4–20 mA loops will introduce signal noise that degrades measurement quality after module replacement. If the installation uses AI810 or AI820 modules in adjacent slots for redundant or expanded analog acquisition, verify their channel status and calibration records simultaneously — a single maintenance visit should cover the full analog input cluster.

For installations where the AI815 interfaces with HART-enabled field instruments, confirm that the HART communication path is intact and that the control system’s HART DTM configuration matches the new module’s channel assignments. In cabinets with signal isolators or barriers (such as the MTL or P+F series commonly paired with ABB S800 systems), inspect isolator output levels and replace any units showing drift beyond ±0.1% of span. Additionally, check the CI854 or CI801 communication interface module that connects the S800 I/O cluster to the AC 800M controller — a degraded fieldbus interface will mask the performance improvement gained from installing a fresh AI815. Finally, inspect cabinet fusing on the 24 VDC distribution rail and verify that surge protection devices on analog input lines are intact and within rated clamping voltage.

Site Replacement Workflow

The AI815 is a hot-swap capable module within the S800 I/O architecture, allowing replacement without a full system shutdown in most AC 800M configurations. Before removal, confirm the channel is in manual mode or that the control loop has been placed in a safe hold state by the DCS operator. Document the existing channel configuration — signal type, range, filter settings, and HART address — using the AC 800M Control Builder or Asset Vision Basic before extracting the module.

Remove the faulty AI815 by releasing the module latch and sliding it clear of the baseplate. Insert the replacement 3BSE052604R1 unit, ensuring the bus connector seats fully. The AC 800M controller will automatically detect the new module and restore the pre-configured channel parameters if the hardware type matches. Verify all eight channel readings against known process values or a calibrated signal source before returning the loop to automatic control. Update the maintenance log with the replacement date, new module serial number, and post-installation calibration verification results. This workflow typically achieves loop restoration within 15–30 minutes, minimizing process impact and avoiding the extended downtime associated with waiting for emergency procurement.

Spare Parts Support FAQ

Q1: Is the AI815 (3BSE052604R1) compatible with all AC 800M controller versions?
Yes. The AI815 is compatible with all AC 800M controller generations (PM860, PM861, PM864, PM866) when used with a compatible S800 I/O baseplate. Confirm your Control Builder version supports the module’s firmware revision; in most cases, no firmware update is required for direct replacement.

Q2: How do you verify the module is genuine and functional before shipment?
Each AI815 unit undergoes a pre-shipment functional test covering bus communication, channel signal acquisition, and power consumption verification. Units are inspected for physical integrity, connector condition, and firmware version. A test report is available upon request. The support terms confirmed by quotation cover any defects identified during installation or normal operation.

Q3: What is your lead time and long-term supply availability for the AI815?
We maintain regional stock of the AI815 / 3BSE052604R1 to support emergency and planned procurement. Standard lead time for in-stock units is 3–7 business days for international shipment. For blanket-stock or annual maintenance programs requiring multiple units, contact our sales team to discuss reserved allocation and volume pricing.

Q4: Can the AI815 replace older S800 analog input modules such as the AI810 or AI820?
The AI815 is not a direct pin-compatible replacement for the AI810 or AI820 due to differences in channel count and baseplate slot requirements. However, it can be used as a functional upgrade in systems where additional input channels or higher resolution are required. Compatibility must be verified against your specific baseplate model and Control Builder hardware configuration before ordering.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AI815-3BSE052604R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AI815-3BSE052604R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
