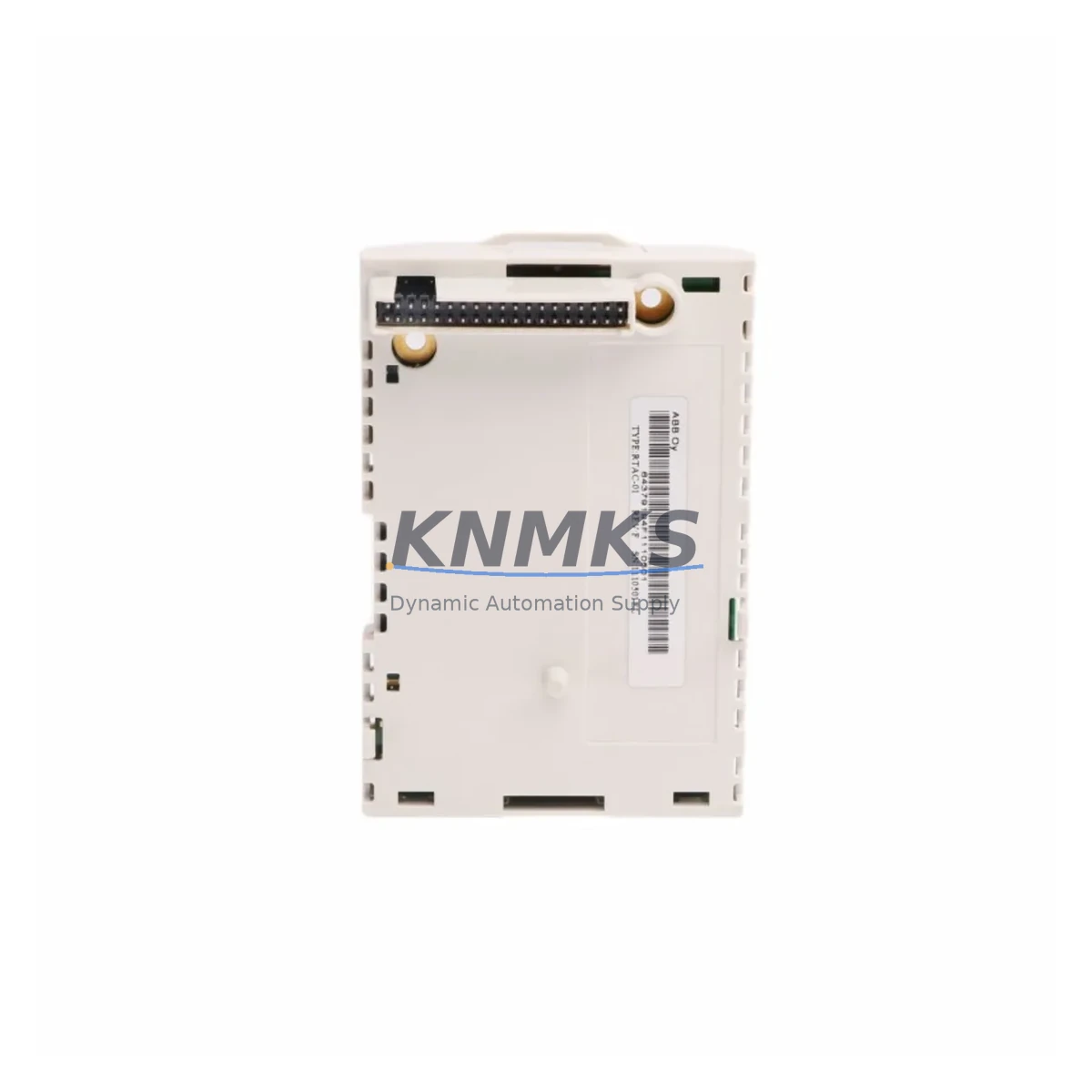

ABB AI801 3BSE020512R1 Migration-Ready Analog Input

Overview

ABB AI801 3BSE020512R1 Migration-Ready Analog Input for Legacy Control Systems

The ABB AI801 (3BSE020512R1) is an 8-channel HART-compatible analog input module engineered for the S800 I/O platform, widely deployed across ABB Advant, Symphony Plus, and System 800xA distributed control systems. As legacy DCS installations approach end-of-life or face discontinued spare parts availability, the AI801 3BSE020512R1 serves as a direct migration-ready replacement — preserving existing field wiring, terminal assignments, and process variable scaling without requiring controller reprogramming or HMI screen redesign.

For automation engineers managing brownfield upgrades, the AI801 offers a critical advantage: it maintains full backward compatibility with the S800 I/O backplane, allowing module swap-out during planned maintenance windows with minimal downtime. Each channel supports 4–20 mA HART signals, enabling simultaneous analog process control and digital HART communication for field device diagnostics — a key requirement when migrating from older Advant Master or MOD 300 control architectures to current 800xA environments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AI801 3BSE020512R1 into an existing control cabinet begins with a thorough audit of the current S800 I/O rack configuration. Engineers should confirm the TB820 or TB840 terminal base is installed and undamaged, as the AI801 mounts directly onto the terminal base without field wiring changes — a significant advantage over cross-brand migrations that require full terminal rewiring.

Power budget verification is essential before adding or replacing modules in a populated S800 rack. The S800 power supply module — typically the SD821 or SD822 — must have sufficient headroom to support the AI801’s current draw alongside other installed modules such as the AO801 analog output module and DI801 digital input module. In high-density racks, the CI854A or CI857 communication interface coupler should also be checked for channel load capacity, as each HART-enabled AI801 channel adds a small overhead to the coupler’s polling cycle.

For systems migrating from legacy Advant Master or MOD 300 platforms, the AI801 supports re-use of existing 4–20 mA field wiring, provided signal cable shielding and grounding practices meet S800 installation standards. HART device descriptors (DD files) for connected field instruments should be pre-loaded into the 800xA Asset Optimization library before commissioning to enable full HART variable mapping and device diagnostics without additional site visits.

Where I/O expansion is required alongside the AI801 replacement, the S800 rack accommodates additional modules including the AI835 HART analog input (for intrinsically safe zones), the DP820 PROFIBUS DP interface, and the AF100 fieldbus interface — all sharing the same ModuleBus backplane without gateway hardware. This modularity makes the AI801 a natural anchor point for phased I/O expansion strategies that avoid full controller replacement.

HMI screen updates are typically minimal when performing a like-for-like AI801 swap: process variable tags, engineering unit scaling, and alarm limits defined in the 800xA Function Designer or Control Builder M remain intact. However, if the replacement involves a channel count change or a shift from non-HART to HART-enabled input, signal tag re-mapping and a partial HMI revision may be required. Pre-staging the replacement module in a test rack with a laptop running Control Builder M allows engineers to validate configuration before the live cutover.

Downtime Control During System Migration

Minimizing production downtime during an AI801 module replacement requires a structured cutover plan. The recommended approach is a hot-standby swap during a scheduled maintenance window: with the S800 rack powered and the process in manual mode, the failed or end-of-life AI801 is removed from the TB820/TB840 terminal base and the replacement module is inserted. The 800xA system detects the new module automatically via ModuleBus enumeration, restoring analog input signals within seconds — no controller reboot or program download is required in most configurations.

To protect original program logic during the migration, a full 800xA project backup should be completed before any hardware change. Control Builder M’s offline simulation mode allows engineers to verify that the replacement AI801’s channel assignments and HART variable mappings match the existing configuration before going live. This step is particularly important when the replacement module carries a different firmware revision, as HART command set differences can affect device variable polling behavior.

Field continuity is maintained by keeping the TB820/TB840 terminal base wired throughout the swap — field cables remain connected to the terminal base while only the AI801 module itself is exchanged. This approach eliminates the risk of miswiring during the cutover and preserves signal continuity for non-affected channels in the same terminal base. Post-swap, a channel-by-channel loop check using a HART communicator (such as the FC375 or FC475) confirms signal integrity and HART device recognition before returning the loop to automatic control.

For multi-rack migrations involving simultaneous replacement of several S800 modules, a phased rack-by-rack approach — combined with pre-tested spare AI801 units held in bonded inventory — reduces cumulative downtime and provides immediate fallback if a replacement unit requires re-configuration. Our support terms confirmed by quotation cover each AI801 3BSE020512R1 unit shipped, with pre-shipment functional testing documented for every order.

Retrofit Support FAQ

Q1: Is the AI801 3BSE020512R1 a direct drop-in replacement for the AI810 or AI820?
The AI801 is compatible with the same TB820 and TB840 terminal bases used by the AI810 and AI820, making it a mechanical and electrical drop-in for most S800 I/O installations. The key difference is HART capability: the AI801 supports HART communication on all 8 channels, while the AI810 does not. No field rewiring is required for a like-for-like terminal base swap, but the 800xA configuration should be updated to enable HART polling if HART devices are connected.

Q2: What commissioning steps are required after installing the AI801?
After physical installation on the TB820/TB840 terminal base, verify the module address DIP switch matches the address configured in Control Builder M. The 800xA system will auto-detect the AI801 on the ModuleBus within one scan cycle. Perform a channel-by-channel loop check to confirm 4–20 mA signal integrity, then enable HART polling in the AI801 hardware configuration if HART field devices are present. A full functional test report is recommended before returning loops to automatic mode.

Q3: Does the AI801 ship with a pre-shipment functional test, and what does the support terms confirmed by quotation cover?
Yes — every AI801 3BSE020512R1 unit undergoes a pre-shipment functional test covering analog signal accuracy across all 8 channels and ModuleBus communication verification. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal S800 operating conditions. It does not cover damage from incorrect installation, overvoltage, or use outside the specified environmental range. Support requests are processed with full RMA support and replacement unit dispatch.

Q4: Can the AI801 be used in intrinsically safe or hazardous area applications?
The standard AI801 3BSE020512R1 is rated for installation in the control room side of a safety barrier — it is not itself an intrinsically safe module. For hazardous area field wiring (Zone 1 / Zone 2 or Class I Div 1 / Div 2), Zener barriers or galvanic isolators must be installed between the AI801 terminal base and the field instruments. For applications requiring IS-rated I/O in the field junction box, the AI835A (intrinsically safe HART analog input) is the recommended S800 platform alternative.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AI801 3BSE020512R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AI801 3BSE020512R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
