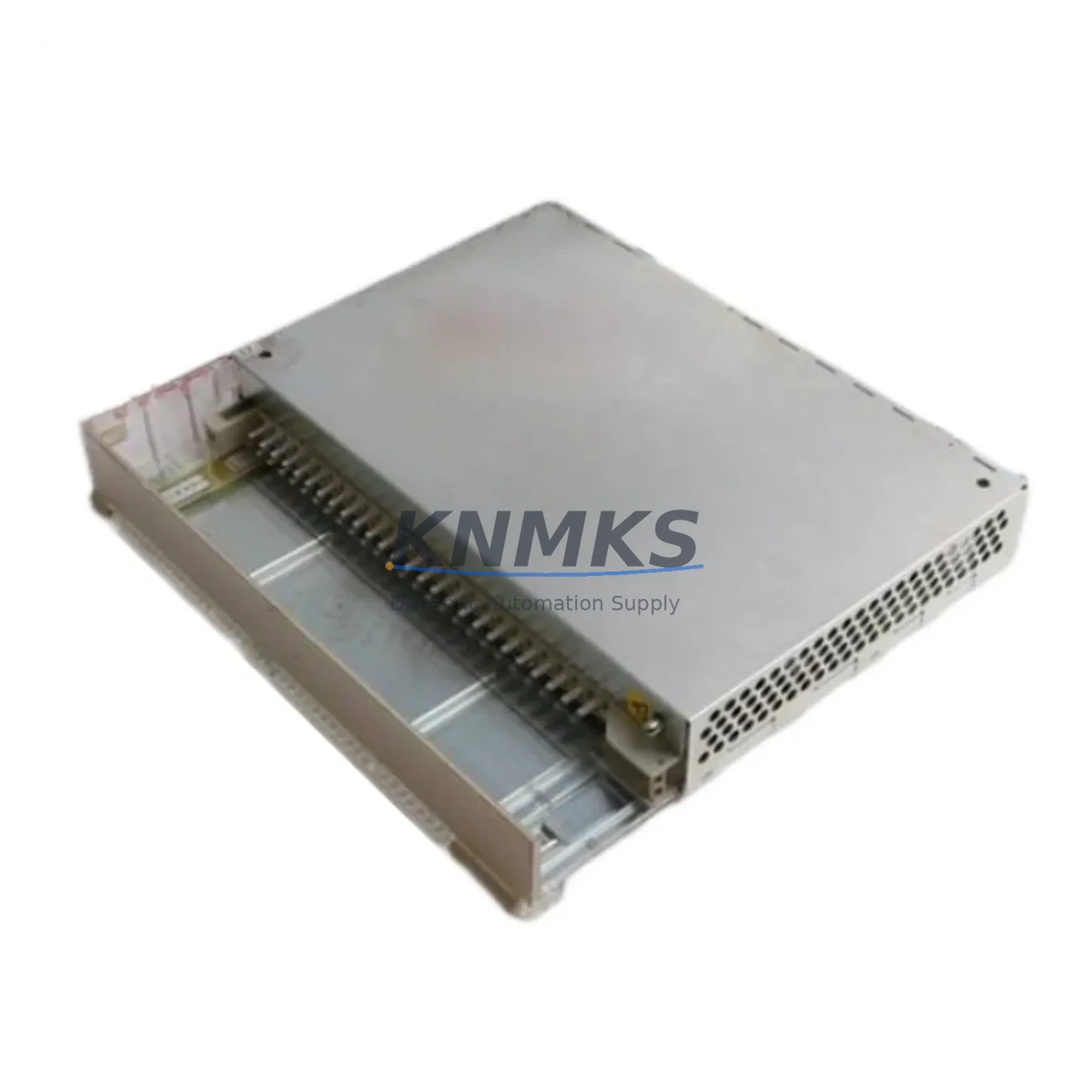

ABB AI610 3BHT300000R1 Fail-Safe Analog Input for Industrial Control

Overview

ABB AI610 3BHT300000R1 Fail-Safe Analog Input for Industrial Control

The ABB AI610 (3BHT300000R1) is an 8-channel analog input module engineered for the ABB AC 800M / S800 I/O distributed control system platform. Designed to meet the demanding requirements of continuous process industries, this module delivers fail-safe signal acquisition, high electromagnetic immunity, and long-term operational stability in harsh field environments. Whether deployed in petrochemical refineries, power generation facilities, metallurgical plants, or water treatment infrastructure, the AI610 provides the signal integrity and fault-tolerance that critical control loops demand.

In high-stakes industrial environments, analog input accuracy is not merely a performance metric — it is a safety imperative. Signal drift, ground loops, EMI-induced noise, and power fluctuations can cause false readings that trigger unplanned shutdowns, damage equipment, or compromise personnel safety. The AI610 addresses these risks through hardware-level filtering, galvanic isolation, and robust channel diagnostics that continuously verify signal health and report faults to the AC 800M controller before they escalate into process upsets.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The AI610 does not operate in isolation — its reliability is maximized when integrated within a well-engineered control cabinet architecture. In a typical AC 800M DCS cabinet, the AI610 is mounted on an S800 I/O TB820V2 ModuleBus Modem or compatible bus carrier, which provides the high-speed communication backbone between field I/O modules and the PM866 or PM891 controller processor. Ensuring stable 24 VDC power delivery to the I/O bus is critical; the ABB SD822 Power Supply Unit is commonly paired in the same cabinet to provide regulated, redundant power with surge protection, preventing voltage transients from corrupting analog readings.

For installations in environments with significant electromagnetic interference — such as variable frequency drive (VFD) rooms, high-voltage switchgear areas, or motor control centers — the AI610’s built-in EMI filtering is complemented by proper cabinet shielding and the use of shielded twisted-pair field cables terminated at the S800 I/O TB807 or TB811 terminal base. These terminal bases provide the physical mounting and field wiring interface for the AI610, and selecting the correct terminal base variant ensures compatibility with both 2-wire and 4-wire transmitter configurations.

In safety-critical interlock loops, the AI610 analog signals are often cross-validated against discrete safety inputs processed by the ABB AI810 8-Channel Analog Input Module or monitored alongside digital outputs from the DO810 Digital Output Module, enabling the AC 800M controller to execute protective shutdown logic with full signal traceability. For communication-intensive architectures, the CI854 PROFIBUS DP Interface Module extends the AC 800M’s fieldbus reach, allowing the AI610’s process values to be shared across plant-wide SCADA and historian systems without introducing latency or data loss.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous distillation, catalytic cracking, and hydroprocessing units, the AI610 monitors temperature, pressure, and flow transmitters across critical process streams. Its per-channel open-wire diagnostics immediately flag transmitter failures, allowing the AC 800M to initiate safe-state transitions before process variables exceed safe operating limits.

Power Generation: Thermal and hydroelectric power plants rely on precise analog measurement for boiler drum level control, turbine speed regulation, and generator excitation monitoring. The AI610’s galvanic isolation prevents ground loop interference from high-voltage plant equipment from corrupting these safety-critical measurements.

Mining & Mineral Processing: In ore crushing, conveyor control, and flotation cell management, the AI610 operates reliably in high-dust, high-vibration environments. Its IEC 60068-2-6 vibration compliance and sealed module housing protect internal circuitry from particulate ingress and mechanical shock.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the AI610 to monitor pH, dissolved oxygen, turbidity, and pump pressure across distributed field stations. The module’s wide operating humidity range and corrosion-resistant design ensure stable performance in wet, chemically aggressive plant areas.

Metallurgy & Steel: Electric arc furnace control, rolling mill automation, and continuous casting lines subject control hardware to extreme thermal cycling and electromagnetic noise. The AI610’s robust EMI immunity and wide temperature tolerance make it a preferred choice for these demanding applications.

Port & Marine: Ship-to-shore crane control systems and vessel automation platforms require analog input modules that maintain accuracy despite salt-air corrosion, vibration from wave motion, and wide ambient temperature swings. The AI610’s industrial-grade construction meets these requirements for both port infrastructure and marine vessel control cabinets.

Safety and Quality FAQ

Q1: What support terms does the ABB AI610 3BHT300000R1 carry?
Every AI610 3BHT300000R1 unit supplied by KNMKS is backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed promptly with replacement or repair support.

Q2: What pre-shipment testing is performed on each unit?
Each module undergoes functional verification prior to dispatch, including power-on self-test confirmation, channel communication integrity checks, and visual inspection for physical damage. Units are shipped in anti-static protective packaging to prevent ESD damage in transit.

Q3: Is the AI610 3BHT300000R1 compatible with existing AC 800M and S800 I/O installations?
Yes. The AI610 3BHT300000R1 is a direct-fit replacement for existing S800 I/O analog input positions within AC 800M DCS architectures. It is compatible with standard S800 terminal bases and ModuleBus communication infrastructure without requiring firmware changes or hardware modifications in most installations.

Q4: Can long-term supply and spare parts availability be guaranteed?
KNMKS maintains dedicated inventory of the AI610 3BHT300000R1 to support planned maintenance schedules, emergency replacements, and multi-unit project requirements. We provide stable, long-term supply commitments for industrial customers requiring ongoing spare parts management for their AC 800M DCS fleets.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AI610 3BHT300000R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AI610 3BHT300000R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
