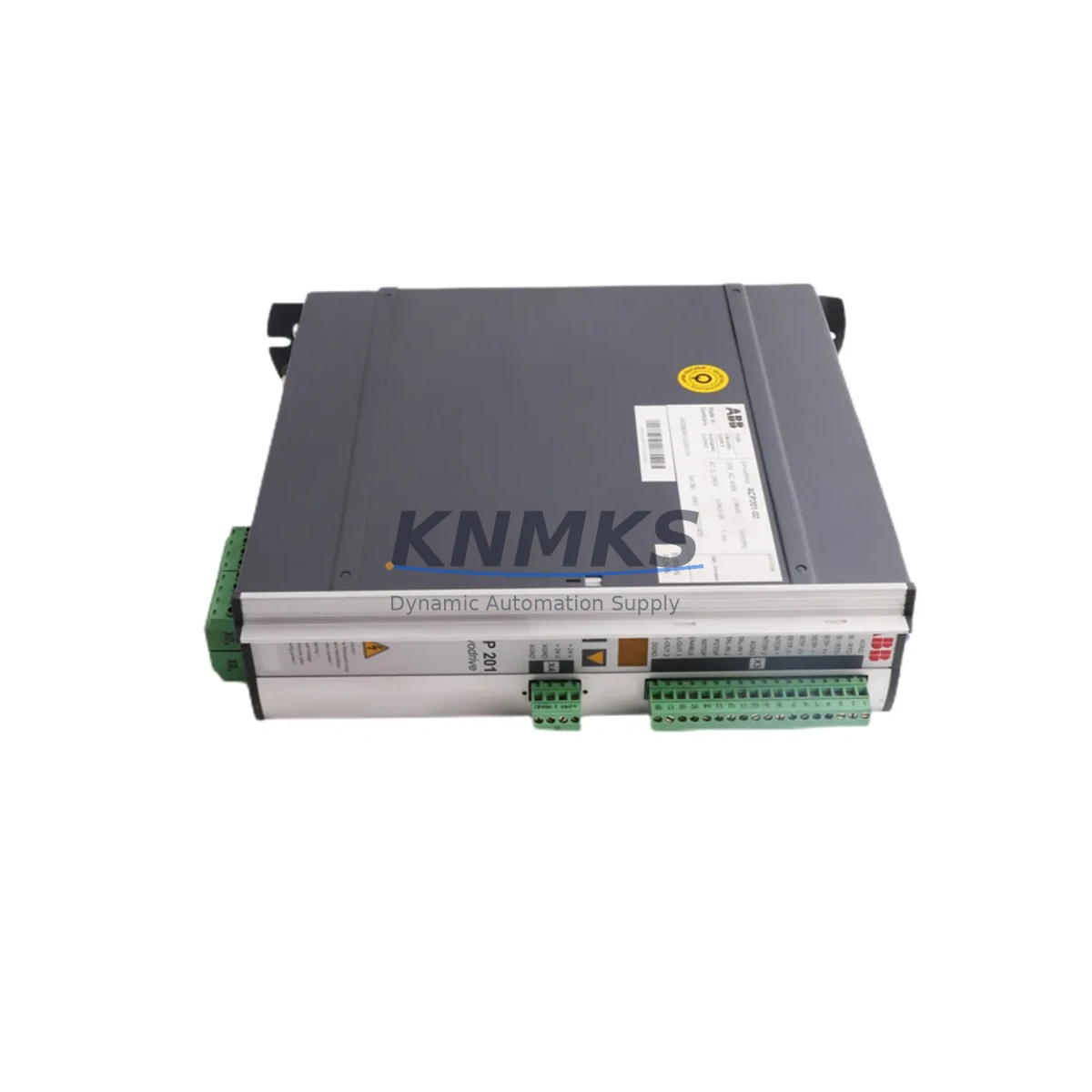

ABB ACP201-02 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB ACP201-02 Maintenance-Proven Spare Part for Factory Uptime

The ABB ACP201-02 is a verified original spare part for the ACP200 series AC servo drive platform, engineered to support continuous factory operation and rapid recovery from unplanned downtime. Sourced directly from authorized supply channels, each unit undergoes functional verification prior to shipment, ensuring that maintenance engineers can install with confidence and restore production lines without delay. With a support terms confirmed by quotation and long-term supply commitment, the ACP201-02 is a reliable cornerstone of any industrial spare parts inventory strategy.

For maintenance engineers managing aging automation systems, the ACP201-02 represents a drop-in replacement that preserves full compatibility with existing ACP200 series control architectures. Its standardized form factor and electrical interface eliminate the need for panel rewiring or software reconfiguration, reducing mean time to repair (MTTR) and minimizing the risk of secondary faults during emergency replacement procedures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for ACP200 series installations requires a systems-level view of the entire servo drive circuit. When scheduling replacement of the ACP201-02, maintenance engineers should simultaneously inspect the ABB ACS880 or ACS580 series power supply modules feeding the servo bus, as degraded DC bus voltage directly impacts drive performance and can trigger false fault codes that mask the true root cause of a servo failure.

The encoder feedback cable and connector between the ACP201-02 and the servo motor should be checked for insulation breakdown, connector corrosion, and shield continuity. A compromised feedback signal is one of the most common causes of premature drive failure in high-cycle applications. Alongside the drive replacement, technicians should verify the integrity of the 24 VDC control power supply — typically an ABB CP series or equivalent DIN rail PSU — which powers the drive’s logic board and I/O interface independently of the main power stage.

I/O terminal blocks and field wiring connected to the ACP201-02’s digital and analog inputs should be inspected for loose terminations, oxidation, and correct torque. In multi-axis systems, the PROFIBUS DP or EtherCAT communication module connecting the drive to the PLC or motion controller should be tested for address conflicts and cable integrity. If the installation includes an ABB CP600 or CP400 series HMI panel, verify that the drive parameter set is backed up before replacement to enable rapid recommissioning.

For control cabinets housing multiple ACP200 drives, a proactive inspection of the backplane bus connectors, fuse holders (typically 10A–32A class gG), and surge protection devices (SPDs) on the incoming supply is recommended as part of any planned maintenance window. Thermal imaging of the cabinet interior prior to shutdown can identify hot spots indicating failing components before they cause cascading failures across the drive system.

Site Replacement Workflow

When replacing the ACP201-02 on-site, begin by documenting the existing drive parameter set using the ABB Drive Composer or the panel-mounted keypad backup function. Power down the cabinet following the site LOTO (Lockout/Tagout) procedure and allow a minimum of 5 minutes for DC bus capacitor discharge before opening the drive enclosure.

Remove the faulty unit by disconnecting the motor power cables (U, V, W), the encoder feedback connector, the 24 VDC control supply, and the fieldbus communication cable in sequence. Install the replacement ACP201-02 into the same mechanical position, reconnect all cables in reverse order, and verify terminal torque values against the ACP200 installation manual. Restore the parameter backup via Drive Composer or manual keypad entry before energizing.

On first power-up, perform a no-load test run to confirm encoder feedback, direction of rotation, and fault-free operation before reconnecting the mechanical load. This workflow minimizes the risk of secondary damage to the motor or gearbox and ensures the replacement drive is fully commissioned before returning the production line to service. Typical on-site replacement time for a trained technician is 45–90 minutes, making the ACP201-02 one of the most maintainable components in the ACP200 ecosystem.

For legacy systems where the ACP200 series is approaching end-of-life, stocking a minimum of two ACP201-02 units per production line is recommended to cover both emergency replacement and planned annual maintenance cycles without risking extended lead times from the open market.

Spare Parts Support FAQ

Q1: Is the ACP201-02 compatible with all ACP200 series drive frames?
The ACP201-02 is designed for the ACP200 series platform. Compatibility depends on the specific frame size and power rating of your existing installation. Please provide your full system configuration — including motor nameplate data and existing drive firmware version — when placing an order, so our technical team can confirm a direct fit before shipment.

Q2: What is included in the support terms confirmed by quotation coverage?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit is functionally tested prior to dispatch. Support requests require the original invoice and a fault description; replacement or repair is arranged within 5 business days of claim approval.

Q3: Can you supply multiple ACP201-02 units for annual maintenance stock?
Yes. We support volume stocking orders for maintenance engineers and procurement teams building annual spare parts inventories. Long-term supply agreements with fixed pricing are available. Contact admin@knmks.com or call +86 18359268345 to discuss quantity pricing and lead times.

Q4: How do I verify the ACP201-02 is genuine before installation?
Every unit supplied by KNMKS is sourced from verified channels and includes original ABB labeling, serial number, and production date markings. A pre-shipment functional test report is available on request. If you require third-party inspection or factory certification documentation, please specify this requirement at the time of order.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ACP201-02

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB ACP201-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
