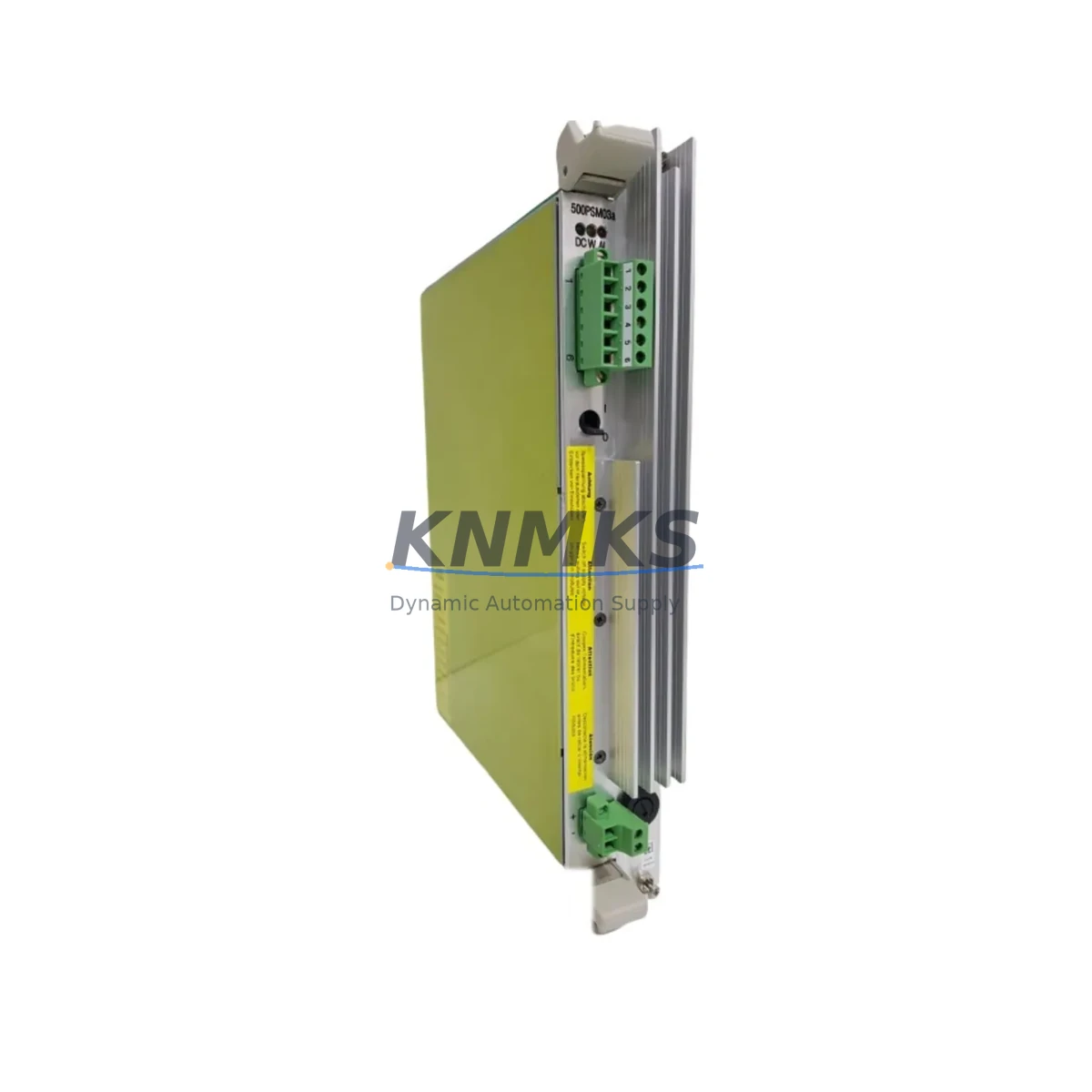

ABB 500PSM03 Fail-Safe Power Supply for Industrial Control

Overview

ABB 500PSM03 Fail-Safe Power Supply for Industrial Control Reliability

The ABB 500PSM03 is a dedicated AC500-series PLC power supply module engineered for fail-safe, continuous operation in mission-critical industrial environments. Rated at 24 VDC / 3 A / 72 W, it delivers stable, regulated DC power to the AC500 CPU and I/O backplane under the most demanding field conditions — including high electromagnetic interference, wide ambient temperature swings, mechanical vibration, and corrosive or dusty atmospheres. Where unplanned downtime carries safety and financial consequences, the 500PSM03 is the backbone that keeps the control cabinet alive.

Designed and manufactured in Germany to ABB’s industrial-grade quality standards, every 500PSM03 unit shipped by KNMKS has passed a full functional bench test covering output voltage regulation, ripple, overload response, and short-circuit protection before dispatch. A support terms confirmed by quotation covers all units, backed by documented test records and long-term stock availability to support blanket-order and emergency-replacement programs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered AC500 control cabinet, the 500PSM03 does not operate in isolation — it is the regulated power foundation upon which every other module depends. When paired with an ABB AC500 PM564-ETH CPU module, the power supply must maintain output voltage within ±1 % across the full load range to prevent CPU watchdog resets and communication dropouts on PROFIBUS or Modbus TCP networks. Any ripple or transient that exceeds the CPU’s input tolerance can trigger a spurious safety interlock trip, causing unplanned process shutdown in continuous production lines.

For digital and analog I/O expansion, the ABB DC532 digital output module and DA501 analog input module draw their logic supply directly from the backplane bus fed by the 500PSM03. Voltage sag during inrush — common when multiple output channels switch simultaneously in motor control or valve actuation sequences — is absorbed by the 500PSM03’s fold-back current limiting, protecting downstream I/O from brown-out conditions that cause signal latching errors or false process alarms.

In cabinets where high-current motor starters or variable-frequency drives share the same enclosure, conducted emissions and fast transients (IEC 61000-4-4 burst) are a persistent threat. The 500PSM03’s built-in input filter and surge suppression work in concert with external ABB OVR surge protection devices mounted at the cabinet entry point, creating a two-stage defense against lightning-induced surges and switching transients that would otherwise corrupt PLC memory or damage I/O modules.

For safety-rated applications under IEC 62061 or ISO 13849, the 500PSM03 is commonly deployed alongside the ABB AC500-S safety CPU (PM5650-2ETH) and dedicated F-DI / F-DO safety I/O modules. In these architectures, power supply stability is a functional safety requirement: a voltage dropout lasting more than the CPU’s hold-up time will force the safety system into a safe state, potentially triggering emergency stops across the entire production cell. The 500PSM03’s hold-up time and output capacitance are sized to bridge micro-interruptions and prevent nuisance safe-state activations.

Communication infrastructure modules such as the ABB CI590-CS31-HA CS31 bus coupler are equally sensitive to power quality. Fieldbus communication errors caused by power instability are notoriously difficult to diagnose in the field and often result in extended troubleshooting downtime. Maintaining a clean, stable 24 VDC rail from the 500PSM03 is the single most effective preventive measure against intermittent fieldbus faults in distributed I/O architectures.

Critical Industrial Safety Applications

The ABB 500PSM03 is deployed across a broad spectrum of safety-critical and continuous-process industries where control interruption is not an option:

Petrochemical and Refinery Plants: In hydrocarbon processing, the AC500 PLC system — powered by the 500PSM03 — manages burner management systems (BMS), emergency shutdown (ESD) sequences, and high-integrity pressure protection systems (HIPPS). Power supply instability in these applications can prevent a safety interlock from executing within its required response time, creating a potential hazardous event. The 500PSM03’s surge-protected, regulated output ensures the safety CPU remains operational through grid disturbances common near large rotating machinery.

Electric Power Generation and Substation Automation: Turbine control panels and substation RTU cabinets operate in environments with severe conducted interference from high-voltage switching. The 500PSM03’s EMC immunity rating makes it suitable for these installations, where a power supply failure could disable protection relaying or SCADA communication, leading to undetected fault conditions on the high-voltage network.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature cycling. The 500PSM03’s IEC 60068-rated mechanical robustness and sealed component construction maintain reliable output under these conditions, supporting conveyor interlock systems, crusher control, and ventilation safety circuits that must remain operational to protect personnel.

Water and Wastewater Treatment: Municipal water treatment facilities rely on continuous PLC operation for dosing control, pump sequencing, and alarm management. High humidity and chemical vapors in pump stations create corrosive environments that degrade poorly protected electronics. The 500PSM03’s conformal-coated PCB construction and wide humidity tolerance ensure long service life in these installations without requiring frequent preventive replacement.

Metallurgy and Steel Production: Electric arc furnace (EAF) and rolling mill control systems generate intense electromagnetic fields and voltage fluctuations on the plant power network. The 500PSM03’s input surge suppression and wide input voltage range allow it to maintain stable DC output even when the AC supply deviates significantly from nominal, preventing control system resets during furnace tap-to-tap cycles.

Port and Marine Automation: Ship-to-shore crane control systems and vessel automation panels operate in salt-laden, high-humidity environments with frequent load switching. The 500PSM03 provides the stable power foundation for AC500-based crane PLC systems, where a power supply failure during a lift cycle creates both a safety hazard and significant cargo handling delay.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB 500PSM03?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional performance deviations from ABB’s published specifications. Every unit is bench-tested before shipment — including output voltage accuracy, ripple measurement, overload response, and short-circuit protection verification. Test records are retained and available upon request. Support requests are processed with priority dispatch of a replacement unit to minimize your downtime.

Q2: How is the 500PSM03 tested before shipment, and what does the pre-shipment inspection include?
Each 500PSM03 undergoes a structured functional test protocol covering: (1) output voltage regulation under no-load, 50 %, and full-load conditions; (2) output ripple and noise measurement; (3) overload and short-circuit protection activation and auto-recovery; (4) visual inspection for physical damage, connector integrity, and label legibility. Units that do not pass all test criteria are quarantined and not shipped. A test pass certificate is included with each order on request.

Q3: Is the 500PSM03 compatible with both standard AC500 and AC500-S safety CPU systems?
Yes. The 500PSM03 is compatible with the full ABB AC500 CPU family, including PM5xx standard CPUs and the AC500-S safety CPU platform (PM5650-2ETH and related variants). It mounts directly on the AC500 backplane and provides the regulated 24 VDC supply required by both standard and safety-rated CPU modules. For SIL-rated applications, confirm the complete power supply architecture with your functional safety engineer, as the overall safety loop design must account for power supply diagnostic coverage.

Q4: Can KNMKS support long-term or blanket-stock supply of the 500PSM03 for maintenance programs?
Yes. KNMKS maintains dedicated stock of the ABB 500PSM03 to support planned maintenance programs, annual spare-parts contracts, and emergency replacement requirements. Blanket purchase orders with scheduled release dates are accepted, and priority allocation is available for customers with critical-site maintenance agreements. Contact our technical sales team at [email protected] or +86 18359268345 to discuss your supply requirements and lead-time commitments.
