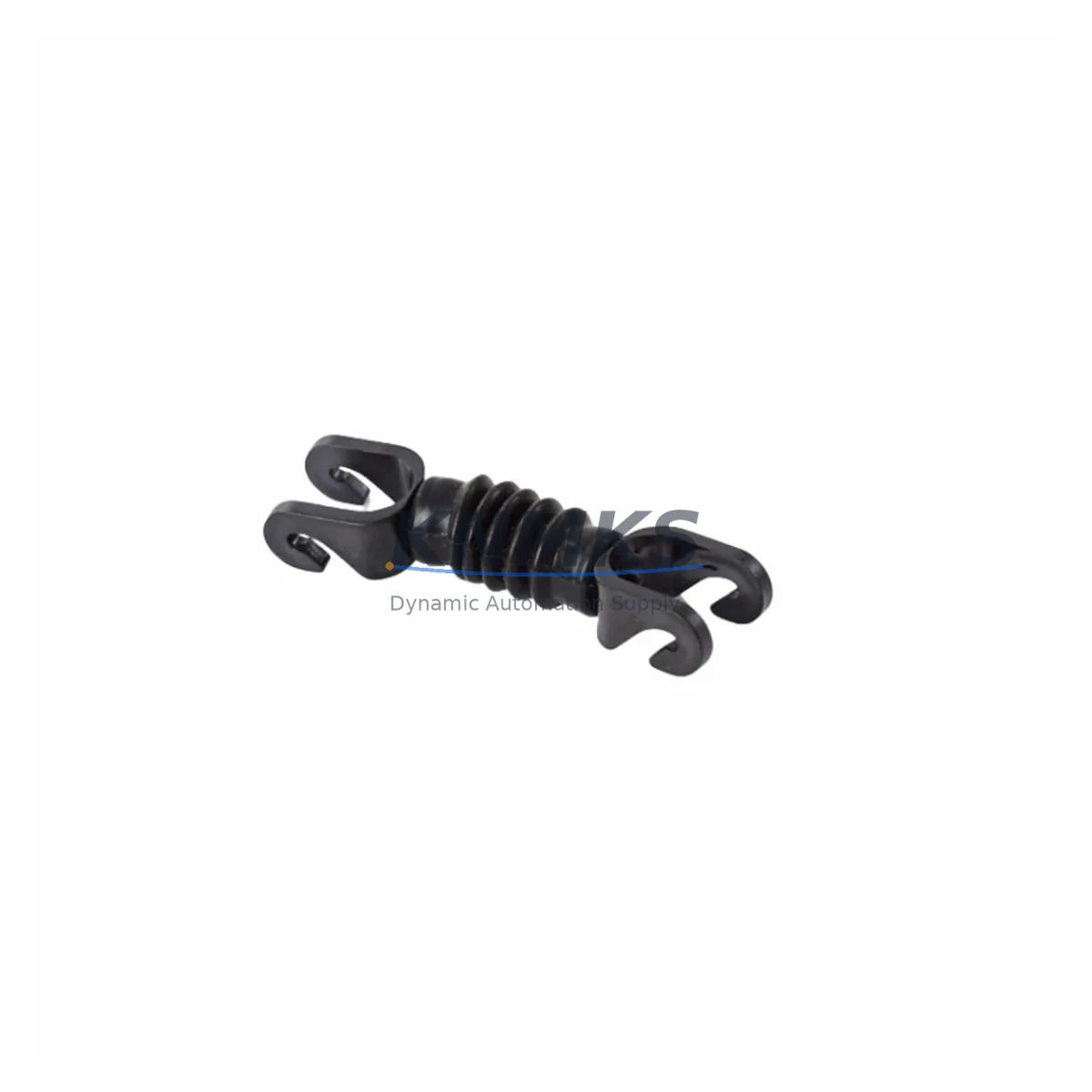

ABB 3HNA024966-001 Fail-Safe Axis Balancing Unit

Overview

ABB 3HNA024966-001 Fail-Safe Axis Balancing Unit: Fault Protection and Critical Industrial Reliability

The ABB 3HNA024966-001 is a precision-engineered axis balancing unit designed for the ABB IRB 6600 and IRB 7600 heavy-duty industrial robot series. In continuous production environments where unplanned downtime carries severe operational and financial consequences, this component plays a critical role in maintaining gravitational load compensation on Axis 2 — preventing uncontrolled arm drop, servo overload, and mechanical stress accumulation that can cascade into full system failure.

Engineered to ABB’s stringent OEM specifications, the 3HNA024966-001 delivers consistent spring-force output across high-cycle, high-load duty cycles. Its fail-safe mechanical design ensures that even under power loss or servo drive fault conditions, the robot arm remains positionally stable — a fundamental requirement in arc welding, heavy material handling, press-tending, and foundry automation where sudden axis movement poses direct safety risks to personnel and equipment.

In harsh industrial environments — including those with elevated ambient temperatures, mechanical vibration, airborne particulates, and humidity — the 3HNA024966-001 maintains structural integrity and consistent balancing force. Its sealed construction resists contamination ingress, making it suitable for deployment in automotive body shops, metal casting facilities, and heavy fabrication lines where environmental conditions would degrade lesser components.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable axis balancing is only one layer of a comprehensive robot system protection strategy. In high-availability production cells, the 3HNA024966-001 works in concert with a broader set of critical components to ensure uninterrupted operation. The ABB 3HAC066543-001 servo drive module governs the precise torque delivery to Axis 2 — when the balancing unit maintains correct gravitational compensation, the servo drive operates within its rated current envelope, reducing thermal stress and extending drive service life.

Upstream power quality is equally critical. The ABB HVC-02B high-voltage capacitor unit stabilizes DC bus voltage within the IRC5 drive system, absorbing regenerative energy spikes during deceleration cycles and protecting downstream servo electronics from voltage transients. In facilities with unstable grid supply or frequent load switching — common in foundries and press shops — this capacitor unit is an essential companion to any servo-driven axis assembly.

For axis position feedback integrity, the ABB 3HAC025054-001 resolver and encoder interface board ensures that Axis 2 position data remains accurate even under high electromagnetic interference conditions. Signal drift or encoder communication faults in a heavy-payload robot can trigger emergency stops or, worse, undetected positional errors — both of which the 3HAC025054-001 is specifically designed to prevent.

Mechanical overload protection is further reinforced by the ABB 3HAC028530-003 collision detection and overload protection assembly. In press-tending and palletizing applications where unexpected workpiece misalignment can cause sudden impact loads, this component provides the first line of mechanical defense — protecting the balancing unit, gearbox, and structural arm from damage that would otherwise require extended downtime for repair.

Together, these components form a layered control cabinet and field protection architecture: balancing unit integrity, servo drive stability, power quality management, position feedback accuracy, and mechanical overload protection — each reinforcing the others to deliver the continuous uptime that critical production lines demand.

Critical Industrial Safety Applications

The ABB 3HNA024966-001 is deployed across a wide range of safety-critical and continuous-process industrial environments:

Automotive Manufacturing: In body-in-white welding lines and press-tending cells, IRB 6600 and IRB 7600 robots operate at high cycle rates with heavy tooling. Axis 2 balancing unit failure in these environments can cause immediate production line stoppage and potential tooling damage. The 3HNA024966-001 ensures gravitational compensation remains consistent across multi-shift, high-throughput operations.

Foundry and Metal Casting: Extreme ambient temperatures, airborne metal particulates, and mechanical vibration characterize foundry environments. The sealed construction of the 3HNA024966-001 resists contamination ingress, maintaining reliable spring-force output where standard components would degrade rapidly.

Heavy Fabrication and Structural Steel: In robotic plasma cutting and heavy MIG welding applications, precise Axis 2 positioning is essential for weld quality and cut accuracy. Balancing unit wear or failure introduces positional drift that compromises weld integrity and increases rework rates.

Petrochemical and Process Industry: Where robots are deployed in hazardous area material handling or inspection tasks, uncontrolled axis movement due to balancing unit failure creates direct safety risks. The fail-safe mechanical design of the 3HNA024966-001 ensures the arm remains stable under all fault conditions.

Port and Heavy Logistics Automation: High-payload handling robots in port container terminals and bulk material handling facilities subject Axis 2 to sustained gravitational loads. The 3HNA024966-001’s robust spring assembly is rated for these demanding duty cycles, supporting reliable long-term operation without premature fatigue failure.

Safety and Quality FAQ

Q: What support terms coverage is provided for the ABB 3HNA024966-001?
A: All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis documentation upon request.

Q: What pre-shipment testing is performed on each unit?
A: Every 3HNA024966-001 undergoes full dimensional inspection and functional verification prior to dispatch. Spring-force output, mechanical travel, and structural integrity are confirmed against OEM specifications. A test record is available upon request for quality-critical procurement processes.

Q: Is this unit a direct OEM-compatible replacement for the IRB 6600 and IRB 7600?
A: Yes. The 3HNA024966-001 is an OEM-specification axis balancing unit designed specifically for ABB IRB 6600 and IRB 7600 robots on Axis 2. No modification or adaptation is required for installation. Compatibility with the IRC5 controller and associated servo drive architecture is confirmed.

Q: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
A: We maintain dedicated stock of the 3HNA024966-001 and related components including the 3HAC066543-001 and 3HAC028530-003 to support planned maintenance schedules and emergency replacement requirements. Our procurement team can arrange scheduled supply agreements for facilities with ongoing spare parts programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HNA024966-001 HVC-02B 3HAC066543-001 3HAC025054-001 360 3HAC028530-003
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB 3HNA024966-001 HVC-02B 3HAC066543-001 3HAC025054-001 360 3HAC028530-003
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
