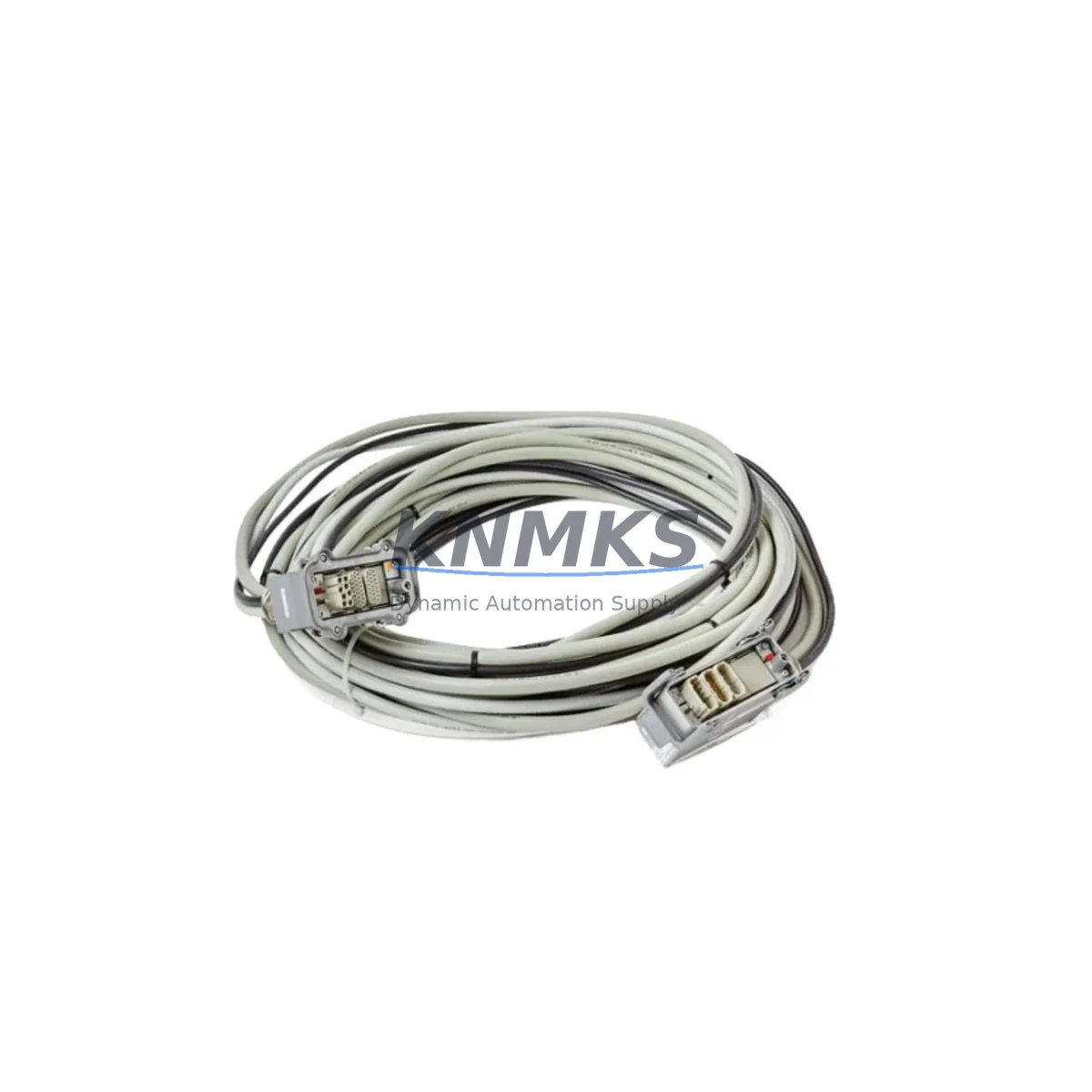

ABB 3HNA013638-001 Fail-Safe Robot Cable for Industrial Control

Overview

ABB 3HNA013638-001 Fail-Safe Robot Cable for Industrial Control Reliability

The ABB 3HNA013638-001 is a safety-rated robot cable harness engineered for continuous, fail-safe operation in the most demanding industrial automation environments. Designed as a direct-fit replacement for ABB IRB 6640, IRB 6650, IRB 7600, and MH24 robot platforms, this cable assembly delivers consistent signal integrity, robust mechanical protection, and verified electrical performance — critical requirements for any safety-critical control loop or high-cycle production cell.

In heavy industrial settings — including automotive body shops, foundry lines, metal stamping cells, and continuous process manufacturing — robot cable failures are among the leading causes of unplanned downtime. The 3HNA013638-001 addresses this directly through its reinforced shielding architecture, which suppresses electromagnetic interference (EMI) and radio-frequency interference (RFI) generated by variable frequency drives, servo amplifiers, and high-current bus systems operating in close proximity. Signal drift, communication anomalies, and axis position errors caused by cable degradation are systematically eliminated, protecting the integrity of the robot’s motion control and safety interlock circuits.

The cable’s outer jacket and internal conductor insulation are rated for repeated flexion across the full range of robot articulation, resisting abrasion, oil contamination, coolant splash, and thermal cycling between cold start and sustained high-temperature operation. In environments with elevated dust, humidity, or vibration — such as mining equipment assembly, port crane automation, or offshore fabrication — the 3HNA013638-001 maintains stable continuity across all signal and power conductors, preventing the intermittent faults that trigger nuisance E-stops or, worse, mask genuine safety events.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 3HNA013638-001 does not operate in isolation — its reliability is directly linked to the quality of the surrounding control architecture. In a well-engineered robot control cabinet, the cable harness interfaces with the ABB DSQC 661 axis computer board, which processes encoder feedback and axis position data. Any degradation in cable shielding or conductor continuity directly impacts the DSQC 661’s ability to maintain accurate position control, potentially triggering axis errors or safety stops.

On the power supply side, the ABB DSQC 604 24VDC power supply unit provides the logic voltage rail that energizes the robot’s I/O system and safety relay circuits. Voltage ripple or transient spikes — often introduced through poorly shielded cables — can cause the DSQC 604 to register undervoltage faults, interrupting the entire control loop. The 3HNA013638-001’s shielded construction acts as a first line of defense against conducted interference reaching the power supply input.

For safety circuit continuity, the ABB JSHD4 safety board monitors E-stop chains, enabling circuits, and mode selector inputs. Cable faults that introduce resistance or intermittent opens into these circuits can cause the JSHD4 to register spurious safety faults or, critically, fail to detect a genuine E-stop condition. The 3HNA013638-001’s robust termination and conductor integrity ensure that safety signals remain clean and unambiguous under all operating conditions.

In high-EMI environments where multiple servo drives and frequency converters share a common cabinet, supplementary filtering using ABB DSQC 352 I/O units with proper cable segregation further reduces the risk of cross-talk between power and signal conductors. Additionally, the ABB IRC5 controller platform — within which the 3HNA013638-001 is most commonly deployed — benefits from systematic cable management that separates motor power cables from encoder and safety signal cables, a practice that the 3HNA013638-001’s design directly supports through its multi-conductor, individually shielded construction.

Critical Industrial Safety Applications

The ABB 3HNA013638-001 is deployed across a wide range of safety-critical and continuous-production industrial environments:

Automotive Manufacturing: In body-in-white welding cells and press-tending applications, IRB 6640 and IRB 6650 robots operate at high cycle rates with minimal tolerance for unplanned stops. Cable harness integrity is a primary maintenance focus, and the 3HNA013638-001 is a standard replacement component in planned maintenance programs at major OEM and Tier 1 supplier facilities.

Foundry and Metal Processing: IRB 7600 robots handling molten metal ladles, die casting extraction, and heavy forging operations are exposed to extreme thermal gradients, metal splash, and vibration. The 3HNA013638-001’s thermal and mechanical ratings make it suitable for these harsh conditions, where cable failure could result in both production loss and serious safety incidents.

Port and Heavy Logistics Automation: In automated container handling and heavy-load palletizing systems, robot cables are subject to continuous flexion and environmental exposure. The 3HNA013638-001 supports reliable operation in outdoor-adjacent environments with high humidity and temperature variation.

Water Treatment and Process Industries: In chemical dosing, water treatment automation, and continuous process control, robots operating in corrosive or high-humidity environments require cable assemblies with robust jacket materials and sealed terminations. The 3HNA013638-001 meets these requirements, supporting reliable interlock and control signal transmission in process-critical applications.

Mining and Mineral Processing: In ore handling, conveyor automation, and underground equipment maintenance, robot systems face extreme dust loading, vibration, and temperature variation. The 3HNA013638-001’s abrasion-resistant construction and EMI shielding maintain signal integrity in these challenging conditions.

Safety and Quality FAQ

Q: What support terms coverage is provided for the ABB 3HNA013638-001?
A: KNMKS provides a support terms confirmed by quotation on the 3HNA013638-001 from the date of shipment. This covers manufacturing defects, conductor continuity failures, and shielding integrity issues under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch.

Q: What pre-shipment testing is performed on each unit?
A: Every 3HNA013638-001 unit undergoes 100% continuity testing across all conductors, insulation resistance measurement, and shield integrity verification before dispatch. Test records are available on request for quality-critical procurement processes.

Q: Is the 3HNA013638-001 compatible with all IRB 6640, IRB 6650, and IRB 7600 variants?
A: The 3HNA013638-001 is compatible with the standard axis cable positions on IRB 6640, IRB 6650, IRB 7600, and MH24 robot platforms. Cross-reference SKUs include 3HNE08898-1, MH24.4-5, MBL60S5M750, and 3HAC 9038-1. For specific robot serial numbers or non-standard configurations, contact our technical team to confirm fitment before ordering.

Q: Can KNMKS support long-term spare parts supply for this cable assembly?
A: Yes. KNMKS maintains stock of the 3HNA013638-001 and its cross-reference equivalents to support planned maintenance programs, emergency replacement, and multi-unit procurement. Long-term supply agreements and scheduled delivery programs are available for facilities with ongoing maintenance requirements. Contact [email protected] for volume pricing and supply planning.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HNA013638-001 3HNE08898-1 MH24.4-5 MBL60S5M750 3HAC 9038-1
IRC5 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: ABB 3HNA013638-001 3HNE08898-1 MH24.4-5 MBL60S5M750 3HAC 9038-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
