ABB 3HAWC116592 Migration-Ready Servo Motor for IRB Series

Overview

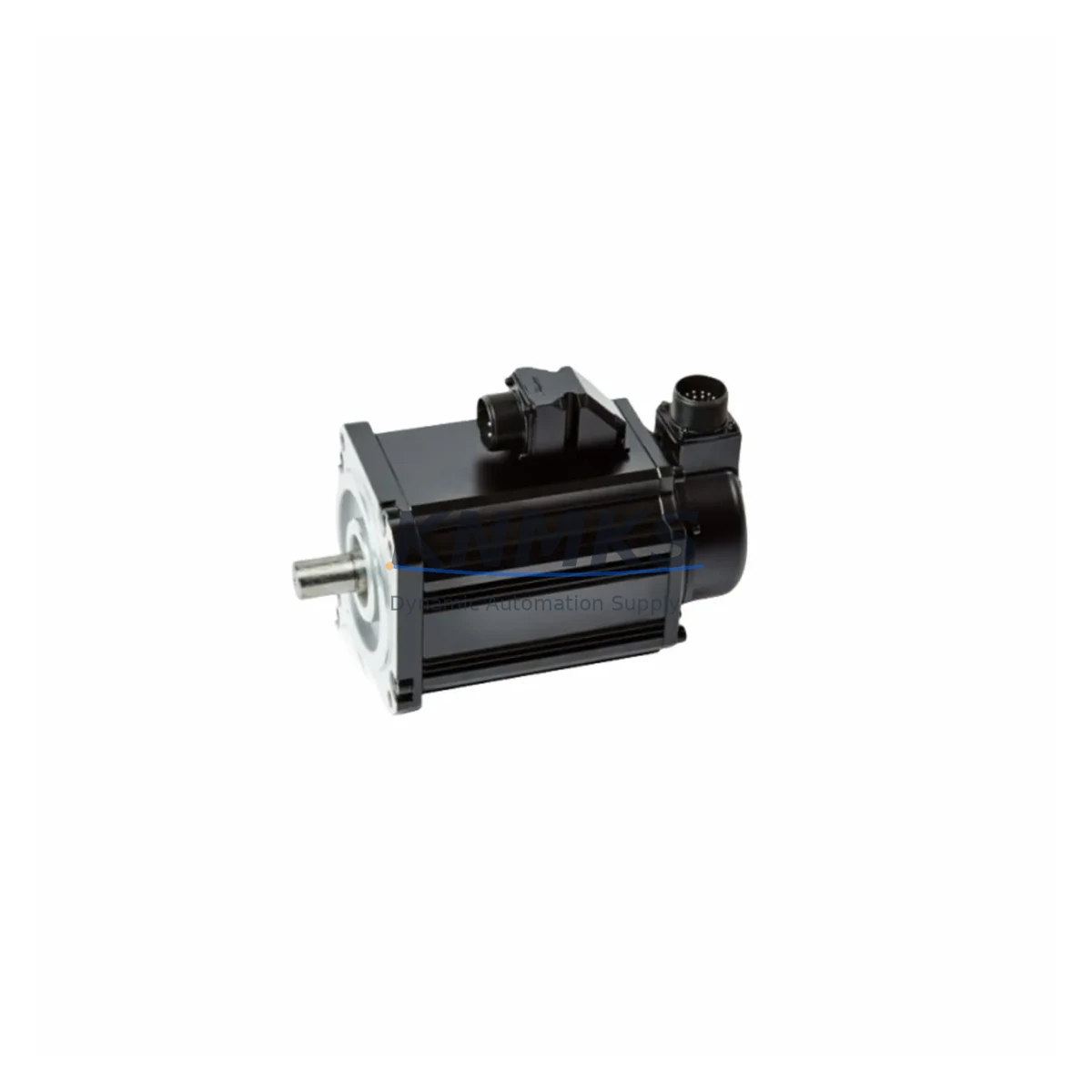

ABB 3HAWC116592 Migration-Ready Servo Motor for Legacy IRB Control Systems

The ABB 3HAWC116592 (cross-reference: 3HAWC116593-/00, 3HAWC116593) is a migration-ready servo motor engineered for direct replacement in ABB IRB Series industrial robots operating under IRC5 and S4C+ control platforms. As legacy automation lines face increasing pressure from discontinued spare parts, extended OEM lead times, and obsolescence risk, the 3HAWC116592 provides a verified drop-in solution that preserves existing program logic, wiring topology, and mechanical mounting geometry — minimizing retrofit complexity and unplanned downtime.

This servo motor is designed for engineers and maintenance teams managing aging robot cells where the original axis drive components are no longer available through standard distribution channels. Whether you are replacing a failed joint motor on an IRB 1400, IRB 2400, or IRB 6400 platform, or executing a planned upgrade across multiple robot arms in a production line, the 3HAWC116592 delivers the dimensional and electrical compatibility required for a controlled, low-risk swap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 3HAWC116592 into an existing robot cell requires a structured pre-installation review. Before removing the failed axis motor, maintenance engineers should verify the available power capacity on the IRC5 drive module — specifically confirming that the DSQC 661 or DSQC 663 axis computer and associated drive unit are within rated load tolerance for the replacement motor’s torque and speed envelope. In most IRB 2400 and IRB 6400 installations, the existing drive chain requires no modification.

Terminal wiring should be documented before disconnection. The motor power cable and resolver cable routing within the robot arm must be inspected for wear, particularly at the wrist and elbow flex points, as cable fatigue is a common co-failure mode in high-cycle applications. Replacement of the motor cable harness — available as a separate ABB spare part — is recommended if insulation damage is detected during inspection.

For cells running DeviceNet or PROFIBUS communication to peripheral I/O modules, the servo replacement does not affect fieldbus configuration. However, if the robot controller also manages a 3HAC026254-001 I/O unit or a DSQC 652 digital I/O board, these should be verified for firmware currency before returning the cell to production. Similarly, any ABB FlexPendant (IRC5 teach pendant) calibration screens should be reviewed to confirm axis calibration offsets are correctly stored after the revolution counter update.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from an S4C+ to an IRC5 Compact controller — additional planning is required for the DSQC 1000 main computer replacement, 24VDC power supply capacity, and backplane slot assignments. In these scenarios, the 3HAWC116592 motor itself remains compatible across both platforms, reducing the number of mechanical changes required during the controller migration.

Inventory planning for multi-robot facilities should account for the 3HAWC116592 as a strategic buffer stock item. Given the extended lead times associated with ABB legacy servo components, maintaining a minimum of one unit per robot model variant on-site supports a 12-month operational continuity target aligned with standard maintenance contract requirements.

Downtime Control During System Migration

Minimizing production interruption during a servo motor replacement on an IRB Series robot requires advance preparation of the replacement unit, calibration tools, and a documented rollback procedure. The 3HAWC116592 is shipped function-tested, which eliminates incoming inspection time and allows direct installation upon receipt.

Prior to shutdown, the robot program should be backed up to a USB drive or network share via RobotStudio or the FlexPendant file manager. This preserves all RAPID module logic, tool data, work object definitions, and I/O signal assignments. If the robot is part of a MultiMove configuration or synchronized with a conveyor tracking system, the backup must include the system parameters file to retain axis coupling data.

During the motor swap, the robot should be placed in a mechanically safe position — ideally with all axes at calibration position — and the IRC5 cabinet powered down following the lockout/tagout procedure. The replacement motor can typically be installed within two to four hours by a qualified robot technician, with the revolution counter update and fine calibration adding one to two hours depending on the calibration method used (pendulum, laser tracker, or manual reference point).

After calibration, a dry-run cycle at reduced speed (10–25% override) should be executed to verify path accuracy before returning the robot to full production speed. This staged restart approach protects tooling, fixtures, and workpieces from any residual calibration offset and confirms that the 3HAWC116592 is performing within the expected torque and speed envelope for the application.

For facilities with strict OEE targets, pre-staging the replacement motor, calibration pendulum, and a pre-loaded backup file on a dedicated maintenance cart reduces total intervention time and supports a controlled return-to-production timeline.

Retrofit Support FAQ

Q: Is the 3HAWC116592 a direct replacement for the 3HAWC116593-/00?
A: Yes. The 3HAWC116592 and 3HAWC116593-/00 (also listed as 3HAWC116593) are cross-reference part numbers for the same servo motor assembly. Both designations are accepted for ordering and the unit ships as a single compatible replacement suitable for all listed IRB Series applications.

Q: Does replacing this motor require any changes to the IRC5 drive configuration or RAPID program?
A: No drive parameter changes are required for a like-for-like replacement. The RAPID program, tool data, and work object definitions remain intact. The only mandatory post-installation step is a revolution counter update performed via the FlexPendant, followed by a fine calibration if the application requires high path accuracy.

Q: What is the lead time and are units available from stock?
A: Units are available from current inventory and are dispatched within 1–3 business days of order confirmation. Each unit is function-tested prior to shipment. For bulk orders or multi-site procurement, contact our sales team to confirm available quantity and arrange consolidated dispatch.

Q: What support terms coverage applies to this replacement motor?
A: The 3HAWC116592 carries a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported by our technical team with replacement dispatch prioritized to minimize production impact.
