ABB 3HAC9038-4 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC9038-4 Maintenance-Proven Spare Part for Factory Uptime

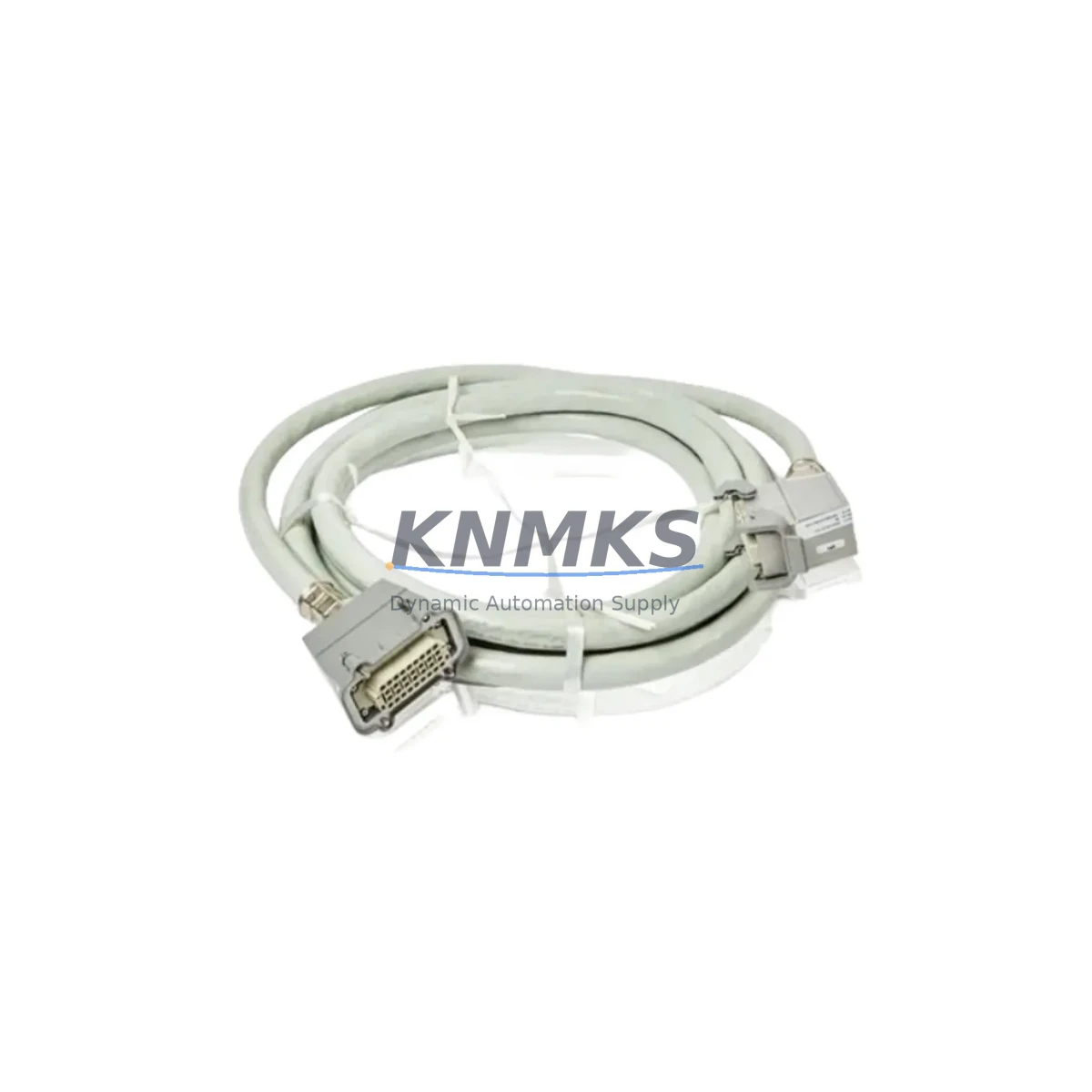

The ABB 3HAC9038-4 is a 30-metre robot power cable engineered for ABB IRC5 controller systems. As a critical interconnect between the IRC5 controller cabinet and the robot manipulator, this cable carries motor drive power and brake signals across all six axes. In high-cycle welding, material handling, and assembly automation environments, cable wear is one of the leading causes of unplanned downtime. Stocking the 3HAC9038-4 as a verified spare ensures that maintenance teams can execute a same-shift replacement without waiting on lead times that can stretch weeks for OEM-sourced components.

This listing supplies the original ABB 3HAC9038-4 cable — not a generic substitute. Each unit is sourced through established industrial distribution channels, inspected for connector integrity and jacket condition, and dispatched with a support terms confirmed by quotation covering manufacturing defects. Pre-shipment continuity and insulation resistance testing is performed on every cable before it leaves the warehouse, giving maintenance engineers confidence that the replacement will perform identically to the factory-fitted unit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A robot power cable failure on an IRC5 system typically manifests as axis fault alarms, erratic torque readings, or a complete drive shutdown — all of which halt production immediately. Proactive maintenance planning around the 3HAC9038-4 should extend to the full electrical circuit that the cable serves. When scheduling a cable replacement, maintenance engineers should simultaneously inspect the IRC5 drive module (DSQC 661 or DSQC 662) for capacitor bulge or thermal discolouration, as a degraded cable can induce voltage spikes that stress the drive electronics.

The IRC5 computer unit (DSQC 639) and its associated I/O modules (DSQC 651, DSQC 652) should be checked for firmware integrity and connector seating during the same maintenance window. Power entry to the controller cabinet — typically through an ABB transformer unit or external 3-phase supply — should be verified for correct voltage and phase balance before the new cable is energised. The axis computer board (DSQC 668) resolver feedback connectors should be inspected for corrosion or pin damage, as resolver signal degradation is often misdiagnosed as a cable fault.

For facilities running multiple IRC5 cells, it is advisable to maintain at least one 3HAC9038-4 per robot model variant in the on-site spare parts cabinet. Pairing this cable with a stocked SMB (Serial Measurement Board, 3HAC14550-2) and a set of axis brake resistors covers the most common IRC5 electrical failure modes. Facilities with older IRC5 installations should also review the condition of the teach pendant cable (3HAC16831-1) and the FlexPendant unit, as these age in parallel with the power cable and are frequently replaced together during annual shutdowns.

Site Replacement Workflow

Replacing the 3HAC9038-4 in the field follows a structured sequence to minimise downtime and avoid secondary faults. Begin by placing the IRC5 controller in Manual Mode and executing a controlled E-Stop. Isolate mains power at the cabinet breaker and apply lockout/tagout per site safety procedures. Allow the drive capacitors a minimum of five minutes to discharge before opening the cabinet.

Disconnect the existing cable at both the controller-side multi-pin connector and the manipulator base connector. Inspect the connector housings for cracking, pin corrosion, or moisture ingress — if either housing is damaged, replace it before fitting the new cable. Route the 3HAC9038-4 through the same cable tray or conduit as the original, maintaining the OEM bend radius to prevent premature jacket wear. Seat both connectors fully until the locking ring clicks, then perform a continuity check with a multimeter before restoring power.

On first power-up after replacement, navigate to the IRC5 Event Log and confirm that no axis fault codes are present. Run the robot through a slow-speed manual jog across all six axes to verify smooth torque delivery before returning the cell to automatic production mode. Document the replacement in the site maintenance log with the cable serial number, installation date, and technician ID to support future support requests and PM scheduling.

For facilities migrating from older IRC4 or S4C+ systems to IRC5, the 3HAC9038-4 is not backward-compatible — verify the controller generation before ordering. KNMKS maintains stock of both current and legacy ABB cable variants to support multi-generation robot fleets without requiring a full system upgrade.

Spare Parts Support FAQ

Q1: Is the 3HAC9038-4 compatible with all IRC5 cabinet variants?
The 3HAC9038-4 is designed for the standard IRC5 Single Cabinet and Dual Cabinet configurations. It is compatible with IRC5 Panel Mounted controllers when the correct cable entry kit is used. Always cross-reference the robot model and controller generation using the ABB product manual before ordering. KNMKS technical support can assist with compatibility verification at no charge.

Q2: How is the cable tested before shipment?
Every 3HAC9038-4 unit undergoes a three-point pre-shipment inspection: full conductor continuity across all pins, insulation resistance measurement at 500 VDC, and physical connector seating verification. A test report is available on request. The support terms confirmed by quotation cover any defect attributable to manufacturing or materials from the date of delivery.

Q3: What is the recommended spare parts stocking strategy for IRC5 power cables?
For facilities operating three or more IRC5 robots, we recommend maintaining a minimum of one 3HAC9038-4 on-site at all times. High-cycle applications (welding, press tending) should consider a two-unit buffer given the accelerated wear profile. Cables should be stored horizontally in a dry, temperature-controlled environment, coiled at no less than the OEM minimum bend radius, and inspected annually even in storage.

Q4: Can KNMKS support long-term or blanket purchase orders for this part?
Yes. KNMKS offers long-term supply agreements for the 3HAC9038-4 and related IRC5 spare parts, including scheduled quarterly shipments and priority allocation during periods of market shortage. Contact our sales team to discuss volume pricing, lead time guarantees, and consignment stocking options tailored to your maintenance budget cycle.
