ABB 3HAC9038-1 / 3HAC9038-2 Spare Part for Factory Uptime

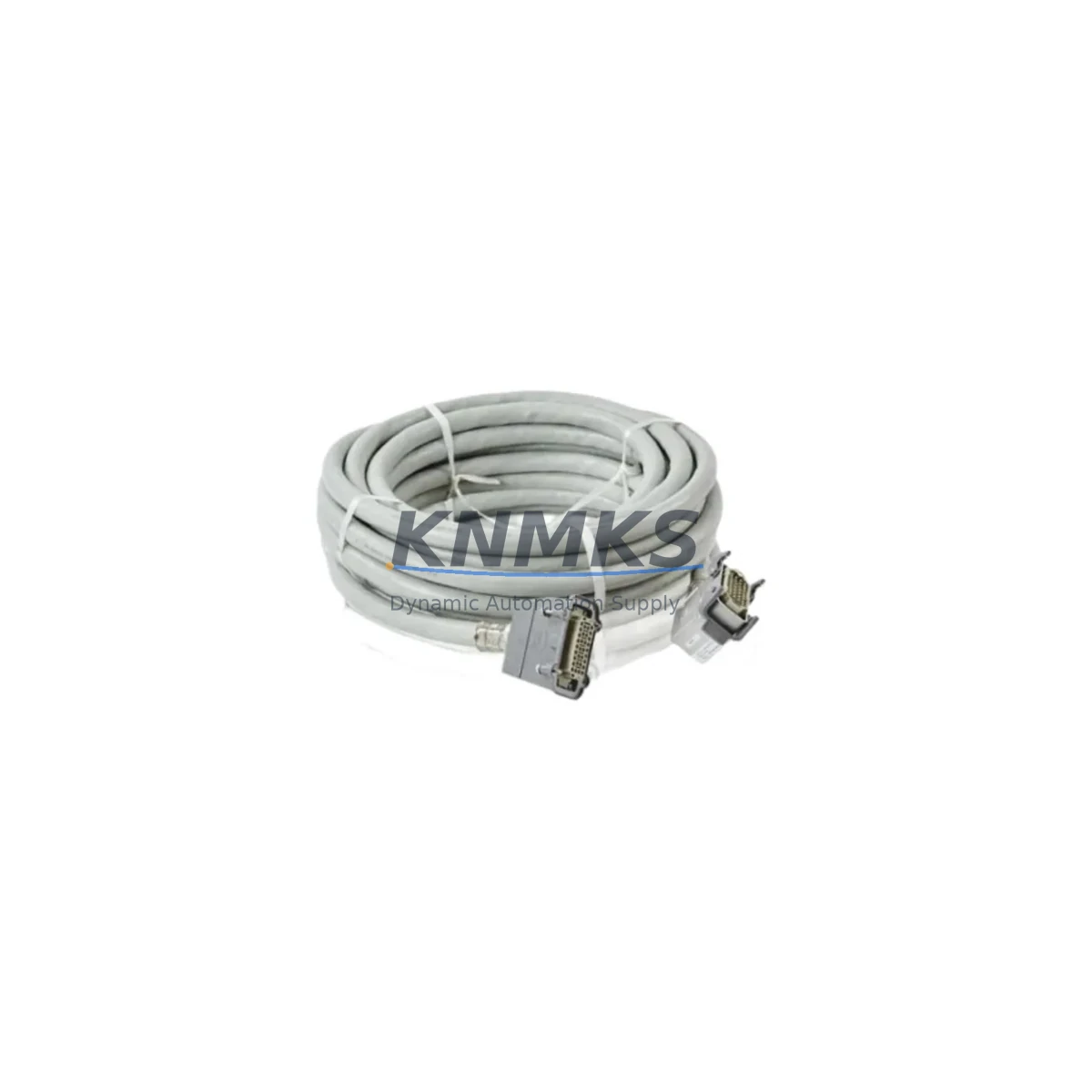

The ABB 3HAC9038-1 and 3HAC9038-2 are original robot power cables engineered for ABB’s 3HAC series industrial robot systems. These cables serve as critical power transmission components between the robot controller and the manipulator arm, ensuring stable, uninterrupted operation across demanding production environments. For maintenance engineers managing ABB IRB series robots, keeping a verified spare of the 3HAC9038-1 or 3HAC9038-2 on the shelf is a fundamental part of any proactive uptime strategy.

In high-cycle manufacturing lines — automotive body shops, foundry automation, palletizing cells, and arc welding stations — power cable degradation is one of the leading causes of unplanned robot downtime. The 3HAC9038-1 / 3HAC9038-2 cable assembly is subject to continuous flexing, thermal cycling, and mechanical stress at the cable entry points of the robot base and axis joints. Routine inspection during scheduled maintenance windows should include visual checks for jacket cracking, connector pin corrosion, and continuity verification across all conductors. When any of these indicators appear, immediate replacement with an original ABB spare prevents cascading failures in the drive system.

Procurement engineers sourcing 3HAC9038-1 or 3HAC9038-2 replacements should verify compatibility with the specific robot model and controller revision before ordering. ABB’s 3HAC cable family spans multiple generations of IRC5 and S4C+ controllers, and cable pinout configurations may differ between revisions. Always cross-reference the robot’s serial number and the existing cable part number label before confirming the order. KNMKS supplies both 3HAC9038-1 and 3HAC9038-2 variants with pre-shipment electrical testing and a support terms confirmed by quotation, reducing procurement risk for critical spare inventories.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3HAC9038-1 or 3HAC9038-2 power cable during a scheduled or emergency maintenance event, a thorough inspection of the surrounding electrical system is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should simultaneously inspect the ABB DSQC661 or DSQC662 drive power supply modules, as power cable faults frequently coincide with overvoltage stress on the drive electronics. The 3HAC025338-001 computer unit and associated 3HAC026254-001 I/O board should be checked for fault logs that may indicate upstream power anomalies prior to the cable failure.

At the cable termination points, inspect the 3HAC14550-2 connector housing and locking collar for mechanical damage or pin back-out, which can cause intermittent power loss that is difficult to diagnose under load. The 3HAC025562-001 axis computer and its associated signal cables should be verified for continuity, as power cable replacement is an ideal opportunity to audit the full cable harness condition within the robot base. For robots operating in high-ambient-temperature environments, the 3HAC029157-001 fan unit should be inspected to confirm adequate cooling of the controller cabinet, since thermal stress accelerates cable jacket degradation.

Procurement teams building a comprehensive spare parts kit for ABB 3HAC series robots should consider stocking the 3HAC9038-1 / 3HAC9038-2 alongside the DSQC508 I/O unit and 3HAC14550-2 connector assemblies as a minimum viable spare set for rapid recovery from power-related robot faults. This approach reduces mean time to repair (MTTR) and supports lean maintenance inventory strategies without overstocking low-failure-rate components.

Site Replacement Workflow

Before beginning the 3HAC9038-1 / 3HAC9038-2 cable replacement, isolate the robot controller from mains power and follow ABB’s lockout/tagout procedure for the specific robot cell. Allow the drive capacitors to discharge fully — typically 5 minutes after power-off — before accessing the cable connectors at the controller base panel.

Disconnect the existing cable at both the controller end and the robot base entry gland. Document the routing path and any cable tie positions before removal to ensure the replacement cable follows the same bend radius and strain relief geometry. Incorrect routing is a leading cause of premature cable failure in high-cycle applications. Install the 3HAC9038-1 or 3HAC9038-2 replacement cable, verify connector seating and locking collar engagement at both ends, and restore cable ties and conduit clamps to their original positions.

After installation, perform a power-on test with the robot in a safe, low-speed mode. Verify that no drive fault codes appear on the FlexPendant or IRC5 teach pendant, and confirm that all axes respond correctly to jog commands before returning the robot to automatic production mode. Log the replacement in the maintenance record with the new cable part number, installation date, and technician ID to support future lifecycle tracking and support requests.

Spare Parts Support FAQ

Q: Is the 3HAC9038-1 interchangeable with the 3HAC9038-2?
A: The two part numbers represent variants within the same cable family, typically differing in length or connector configuration for specific robot models. Always verify the exact part number from the robot’s cable label or the ABB spare parts documentation for your robot serial number before ordering. KNMKS can assist with compatibility verification prior to shipment.

Q: What pre-shipment testing is performed on 3HAC9038-1 / 3HAC9038-2 cables?
A: Each cable undergoes electrical continuity testing across all conductors and insulation resistance verification before dispatch. Test records are available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: How should I manage 3HAC9038-1 / 3HAC9038-2 inventory for a multi-robot facility?
A: For facilities operating five or more ABB 3HAC series robots, maintaining a minimum of one spare cable per robot type in the on-site spare parts store is recommended. Cable lifespan varies significantly with cycle rate and environmental conditions; high-cycle welding robots may require cable inspection every 6 months. KNMKS supports long-term supply agreements to ensure consistent availability without requiring large upfront inventory investments.

Q: Can 3HAC9038-1 / 3HAC9038-2 be used as a direct replacement for older S4C+ controller installations?
A: Compatibility with S4C+ controllers depends on the specific robot model and controller revision. While the 3HAC cable family spans both IRC5 and S4C+ platforms, connector pinouts and cable lengths may differ. Contact KNMKS with your robot model and serial number for a confirmed compatibility check before ordering.
