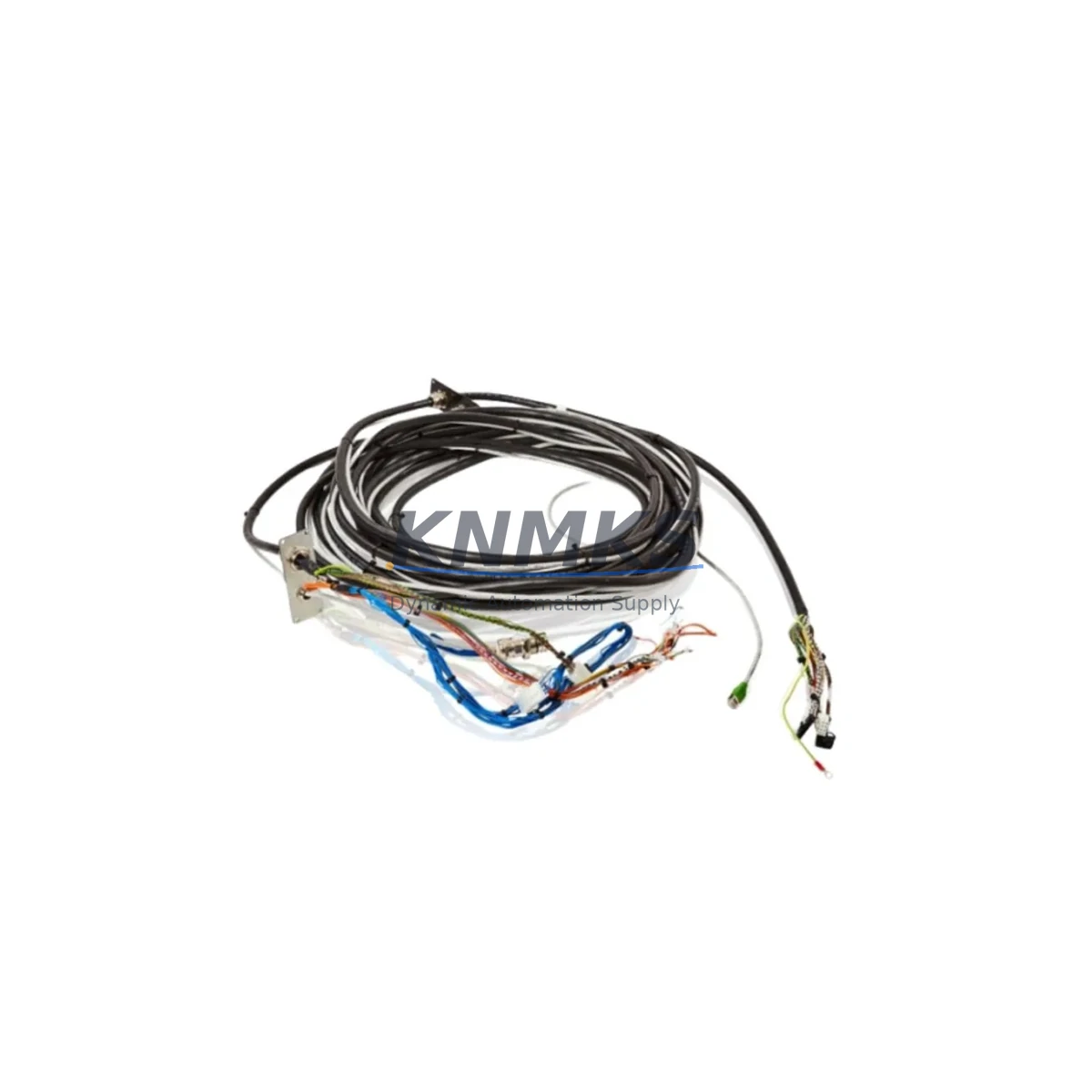

ABB 3HAC5697-1 Fail-Safe Robot Cable for Industrial Control

Overview

ABB 3HAC5697-1 Fail-Safe Robot Cable for Industrial Control: Fault Protection and Critical Field Reliability

The ABB 3HAC5697-1 is a precision-engineered robot cable assembly designed for the ABB IRB 4400 series, serving axes 4–6 in demanding industrial automation environments. In continuous production lines, safety-critical interlock circuits, and high-load control cabinets, cable integrity is not optional — it is the foundation of uninterrupted machine operation. The 3HAC5697-1 is built to that standard: shielded against electromagnetic interference, mechanically reinforced for repeated flexing cycles, and validated through pre-shipment electrical testing before leaving our facility.

Signal drift, intermittent axis faults, and unplanned robot downtime are among the most disruptive and costly events in automated manufacturing. A degraded or counterfeit cable can introduce latency into servo feedback loops, corrupt encoder signals, or cause axis position errors that trigger emergency stops across an entire production cell. The ABB 3HAC5697-1 eliminates these failure vectors by maintaining stable signal transmission under high-cycle mechanical stress, elevated cabinet temperatures, and environments with significant vibration or particulate contamination.

In petrochemical, metallurgical, and heavy manufacturing facilities — where robots operate continuously across multi-shift schedules — the cost of a single unplanned stop far exceeds the cost of a quality spare. Stocking a verified ABB 3HAC5697-1 as a ready replacement is a standard practice in any mature spare parts program for IRB 4400 installations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robot cable failure rarely occurs in isolation. In a well-designed IRB 4400 control cabinet, the 3HAC5697-1 operates as part of an integrated protection architecture. The ABB DSQC 661 axis computer board manages motion control signals that depend entirely on clean, uninterrupted cable transmission — a degraded 3HAC5697-1 will produce axis faults that the DSQC 661 cannot compensate for. Similarly, the ABB 3HAC026254-001 SMB (Serial Measurement Board) relies on accurate encoder feedback routed through the axis cable harness; signal corruption at the cable level will manifest as position errors or safety stops at the SMB level.

On the power side, the ABB 3HAC024144-001 drive unit supplies the axis motors through the same cable routing path. Insulation breakdown in the 3HAC5697-1 can introduce ground faults that stress the drive unit and trigger protective shutdowns. Pairing a verified cable replacement with a functional drive unit inspection is standard practice during any axis 4–6 maintenance event.

For cabinet-level surge and transient protection, facilities running IRB 4400 robots in environments with heavy motor switching or arc welding nearby should also verify the condition of the ABB 3HAC14550-1 power supply unit and associated surge suppression components. Voltage transients that enter through inadequately protected power rails can propagate into signal cables, accelerating insulation degradation. The 3HAC5697-1’s multi-layer shielding provides a first line of defense, but system-level protection remains essential.

In high-EMI environments — common in automotive body shops, foundries, and heavy press lines — the ABB IRC5 controller cabinet’s internal cable management and ferrite filtering components should be inspected alongside any cable replacement. A correctly routed and secured 3HAC5697-1, combined with intact cabinet EMC gaskets and proper cable separation from high-voltage runs, ensures that signal integrity is maintained across the full operating cycle.

Critical Industrial Safety Applications

The ABB 3HAC5697-1 is deployed across a wide range of safety-critical and continuous-process industrial environments:

Petrochemical and Refinery Automation: In hazardous area robot installations used for valve actuation, sampling, and inspection tasks, cable reliability directly affects process safety. An axis fault caused by a degraded cable in a classified zone can trigger a full process shutdown. The 3HAC5697-1’s robust insulation and shielding construction supports reliable operation in these environments.

Metallurgy and Foundry Operations: IRB 4400 robots used in casting extraction, ladle handling, and billet transfer operate in extreme thermal and particulate environments. Cable assemblies in these installations are subject to radiant heat, metal splash risk, and continuous vibration. The 3HAC5697-1’s mechanical construction is rated for these conditions, and maintaining a stocked spare reduces mean time to repair (MTTR) when cable wear is detected during scheduled maintenance.

Automotive and Heavy Manufacturing: In body-in-white welding lines and press-tending cells, IRB 4400 robots operate at high duty cycles with minimal scheduled downtime. A cable failure during a production run can halt an entire line. Pre-qualified spare cables — tested and ready for installation — are a standard element of automotive OEM spare parts programs.

Power Generation and Utilities: Robots deployed in turbine maintenance, cable laying, and substation inspection require absolute signal reliability. The 3HAC5697-1’s EMI shielding is particularly valuable in high-voltage environments where induced interference can corrupt servo feedback signals.

Port and Marine Automation: In container handling and ship-loading robot systems, exposure to salt air, humidity, and mechanical shock places exceptional demands on cable assemblies. The 3HAC5697-1’s sealed connector interfaces and robust outer jacket provide the environmental protection required for reliable operation in these conditions.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects, premature insulation failure, connector integrity issues, and electrical continuity faults from the date of shipment. Support requests are processed directly — contact [email protected] with your order reference and a description of the fault.

Q: What pre-shipment testing is performed on the 3HAC5697-1?
A: Every unit undergoes full electrical continuity testing across all conductors and an insulation resistance test before dispatch. This ensures that the cable arrives ready for installation without requiring additional bench testing on-site.

Q: Is the 3HAC5697-1 compatible with both IRC5 and S4C+ controller platforms?
A: The 3HAC5697-1 is the OEM-specified cable assembly for the ABB IRB 4400 axes 4–6 and is compatible with both the IRC5 and S4C+ controller generations. If your installation uses a non-standard cable routing or modified connector interface, contact our technical team before ordering to confirm fitment.

Q: Can you support long-term spare parts supply for IRB 4400 installations?
A: Yes. KNMKS maintains stock of critical IRB 4400 spare parts including cable assemblies, SMB units, drive components, and controller boards. For facilities running multiple IRB 4400 robots, we can discuss a structured spare parts agreement to ensure availability across a 12–36 month horizon. Contact [email protected] or call +86 18359268345 to discuss your requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB44003HAC5697-1 IRB44004-63HAB7705-1 IRB44003HAC069662-001
IRC5 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: ABB IRB44003HAC5697-1 IRB44004-63HAB7705-1 IRB44003HAC069662-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
