ABB 3HAC17810-1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC17810-1 Maintenance-Proven Spare Part for Factory Uptime

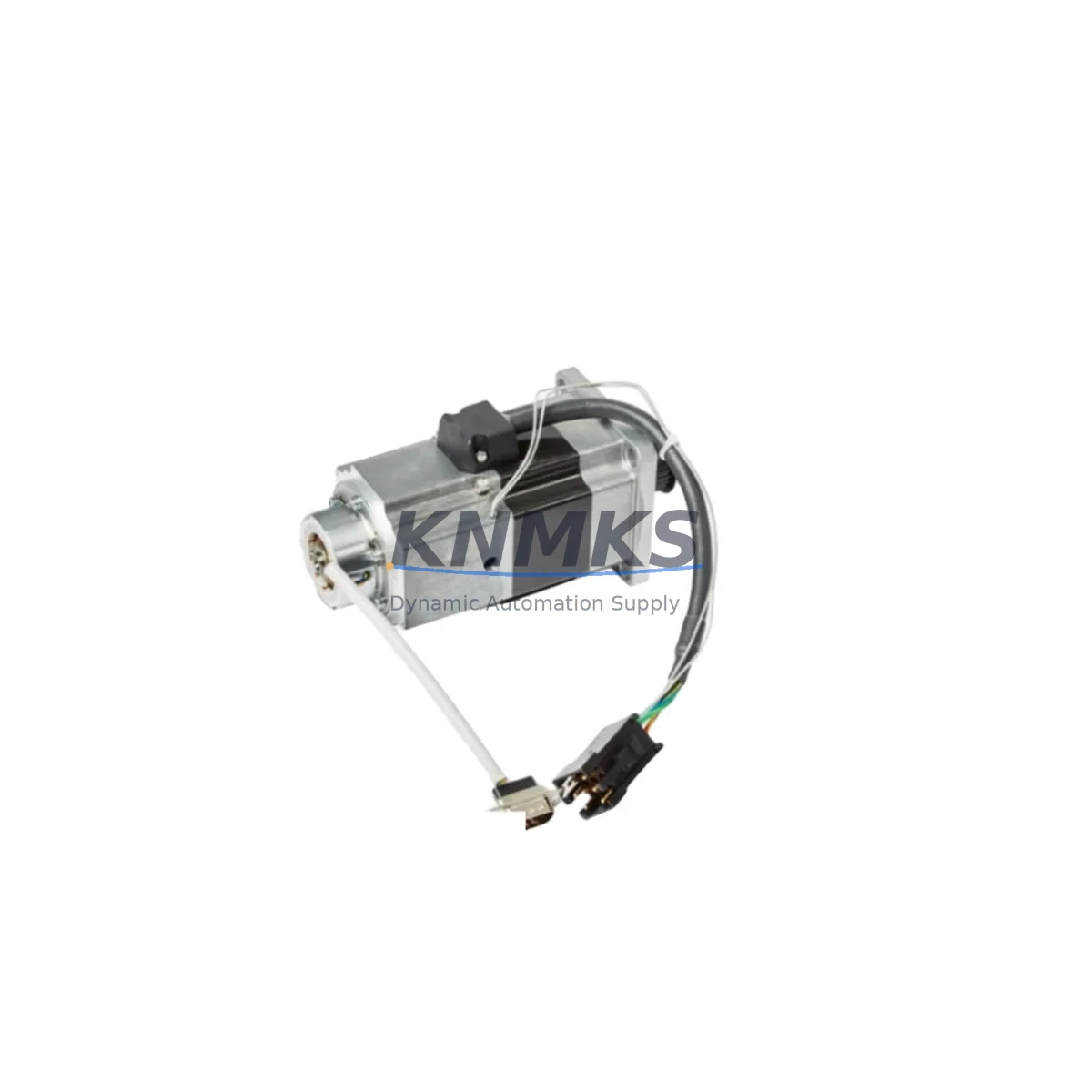

The ABB 3HAC17810-1 is an original servo motor unit designed for the ABB IRB 52 articulated robot, specifically serving Axis 5 and Axis 6 drive functions. As a direct replacement for the legacy 3HAB8101-3 and cross-referenced under 3HNA014908-001, this spare part is a critical component in maintaining continuous production uptime across automotive, electronics assembly, arc welding, and general industrial automation environments. Maintenance engineers and spare parts procurement teams rely on the 3HAC17810-1 to restore robot motion control quickly, minimize unplanned downtime, and extend the operational life of aging IRB 52 installations without requiring full system replacement.

Whether you are executing a scheduled annual overhaul, responding to an emergency axis fault, or building a proactive spare parts buffer for a multi-robot cell, the 3HAC17810-1 delivers the dimensional accuracy, encoder compatibility, and torque characteristics required by ABB’s IRC5 and S4C+ controller platforms. Each unit shipped by KNMKS undergoes pre-dispatch functional verification and is backed by a support terms confirmed by quotation, ensuring procurement confidence for both single-unit emergency orders and bulk maintenance stock programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3HAC17810-1 servo motor on an IRB 52 robot, a thorough maintenance inspection of the surrounding electrical and mechanical subsystems is essential to prevent repeat failures and ensure a complete, reliable restoration. Maintenance engineers should begin by verifying the integrity of the ABB DSQC 661 drive module or equivalent axis drive board within the IRC5 controller cabinet — a degraded drive unit can cause premature servo motor failure even after a new unit is installed.

The Serial Measurement Board (SMB), which manages encoder signal communication between the servo motor and the controller, should be inspected for corrosion, loose connectors, and firmware version compatibility. Alongside the SMB, the resolver or encoder cable harness running from the robot arm to the controller cabinet is a frequent wear point; damaged shielding or intermittent contacts in these cables can generate axis error codes that mimic servo motor faults, leading to unnecessary part replacement.

Procurement engineers building a comprehensive spare parts kit for IRB 52 cells should also consider stocking the ABB 3HAC025338-001 battery unit for SMB backup power, as a depleted battery causes axis calibration loss on power cycle — a common post-maintenance complication. The 3HAC14550-2 wrist unit and associated axis 5/6 gearbox assembly should be evaluated for wear if the servo motor failure was accompanied by abnormal noise or vibration, as mechanical overload is a leading cause of motor winding damage in wrist axes.

For cabinet-level maintenance, inspect the IRC5 main computer unit (DSQC 639) for alarm logs related to axis overload or thermal shutdown, and verify that the 24VDC system power supply is delivering stable voltage within ABB’s specified tolerance. Fuse blocks and circuit breakers protecting the axis drive circuits should be tested and replaced as part of any servo motor swap procedure to eliminate hidden electrical faults that could damage the new unit.

Site Replacement Workflow

Replacing the 3HAC17810-1 on an active production line requires a structured approach to minimize downtime and ensure system compatibility. Begin by placing the IRC5 controller in Motors Off mode and locking out the main power supply per site LOTO procedures. Document the current axis calibration data from the FlexPendant before disconnecting any cables, as encoder reference values will need to be restored after installation.

Disconnect the motor power connector and encoder/resolver cable at the robot wrist, then remove the motor mounting fasteners per the IRB 52 product manual. When installing the 3HAC17810-1 replacement unit, verify that the motor shaft orientation and connector pinout match the original — the 3HAB8101-3 cross-reference confirms dimensional and electrical equivalence for direct swap without mechanical modification.

After installation, perform a fine calibration using the ABB calibration pendulum or Levelmeter 2000 tool to restore axis accuracy. Run a slow-speed test cycle across the full axis range before returning the robot to production speed. This workflow typically achieves a complete axis restoration in under four hours for experienced maintenance teams, significantly outperforming the lead time associated with OEM repair services or full robot replacement.

For older IRB 52 installations operating beyond their original design life, the 3HAC17810-1 spare motor supports a system life extension strategy that defers capital expenditure on new robot procurement while maintaining production throughput — a key value proposition for facilities managing legacy automation infrastructure on constrained maintenance budgets.

Spare Parts Support FAQ

Q1: Is the 3HAC17810-1 a direct replacement for the 3HAB8101-3?
Yes. The 3HAC17810-1 is the current ABB part number that supersedes the 3HAB8101-3 for IRB 52 Axis 5/6 servo motor applications. Both references are dimensionally and electrically equivalent, and the replacement can be performed without mechanical modification to the robot wrist assembly.

Q2: What testing is performed before shipment?
Every 3HAC17810-1 unit dispatched by KNMKS undergoes pre-shipment functional verification including encoder signal integrity checks and visual inspection for connector and winding condition. Units are packaged in anti-static, shock-protected packaging to prevent transit damage. A support terms confirmed by quotation is provided from the date of dispatch.

Q3: Can you supply multiple units for a spare parts buffer program?
Yes. KNMKS supports both single-unit emergency orders and bulk procurement for planned maintenance stock programs. Long-term supply agreements are available for facilities operating multiple IRB 52 robots. Contact our team to discuss volume pricing, lead time commitments, and consignment stock arrangements.

Q4: How do I verify compatibility with my specific IRB 52 configuration?
Compatibility can be confirmed by cross-referencing the part number on the motor nameplate or in the ABB spare parts catalog for your robot serial number range. KNMKS technical support can assist with compatibility verification using your robot serial number and controller software version. Contact us before ordering if you are uncertain about your specific configuration.
