ABB 3HAC17484-8 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC17484-8 Maintenance-Proven Spare Part for Factory Uptime

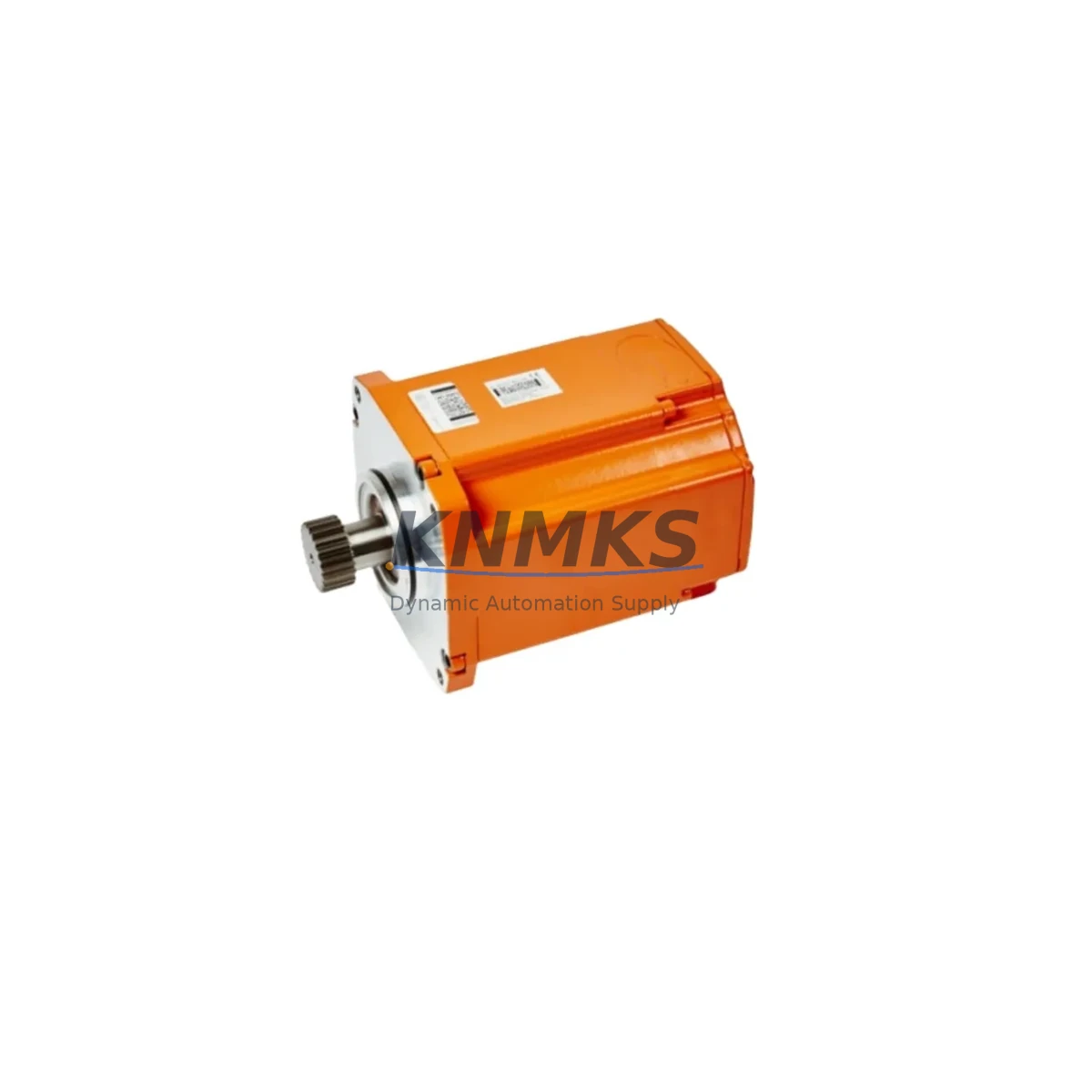

The ABB 3HAC17484-8 is an original AC servo motor designed for Axis-1 of the ABB IRB6600 industrial robot series. As a safety-critical drive component in heavy-duty automation cells, this motor is a cornerstone of planned maintenance programs, emergency breakdown recovery, and long-term spare parts inventory strategies. Sourced directly from verified supply channels and subjected to pre-shipment functional testing, the 3HAC17484-8 is supplied with a support terms confirmed by quotation and is ready for immediate installation in IRB6600 robot systems operating across automotive, foundry, press-tending, and general heavy-payload automation environments.

For maintenance engineers managing aging IRB6600 fleets, the 3HAC17484-8 represents a direct OEM-equivalent replacement that eliminates the compatibility risk associated with aftermarket alternatives. Its dimensional and electrical specifications are identical to the original factory-installed unit, ensuring that axis calibration, load parameters, and motion profiles do not require reconfiguration after swap-out. Procurement engineers sourcing this part for multi-site spare parts programs will find that KNMKS maintains stock availability with documented lead times, supporting both emergency single-unit orders and scheduled bulk procurement for annual maintenance contracts.

In practice, the 3HAC17484-8 is most frequently replaced during scheduled overhauls triggered by encoder feedback errors, axis position drift, abnormal current draw on the IRC5 drive module, or physical damage to the motor housing following a collision event. When replacing this motor, a thorough site inspection should extend beyond the motor itself. The IRC5 controller’s drive unit — specifically the axis computer board and the drive module associated with Axis-1 — should be inspected for fault logs and thermal stress indicators. The resolver cable assembly (3HAC17334-1 or equivalent) connecting the motor to the measurement board should be checked for insulation integrity and connector seating. The brake release unit and the mechanical brake within the motor should be verified for correct engagement and release torque. Additionally, the SMB (Serial Measurement Board) battery backup should be confirmed as serviceable to prevent loss of revolution counter data during the motor swap procedure.

For sites running multiple IRB6600 units, it is advisable to maintain at least one 3HAC17484-8 in local stock alongside the IRC5 axis computer board (3HAC026254-001), the drive module (3HAC025338-001), and a set of resolver cables. This combination covers the most common Axis-1 failure modes and allows a trained maintenance team to restore full robot operation within a single shift, avoiding extended production downtime. The 3HAC17484-8 is also compatible with IRB6600-175/2.55 and IRB6600-200/2.75 variants, making it a versatile stock item for facilities operating mixed IRB6600 configurations.

From a procurement risk management perspective, the 3HAC17484-8 is a long-lifecycle part with a stable supply chain through authorized distribution. KNMKS provides documented traceability for each unit shipped, including batch records and pre-shipment test reports, supporting quality management requirements in ISO-certified manufacturing environments. All units are shipped with ESD-protective packaging and are accompanied by a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for IRB6600 Axis-1 requires a systems-level approach. When the 3HAC17484-8 is identified as a replacement candidate — whether through predictive diagnostics, scheduled overhaul intervals, or reactive fault response — the following associated components should be evaluated concurrently to prevent repeat failures and maximize uptime recovery:

• IRC5 Drive Module (Axis-1): Inspect for overcurrent fault history, thermal discoloration, and capacitor condition. A degraded drive module can cause premature motor failure if not addressed during the same maintenance window.
• Resolver Cable Assembly (3HAC17334-1): Check for chafing, connector corrosion, and continuity. Resolver signal errors are a leading cause of axis position faults and are frequently misdiagnosed as motor failure.
• Serial Measurement Board (SMB): Verify battery voltage and revolution counter integrity before and after motor replacement to avoid axis calibration loss.
• Axis Computer Board (3HAC026254-001): Review fault logs for communication errors between the axis computer and the drive unit. Replace if persistent CAN bus or encoder interface faults are recorded.
• Mechanical Brake and Brake Release Unit: Confirm brake engagement torque and release response time. A worn brake can allow axis drift under load, increasing motor stress and accelerating wear.
• Power Supply Unit (PSU) in IRC5 Cabinet: Measure output voltage stability under load. Voltage ripple or dropout events can cause servo faults that mimic motor failure symptoms.

Site Replacement Workflow

Replacing the ABB 3HAC17484-8 on-site follows a structured procedure to minimize downtime and ensure system compatibility is maintained throughout the swap:

1. Fault Isolation: Confirm the fault source using IRC5 FlexPendant error logs and axis-specific diagnostics. Distinguish between motor, resolver, drive, and controller faults before committing to motor replacement.
2. Revolution Counter Backup: Record or back up the SMB revolution counter data before disconnecting the motor. Failure to do so will require a full axis calibration after reinstallation.
3. Safe De-energization: Follow LOTO (Lockout/Tagout) procedures. Confirm brake release circuit is de-energized and the robot arm is mechanically supported before removing the Axis-1 motor.
4. Motor Removal and Inspection: Remove the 3HAC17484-8 and inspect the motor mounting flange, gear interface, and cable routing for secondary damage. Document findings for maintenance records.
5. New Unit Installation: Install the replacement 3HAC17484-8, torque all fasteners to specification, reconnect resolver and power cables, and verify connector seating.
6. System Recommissioning: Update revolution counters via FlexPendant, perform axis calibration if required, and run a low-speed test cycle to verify smooth motion and absence of fault codes before returning the robot to production.

Spare Parts Support FAQ

Q1: Is the 3HAC17484-8 compatible with all IRC5 controller variants?
The 3HAC17484-8 is designed for use with the IRC5 controller platform (M2004 and later). Compatibility with earlier M2000 controllers should be verified against the specific robot configuration. Contact KNMKS with your robot serial number for confirmation.

Q2: What is the recommended spare parts inventory strategy for multi-robot IRB6600 sites?
For sites operating three or more IRB6600 units, maintaining one 3HAC17484-8 per four robots is a common industry practice. Pair this with one IRC5 drive module and one resolver cable set to cover the most statistically frequent Axis-1 failure modes without excessive inventory carrying cost.

Q3: How is the 3HAC17484-8 tested before shipment?
Each unit supplied by KNMKS undergoes pre-shipment functional testing including insulation resistance measurement, no-load rotation verification, and resolver signal output check. A test report is available upon request and accompanies units supplied to quality-managed facilities.

Q4: What support terms and long-term supply commitment does KNMKS provide?
All 3HAC17484-8 units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. KNMKS maintains ongoing stock and can support long-term supply agreements for annual maintenance programs, ensuring continuity of supply for extended IRB6600 fleet operations.
