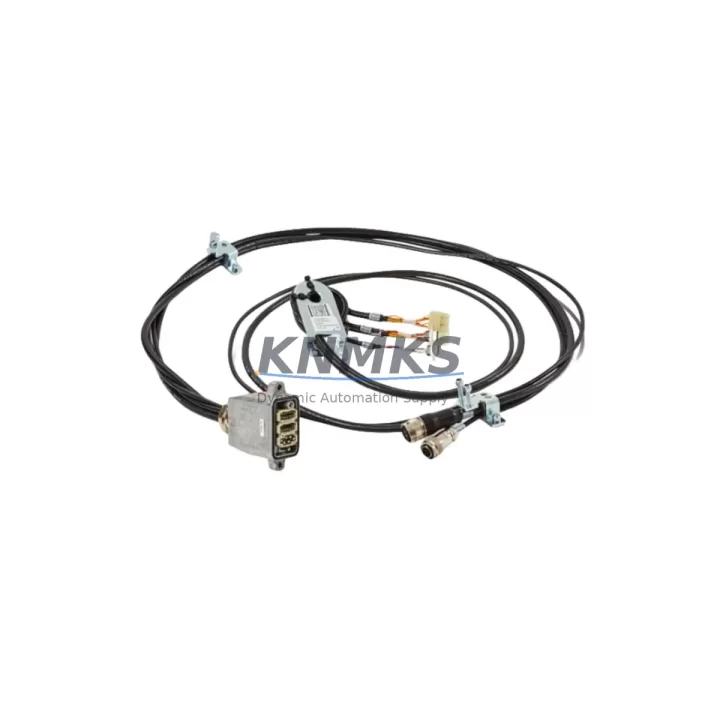

ABB 3HAC14940-1 Fail-Safe Robot Cable Harness

Overview

ABB 3HAC14940-1 Fail-Safe Robot Cable Harness for Industrial Control Reliability

The ABB 3HAC14940-1 is a precision-engineered robot cable harness designed for ABB IRB series industrial robots operating in demanding, safety-critical environments. In continuous production lines, automated welding cells, automotive assembly, and heavy-duty material handling applications, cable harness integrity is a primary factor in preventing unplanned downtime, control interruptions, and hazardous robot misbehavior. The 3HAC14940-1 is built to maintain signal integrity and mechanical stability under the combined stresses of high-cycle flexing, elevated temperatures, vibration, and electromagnetic interference — conditions that routinely degrade inferior cable assemblies and trigger costly production halts.

Facilities running ABB IRB 6600, IRB 6640, or IRB 7600 series robots in foundry, press shop, or heavy fabrication environments understand that a single cable harness failure can cascade into servo drive faults, axis position errors, and emergency stops that take hours to diagnose and recover. The 3HAC14940-1 addresses this risk directly: its shielded multi-conductor construction suppresses EMI from adjacent variable frequency drives, welding power sources, and high-current bus bars, while its reinforced connector terminations resist the micro-vibration fatigue that causes intermittent signal loss in high-cycle applications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable robot operation depends on more than the cable harness alone — it requires a coordinated protection strategy across the entire control architecture. In a typical ABB IRC5 robot controller cabinet, the 3HAC14940-1 harness interfaces directly with the axis computer board (such as the DSQC 668 or DSQC 679) and the drive unit modules that govern each robot axis. When the harness is degraded, the axis computer receives corrupted encoder feedback, triggering fault codes that force the controller into a safe-stop state. Replacing the 3HAC14940-1 with a verified unit eliminates this failure mode at the source.

Beyond the harness itself, engineers planning a cable replacement should simultaneously inspect the SMB (Serial Measurement Board) unit, which processes encoder signals from all robot axes and is highly sensitive to signal noise introduced by a failing harness. The IRC5 main computer module and the teach pendant cable assembly (3HAC031683-001) should also be verified for continuity and connector integrity during the same maintenance window, since opening the robot arm for harness access provides an efficient opportunity to address adjacent wear items. In high-EMI environments such as resistance welding cells, adding ferrite core suppressors to signal cables near the controller cabinet further reduces the risk of interference-induced faults after the harness replacement is complete.

For facilities operating multiple ABB robots on a common DeviceNet or PROFIBUS network, a harness failure on one robot can generate network communication errors that affect adjacent controllers. Verifying the fieldbus gateway module and network termination resistors as part of the replacement procedure prevents secondary faults from masking the root cause and ensures the production line returns to full operation without residual communication alarms.

Critical Industrial Safety Applications

The ABB 3HAC14940-1 cable harness is deployed across a wide range of safety-critical industrial environments where robot control reliability directly affects personnel safety and production continuity. In automotive body-in-white welding lines, robots equipped with this harness perform thousands of spot welds per shift; any signal interruption that causes an unexpected axis movement creates both a quality defect and a potential collision hazard for adjacent tooling and workers. The harness’s EMI shielding is essential in these environments, where welding transformers generating tens of kiloamperes of current operate within meters of the robot controller.

In petrochemical and refinery facilities using ABB robots for valve actuation, pipe inspection, or hazardous material handling, the consequences of a control failure extend beyond production loss to potential safety incidents. The 3HAC14940-1’s robust construction ensures that encoder feedback remains accurate even in environments with elevated ambient temperatures, chemical vapors, and continuous vibration from rotating machinery. Similarly, in metal casting and foundry operations, where robots handle molten metal ladles or operate in close proximity to induction furnaces, the harness must maintain electrical integrity under thermal cycling and radiated heat loads that would degrade standard cable assemblies within weeks.

Port and logistics automation facilities deploying ABB robots for container handling and palletizing rely on continuous 24/7 operation with minimal maintenance windows. In these applications, the 3HAC14940-1’s high-flex rating and reinforced terminations directly translate to extended mean time between failures (MTBF), reducing the frequency of scheduled cable inspections and the risk of unplanned stops during peak throughput periods. Water treatment and municipal infrastructure facilities using ABB robots for chemical dosing or pump maintenance similarly benefit from the harness’s resistance to moisture ingress and its stable performance in variable-temperature outdoor enclosures.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the ABB 3HAC14940-1?
A: Every 3HAC14940-1 supplied by KNMKS carries a support terms confirmed by quotation covering verified manufacturing defects, premature insulation failure, connector separation, and shield continuity loss. If a defect is confirmed within the confirmed support period, we provide a full replacement unit or refund. Support requests are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing is performed on each unit?
A: Each 3HAC14940-1 undergoes a three-stage inspection before dispatch: (1) full conductor continuity check across all signal and power cores, (2) insulation resistance test to verify dielectric integrity, and (3) shield braid continuity verification to confirm EMI protection is intact. Units that fail any stage are quarantined and not shipped. A test record is available upon request.

Q3: Is the 3HAC14940-1 a direct drop-in replacement for the original ABB harness?
A: Yes. The 3HAC14940-1 uses OEM-matched connector terminations and identical cable routing geometry, allowing direct installation without modification to the robot arm, cable tray, or IRC5 controller cabinet wiring. No firmware changes or axis calibration offsets are required after replacement, provided the encoder connectors are seated correctly and the SMB unit is undamaged.

Q4: What is the typical lead time and stock availability?
A: KNMKS maintains verified stock of the 3HAC14940-1 for immediate dispatch. Standard orders ship within 1–3 business days. For urgent maintenance requirements or bulk procurement for spare parts programs, contact [email protected] or call +86 18359268345 to confirm current inventory levels and expedited shipping options. Long-term supply agreements are available for facilities requiring guaranteed stock across 12–36 month maintenance cycles.
