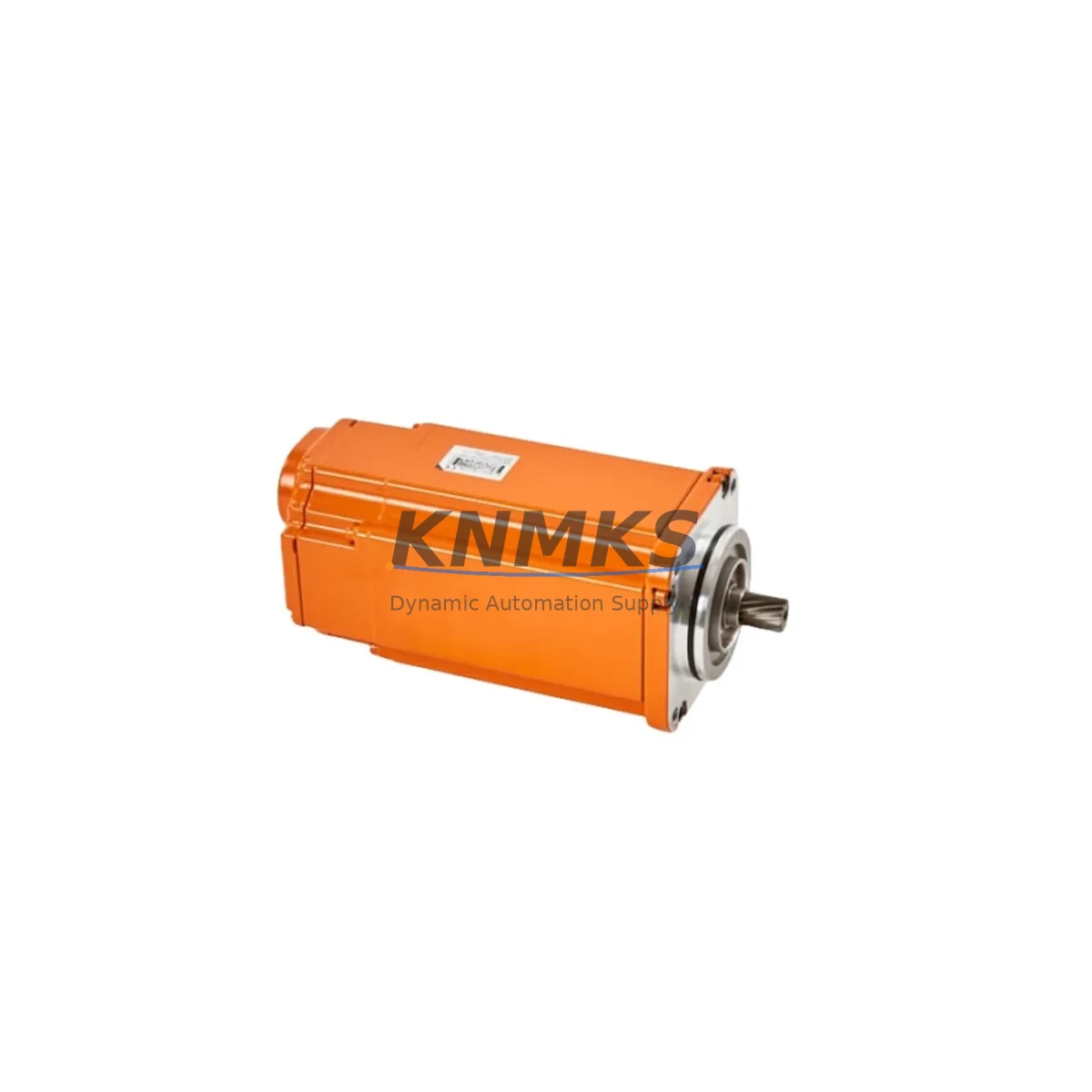

ABB 3HAC14673-9 Migration-Ready Servo Motor for Legacy Control Systems

When an IRB6640, IRB6600, or IRB6650 robot axis fails or reaches end-of-service life, the ABB 3HAC14673-9 servo motor provides a direct, migration-ready replacement that restores full motion control without requiring a complete system overhaul. Designed for axis drive applications in ABB’s industrial robot platforms, this servo motor is a critical component for maintenance engineers managing aging automation lines where downtime directly impacts production throughput.

The 3HAC14673-9 is engineered to match the original mechanical envelope, connector pinout, and encoder feedback interface of the legacy unit it replaces. For retrofit teams working under tight maintenance windows, this compatibility eliminates the need for custom wiring adapters, bracket modifications, or firmware re-flashing at the drive level — significantly reducing the risk of commissioning errors during a live system migration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful servo motor replacement on an IRB6640 or IRB6600 platform requires more than swapping the motor unit. Retrofit engineers should conduct a full cabinet inspection before and after installation to ensure system integrity is maintained throughout the migration process.

Begin by verifying the IRC5 controller’s axis computer board — specifically the DSQC668 or equivalent axis drive card — is functioning correctly and not contributing to the motor fault. A degraded axis board can cause repeated motor failures even after a new 3HAC14673-9 is installed. Similarly, inspect the motor cable harness (3HAC031683-001 or equivalent) for insulation breakdown, connector corrosion, or pin damage, as cable faults are a common root cause of servo motor failures in high-cycle robot applications.

Check the brake resistor and drive power supply feeding the axis in question. Voltage irregularities at the servo drive input can stress motor windings over time. If the robot cabinet uses a DSQC609 power distribution unit, verify that all output rails are within specification before commissioning the replacement motor.

For robots with integrated fieldbus communication — such as DeviceNet, PROFIBUS, or EtherNet/IP — confirm that the axis configuration in RobotStudio or the IRC5 teach pendant reflects the correct motor parameters after replacement. In some IRB6640 configurations, the SMB (Serial Measurement Board, 3HAC14550-1) stores axis calibration data; this board should be inspected and its calibration values backed up before the motor swap to avoid loss of fine calibration offsets.

If the robot is part of a multi-robot cell controlled via a FlexPendant or an external PLC, coordinate the maintenance window with the cell controller team to ensure I/O interlocks and safety relay circuits are properly isolated during the replacement. After reinstallation, run a full axis mastering procedure and verify motion profiles against the original teach points before returning the robot to production.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo motor replacement on a legacy IRB6640 or IRB6600 system requires preparation, not improvisation. The 3HAC14673-9 is stocked and tested, enabling same-week dispatch to reduce the gap between fault detection and parts arrival — a critical advantage when production lines are halted.

Before the maintenance window opens, pre-stage all required tools: torque wrenches calibrated to ABB specifications, a resolver alignment fixture if applicable, and a laptop with RobotStudio loaded with the robot’s current backup. Ensure the replacement motor’s serial number and revision level are logged for traceability.

During the swap, follow ABB’s documented axis replacement procedure to preserve the original cable routing and avoid mechanical stress on the gearbox output flange. After mechanical installation, perform a controlled power-up sequence through the IRC5 controller, monitoring axis current draw and encoder feedback signals before enabling full motion. This staged approach catches wiring errors before they escalate into secondary faults.

For facilities managing multiple IRB6640 or IRB6600 robots, maintaining a buffer stock of the 3HAC14673-9 — alongside the SMB board and motor cable harness — is a proven strategy for reducing mean time to repair (MTTR) across the robot fleet. A support terms confirmed by quotation backs every unit shipped, providing procurement teams with confidence in long-term supply continuity.

Retrofit Support FAQ

Q1: Is the 3HAC14673-9 a direct drop-in replacement for the original ABB servo motor on IRB6640 axis applications?
Yes. The 3HAC14673-9 matches the OEM mechanical dimensions, connector pinout, and encoder interface. No wiring adapters or bracket modifications are required for standard IRB6640, IRB6600, and IRB6650 axis configurations.

Q2: Does replacing the servo motor require re-calibration of the robot?
Yes. After mechanical installation, an axis mastering procedure is required using the IRC5 teach pendant or RobotStudio. If the SMB (Serial Measurement Board) calibration data was backed up prior to the swap, the re-mastering process is straightforward and typically completed within one maintenance shift.

Q3: How is the unit tested before shipment, and what does the support terms confirmed by quotation cover?
Every 3HAC14673-9 unit undergoes functional testing — including encoder signal verification and insulation resistance checks — before dispatch. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions, with replacement or repair support coordinated through [email protected].

Q4: Can you supply the 3HAC14673-9 for long-term maintenance contracts or multi-unit procurement?
Yes. KNMKS maintains stock of the 3HAC14673-9 and can support scheduled procurement for facilities managing fleets of IRB6640 or IRB6600 robots. Contact our team to discuss volume pricing, lead times, and consignment stock arrangements for ongoing maintenance programs.
