ABB 3HAC14549-3 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC14549-3 Maintenance-Proven Spare Part for Factory Uptime

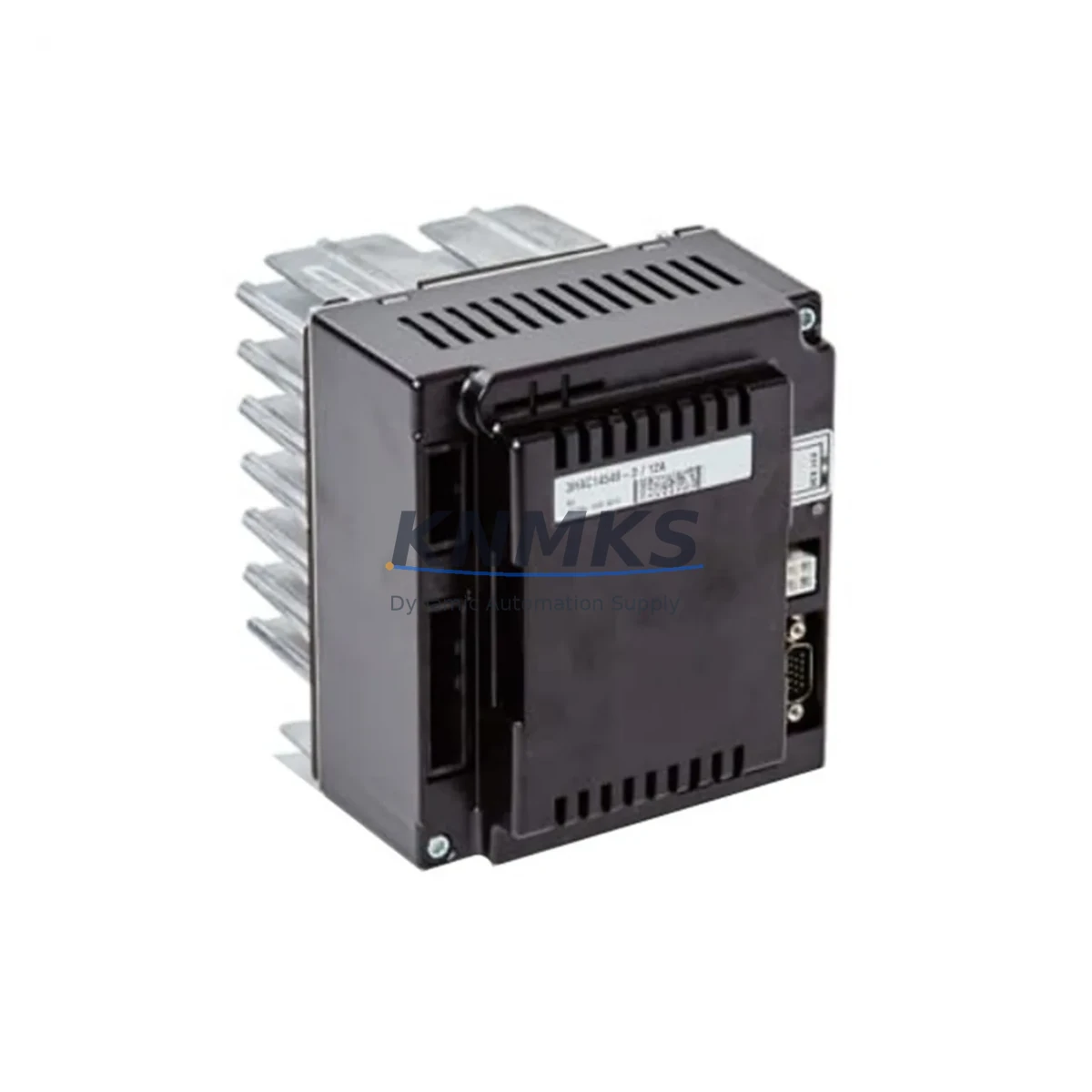

The ABB 3HAC14549-3 is an original rectifier module designed for ABB IRC5 robot drive systems, serving as a critical power conversion component within the IRC5 controller cabinet. In industrial automation environments where robot uptime directly impacts production throughput, maintaining a verified spare of the 3HAC14549-3 is a fundamental element of any proactive maintenance strategy. This module converts AC input power to the regulated DC bus voltage required by the IRC5 drive unit, and its failure typically results in immediate robot shutdown and unplanned downtime.

For maintenance engineers managing ABB IRC5-based robotic cells — whether in automotive body shops, foundry lines, palletizing stations, or general assembly — the 3HAC14549-3 represents a high-priority spare. Its role in the power chain means that degradation or failure cascades quickly: drive faults, axis errors, and full controller lockouts are common symptoms of a failing rectifier module. Stocking a tested, original replacement unit eliminates the multi-week lead time risk associated with sourcing this component reactively during a breakdown event.

Procurement engineers evaluating spare parts inventory for IRC5 fleets should treat the 3HAC14549-3 as a Tier-1 critical spare — particularly for installations operating beyond the 5-year mark, where capacitor aging and thermal cycling begin to affect rectifier reliability. Our supply chain maintains consistent stock of this module, sourced as original ABB components, with full functional testing and a support terms confirmed by quotation covering defects in materials and workmanship.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3HAC14549-3 rectifier module during a scheduled or emergency maintenance event, a thorough inspection of the surrounding IRC5 power and control architecture is essential to prevent repeat failures and ensure full system restoration.

Begin with the IRC5 drive unit power supply section: inspect the AC input terminals, fuses, and contactor feeding the rectifier. A blown fuse or degraded contactor upstream of the 3HAC14549-3 is a common root cause of rectifier stress and premature failure. The DSQC 604 or equivalent IRC5 computer unit should be checked for stored fault logs that may indicate whether the rectifier failure was primary or secondary to another fault condition.

The IRC5 capacitor bank associated with the DC bus should be evaluated for capacitance and ESR if the system has been in service for more than five years. Capacitor degradation places additional ripple stress on the rectifier module and is a leading cause of recurring 3HAC14549-3 failures in aging installations. Similarly, inspect the drive module (such as the DSQC 663 or axis computer) for signs of thermal stress or communication faults that may have been masked by the rectifier failure.

For cabinet-level inspection, verify the condition of the IRC5 panel board and internal wiring harnesses. Loose or corroded terminal connections on the DC bus bars can cause intermittent voltage drops that stress the rectifier under load. The teach pendant (FlexPendant) and its cable should also be inspected, as communication errors during a power fault event can sometimes corrupt controller state and require a cold restart sequence after the rectifier is replaced.

If the IRC5 cabinet includes I/O modules (such as DSQC 651 or DSQC 652 digital I/O units), confirm that no I/O faults were logged during the downtime event, as power instability from a failing rectifier can cause transient I/O errors that may require field device re-initialization after restoration. Finally, check any signal isolators or surge protection devices on analog I/O channels connected to the robot controller, particularly in environments with high electromagnetic interference from welding or heavy motor loads.

Site Replacement Workflow

The 3HAC14549-3 is a direct replacement for the original rectifier module in IRC5 controller cabinets. Before beginning replacement, de-energize the cabinet fully and follow ABB’s IRC5 lockout/tagout procedure. Allow the DC bus capacitors to discharge for a minimum of 5 minutes after power-off before accessing the drive unit bay.

Remove the existing rectifier module by disconnecting the AC input connector, DC bus output connections, and any signal or feedback connectors. Note the orientation and connector labeling before removal. Install the 3HAC14549-3 in the same position, reconnect all connectors in reverse order, and verify torque on DC bus terminal screws to ABB specification to prevent contact resistance issues under load.

After installation, perform a controlled power-up sequence: energize the cabinet and monitor the IRC5 teach pendant for drive status. Confirm that the DC bus voltage reaches nominal level without fault codes. Run a low-speed axis jog test on all axes before returning the robot to automatic production mode. Document the replacement in the maintenance log, including the date, part number, and any associated fault codes observed prior to replacement.

For sites managing multiple IRC5 robots, this replacement workflow can typically be completed within 60–90 minutes by a qualified maintenance technician, minimizing production impact when a spare 3HAC14549-3 is available on-site.

Spare Parts Support FAQ

Q1: Is the 3HAC14549-3 compatible with all IRC5 cabinet variants?
The 3HAC14549-3 is designed for the ABB IRC5 controller platform. Compatibility depends on the specific IRC5 cabinet revision and drive unit configuration. We recommend confirming your cabinet’s drive unit part number and revision level before ordering. Our technical team can assist with compatibility verification based on your robot serial number or cabinet documentation.

Q2: How is the 3HAC14549-3 tested before shipment?
Each unit undergoes functional testing prior to shipment to verify electrical integrity and basic operational parameters. Units are inspected for physical condition, connector integrity, and absence of visible damage. A support terms confirmed by quotation is provided from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q3: What is the recommended inventory strategy for IRC5 rectifier modules?
For facilities operating 3 or more IRC5 robots, we recommend maintaining at least one 3HAC14549-3 as a critical on-site spare. For larger fleets or high-utilization environments (e.g., 24/7 automotive production), a ratio of one spare per 5–8 robots is a common industry practice. Proactive stocking eliminates the 4–12 week lead time risk associated with reactive procurement during unplanned downtime events.

Q4: Can you support long-term or repeat supply of the 3HAC14549-3?
Yes. We maintain ongoing stock of the 3HAC14549-3 and can support blanket orders, scheduled deliveries, and annual maintenance procurement programs. For MRO procurement teams managing multi-site ABB robot fleets, we offer consistent supply with stable lead times and documentation support including test reports and country-of-origin certificates upon request.
