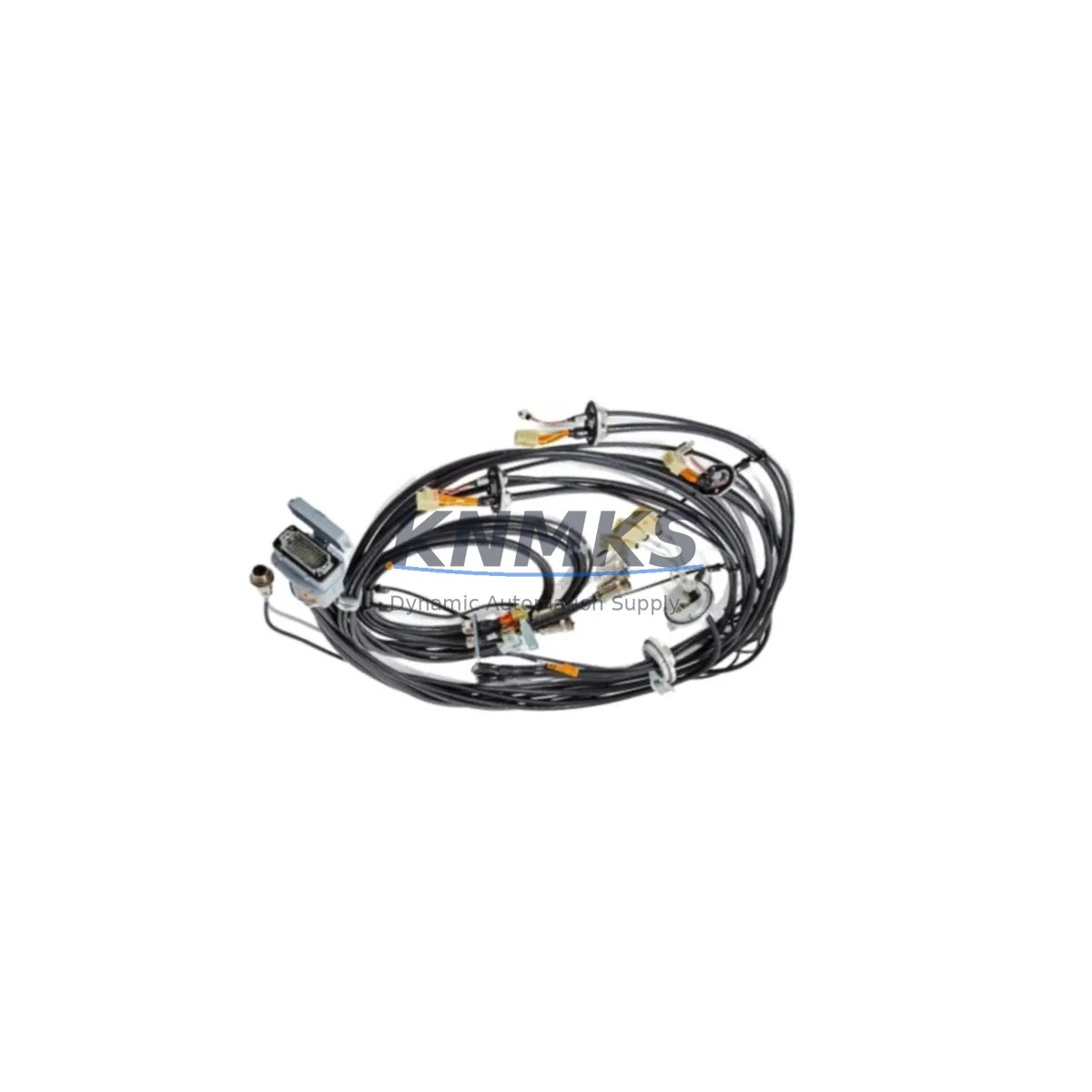

ABB 3HAC14140-1 Fail-Safe Axis Cable for IRB6600

Overview

ABB 3HAC14140-1 Fail-Safe Axis Cable for IRB6600: Fault Protection and Critical Industrial Reliability

The ABB 3HAC14140-1 is a factory-engineered Axis 5/6 cable harness designed exclusively for the ABB IRB6600 series industrial robot. In continuous production environments where unplanned downtime carries severe operational and safety consequences, the integrity of every cable harness in the robot’s motion chain is non-negotiable. This cable assembly provides the signal and power continuity required to maintain precise axis control, prevent servo miscommunication, and protect the robot controller from the cascading faults that arise from degraded wiring.

Manufactured to ABB’s stringent robotics specifications in Germany, the 3HAC14140-1 is engineered for long-cycle reliability in demanding industrial settings. Its shielded construction resists electromagnetic interference generated by variable frequency drives, high-current bus bars, and adjacent servo amplifiers — all common sources of signal drift and axis positioning errors in heavy-duty control cabinets. The cable’s robust insulation and connector sealing maintain stable performance across the full operating temperature range of the IRB6600 platform, including environments subject to weld spatter, coolant mist, vibration, and mechanical stress from repeated high-speed articulation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered IRB6600 control cabinet, the 3HAC14140-1 cable harness operates as part of a tightly integrated safety and motion control architecture. The robot controller — typically an ABB IRC5 — relies on clean, uninterrupted axis feedback to execute motion programs without fault interruption. A degraded or failed Axis 5/6 harness can trigger axis limit errors, servo drive alarms, or emergency stop events that halt the entire production cell.

To maintain full cabinet-level protection, the 3HAC14140-1 is commonly deployed alongside the ABB DSQC 661 axis computer board, which processes the encoder and resolver signals carried by this harness. Power stability for the servo drives is typically ensured by an ABB PSU (power supply unit) within the IRC5 drive module, and surge transients on the cabinet power rail are managed by coordinated use of ABB OVR surge protective devices. For applications where the robot operates in zones with high electromagnetic emission — such as near resistance welding equipment or plasma cutting systems — additional ABB EMC cable glands and shielded conduit fittings are recommended at cabinet entry points to prevent conducted interference from reaching the axis harness connectors. In safety-rated cells, the robot’s safety circuit is typically supervised by an ABB SafeMove2 safety controller module, which monitors axis position and speed limits; a compromised cable harness that causes encoder signal loss will directly trigger SafeMove2 protective stops, underscoring the critical role of harness integrity in the overall safety architecture.

Critical Industrial Safety Applications

The ABB 3HAC14140-1 is a key maintenance and reliability component across a broad range of heavy industrial sectors where the IRB6600 platform is deployed:

Automotive and Metal Fabrication: In body-in-white welding lines and press-tending cells, IRB6600 robots operate at high duty cycles with continuous wrist articulation. The Axis 5/6 harness is subject to maximum mechanical fatigue in these applications. Scheduled replacement of the 3HAC14140-1 before end-of-life prevents unplanned line stoppages that can cascade across multi-robot cells.

Petrochemical and Refinery Maintenance: Where IRB6600 robots are used for inspection, valve actuation, or material handling in classified hazardous areas, cable harness integrity is a safety-critical requirement. Signal loss on Axis 5/6 in these environments can result in uncontrolled robot motion near pressurized equipment or personnel exclusion zones.

Port and Heavy Logistics Automation: Container handling and heavy palletizing applications subject the IRB6600 to sustained high-payload cycles. Vibration-induced connector fretting and insulation wear are primary failure modes; the 3HAC14140-1’s robust construction and OEM connector specification directly address these failure mechanisms.

Metallurgy and Foundry: High ambient temperatures, airborne particulates, and thermal cycling in casting and forging environments accelerate cable degradation. The 3HAC14140-1’s thermal-rated insulation and sealed connectors maintain reliable axis control in these conditions, preventing the axis positioning errors that can damage tooling or cause safety incidents.

Water Treatment and Utilities: In automated chemical dosing and pump control applications, robot reliability directly affects process safety. Maintaining a stocked 3HAC14140-1 spare reduces mean time to repair (MTTR) and supports continuous operation of safety-critical utility infrastructure.

Safety and Quality FAQ

Q1: Does the 3HAC14140-1 come with a support terms, and what does it cover?
Yes. Every 3HAC14140-1 supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, connector integrity failures, and insulation breakdown under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: What pre-shipment testing is performed on this cable harness?
Each unit undergoes a pre-shipment inspection protocol that includes conductor continuity verification across all signal and power cores, insulation resistance testing, and physical connector inspection for pin seating, locking mechanism function, and keying alignment. This ensures the harness is installation-ready and eliminates the risk of receiving a defective spare during a critical maintenance window.

Q3: Is this cable harness compatible with all IRB6600 variants?
The 3HAC14140-1 is designed for the ABB IRB6600 series. Compatibility should be confirmed against the specific IRB6600 variant (payload and reach configuration) and the robot’s build date, as ABB has issued revision updates to cable assemblies across the IRB6600 production run. KNMKS technical support can assist with cross-referencing your robot’s serial number to confirm fitment before order placement.

Q4: What is the long-term supply availability for this part?
KNMKS maintains dedicated stock of the 3HAC14140-1 to support planned maintenance programs and emergency replacement requirements. For facilities operating multiple IRB6600 robots, we recommend establishing a consignment or scheduled replenishment arrangement to ensure harness availability aligns with your preventive maintenance intervals, eliminating lead-time risk for this safety-critical spare.
