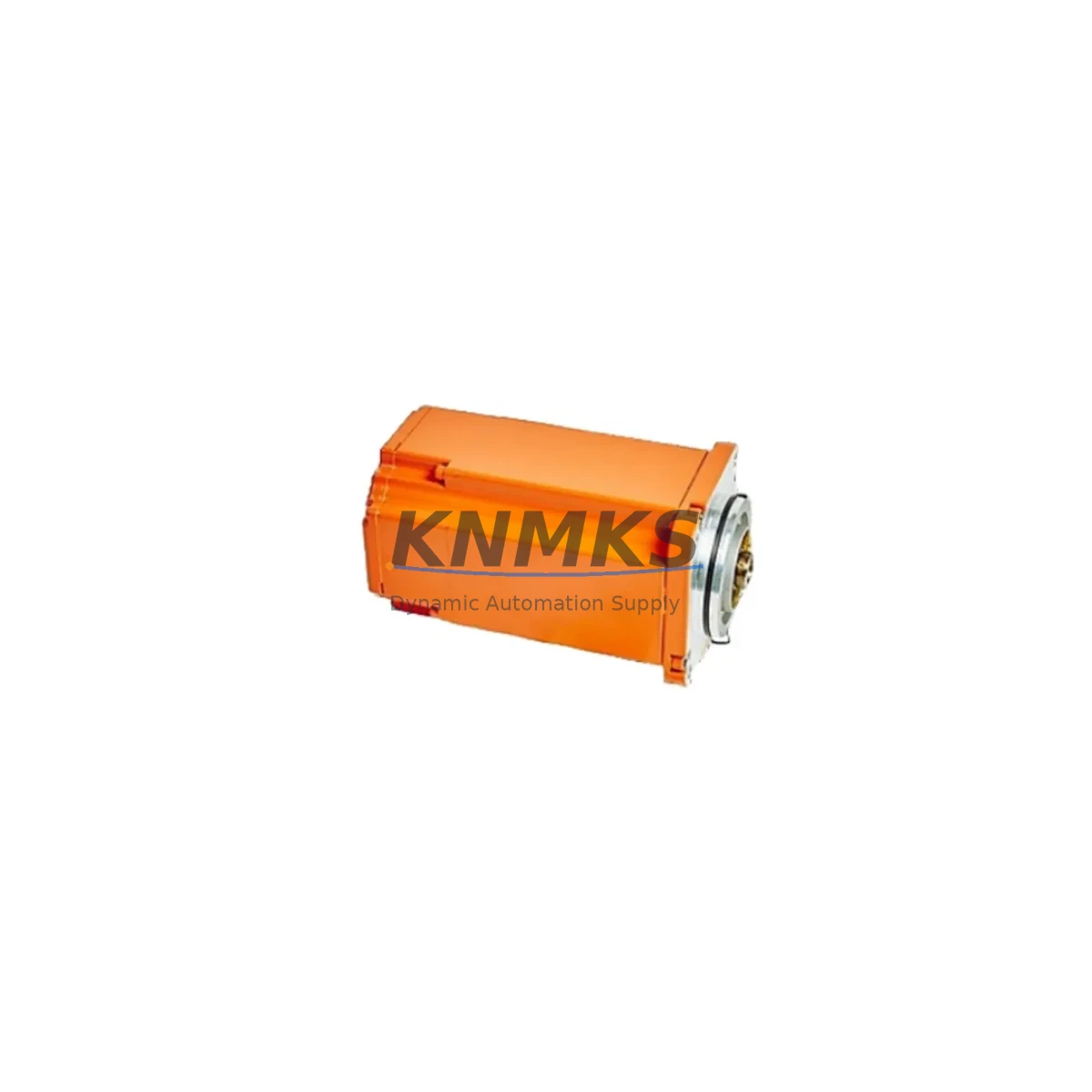

ABB 3HAC14139-1 Fail-Safe AC Servo Motor IRB 6600

Overview

ABB 3HAC14139-1 Fail-Safe AC Servo Motor IRB 6600: Fault Protection and Critical Industrial Reliability

The ABB 3HAC14139-1 is a precision-engineered AC servo motor designed for the ABB IRB 6600 heavy-duty industrial robot series. Built to operate continuously in demanding automation environments — including high electromagnetic interference, elevated ambient temperatures, mechanical vibration, and dust-laden or humid atmospheres — this servo motor delivers the fault-tolerant performance that safety-critical control systems demand. Whether deployed in continuous production lines, critical interlock circuits, or high-load control cabinet configurations, the 3HAC14139-1 is engineered to minimize unplanned downtime and protect the integrity of the entire motion control loop.

In industrial facilities where robot arm positioning errors, signal drift, or unexpected motor shutdowns can trigger cascading failures — from conveyor stoppages to hazardous material spills — the reliability of the servo drive axis is non-negotiable. The ABB 3HAC14139-1 addresses these risks through robust winding insulation, precision encoder feedback, and a mechanically sealed housing that resists ingress from particulates and moisture. Its design supports stable torque delivery even under fluctuating supply voltage conditions, reducing the risk of positional deviation caused by power quality disturbances common in heavy industrial environments.

When integrated into an ABB IRB 6600 robot cell, the 3HAC14139-1 works in close coordination with the ABB DSQC 661 drive unit and the ABB IRC5 controller, forming a tightly coupled motion control architecture. The servo motor’s encoder signals feed directly into the drive’s closed-loop regulation, ensuring that any deviation from the commanded trajectory is corrected within microseconds — a critical requirement in arc welding, press tending, and material handling applications where positional accuracy directly affects product quality and worker safety. Complementary components such as the ABB 3HAC17484-1 motor cable assembly and the ABB 3HAC14140-1 axis gearbox are typically installed alongside this motor to complete the axis drive train, and their condition should be assessed whenever the 3HAC14139-1 is replaced during scheduled maintenance.

Control cabinet protection is equally important in sustaining servo motor reliability. Surge events on the AC supply rail — caused by capacitor bank switching, large motor starts, or lightning-induced transients — can damage motor windings and encoder electronics if not properly suppressed. Pairing the 3HAC14139-1 installation with a Phoenix Contact TRABTECH surge protection device on the incoming supply and a Siemens SITOP power supply module for regulated 24 VDC auxiliary circuits significantly reduces the risk of insulation breakdown and encoder signal corruption. Additionally, maintaining adequate cabinet ventilation or installing a Rittal TopTherm cooling unit prevents thermal accumulation that accelerates winding degradation over time.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB 3HAC14139-1 in a production environment requires a holistic approach to control cabinet protection. The servo motor’s encoder and power circuits are sensitive to conducted interference originating from variable frequency drives, contactors, and solenoid valves sharing the same cabinet. Installing a Murr Elektronik line filter on the servo drive input and routing encoder cables in dedicated shielded conduits, separated from power wiring, are standard practices that prevent signal corruption and nuisance faults. Where the robot cell operates near high-current welding equipment, additional ferrite cores on the motor cable — such as those compatible with the ABB 3HAC17484-1 cable set — provide a further layer of common-mode noise suppression.

Thermal management within the control cabinet is a frequently underestimated factor in servo motor longevity. The IRC5 controller dissipates significant heat during high-duty-cycle operation, and without adequate airflow, ambient temperatures inside the cabinet can exceed the rated operating range of drive electronics and motor feedback circuits. A Rittal SK 3302 cooling unit or equivalent thermostat-controlled fan assembly maintains cabinet internal temperature within safe limits, directly extending the service life of the 3HAC14139-1 and associated drive components. Periodic inspection of cabinet door seals and filter mats is equally important in dusty foundry, cement, or mining environments where particulate ingress accelerates component wear.

For facilities operating multiple IRB 6600 robot cells, maintaining a controlled spare parts inventory that includes the 3HAC14139-1 alongside the ABB DSQC 661 servo drive module and critical axis cables ensures that unplanned motor failures can be resolved within a single shift rather than triggering extended production halts. KNMKS maintains in-stock availability of the 3HAC14139-1 to support just-in-time spare parts programs for maintenance teams operating under tight production schedules.

Critical Industrial Safety Applications

The ABB 3HAC14139-1 servo motor is deployed across a wide range of safety-critical industrial sectors where robot arm reliability directly affects process safety and regulatory compliance.

In automotive body-in-white welding lines, IRB 6600 robots equipped with the 3HAC14139-1 perform continuous spot and arc welding operations at high cycle rates. Any axis motor failure in this context causes immediate line stoppage and potential fixture damage, making pre-tested replacement units with verified encoder calibration essential for rapid recovery. In petrochemical and refinery environments, robots handling catalyst loading, valve actuation, or inspection tasks in classified hazardous zones depend on servo motor integrity to maintain safe positioning and prevent inadvertent contact with pressurized or flammable process equipment.

Steel mill and metal casting applications subject the IRB 6600 to extreme radiant heat, metal splash, and vibration. The 3HAC14139-1’s robust mechanical construction and high insulation class make it suitable for ladle handling and billet transfer tasks where thermal stress cycles are severe. In port and heavy logistics automation, where robots operate in outdoor-adjacent environments with wide temperature swings and salt-laden air, the motor’s sealed housing and corrosion-resistant finish support reliable long-term operation without frequent intervention.

Water treatment and municipal infrastructure facilities increasingly deploy industrial robots for pipe inspection, valve maintenance, and chemical dosing tasks in wet, corrosive environments. The 3HAC14139-1’s IP54 protection and compatibility with the IRC5 safety interlock architecture allow it to operate within safety-rated zones where unexpected motion must be reliably inhibited by the E-stop circuit. In mining and mineral processing, where continuous operation is critical and maintenance access is difficult, having a verified in-stock replacement motor with a support terms confirmed by quotation and documented pre-shipment test results provides the assurance that maintenance planners require when approving spare parts procurement.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB 3HAC14139-1?
All ABB 3HAC14139-1 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, encoder failure, and winding insulation faults under normal operating conditions. Support requests are supported by our technical team with replacement dispatch or repair coordination within agreed lead times.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC14139-1 undergoes a full pre-shipment inspection including insulation resistance measurement (Megger test), encoder signal verification, and visual inspection of connector integrity and housing condition. Test records are available upon request and accompany units supplied for safety-critical applications.

Q3: Is the 3HAC14139-1 compatible with all IRC5 controller configurations?
The 3HAC14139-1 is designed specifically for the ABB IRB 6600 robot series and is compatible with standard IRC5 single and dual cabinet configurations. Compatibility with specific axis assignments and software versions should be confirmed against the robot’s mechanical and electrical documentation. KNMKS technical support can assist with cross-referencing axis motor assignments for your specific IRB 6600 variant.

Q4: Can KNMKS support long-term spare parts supply for ongoing maintenance programs?
Yes. KNMKS maintains stock of the 3HAC14139-1 and related IRB 6600 drive components to support 12- to 36-month spare parts programs for facilities operating multiple robot cells. Blanket order arrangements and priority dispatch agreements are available for maintenance teams requiring guaranteed availability. Contact our sales team to discuss a tailored supply agreement for your site.
