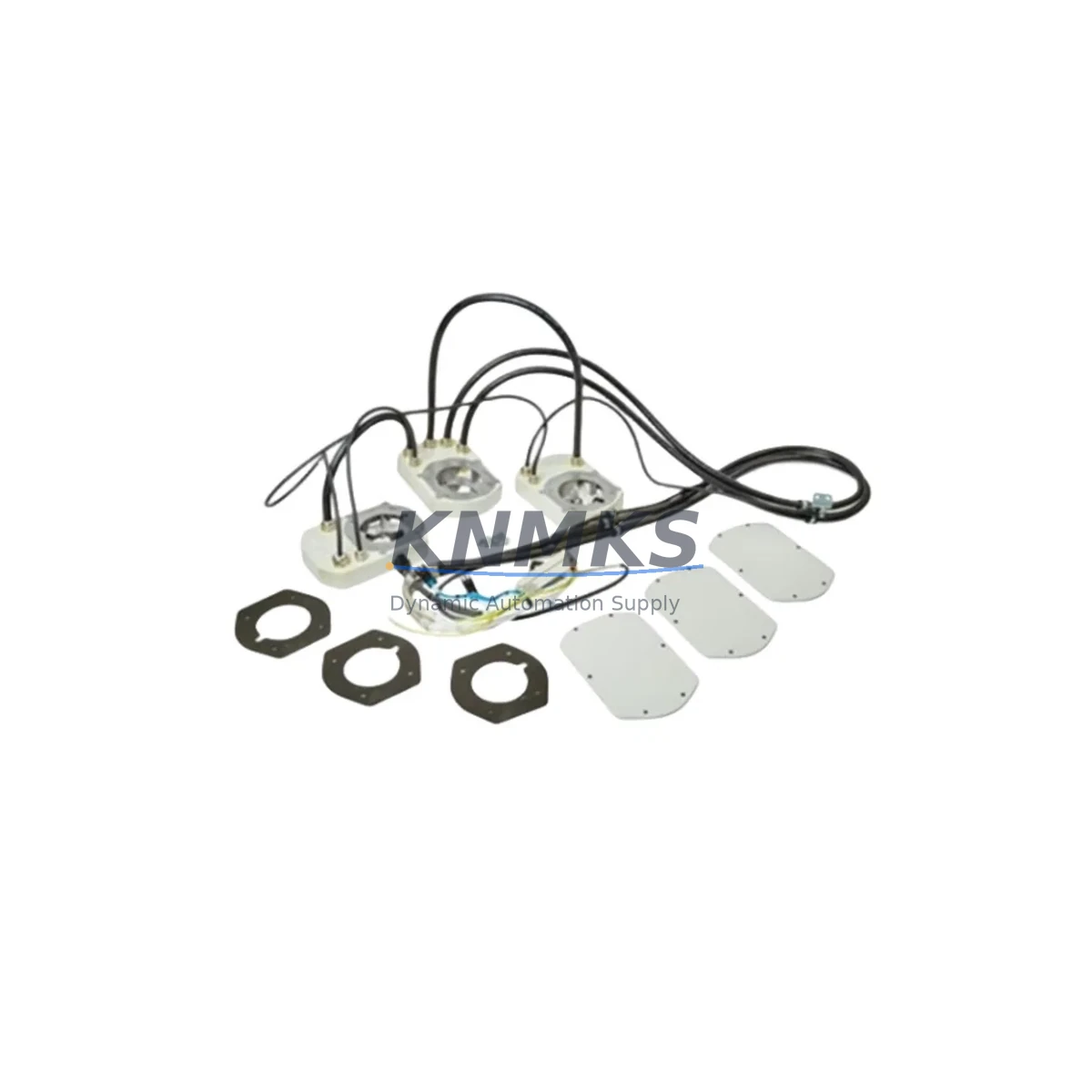

ABB 3HAC12326-1 Migration-Ready Axis Cable for IRB4400

Overview

ABB 3HAC12326-1 Migration-Ready Axis Cable for IRB4400: Legacy System Retrofit & Compatibility Upgrade

The ABB 3HAC12326-1 is a factory-specification axis 1–3 cable assembly designed for the IRB4400 industrial robot platform — one of ABB’s most widely deployed six-axis manipulators in automotive, foundry, and general manufacturing environments. As the IRB4400 series approaches end-of-support lifecycle, maintenance engineers and system integrators face increasing pressure to source reliable replacement cables that preserve original wiring topology, connector pinout, and signal integrity without triggering a full robot replacement cycle. The 3HAC12326-1 directly addresses this challenge: it is a migration-ready, drop-in cable assembly that replaces the legacy 3HAC8304-1 and 3HAC050567-001 part numbers with no modification to the robot’s internal harness routing or controller interface.

This cable assembly covers the axis 1–3 motor and resolver signal paths within the IRB4400 lower arm and base section. Correct cable routing, connector seating, and strain relief positioning are critical during installation — particularly in high-cycle applications where cable fatigue at the axis 1 pivot is a common failure mode. Each unit supplied by KNMKS undergoes pre-shipment continuity and insulation resistance testing to confirm full electrical integrity before dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRB4400 cable retrofit requires more than sourcing the correct part number. Engineers planning a lower-arm cable replacement should begin by auditing the full cable harness condition from the base to the axis 3 wrist junction. In many aging IRB4400 installations, the axis 1–3 cable failure is accompanied by degradation in the axis 4–6 cable set (3HAC12327-1), the SMB (Serial Measurement Board) connection harness, and the teach pendant cable routed through the controller cabinet. Addressing these concurrently during a planned maintenance window significantly reduces the risk of a secondary unplanned outage within the same production quarter.

On the controller side, IRB4400 systems running on the ABB S4C+ controller platform should verify that the DSQC 503 I/O board and DSQC 508 axis computer are functioning correctly before cable replacement, as intermittent axis faults are sometimes misdiagnosed as cable failures when the root cause lies in the drive module or measurement board. If the installation is being migrated from an S4C to an IRC5 controller as part of a broader modernization project, the axis cable pinout must be cross-referenced against the IRC5 motor cable standard — a transition harness or re-termination at the motor connector may be required.

For facilities managing multiple IRB4400 units across a production line, it is advisable to maintain a minimum buffer stock of the 3HAC12326-1 alongside the axis 4–6 counterpart and the SMB battery unit (3HAC044075-001) to support rapid swap-out during scheduled downtime. The IRB4400’s cable replacement procedure is documented in ABB’s mechanical maintenance manual; however, field engineers should pay particular attention to the cable clamp torque specifications at the axis 1 housing and the correct re-routing sequence through the lower arm cable guide to prevent premature wear at the bend radius.

Downtime Control During System Migration

Minimizing production downtime during an IRB4400 cable replacement is achievable with disciplined pre-work. Before the maintenance window opens, engineers should export and archive the current RAPID program, system parameters, and I/O configuration from the S4C+ or IRC5 controller using the FlexPendant or RobotStudio backup function. This ensures that if a controller reboot or parameter reset is triggered during the cable swap, the original program logic and axis calibration data can be restored without re-teaching the robot’s work object positions.

During the physical cable replacement, the robot should be positioned at the mechanical zero (calibration position) and the controller placed in manual mode with motors off. The axis 1–3 cable connectors at both the motor end and the controller cabinet entry point should be photographed before disconnection to document the original routing. After the 3HAC12326-1 is installed and connectors are fully seated, a resolver calibration check should be performed using the fine calibration routine on the FlexPendant before returning the robot to automatic mode. In most cases, a correctly installed replacement cable will not require re-calibration of the axis offsets, but verification is mandatory before resuming production.

For lines where continuous operation is critical, a parallel robot or offline simulation in RobotStudio can be used to maintain throughput during the maintenance window. Where this is not possible, coordinating the cable replacement with a scheduled tool change or end-effector service interval is the most effective strategy for containing total downtime to under two hours for a single-robot installation.

Retrofit Support FAQ

Q1: Does the 3HAC12326-1 directly replace both 3HAC8304-1 and 3HAC050567-001 without any wiring modification?
Yes. The 3HAC12326-1 is the current ABB-designated replacement for both legacy part numbers. Connector pinout, cable length, and routing geometry are identical to the original specification for the IRB4400 axis 1–3 position. No adapter, re-termination, or harness modification is required for standard IRB4400 installations on S4C or S4C+ controllers.

Q2: Is pre-shipment testing included, and what does it cover?
Yes. Every 3HAC12326-1 unit dispatched by KNMKS undergoes a pre-shipment test protocol that includes full conductor continuity verification across all signal and power cores, insulation resistance measurement to confirm no inter-conductor leakage, and visual inspection of connector housings, strain relief boots, and cable jacket integrity. A test record is available upon request.

Q3: What is the support terms coverage and how is a claim handled?
All units are covered by a support terms confirmed by quotation from the date of shipment. Support terms coverage applies to manufacturing defects in materials and workmanship under normal operating conditions. To initiate a support terms claim, contact KNMKS at [email protected] with the order reference, installation date, and a description of the fault. Replacement units are dispatched subject to fault confirmation.

Q4: Can this cable be used on an IRB4400 that is being migrated to an IRC5 controller?
The 3HAC12326-1 is specified for S4C and S4C+ controller platforms. For IRC5 migration projects, the motor cable interface standard differs at the drive module end, and a transition harness or re-termination is typically required. KNMKS recommends consulting the ABB IRC5 migration guide and confirming the motor connector pinout with your system integrator before ordering for an IRC5 retrofit application. Contact [email protected] for application-specific guidance.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB44003HAC12326-1 IRB44004-63HAC8304-1 IRB44003HAC050567-001
IRC5 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: ABB IRB44003HAC12326-1 IRB44004-63HAC8304-1 IRB44003HAC050567-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
