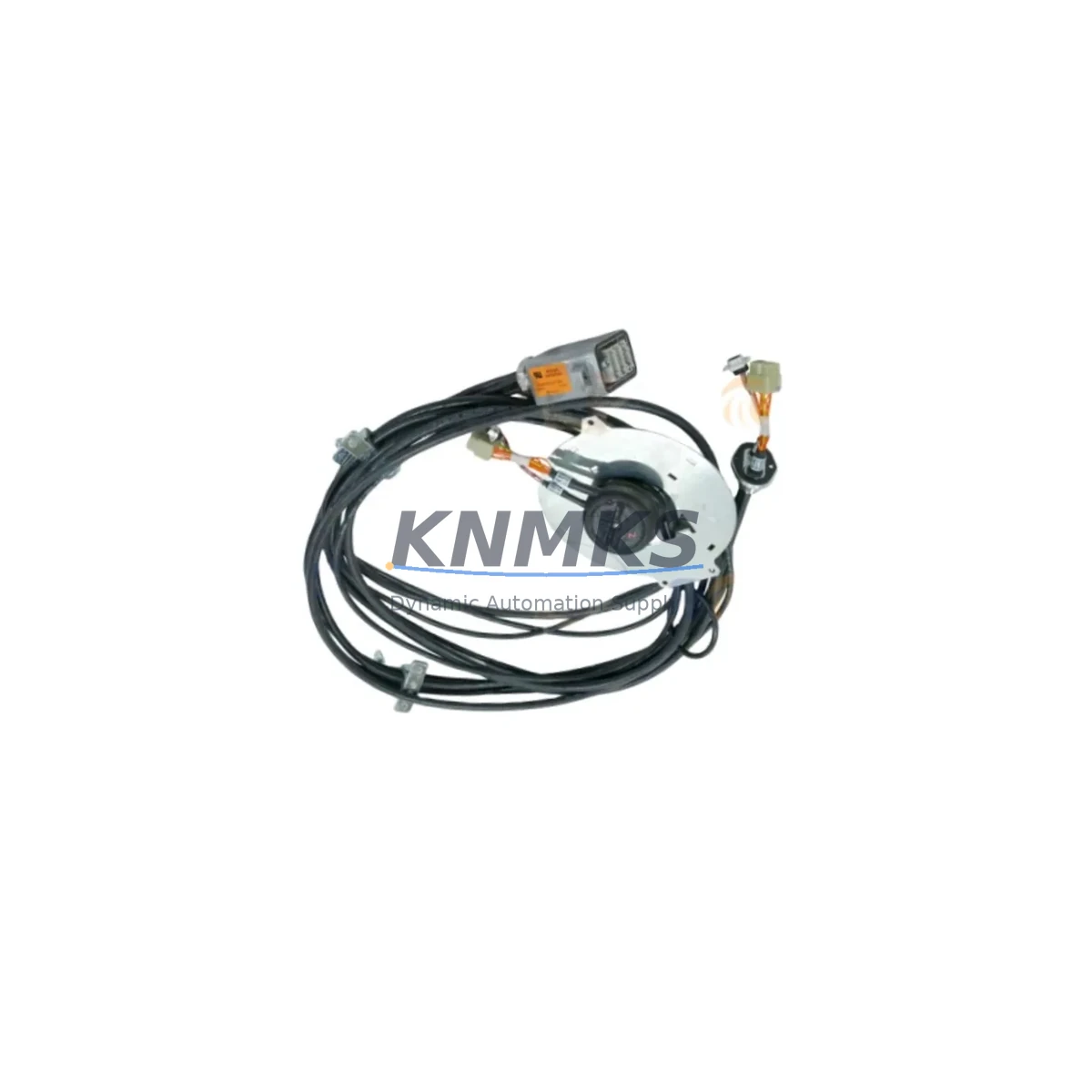

The ABB 3HAC11440-1 is an original OEM cable harness designed for ABB IRB series industrial robots, specifically serving the Axis 5–6 wrist assembly. In high-cycle manufacturing environments — automotive body shops, arc welding cells, material handling lines, and precision assembly stations — the integrity of the robot wrist cable harness is a direct determinant of system uptime. A degraded or failed 3HAC11440-1 manifests as erratic axis movement, communication faults on the robot controller, or complete loss of end-effector signal continuity. Stocking a verified replacement before failure occurs is the single most effective strategy for eliminating unplanned downtime on ABB IRB robot cells.

This unit is sourced as a genuine ABB spare, subjected to pre-shipment electrical continuity and insulation resistance testing, and ships with a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions. Each unit is individually packaged to prevent transit damage to the connector housings and cable jacket.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 3HAC11440-1 cable harness, the work order should extend beyond the harness itself. The wrist cable harness interfaces directly with the robot’s internal signal distribution, and a harness failure is frequently accompanied by — or caused by — stress on adjacent components. During the same maintenance window, engineers should inspect and, where service intervals dictate, replace the ABB 3HAC14550-2 motor cable for Axis 5, which shares the same dress pack routing and experiences comparable flex fatigue. The ABB 3HAC17484-1 SMB battery unit should be checked for charge state, as a depleted SMB battery can cause axis calibration loss that mimics harness faults during diagnostics.

At the controller level, the ABB IRC5 DSQC 662 I/O module or equivalent digital I/O board should be verified for signal integrity — a degraded harness can induce transient faults that stress I/O input circuits over time. The ABB DSQC 508 axis computer or its series equivalent should be checked for fault logs related to Axis 5–6 communication errors, which may indicate that the harness degradation has been ongoing. For cells using servo welding guns or force-controlled end effectors, the ABB 3HAC025338-001 teach pendant cable and FlexPendant connection should also be inspected, as vibration-induced wear patterns often affect multiple cable assemblies simultaneously.

Procurement engineers building annual spare parts budgets for ABB IRB robot cells should treat the 3HAC11440-1 as a Tier-1 critical spare — one unit per robot per annual cycle is the standard recommendation for high-duty-cycle applications exceeding 6,000 operating hours per year. For lower-utilization cells, a shared pool of two units per four robots provides adequate coverage while minimizing carrying cost.

Site Replacement Workflow

Replacing the ABB 3HAC11440-1 on-site follows a structured procedure to minimize downtime and ensure system compatibility is maintained without controller reconfiguration:

1. Safe State Preparation: Place the robot in a safe maintenance position (typically the calibration position), engage the mechanical brake, and isolate the IRC5 or S4C+ controller at the main disconnect. Verify zero-energy state with a lockout/tagout procedure before opening the wrist dress pack.

2. Harness Removal: Photograph the existing cable routing before disconnection. Disconnect the Axis 5 and Axis 6 motor connectors at the wrist, release the cable clamps along the upper arm dress pack, and carefully extract the harness through the arm tube. Note any signs of jacket abrasion, connector pin damage, or heat discoloration that may indicate a root cause beyond normal wear.

3. New Harness Installation: Route the 3HAC11440-1 replacement following the original routing path and ABB Product Manual specifications. Seat all connectors fully until the locking tab engages. Reinstall cable clamps at the specified torque. Do not over-bend the harness at the wrist transition point.

4. Functional Verification: Power up the controller and perform a full axis movement test across the Axis 5–6 range of motion. Verify no fault codes are generated in the IRC5 event log. Confirm end-effector signal continuity if applicable. Log the replacement in the robot’s maintenance record with the part number, date, and operating hours at replacement.

This procedure is compatible with both IRC5 and S4C+ controller platforms and requires no software changes, making it a straightforward field replacement that an experienced maintenance technician can complete within a standard maintenance shift.

Spare Parts Support FAQ

Q1: Is the 3HAC11440-1 compatible with all IRB robot variants?
The 3HAC11440-1 is the standard Axis 5–6 cable harness for the ABB IRB 1400, IRB 2400, and IRB 4400 series. Compatibility with specific robot build dates and option configurations should be verified against the robot’s serial number plate and the ABB spare parts catalog. Our technical team can assist with cross-referencing if you provide the robot serial number.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC11440-1 unit undergoes electrical continuity testing across all signal and power conductors, insulation resistance verification, and physical inspection of connector housings and cable jacket integrity before dispatch. A test record is available upon request.

Q3: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects and premature failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, mechanical abuse, or operation outside the specified environmental parameters. Support requests are processed directly through our sales team.

Q4: Can you support long-term or blanket purchase orders for ongoing spare parts programs?
Yes. We support annual blanket orders, scheduled release programs, and consignment stock arrangements for maintenance teams managing multiple ABB robot cells. Long-term supply agreements help lock in pricing and ensure stock availability for critical spares. Contact our sales team to discuss program terms.
