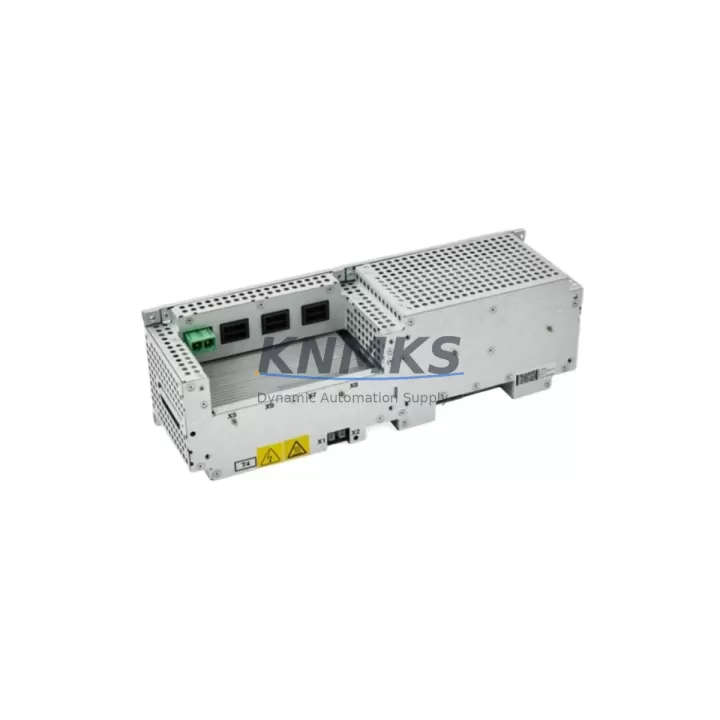

ABB 3HAC063913-001 DSQC3041 Fail-Safe Axis Drive

Overview

ABB 3HAC063913-001 DSQC3041 Fail-Safe Axis Drive: Fault-Protected Reliability for Critical Industrial Control

The ABB 3HAC063913-001 DSQC3041 is a safety-rated axis drive module engineered for the ABB IRC5 robot controller platform. Designed to sustain continuous, uninterrupted motion control in demanding industrial environments, this module delivers fail-safe axis management across six robot axes, ensuring that servo drive faults, power fluctuations, and communication anomalies do not cascade into unplanned production shutdowns. Whether deployed in automotive body-in-white welding cells, foundry material handling, chemical process automation, or high-throughput palletizing lines, the DSQC3041 provides the control integrity that safety-critical applications demand.

In continuous production environments where a single axis fault can halt an entire line, the 3HAC063913-001 is engineered to minimize mean time to repair (MTTR). Its modular form factor within the IRC5 cabinet allows rapid hot-swap replacement without full controller disassembly, reducing intervention time and restoring safe operation quickly. The drive module interfaces directly with the IRC5 main computer board — typically paired with the DSQC1000 main computer or DSQC1018 drive unit — forming a tightly integrated safety loop that monitors axis torque, position feedback, and motor current in real time.

Signal integrity is a persistent challenge in heavy industrial environments. The DSQC3041 incorporates robust EMI shielding and surge suppression circuitry, protecting axis control signals from the high-frequency interference generated by adjacent variable frequency drives (VFDs), large contactors, and arc welding equipment. In foundry and smelting environments where electromagnetic noise levels are extreme, this protection prevents signal drift and spurious axis movements that could compromise both product quality and personnel safety. The module’s design also accounts for thermal stability, maintaining reliable operation across the full IRC5 cabinet operating temperature range, even in poorly ventilated enclosures or high-ambient-temperature production halls.

For facilities operating in dusty, humid, or chemically aggressive atmospheres — such as cement plants, water treatment stations, or offshore platforms — the DSQC3041’s sealed connector interfaces and conformal-coated PCB assemblies resist contamination ingress that would otherwise degrade insulation resistance and cause intermittent faults. Vibration resistance is equally critical in mining conveyors and port crane automation, where mechanical shock loads are continuous; the module’s reinforced mounting and component selection address these mechanical stress factors directly.

Power supply stability is foundational to axis drive reliability. The DSQC3041 operates in conjunction with the IRC5 power distribution board — such as the DSQC609 power supply unit — which conditions incoming AC mains and provides regulated DC bus voltage to the drive section. Surge events on the plant power network, whether from large motor starts or utility switching, are absorbed upstream, preventing DC bus overvoltage trips that would otherwise trigger protective shutdowns. In facilities with unstable grid quality, pairing the DSQC3041 with an appropriately rated UPS or line conditioner is recommended to maintain axis control continuity during voltage sags.

Communication reliability between the DSQC3041 and the IRC5 system bus is maintained through the controller’s internal backplane architecture. Unlike fieldbus-dependent external drives, the integrated IRC5 drive module eliminates the latency and packet-loss risks associated with EtherNet/IP or PROFIBUS connections to external servo amplifiers. This architecture is particularly valuable in safety-rated applications where the DSQC643 safety board or DSQC646 I/O module must receive deterministic axis status feedback to execute emergency stop and protective stop sequences within the required response time.

Spare parts availability and long-term supply continuity are critical considerations for facilities operating ABB IRC5 robots beyond their original service contracts. KNMKS maintains verified stock of the 3HAC063913-001 DSQC3041 with a committed support terms confirmed by quotation on every unit shipped. Each module undergoes pre-shipment functional testing — including drive enable verification, axis feedback signal integrity checks, and insulation resistance measurement — before dispatch. This testing protocol ensures that replacement units arrive ready for immediate installation, eliminating the risk of receiving a defective spare during a production emergency.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust IRC5 control cabinet protection strategy extends well beyond the axis drive module itself. The DSQC3041 (3HAC063913-001) operates as part of a layered protection architecture that begins at the power entry point. The DSQC609 power supply unit conditions incoming mains voltage and provides the regulated DC bus that the drive section depends on; any degradation in this upstream component directly impacts axis drive stability. Alongside power conditioning, the DSQC643 safety board enforces the IRC5 safety architecture — monitoring emergency stop chains, protective stop inputs, and speed supervision signals — and must receive reliable axis status data from the DSQC3041 to execute safe state transitions within specification.

I/O integrity is maintained through modules such as the DSQC652 digital I/O board, which handles discrete safety interlock signals from field devices including light curtains, safety mats, and door interlocks. Signal faults on these I/O channels — caused by cable degradation, connector corrosion, or induced noise — can trigger spurious protective stops that interrupt production unnecessarily. Regular inspection and replacement of aging I/O modules is therefore part of a comprehensive cabinet reliability program. The DSQC1000 main computer board coordinates all subsystems and must maintain firmware compatibility with the installed DSQC3041 drive module; mismatched firmware versions are a common source of unexplained axis faults following controller software updates. Ensuring that spare modules are sourced with compatible firmware baselines — or are updated prior to installation — is essential for seamless replacement.

Critical Industrial Safety Applications

The ABB 3HAC063913-001 DSQC3041 is deployed across a broad range of safety-critical industrial sectors. In petrochemical and refinery environments, IRC5-controlled robots perform inspection, valve actuation, and material transfer tasks in zones where uncontrolled axis movement could trigger catastrophic consequences; the DSQC3041’s fail-safe architecture ensures that drive faults result in controlled, safe stops rather than uncontrolled motion. In electric power generation and transmission facilities, robots equipped with IRC5 controllers perform high-voltage substation maintenance and transformer assembly tasks where axis precision and safety interlock integrity are non-negotiable.

In mining and mineral processing operations, IRC5 robots handle ore sampling, explosive loading, and conveyor maintenance in environments characterized by extreme dust, vibration, and temperature cycling — conditions that the DSQC3041’s environmental protection features are specifically designed to withstand. Water and wastewater treatment plants deploy IRC5 robots for pipe inspection, chemical dosing, and sludge handling in high-humidity, chemically aggressive atmospheres where PCB corrosion is a primary failure mode; conformal coating on the DSQC3041 directly addresses this risk. In metallurgical and steel mill applications, robots perform ladle handling, billet transfer, and furnace tending in extreme thermal environments where sustained axis drive reliability is essential to maintaining production throughput and worker safety. Port and maritime automation systems use IRC5 robots for container handling and ship-loading operations where salt air, humidity, and mechanical shock loads demand the highest levels of component durability.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 3HAC063913-001 DSQC3041?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional faults identified under normal operating conditions consistent with ABB IRC5 specifications. Units that fail within the confirmed support period are replaced or repaired at no additional cost. The confirmed support period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each DSQC3041 unit?
Every unit undergoes a structured pre-shipment test protocol including drive enable circuit verification, axis feedback signal integrity measurement across all six axis channels, DC bus voltage regulation check, and insulation resistance testing on power and signal connectors. Test results are documented and available upon request for quality audit purposes.

Q3: Is the 3HAC063913-001 compatible with all IRC5 controller variants and software versions?
The DSQC3041 is designed for the ABB IRC5 platform. Compatibility with specific IRC5 cabinet variants (Single Cabinet, Dual Cabinet, Panel Mounted) and RobotWare software versions should be confirmed against the installed controller configuration. KNMKS technical support can assist with compatibility verification prior to order placement to ensure the correct module is supplied for your specific installation.

Q4: Can KNMKS support long-term spare parts supply agreements for the DSQC3041?
Yes. KNMKS supports B2B long-term supply agreements for the 3HAC063913-001 DSQC3041, including scheduled delivery programs, reserved stock allocation, and multi-site supply coordination. Long-term agreements are available for facilities requiring guaranteed spare parts availability over 12–36 month horizons, supporting planned maintenance programs and minimizing unplanned downtime risk.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC063913-001 DSQC3041
IRC5 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3HAC063913-001 DSQC3041
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
