ABB 3HAC062340-003 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC062340-003 Maintenance-Proven Spare Part for Factory Uptime

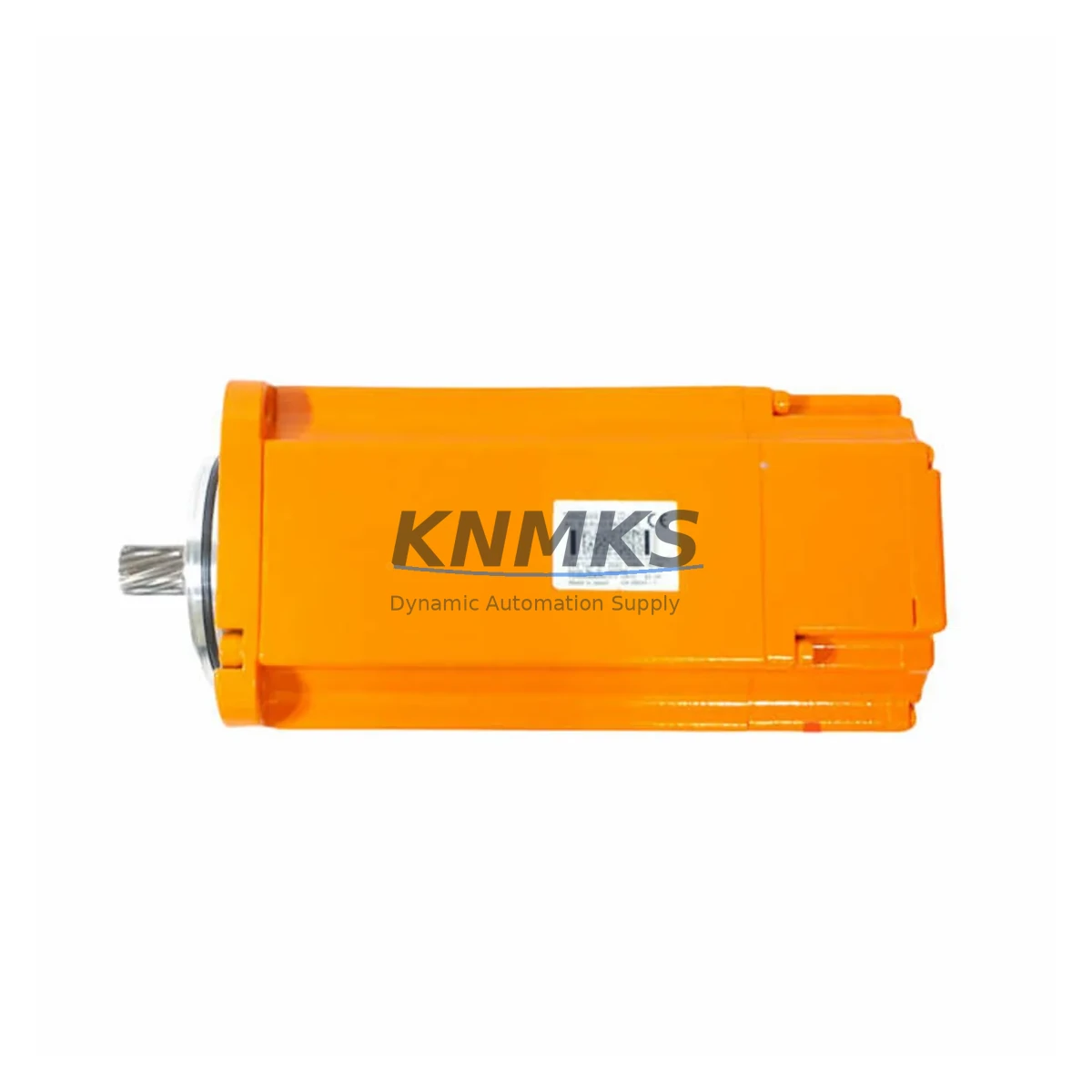

The ABB 3HAC062340-003 is an original AC servo motor designed for ABB IRB series industrial robots and automation systems. As a critical motion-control component, this spare part is essential for maintenance engineers managing robot joint drives, axis actuators, and servo feedback loops in continuous production environments. Whether you are executing a planned annual overhaul, responding to an unscheduled axis fault, or building a strategic spare parts inventory for a multi-robot cell, the 3HAC062340-003 delivers the dimensional accuracy, encoder compatibility, and torque specification required to restore full robot performance without system reconfiguration.

KNMKS supplies this unit as a genuine ABB spare, pre-shipment tested under load conditions, and backed by a support terms confirmed by quotation covering electrical and mechanical performance. Each unit is inspected for encoder signal integrity, winding insulation resistance, and shaft runout before dispatch. Global logistics support is available for urgent downtime recovery, with documentation packages provided on request for maintenance records and audit compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3HAC062340-003 in an IRB robot axis, a disciplined maintenance engineer will treat the servo motor swap as a trigger for a broader drive-train inspection. The IRC5 drive module or OmniCore axis computer that commands this motor should be checked for fault history logs, DC bus voltage stability, and IGBT thermal performance — a degraded drive unit can shorten the service life of a new motor within weeks. The motor power cable and resolver/encoder cable (typically ABB cable assemblies such as the 3HAC044075-001 series) should be inspected for insulation damage, connector pin corrosion, and shield continuity; a compromised signal cable is a common root cause of recurring axis faults that are misdiagnosed as motor failures.

The axis brake — often a separate 24 VDC spring-applied brake module integrated into the motor housing — should be tested for holding torque and release voltage after any servo replacement. Brake relay boards within the IRC5 cabinet, including the DSQC series safety relay modules, are wear items that should be verified during the same maintenance window. Terminal blocks and cable glands at the motor junction box are frequently overlooked; corroded terminals introduce resistance that distorts encoder feedback and triggers nuisance faults under load.

For robot cells operating in high-cycle environments, maintenance planners should also review the robot controller’s SMB (Serial Measurement Board), which manages encoder data from all axes. A failing SMB can produce axis position errors that mimic servo motor faults. Keeping a spare SMB unit alongside the 3HAC062340-003 in your cabinet spares kit is a low-cost insurance policy against extended downtime. Similarly, the teach pendant cable and FlexPendant unit should be confirmed operational before returning the robot to automatic mode, as communication faults between the pendant and IRC5 can prevent axis commissioning after a motor replacement.

Procurement engineers sourcing the 3HAC062340-003 for multi-site operations should consider consolidating orders to qualify for volume pricing and to establish a documented supply chain for audit purposes. KNMKS supports 12–36 month blanket supply agreements, ensuring consistent part availability across planned maintenance cycles without the lead-time risk associated with spot purchasing from distribution channels.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the IRC5 or OmniCore controller, apply LOTO (Lockout/Tagout) to the main disconnect, and verify zero-energy state on the DC bus using a calibrated multimeter. Allow capacitor discharge time per ABB safety guidelines before opening the controller cabinet.

Step 2 — Fault Log Review: Before removing the motor, retrieve the robot controller’s event log. Document all axis-specific fault codes (e.g., 50071 Motor Current Error, 50301 Joint Measurement Error) to confirm the 3HAC062340-003 is the primary failure source and not a symptom of an upstream drive or encoder cable fault.

Step 3 — Motor Removal: Disconnect the motor power connector and encoder/resolver connector at the axis junction. Remove the axis cover and unfasten the motor flange bolts in the sequence specified in the ABB IRB product manual. Support the motor weight during extraction to avoid damage to the gearbox input shaft.

Step 4 — New Unit Installation: Verify the replacement 3HAC062340-003 part number, serial number, and encoder type match the removed unit. Install in reverse order, torque flange bolts to specification, and reconnect all cables. Confirm shield grounding at both ends of the encoder cable.

Step 5 — Commissioning and Calibration: Power up the controller and perform axis calibration using the ABB RobotStudio calibration routine or the teach pendant calibration wizard. Verify axis position feedback, run a slow-speed jog test across the full range of motion, and confirm no fault codes are generated before returning to automatic production mode.

Step 6 — Documentation: Record the replaced part number, serial number, installation date, and calibration results in the plant maintenance management system (CMMS). Retain the pre-shipment test certificate from KNMKS for support terms and audit records.

Spare Parts Support FAQ

Q1: Is the 3HAC062340-003 compatible with both IRC5 and OmniCore robot controllers?
The 3HAC062340-003 is an axis servo motor designed for specific IRB robot models. Compatibility depends on the robot model and axis number, not solely the controller generation. Confirm the robot model number and axis assignment against the ABB spare parts catalog or contact KNMKS with your robot serial number for a compatibility verification before ordering.

Q2: What pre-shipment testing does KNMKS perform on this unit?
Every 3HAC062340-003 dispatched by KNMKS undergoes a load run test, encoder signal integrity check, winding insulation resistance measurement (Megger test), and shaft runout inspection. A test certificate is available on request and can be included with the shipment documentation for your maintenance records.

Q3: How should I manage long-term inventory for this spare part given ABB’s product lifecycle?
ABB IRB series robots have operational lifespans of 15–25 years, and servo motor spares for older IRB models can become scarce as production transitions to newer platforms. KNMKS recommends a minimum stock of one unit per robot cell for high-criticality lines, with a 12–36 month supply agreement to lock in pricing and availability. This approach eliminates spot-purchase lead-time risk and supports annual maintenance budget planning.

Q4: What is covered under the support terms confirmed by quotation, and what is the claims process?
The support terms confirmed by quotation cover electrical failures (winding short, encoder signal loss, insulation breakdown) and mechanical defects (bearing failure, shaft damage) under normal operating conditions. Support requests are initiated by contacting KNMKS at [email protected] with the unit serial number, fault description, and installation date. KNMKS will arrange return logistics and provide a replacement or repair within an agreed lead time to minimize production impact.
