ABB 3HAC059654-001 Fail-Safe Wrist Unit for Industrial Reliability

Overview

ABB 3HAC059654-001 Fail-Safe Wrist Unit for Industrial Control Reliability

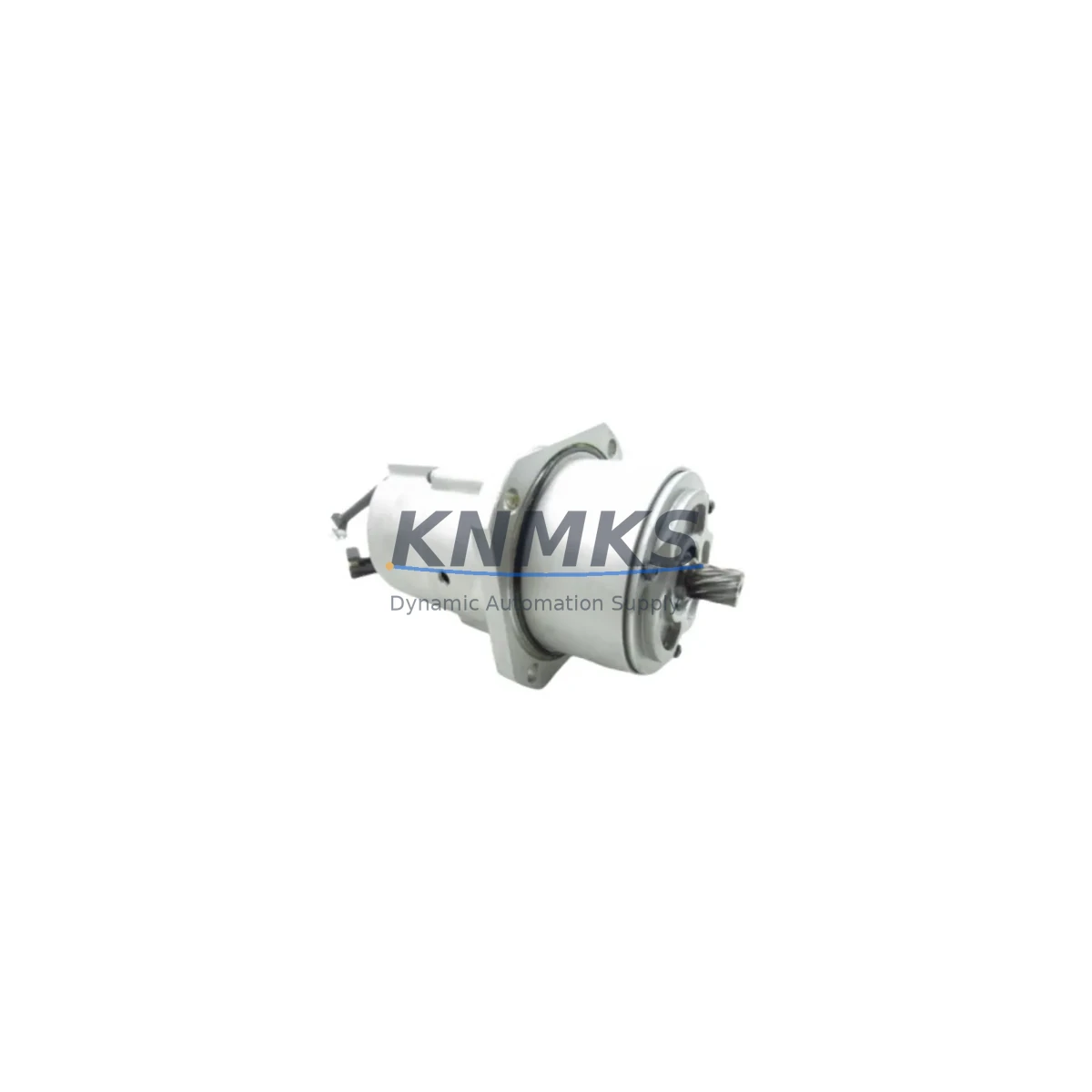

The ABB 3HAC059654-001 is a precision-engineered wrist unit assembly designed for the ABB IRB6700 series industrial robot platform — one of the most widely deployed heavy-payload robotic systems in continuous manufacturing, automotive body-in-white, foundry, and heavy fabrication environments. This wrist unit module serves as a critical mechanical and electromechanical interface between the robot forearm and the end-of-arm tooling, directly governing the accuracy, repeatability, and fail-safe behavior of axes 4, 5, and 6 in high-cycle, high-load production cells.

In safety-critical industrial environments — including petrochemical processing lines, steel mill automation, port crane control systems, and continuous casting operations — an unplanned wrist unit failure does not merely cause downtime. It can trigger cascading interlock faults, disrupt safety relay circuits, and force emergency shutdowns across entire production zones. The 3HAC059654-001 is built to minimize this risk through robust mechanical tolerancing, sealed bearing assemblies, and full compatibility with ABB’s IRC5 and OmniCore controller platforms, ensuring that motion control signals remain stable and that axis feedback loops do not drift under thermal cycling, vibration, or high electromagnetic interference conditions common in heavy industrial cabinets.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including mechanical backlash inspection, connector integrity checks, and seal condition assessment, before dispatch. This process ensures that replacement units arrive ready for immediate installation without requiring additional workshop preparation — a critical advantage when minimizing mean time to repair (MTTR) in facilities operating 24/7 production schedules.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB 3HAC059654-001 as part of a structured spare parts strategy requires attention to the broader control architecture in which the IRB6700 operates. In a typical heavy-payload robotic cell, the wrist unit works in close coordination with the ABB DSQC1000 IRC5 main computer board, which manages real-time motion path execution and safety supervision. Any degradation in wrist axis feedback — caused by a worn or damaged wrist unit — can generate axis deviation faults that propagate to the main controller and trigger safety-rated emergency stops across the cell.

To protect against power-related stress on the drive system, facilities commonly pair the IRB6700 with ABB UPS modules and drive filter units within the IRC5 cabinet, ensuring that voltage transients and surge events during grid switching do not corrupt axis position data or damage resolver circuits within the wrist assembly. Similarly, the ABB DSQC663 axis computer — responsible for servo loop management on axes 4 through 6 — must be maintained in parallel with the wrist unit to ensure that a mechanical replacement does not expose a latent electronic fault in the drive chain.

In environments with high dust ingress, coolant mist, or condensation risk — such as foundry lines or wet-process manufacturing — the ABB IRB6700 Foundry Prime variant and its associated sealed wrist assemblies provide an additional layer of protection. Facilities operating standard IRB6700 units in such conditions should ensure that wrist unit seals are inspected at each planned maintenance interval and that a verified spare such as the 3HAC059654-001 is held on-site to enable same-shift replacement without waiting for international logistics. Complementary components such as the ABB 3HAC044168-001 motor unit and associated cable harnesses for axes 4–6 should also be included in the critical spare parts inventory to ensure a complete corrective maintenance capability.

Critical Industrial Safety Applications

The ABB 3HAC059654-001 wrist unit is deployed across a broad range of safety-critical and production-critical industrial environments where robot uptime directly determines facility output and personnel safety:

Automotive and Heavy Fabrication: In body-in-white welding lines and press-tending cells, the IRB6700 operates at high cycle rates with precise positional repeatability requirements. A wrist unit failure in this context can halt an entire transfer line, triggering downstream assembly stoppages. Maintaining a verified spare of the 3HAC059654-001 is standard practice in Tier 1 automotive supplier facilities.

Petrochemical and Refinery Automation: Where robotic systems are used for valve actuation, inspection, or material handling in classified hazardous zones, axis reliability is directly linked to process safety. Unexpected axis faults in these environments can compromise interlock sequences and require manual intervention in areas with restricted access.

Steel and Metallurgy: Continuous casting lines and hot rolling mills subject robotic wrist assemblies to extreme thermal gradients and vibration. The sealed bearing design of the 3HAC059654-001 provides resistance to particulate contamination and thermal shock, supporting reliable operation in these demanding conditions.

Port and Heavy Logistics Automation: Robotic palletizing and container handling systems in port environments operate in high-humidity, salt-air conditions. Wrist unit integrity is essential to maintaining the positional accuracy required for safe load handling and preventing dropped-load incidents.

Water and Wastewater Treatment: Automated dosing, sampling, and valve control systems in water treatment facilities require consistent axis performance in humid, chemically aggressive environments. The 3HAC059654-001’s sealed construction supports reliable long-term operation in these conditions.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the ABB 3HAC059654-001?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Support requests are supported by our technical team with replacement dispatch prioritized for critical production environments.

Q2: What pre-shipment testing is performed before dispatch?
Each 3HAC059654-001 unit undergoes a structured pre-shipment inspection covering mechanical backlash and bearing condition, connector pin integrity and seating, external seal and housing condition, and part number verification against ABB documentation. This process ensures that units arrive installation-ready and reduces on-site commissioning time.

Q3: Is this unit compatible with all IRB6700 variants and IRC5 cabinet configurations?
The 3HAC059654-001 is designed for the ABB IRB6700 platform and is compatible with IRC5 and OmniCore controller configurations. Compatibility should be verified against the specific robot serial number and axis configuration using ABB’s spare parts documentation or by consulting our technical team prior to ordering.

Q4: Can long-term supply and repeat orders be arranged for maintenance programs?
Yes. KNMKS supports structured spare parts programs for facilities requiring scheduled replenishment of critical robot components. We maintain stock of the 3HAC059654-001 and related IRB6700 spare parts to support 12-month and 36-month maintenance planning cycles. Contact our team to discuss volume pricing, reserved stock arrangements, and priority dispatch agreements for your facility.
