ABB 3HAC059034-002 Fail-Safe Servo Drive for Industrial Control

Overview

ABB 3HAC059034-002 Fail-Safe Servo Drive for Industrial Control: Fault Protection and Critical Field Reliability

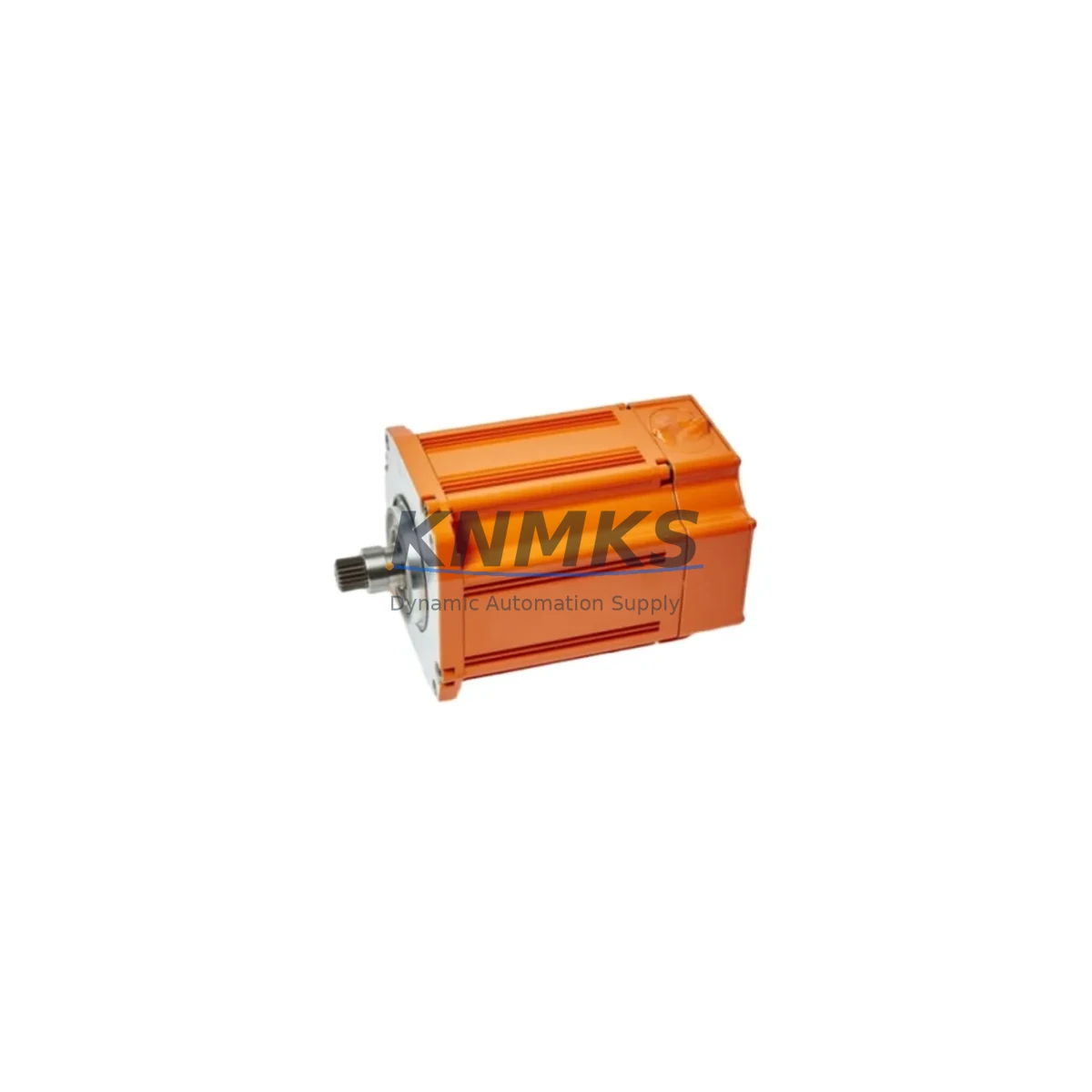

The ABB 3HAC059034-002 is a precision-engineered servo drive module designed for the ABB IRB6600 series industrial robot, one of the most widely deployed heavy-payload manipulators in automotive, foundry, metal fabrication, and continuous process manufacturing environments. In safety-critical automation architectures, the servo drive is not merely a motion controller — it is the last line of defense between a commanded motion profile and an uncontrolled mechanical event. The 3HAC059034-002 is built to that standard: ruggedized, pre-shipment tested, and backed by a support terms confirmed by quotation to support long-term field reliability and planned maintenance cycles.

Where production continuity is non-negotiable — petrochemical reactors, power generation turbine halls, mining conveyor systems, port crane automation, and metallurgical casting lines — servo drive failure translates directly into unplanned downtime, safety interlock activation, and costly recovery procedures. The ABB 3HAC059034-002 addresses this risk through robust internal architecture, tight tolerance manufacturing, and compatibility with ABB’s IRC5 controller platform, ensuring that motion commands are executed with the precision and repeatability that safety-rated robot cells demand.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The ABB IRB6600 control cabinet is a complex, high-density electrical environment. Reliable servo drive operation depends not only on the drive module itself, but on the integrity of the surrounding power, communication, and protection infrastructure. The 3HAC059034-002 operates within an IRC5 cabinet ecosystem where several interdependent components must function cohesively to prevent control interruption.

The ABB DSQC661 (Axis Computer Board) works in close coordination with the servo drive to manage motion trajectory execution and real-time axis supervision. Any degradation in the axis computer’s communication with the drive — whether from connector fatigue, firmware mismatch, or thermal stress — can trigger protective stops that halt the entire robot cell. Maintaining a verified spare of the 3HAC059034-002 alongside the DSQC661 is a recognized best practice in high-utilization robot installations.

Power supply stability is equally critical. The ABB DSQC604 power supply unit provides regulated DC voltage to the IRC5 drive system. Voltage sag, ripple, or transient surges — common in facilities with large motor starts or arc welding operations — can induce servo drive faults, encoder read errors, or axis overcurrent trips. A stable, properly rated power supply is the foundation on which the 3HAC059034-002 performs to specification.

Communication integrity between the robot controller and the servo drive is maintained through the ABB DSQC503 serial measurement board, which processes resolver and encoder signals from each robot axis. Signal drift or noise on these feedback lines — particularly in environments with high-frequency switching equipment — can cause position errors that the safety supervision system interprets as a fault condition. Shielded cabling, proper grounding, and periodic signal verification are essential maintenance steps in these installations.

For facilities operating IRB6600 robots in safety-rated collaborative or semi-collaborative zones, the ABB SafeMove2 safety supervision module adds a software-defined safety layer that monitors speed, position, and zone boundaries in real time. The 3HAC059034-002 must be fully functional and correctly parameterized for SafeMove2 to enforce its safety functions — a failed or degraded drive module can cause SafeMove2 to trigger a Category 0 or Category 1 stop, requiring a full safety validation cycle before resuming production.

Finally, surge and transient protection at the cabinet input — typically implemented via ABB OVR surge protective devices or equivalent DIN-rail mounted SPDs — prevents voltage spikes from grid switching events, lightning coupling, or large inductive load switching from reaching the sensitive drive electronics. In facilities without adequate surge protection, servo drive modules are among the first components to exhibit premature failure, making SPD installation a cost-effective reliability investment.

Critical Industrial Safety Applications

The ABB 3HAC059034-002 servo drive module supports IRB6600 deployments across some of the most demanding industrial environments in operation today.

In petrochemical and refinery facilities, IRB6600 robots perform valve manipulation, pipe welding, and inspection tasks in zones classified for explosive atmospheres. The servo drive’s reliable fault response — clean, controlled deceleration on fault detection rather than uncontrolled coasting — is essential for preventing mechanical collisions in confined process areas where secondary incidents carry severe consequences.

In electric power generation — including coal, gas, and nuclear facilities — IRB6600 robots are used for turbine component handling, fuel assembly manipulation, and maintenance tasks in high-radiation or high-temperature zones. Servo drive reliability directly affects the availability of these robotic work cells, which are often the only safe means of performing certain maintenance operations.

In mining and mineral processing, robots equipped with IRB6600 drives operate in environments with extreme dust loading, high vibration from blasting and crushing operations, and wide ambient temperature swings. The 3HAC059034-002’s ruggedized design supports sustained operation in these conditions, reducing the frequency of unplanned maintenance interventions that require personnel to enter hazardous areas.

In water and wastewater treatment, IRB6600 robots support pipe welding, pump maintenance, and chemical handling in corrosive, high-humidity environments. Servo drive integrity is critical for maintaining the precise motion control required in these applications, where positional errors can result in equipment damage or process contamination.

In metallurgical and foundry operations — including steel casting, aluminum smelting, and forging — IRB6600 robots operate in extreme thermal environments with radiant heat loads, metal splash risk, and heavy vibration. The servo drive must maintain consistent performance across wide thermal cycles, and the availability of a tested, warranted replacement unit is a key element of the site’s maintenance strategy.

In port and maritime logistics, IRB6600 robots support container handling, welding, and assembly operations in salt-air environments with high humidity and corrosive atmospheric conditions. Reliable servo drive operation ensures that robotic work cells meet the throughput targets that port logistics operations depend on.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the ABB 3HAC059034-002?
A: The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It includes replacement or repair of the module at no additional cost. Support requests are supported by our technical team, and replacement units are dispatched from in-stock inventory to minimize your downtime exposure.

Q: What pre-shipment testing is performed on the 3HAC059034-002 before dispatch?
A: Every unit undergoes 100% functional verification prior to shipment, including power-on testing, communication interface validation, and inspection for physical integrity. This ensures that the module you receive is ready for installation without requiring additional bench testing on your end.

Q: Is the 3HAC059034-002 compatible with all IRC5 controller variants used with the IRB6600?
A: The 3HAC059034-002 is designed for the ABB IRB6600 series in conjunction with the IRC5 controller platform. Compatibility with specific IRC5 cabinet variants (single cabinet, dual cabinet, or panel-mounted configurations) should be verified against your robot’s serial number and software version. Our technical team can assist with compatibility confirmation prior to order placement.

Q: Can you support long-term spare parts supply for the 3HAC059034-002?
A: Yes. We maintain stock of the 3HAC059034-002 and related IRB6600 drive system components to support planned maintenance programs, spare parts kits, and emergency replacement requirements. For facilities operating multiple IRB6600 units, we recommend establishing a consignment or scheduled replenishment arrangement to ensure critical spares are available without lead-time risk.
